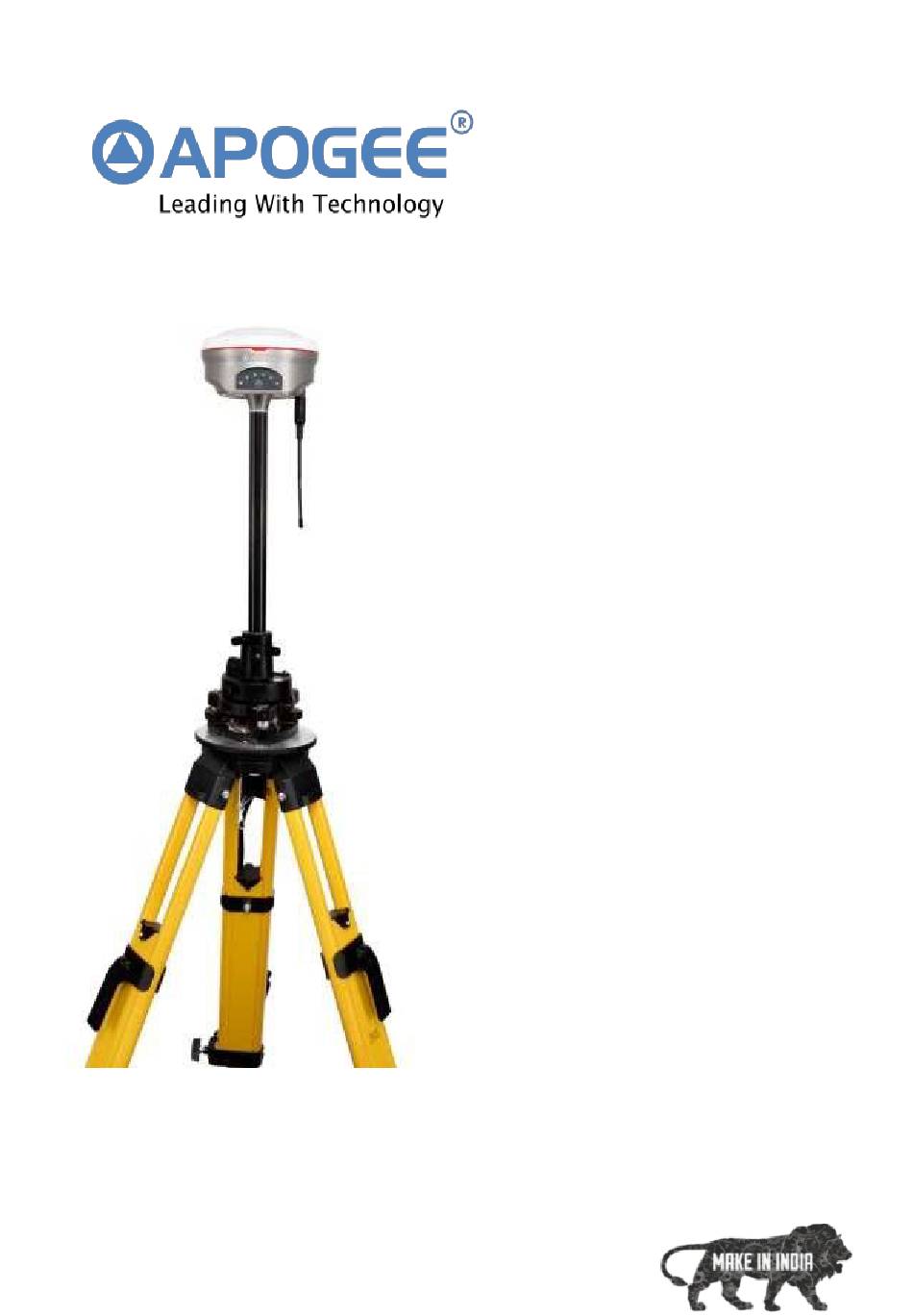

- Page 1 NAVIK 200 GNSS RECEIVER Quick Guide Version – 1.0 February 2022 @APOGEE GNSS PVT.LTD. (APGL)

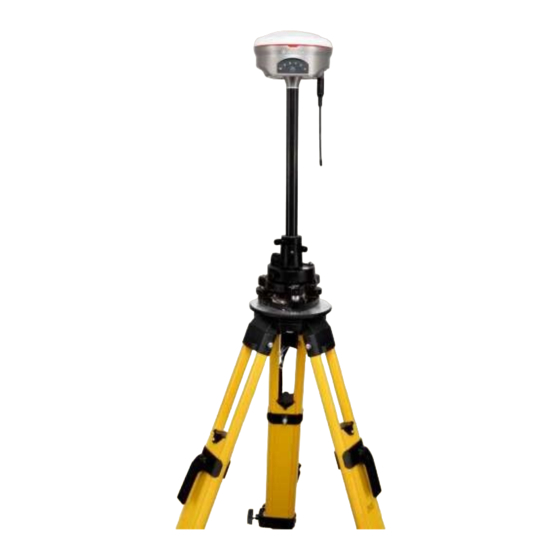

- Page 2 AGPL’s NAVIK 200 GNSS Receiver is an integrated receiver that incorporates a GNSS engine, GNSS antenna & batteries in a single rugged housing. NAVIK 200 receiver is a product incorporating a lot of market proven features and technologies. It is an ideal land survey product for surveyors.
- Page 3 PANEL There are two panels on NAVIK 200, the front (control panel) and the back (logo panel) Apogee GNSS NAVIK 200 Receiver The logo panel includes the following information: 1. Apogee GNSS Logo 2. Product Model 3. Receiver S/N 4. Receiver IMEI...
- Page 4 States Indicates Blinks five times Battery Low every second Normal Operation Battery Blinks every Charging second Remains in a solid Full Charge state Blinks five times Tracking Satellite every second Remains in a solid No Tracking state Transceiving Blinks once per Differential Data second...
- Page 5 Power the NAVIK 200 Receiver Button WORK MODES The work modes of NAVIK 200 includes static mode, PPK mode and RTK mode. The hardware configuration of two main modes is described as follows: STATIC MODE Place the NAVIK 200 on the survey point steadily using a tribrach, adapter and tripod setup.
- Page 6 Connection relation: (from the top to bottom, as shown above) 1 -> 2 -> CORS MODE CORS mode employs the network RTK technology with no need to set up your own base stations. Using NAVIK 200 as a rover, you can survey the feature point coordinates in real- time.
- Page 7 The hardware connection information of the CORS mode is as follows: Hardware component: NAVIK 200 Controller Range Pole Bipod ( optional ) Connection relation: (as shown above) 1 and 3 directly connected, 2 and 3 connected by a bracket support.
- Page 8 Laptop To download raw observation data in NAVIK 200 internal memory, 7-pin LEMO to USB cable can be used to link NAVIK 200 with your office computer with Apogee GNSS Suite software installed on it. Refer to user defined user Manual for further information.
