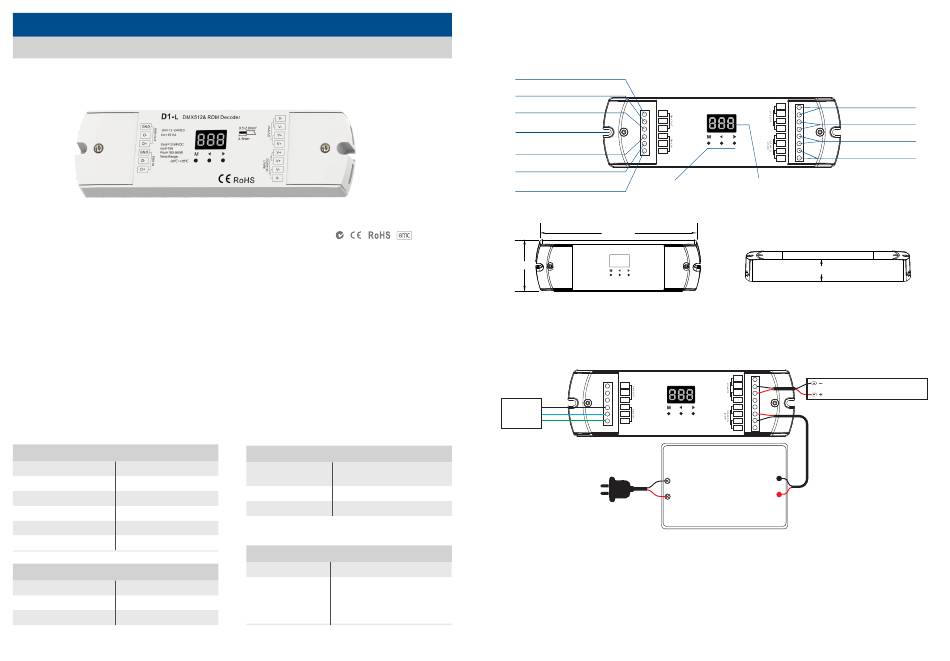

SuperLightingLED D1-L User Manual

1 Channel Constant Voltage DMX512 & RDM Decoder
Model No.: D1-L
RDM/Stand-alone function/Seven PWM frequency/

Features

● Comply with the DMX512 standard protocols.
● Digital numeric display, set DMX decode start address by buttons.
● RDM function can realize intercommunication between DMX master and decoder.
For example, DMX decoder address can be set by DMX master console.
● 16bit (65536 levels) /8bit (256 levels) grey level selectable.
● PWM frequency 250/500/1000/2000/4000/8000/16000Hz selectable.
● Logarithmic or linear dimming curve selectable.
● Stand-alone dynamic mode and dimmer mode selectable,
which be controlled by buttons with built-in programs, instead of DMX signal.
● Over-heat / Over-load / Short circuit protection, recover automatically

Technical Parameters

Input and Output

Input voltage 12-24VDC
Input current 15.5A
Output voltage
12-24VDC
Output current 1CH,15A
Output power 180-360W
Constant voltage
Output type
Environment
O O
Operation temperature Ta: -30 C ~ +55 C
Case temperature (Max.) O
T c: +75 C
IP rating
IP20
User Manual Ver 2.0.0
Logarithmic or linear dimming /Numeric display/Multiple protection
Safety and EMC
ETSI EN 301 489-1 V2.2.3
EMC standard (EMC)
ETSI EN 301 489-17 V3.2.4
Safety standard(LVD)
EN 62368-1:2020+A11:2020
Certification
CE,EMC,LVD

Warranty and Protection

5 years
Warranty
Reverse Polarity
Over-heat
Protection
Over-load
Short circuit

Mechanical Structures and Installations

GND
DMX output -
DMX output +
Installation rack
GND
DMX input -
DMX input +
LVD
50mm

Wiring Diagram

DMX
Master
AC100-240V
Note:
1. An DMX signal amplifier is needed if more than 32 decoders are connected, or use overlong signal line,
signal amplification should not be more than 5 times continuously.
2. If the recoil effect occurs because of longer signal line or bad line quality, please try to connect 0.25W
90-120Ω terminal resistor at the end of each DMX signal line.
D1-L 1 Channel Constant Voltage DMX512 & RDM Decoder
V-
GND V-
D- V+
D+ V+
GND V+
D- V+
D+ V-
V-
Setting key Digital display
170mm
V-
GND V-
D- V+
D+ V+
GND V+
D- V+
D+ V-
V-
Power Supply
12-24VDC
Constant Voltage
LED Output -
LED Output +
Power input +
Power input -
23mm
Single color LED strip
