DMX200 DMX-SPI Decoder
Product Specifications

Advertisement

loading
Need help?

Need help?

Do you have a question about the DMX200 and is the answer not in the manual?

Questions and answers

Related Manuals for SuperLightingLED DMX200

Summary of Contents for SuperLightingLED DMX200

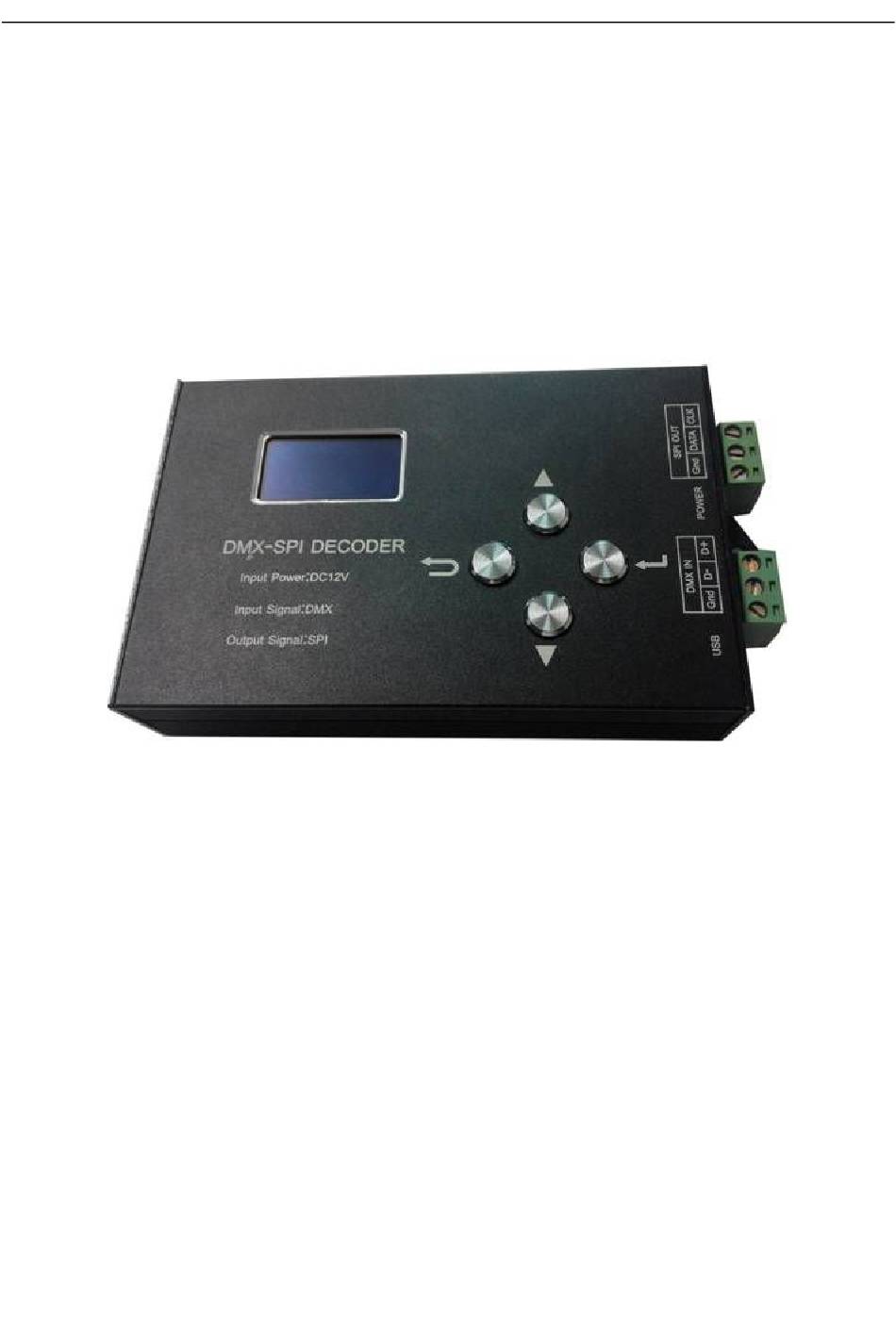

  • Page 1 DMX200 DMX-SPI Decoder Product Specifications...

  • Page 2: Table Of Contents

    Contents 1.Summarization ..............2 2.Technical Parameters..............2 3.Controller External Dimension............2 4.Interface Specification..............3 5. Button Instruction ..............3-4 6.Screen display instruction ............4-12 7.Typical Application..............13-14 1.Summarization DMX-SPI Decoder Product Specifications Page 1 of 14...

  • Page 3: Technical Parameters

    The DMX-SPI decoder adopts the advanced micro control unit, it receives standard DMX-512/1024 digital control signal that is widely used in the international and transformes it into SPI signal to drive LED, it supports 11 kinds of different model of lights, at the same time the port of DMX signal has lightning protection measures;...

  • Page 4: Button Instruction

    4.1 USB Micro interface: Download update procedure 4.2 DMX IN：Input interface of DMX signal, connected with ground、D- connected with negative of signal, Should be connected with positive of signal。 4.3 POWER: Input interface of power 4.4 SPI OUT: Output interface of SPI signal, GND connected with negative,DATA connected with data interface of light, CLK connected with clock interface of light.

  • Page 5: Screen Display Instruction

    "Down" button to select the project and adjust the Numbers 6.Screen display instruction Main screen DMX-SPI state of signal： no signal picture 1 mode： Automatically play 8~34 chip：WS2812B When open the default display the main screen, the first line shows the product name.The second line shows the signal state, when there is no connected with DMX controller, showed no signal, displays connected with the signal.The third line display mode, display the current use of effects, there is no DMX controller, defaults to using the built-in effects.The fourth...
  • Page 6 mode effect set up about mode effect all the mode effect 1 static red 2： static green ： ----------------------- 4:(8~34 ） Automatically play 1:static red 19:Green trail forward direction 2:static green 20: Green trail backward direction 3:Static blue 21:Blue trail forward direction 4:Static yellow 22:Blue trail backward direction 5:Static purple...
  • Page 7 picture 4 设 置 速 度 setting speed speed：xxx 6.1.3 Press the up, down key set mode speed, long hold up or down keys to accelerate the count, after speed set up ,you press "confirm button" to save, to complete pattern effects Settings, press the back key to exit and return the up higher level menu (picture 2).
  • Page 8 chip select color order light piexl Select chip select all the mode picture 6 1：LPD6803 1：LPD6803 N:------------------------ 2：TM1803 3：TM1809 N:------------------------ 4：TM1812 ---- 5：UCS1903 10:P9813 6：WS2811 7：WS2801 8：TLS3001 9：TLS3008 10：P9813 11：WS2812B 6.2.1.2 In ligth configuration screen,press up, down key to move the cursor to select”color order”,then press“confirmbutton”enter this menu setting,as following.
  • Page 9 灯条配置页面 芯片选择 颜色顺序 灯条像素 颜色顺序选择 颜色顺序全部选项 picture 7 1.RGB 1.RGB ------------ 2.RBG --------------- 3.GRB 4.GBR 5.BRG 6.BGR 6.2.1.3 In ligth configuration screen,press up, down key to move the cursor to select “light piexl’’,then press“confirmbutton”enter this menu setting,as following. ligth configuration screen light piexl Picture 8 piel qty：XXX...
  • Page 10 DMX configuration screen DMX starting address DMX channels qty Picture 9 DMX configuration to the default 6.2.2.2 In DMX configuration screen,press up,down keys to select “DMX starting address”,then press “confirm button”to start address setting. DMX start address set ting Picture 10 current address：XXXX 6.2.2.3 Press the up, down key set adding or reduceing address,long hold up or down keys to accelerate the count, after setted up ,you press "confirm button"...
  • Page 11 according to the configurations of DMX controller.If you want to use two decoders in the same DMX channels, can install according to the requirements parameters. For example: in the controller, DMX - 1024 with SPI decoder A and B, use a DMX channels, SPI decoder A need 256 channels, B need 768 channels, A start address is set to 1, channel qty set 256, B start address is set to 257, channel number is set to 768, so it can use a DMX controller with 1024 the number of...
  • Page 12 Ligth configuration DMX configuration Backlighting time Language Select backlight time All the mode ---------- 1 Minute For ever 3 Minute 5 Minute 10 Minute For ever Picture13 6.2.4 Language setting instruction 6.2.4.1 This product support simplified Chinese and English two languages, the default is using simplified Chinese, can be used by language Settings to change the language.

  • Page 13: Typical Application

    USB cable.When upgrading, please ready cable and upgrade file, and then connect the cable to the computer, press the DMX200 “confirm key”, connect the cable to DMX200, at that time PC can display mobile disk, so can loosen the confirm key.Open the disk management (my...
  • Page 14 7.2 With DMX communication, the light signal is double,only DATA light signal and CLK signal,use wire to connect. 7.3 Without DMX communication, the light signal is single,only DATA light signal ,use wire to connect. DMX-SPI Decoder Product Specifications Page 13 of 14...
  • Page 15 7.4 Without DMX communication, the light signal is double,only DATA light signal and CLK signal,use wire to connect. DMX-SPI Decoder Product Specifications Page 14 of 14...
