Installation and Operating Instructions for
ROBA -multiswitch Type 019._00.2
®

EMC-compatible Installation

The measure described for compliance with the EMC
directive is examined under laboratory conditions. It can
not be transferred obligatorily to the condition of a machine
or equipment due to deviations. The inspection tests the
individual components mayr
mayr -brake and is applicable for an input voltage of up to
®
500 VAC.
L1
line filter
L2
PE
Measure

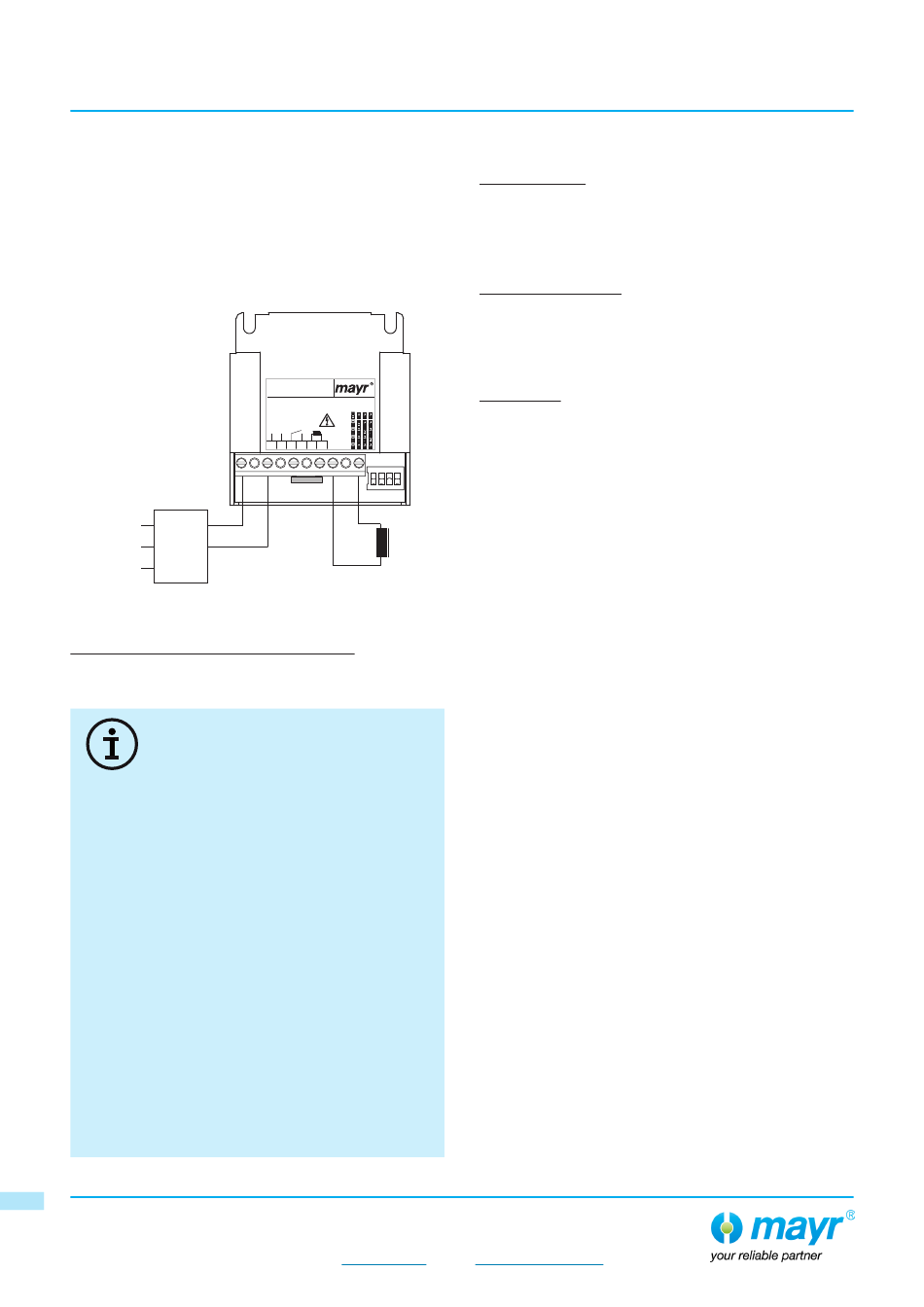

Installation of a line filter in the AC-supply line
(e.g. Schaffner FN 2415-10-29)
• Avoid antennae effect:
Keep the supply cables as short as
possible;
Do not form ring or bow shapes with the
cables!
• Mount good earth connections onto the
metal body of the brake!
• Lay control cables separately from power
cables or from strongly pulsating cables!
• During operation with a frequency
converter, please ensure EMC-
compatible installation of the frequency
converter!
• Please always check the holding voltage
of the ROBA
operation of all components in the
system.
• For the operation of the ROBA
multiswitch in living and small business
areas, special precautions must be taken
in order to keep to the correct limit values
for this area with the complete system,
e.g. by installing a capacitor. The device
has been inspected individually only for
industrial areas.
6 6
29/03/2022 GC/TH/MA/SU
Page 6 of 6
-ROBA -multiswitch and the
® ®
ROBA -multiswitch ®
1 2 3 4
– +
S
IN DC OUT
1 2 3 4 5 6
ON
1 2 3 4 5 6
1 2 3 4
-multiswitch during
®
-
®
Chr. Mayr GmbH + Co. KG
Eichenstraße 1, D-87665 Mauerstetten, Germany
Tel.: +49 8341 804-0, Fax: +49 8341 804-421
www.mayr.com, E-Mail:
Standards
EMC inspections
EN 61000-6-2:2006-03
EN 61000-6-4:2007-09
VDE 0160 / EN 50178:1998-04
Insulation coordination
acc. VDE 0110 / EN 60664:2008-01
Overvoltage category III
Pollution degree 2
Rated insulation voltage 500 V
Intended use
acc. EN 50178:1998-04
public.mayr@mayr.com
(B.019+002.EN)
Interference immunity
Interference emission
Electronic equipment for
use in power installations
RMS
