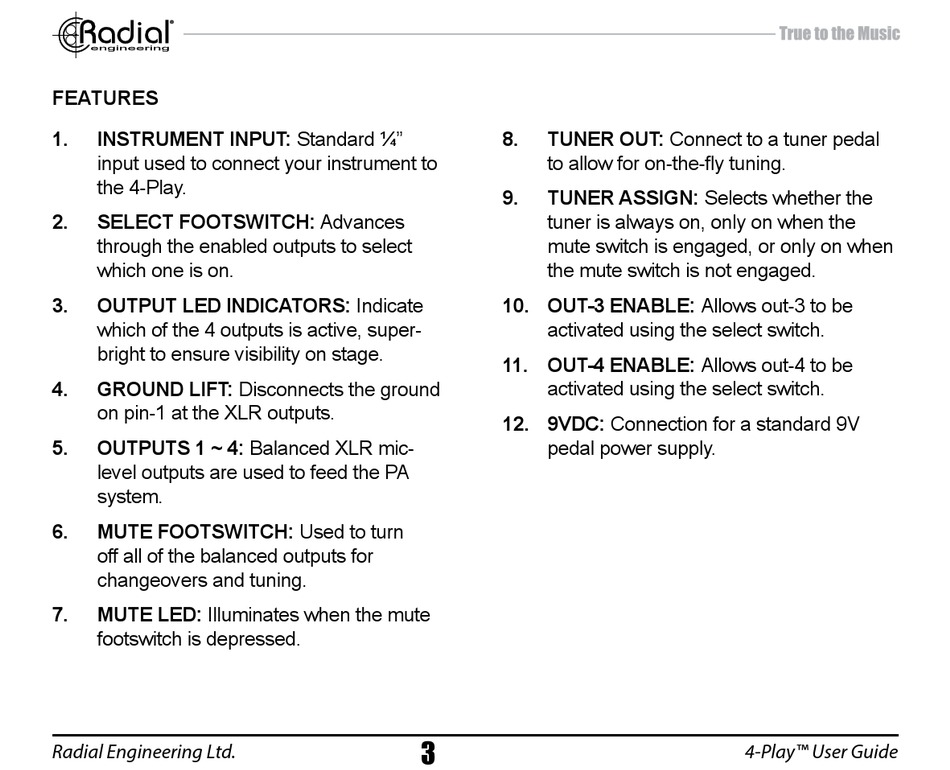

FEATURES
1. InSTRUmEnT InpUT: Standard ¼"
input used to connect your instrument to
the 4-Play.
2. SElEcT FooTSwITch: Advances
through the enabled outputs to select
which one is on.
3. oUTpUT lED InDIcAToRS: Indicate
which of the 4 outputs is active, super-
bright to ensure visibility on stage.
4. GRoUnD lIFT: Disconnects the ground
on pin-1 at the XLR outputs.
5. oUTpUTS 1 ~ 4: Balanced XLR mic-
level outputs are used to feed the PA
system.
6. mUTE FooTSwITch: Used to turn
off all of the balanced outputs for
changeovers and tuning.
7. mUTE lED: Illuminates when the mute
footswitch is depressed.
Radial Engineering Ltd.
8. TUnER oUT: Connect to a tuner pedal
to allow for on-the-fly tuning.
9. TUnER ASSIGn: Selects whether the
tuner is always on, only on when the
mute switch is engaged, or only on when
the mute switch is not engaged.
10. oUT-3 EnAblE: Allows out-3 to be
activated using the select switch.
11. oUT-4 EnAblE: Allows out-4 to be
activated using the select switch.
12. 9VDc: Connection for a standard 9V
pedal power supply.
