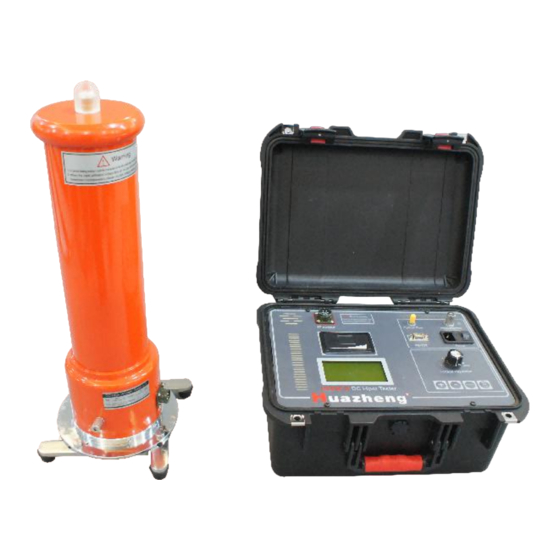

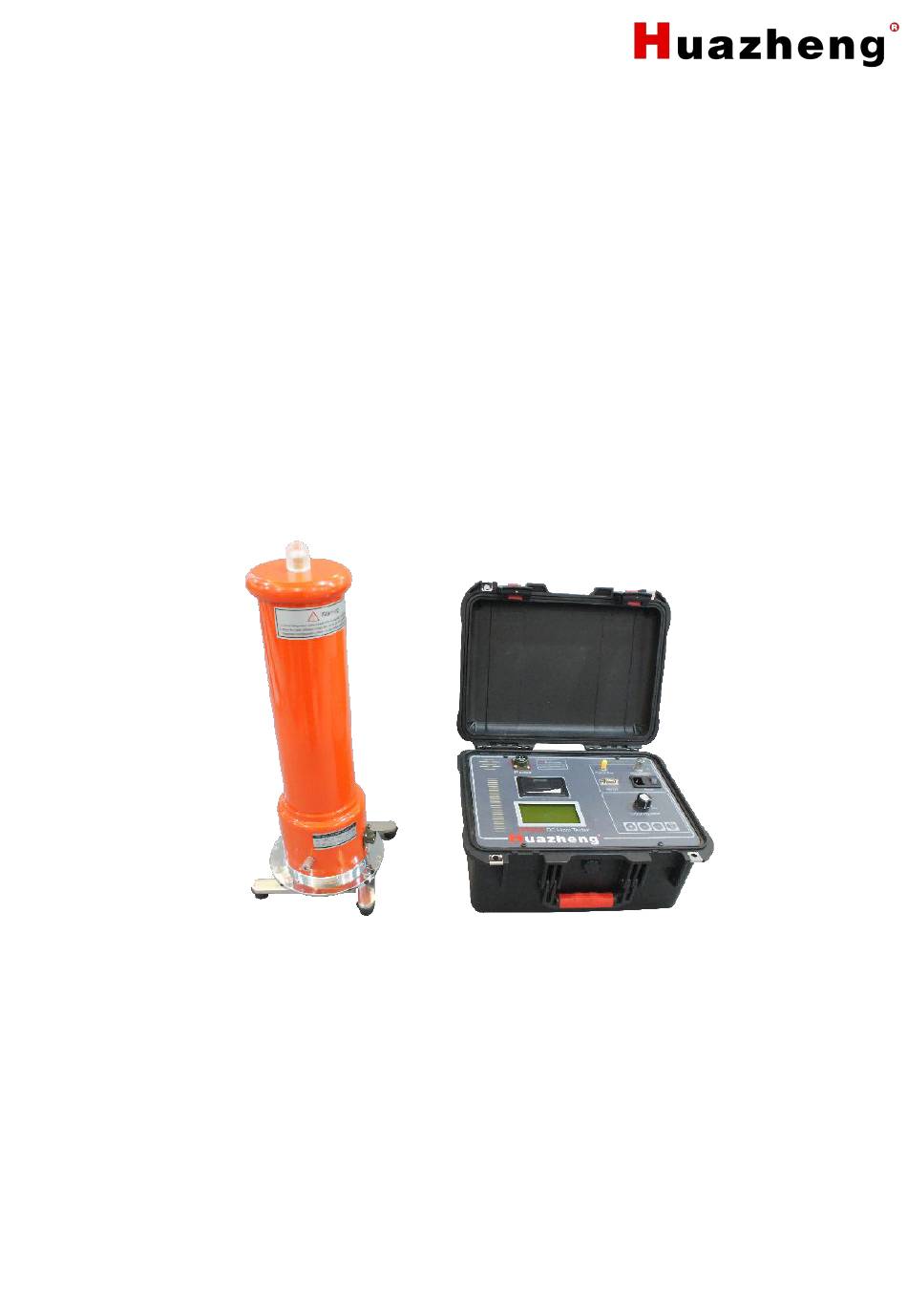

- Page 1 HZZGF-Z Series Intelligent DC High Voltage Generator Huazheng Electric Manufacturing (Baoding) Co., Ltd...
- Page 2 DC High Volt age Generat or Operat ion Precaut ions ！ I. Bef or e boos ting: adjust the boost knob to "0", and then carr y out the boos ting ex periment . II .A t the end: the volt age should be reduced to 0 first , , do not tur n off the pow er, dischar ge the test object wit h a dischar ge rod, af ter the dischar ge is completed, tur n off the pow er to end the ex periment .
-
Page 3: Table Of Contents
Contents I.Scope of application........................1 II.Technical features........................1 III.Technical specifications and working methods..............2 IV.Instructions for use........................2 V.Test wiring method........................10 VI.The use of discharge rod......................12... -
Page 4: I.scope Of Application
I.Scope of application HZZGF-Z series intelligent DC high-voltage generators are mainly used for DC withstand voltage tests on high-voltage electrical equipment such as zinc oxide arresters, power cables, transformers, circuit breakers, generators, etc. or DC leakage current test. Using AIPWM technology, the inaccurate linearity of PWM technology has been adjusted, so that the accuracy of the instrument has been greatly improved. -
Page 5: Iii.technical Specifications And Working Methods
III.Technical specifications and working methods 1.Voltage output 0-120kV, accuracy ±1% ±1 word 2.Current output 0-2000uA, accuracy ±1% ±1 word 3.With automatic zinc oxide arrester test, cable segment withstand voltage, automatic withstand voltage function 4.It has the function of manually adjusting the voltage output. 5.Working method: intermittent use: rated load 30 minutes, 1.1 times rated voltage use: 10 minutes 6.Working environment: Temperature: -10℃～... - Page 6 （2）Operation Instructions Turn on the power switch, the screen displays the boot screen as shown in below: Intelligent DCHV Generator Welcome Welcome ·Startup screen Then the function selection interface appears Manual Test Auto Test MOA Test Cable Test Setup Query Press the "Function"...
- Page 7 Manual 1sec Prot U 010kV Prot I 05500μA Start Return At this time, press the function key to move the cursor to the corresponding parameter to modify the value through "+" or "-" or "Start and Stop". After modifying the parameters, move the cursor to "Start"...
- Page 8 Manu Voltage Current Time At this time, press the select key to "Save" to store the test results. At this time, press the select key to "Print" to print the test results. At this time, press the select key to "Exit" the instrument returns to the function selection interface 2.Zinc oxide arrester test：...
- Page 9 Boosting... When the current rises to 1000uA, the instrument stops boosting, at this time the 1mA current starts timing, and the default timing is 5 seconds. Or according to the set time to complete. After the timing is over, the instrument starts to reduce the voltage. When the voltage drops to 0.751mA, wait for 5 seconds.
- Page 10 3.Cable segment withstand voltage test： In the function selection interface, select Cable Test, press Start and Stop, and the Cable Test setting page is displayed. Cable 1 sec Setup Speed Start Return Select "Setup" to display detailed parameter settings. Cable Test Parameter At this time, press the function key to move the cursor to the corresponding parameter and modify the value through the increase or decrease key or the start and stop keys.
- Page 11 1sec Boosting Voltage Current Time When the voltage rises to the first stage voltage, start timing, when the timing ends, start the second stage boost The instrument will turn off the high pressure when the 6th stage of the boost timer is completed.
- Page 12 Auto Test V 1sec Prot I Boosting Speed Holding Time Start Return At this time, press the function key to move the cursor to the corresponding parameter and modify the value through“+” or“-”and “Start and Stop” buttons. After modifying the parameters, select Start, and press the "Start and Stop"...
-
Page 13: V.test Wiring Method
Auto Voltage Current Time Print Save Exit At this time, press the select key to "Save" to store the test results. At this time, press the select key to "Print" to print the test results. At this time, press the select key to "Exit" the instrument returns to the function selection interface. - Page 14 (2)Transformer （3）MOA...
-
Page 15: Vi.the Use Of Discharge Rod
(4)Test generator VI.The use of discharge rod 1. The special discharge rod should not be in direct contact with high-voltage DC discharge, and should be kept at a distance. When the tip of the discharge rod initially produces corona discharge, and the voltage on the test object gradually drops by 20% of the test voltage, then touch the discharge rod to the shell of the microammeter.
