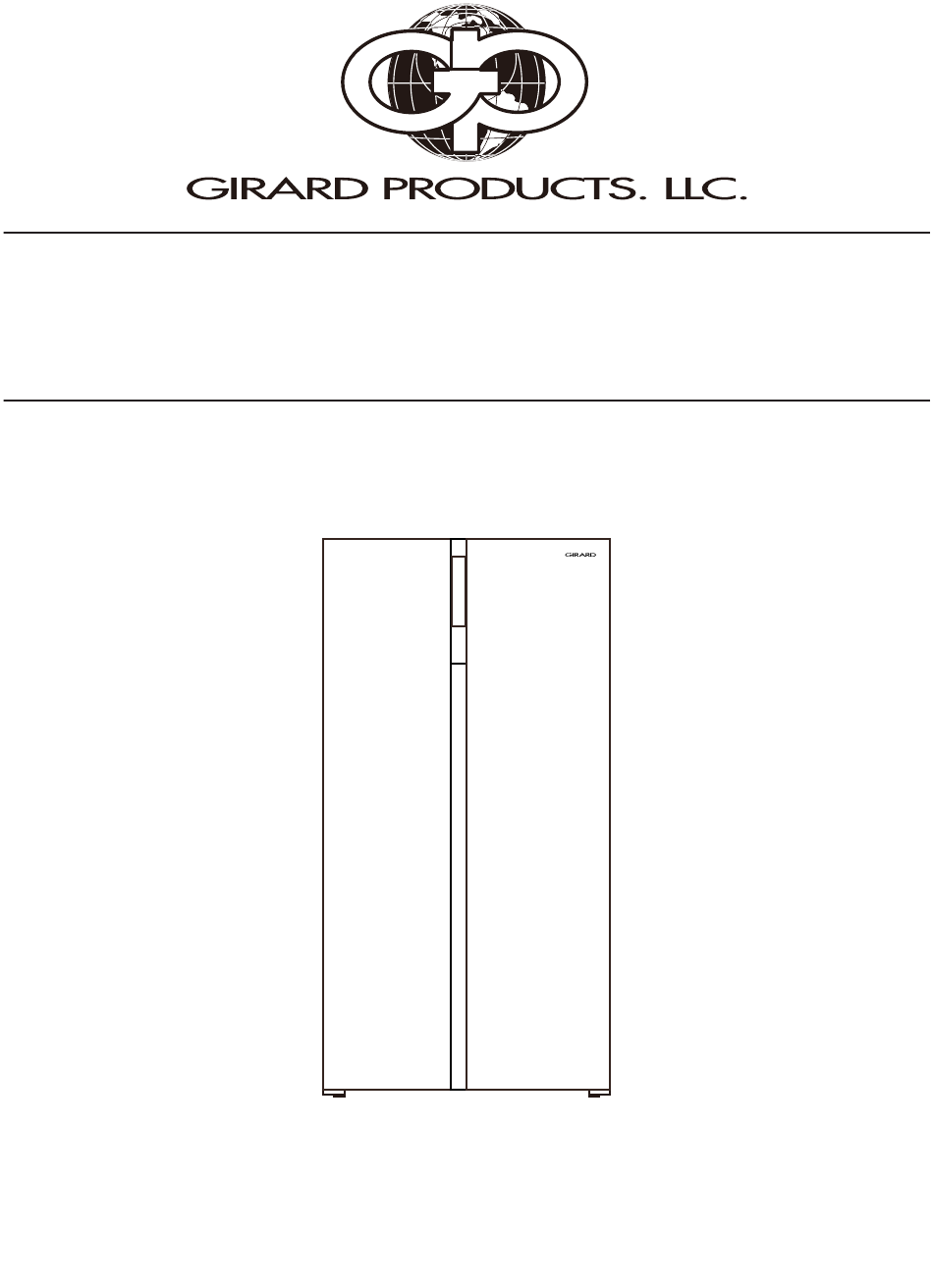

- Page 1 15.6 CU. FT. 12V SIDE BY SIDE DOOR REFRIGERATOR GRF16DBGS [2022071756] USER MANUAL * Picture shown here is for reference only.
-
Page 2: Table Of Contents
Thank you and congratulations for purchasing this Girard product. Before operating your new product, please read these instructions carefully. This instruction manual contains information for safe use, installation and maintenance of the product. Please keep this instruction manual in a safe place for future reference. This will ensure safe use and reduce the risk of injury. Be sure to pass on this manual to new owners of this product. -
Page 3: Explanation Of Symbols
Explanation of Symbols This manual has safety information and instructions to help you WARNING eliminate or reduce the risk of accidents and injuries. Always respect all safety warnings identified with these symbols. A signal word will identify Indicates a potentially hazardous situation which, if not avoided, could safety messages and property damage messages, and will indicate the result in death or serious injury. -
Page 4: Installation
● Do not place hot items near the plastic components of this appliance. In Case of Malfunction ● Do not place food products directly against the air outlet on the rear wall. ● If a malfunction occurs on the appliance, please look first in the ●... -
Page 5: Product Overview
Product Overview Item Description Freezer Compartment Freezer Door Tray Freezer Glass Shelves Freezer Drawer Refrigerator Compartment Refrigerator Glass Shelves Refrigerator Drawer Refrigerator Door Tray NOTE: ● Due to possible update of product from time to time, your refrigerator may be slightly different from this User Manual, but its function and operation remain the same. -
Page 6: Specification
Any electrical work required to install this appliance should be carried Front View Side View out by a qualified or competent person. All Girard products referenced in this manual is to be installed in Dimension accordance with local and national codes, including the latest editions of "... -
Page 7: Securing The Refrigerator
To Measure: Drainage Preparation Start the appliance from warm, isolate and measure the voltage The cavity condensate drainage is captured in a drain pan integrated difference between each DC12V power source(s) and the appliance with the unit. No external drainage needs to be prepared at this point. connection. -
Page 8: Operation
Top Restraints Hinge Mounting ● If restraints are used to mount or contact the top surface of the If using the hinge as a securing method (Fig. 1), support the bottom appliance, avoid contact with the gray plastic electrical cover to of the hinge with a wood trim/block to prevent bending/damage to prevent damage. -
Page 9: Controls
On/Off Freezer Settings ● Long press Function button for 5 seconds to turn the refrigerator’s You can change the temperature or settings of the freezer compartment LOW POWER mode on/off. by pressing the text ‘Freezer’ under the temperature display. ● Temperature displays illuminates with --, long press Function button The default temperature of the refrigerator compartment is 0°F. - Page 10 Refrigerator Chamber Freezer Chamber The refrigerator chamber is mainly used to store foods that are The freezer chamber is used to freeze foods, store deeply frozen foods preserved for a short time. and make ice cubes. The refrigerator chamber is suitable for storing fruits,vegetables,drinks It can preserve foods for a long time.
-
Page 11: Accessories
Accessories the arrow. When pushing hard, please note that the buckle on the edge of bottle shelf is separated from the groove of the liner. Then bottle shelf can be removed. Fruit & Vegetable Box Installation: Hold both sides of the bottle shelf with both hands. Install the buckle of the boss side at first. -
Page 12: Tips For Storage Of Frozen Food
seals to stick to the cabinet and tear when you open the door. before departing for your trip. Avoid storing temperature sensitive Wash seals with a mild detergent and warm water. items in the refrigerator while you are traveling unless a DC12V Rinse and dry it thoroughly after cleaning. -
Page 13: Troubleshooting
Troubleshooting Repairs to refrigerators/freezers may only be performed by competent WARNING service engineers. Improper repairs can give rise to significant hazards for the user. If your appliance needs repairing, please contact your Before troubleshooting, disconnect the power supply. specialist dealer or your local Service Centre. IMPORTANT! When the compressor is being turned on, the refrigerator creates some sounds / noises, like gurgling - this is perfectly normal. -
Page 14: Troubleshooting
Troubleshooting Before contacting the Girard Customer Service: 1. Try to solve the problem yourself following the points described in the table below. 2. Turn off the appliance and restart it to see if the fault persists. Trouble Possible Cause Solution Appliance is not switched on Switch on the appliance. - Page 15 CCD-0005727 Rev: 09-22-22...
- Page 16 The contents of this manual are proprietary and copyright protected by Lippert. Lippert prohibits the copying or dissemination of portions of this manual unless prior written consent for an authorized Lippert representation has been provided. Any unauthorized use shall void any applicable warranty. The information contained in this manual is subject to change without notice and at the sole discretion of Lippert.
Need help?
Do you have a question about the GRF16DBGS and is the answer not in the manual?
Questions and answers
I have the Girard 15.6 CUFT 12V side by side door refrig model GRF16DBGS. all lights are on but will not cool. I have reset the refrigerator 2x, but still will not cool.
Possible reasons for the GRF16DBGS refrigerator not cooling despite all lights being on include:
1. Ambient Temperature Too High: If the surrounding temperature is too high, it may take longer for the fridge to reach the set cooling temperature.
2. Too Much Fresh Food Inside: Adding a large amount of fresh food at once can delay cooling.
3. Low Power Mode: If both temperature displays show “--” and interior lights are off, the refrigerator may be in Low Power mode. Press and hold the Function button for 5 seconds to exit this mode.
4. Door Left Open: If the door has been left open too long, it can affect cooling efficiency.
5. Ventilation Blocked: Check that nothing is blocking the air outlets or internal compartments.
6. Control System Issue: If the control system is disabled, cooling may stop. Try restarting the appliance.
7. Insufficient Power Supply: Ensure the DC 12V power source is charged and the fuse is not blown.
This answer is automatically generated
