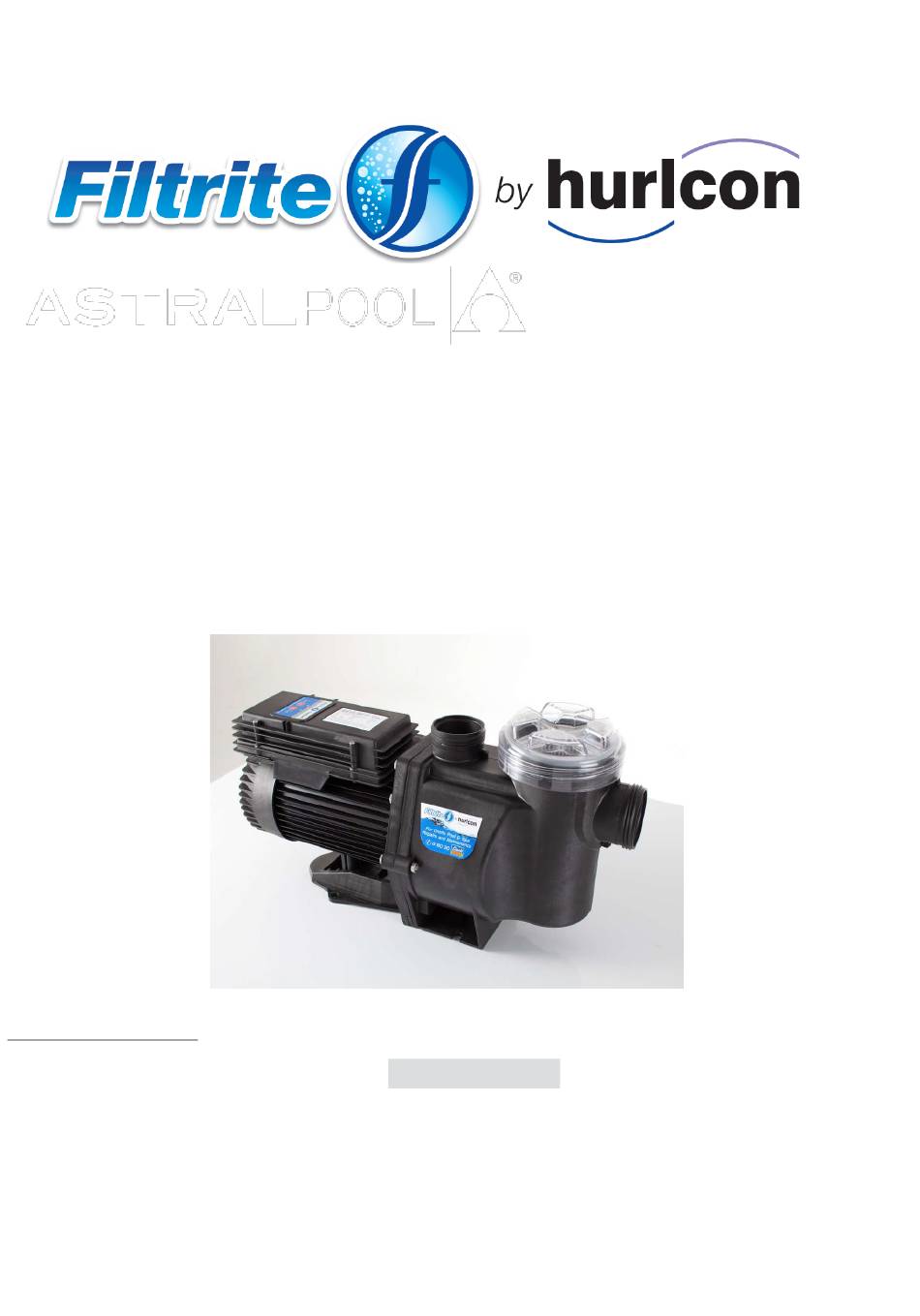

PZ200 SWIMMING POOL PUMP
INSTALLATION AND
OPERATING INSTRUCTIONS
WARNING
FOR YOUR SAFETY - This product must be installed and serviced by a contractor who is licensed
and qualified in pool equipment in accordance with the latest applicable version of AS/NZS 3000,
along with any other applicable local and national installation codes/standards", and any other local
applicable regulations. Before installing this product, read and follow all warning notices and
instructions that accompany this product. Failure to follow warning notices and instructions may
result in property damage, personal injury, or death. Improper installation and/or operation will
void the warranty.
Improper installation and/or operation can create unwanted electrical hazard which can cause serious
injury, property damage, or death.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Filtrite PZ200 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for hurlcon Filtrite PZ200

  • Page 1 PZ200 SWIMMING POOL PUMP INSTALLATION AND OPERATING INSTRUCTIONS WARNING FOR YOUR SAFETY - This product must be installed and serviced by a contractor who is licensed and qualified in pool equipment in accordance with the latest applicable version of AS/NZS 3000, along with any other applicable local and national installation codes/standards”, and any other local applicable regulations.
  • Page 2: Read And Follow All Instructions

    Important Safety Instructions READ AND FOLLOW ALL INSTRUCTIONS All electrical work must be performed by a licensed electrician and conform to all national, state, and local codes. When installing and using this electrical equipment, basic safety precautions should always be followed, including the following: WARNING RISK OF SUCTION ENTRAPMENT HAZARD, WHICH, IF NOT AVOIDED, CAN RESULT IN SERIOUS INJURY OR DEATH.
  • Page 3 WARNING To minimize risk of severe injury or death, the filter and/or pump should not be subjected to the piping system pressurization test. Local codes may require the pool piping system to be subjected to a pressure test. These requirements are generally not intended to apply to the pool equipment, such as filters or pumps.
  • Page 4 WARNING SUCTION HAZARD. Can cause serious injury or death. Do not use this pump for wading pools, shallow pools, or spas containing bottom drains, unless pump is connected to at least two (2) functioning suction outlets. WARNING Pump suction is hazardous and can trap and drown or disembowel bathers. Do not use or operate swimming pools, spas, or hot tubs if a suction outlet cover is missing, broken, or loose.
  • Page 5 GENERAL The PZ200 Filtrite by Hurlcon Pump is a unique 2 speed motor combined with an energy efficient pump wet end. When installed and plumbed correctly, the PZ200 will significantly reduce operating costs, lower noise levels and reduce greenhouse emissions.
  • Page 6: Installation

    Suction lines must be installed below water level until just in front of pump location and vertical riser used to reach pump inlet. Filtrite by Hurlcon pumps are rated to a maximum head of 25 metres however refer to...
  • Page 7: Operation

    OPERATION Switch on power to pump, motor to start. If some flow of water does not establish within on half minute, switch off and prime pump again. If pump does not prime within 3 attempts, check all suction connections for sealing. If these are satisfactory, a check or foot valve is required to hold water for prime.
  • Page 8: Operation Of Control Panel

    SELECTION OF APPROPRIATE SPEEDS General Rules:  The total volume of water in your pool should be turned over at least once a day.  If operating for longer periods of time, you may be able to turn the output of your salt chlorinator to a lower level. Check your chlorine level frequently to ensure you do not over or under chlorinate your swimming pool.
  • Page 9: Maintenance

    USE WITH SUCTION CLEANERS When connecting a suction cleaner to the PZ200, it essential that full prime is achieved on the pump prior to connecting the cleaner hose. During operation at low speeds, the pump may only operate with partial prime in the hair and lint pot chamber. To operate a suction cleaner on your pump;...
  • Page 10: Express Warranty

    Consequently, for all Products used at such sites the warranty period is 1 year instead of the periods set out above. Fluidra, may, however, in its absolute discretion, consider extending the 1 year warranty period for FILTRITE PZ200 PUMP used at particular sites because of actual usage patterns. Any such extension shall only be binding if Fluidra gives it expressly in writing.
  • Page 11 Product or whether warranty service will be provided in the field, repaired at a Fluidra workshop or at the premises of an authorized Fluidra warranty agent. 9. If it is necessary for the Purchaser to incur freight charges in making a valid claim under this warranty, Fluidra, as the case may be, will reimburse the Purchaser for charges reasonably incurred upon proof of the charges.
