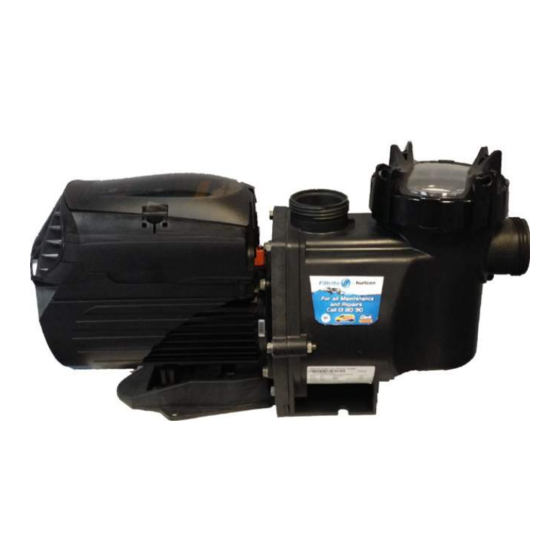

PZ300 ENERGY EFFICIENT PUMP
INSTALLATION AND
OPERATING INSTRUCTIONS
16/03/2015

Advertisement

loading
Need help?

Need help?

Do you have a question about the Filtrite PZ300 and is the answer not in the manual?

Questions and answers

Summary of Contents for hurlcon Filtrite PZ300

  • Page 1 PZ300 ENERGY EFFICIENT PUMP INSTALLATION AND OPERATING INSTRUCTIONS 16/03/2015...
  • Page 2 Inst331 Filtrite PZ Pool & Spa Pump V06_14...
  • Page 3 SERIOUS INJURY OR DEATH MAY OCCUR IF THIS PRODUCT IS NOT USED, OPERATED OR INSTALLED ACCORDING TO THESE INSTRUCTIONS AND RELEVANT AUSTRALIAN STANDARDS. THIS APPLIANCE IS NOT INTENDED FOR USE BY YOUNG CHILDREN OR INFIRM PERSONS. PLEASE ENSURE YOUNG CHILDREN ARE SUPERVISED SO THAT THEY DO NOT PLAY WITH THE APPLIANCE. PUMP PRODUCES HIGH PRESSURES –...
  • Page 4 GENERAL Filtrite Variable Speed Pool Pumps are a unique variable-speed permanent magnet DC motor combined with an energy efficient pump wet end. When installed and plumbed correctly, these pumps will significantly reduce operating costs, lower noise levels and reduce greenhouse emissions. Model High Medium...
  • Page 5: Installation

    INSTALLATION This appliance must be installed by a trained pool professional service technician. When installing the appliance, ensure all parts are installed in the correct zone in accordance with the wiring rules. In particular refer to AS/NZS 3000 (Australia) and EN 60364 (EU). Plan position of pump so that it will be: Free of water flooding, such as in a sump, garden hollow, ditch or at bottom of bank with run off.
  • Page 6: Operation

    OPERATION Prime pump if hair and lint pot is dry as follows – Close off valve on suction line if present. Remove lint pot lid. Fill lint pot and chamber with water. Replace and secure lint pot lid and seal. Open all valves, allowing water to flow through pump.
  • Page 7 SELECTION OF APPROPRIATE SPEEDS General Rules: • The total volume of water in your pool should be turned over at least once a day. If operating for longer periods of time, you may be able to turn the output of your salt chlorinator to a lower level. •...
  • Page 8 OPERATION OF CONTROL PANEL – PZ300 FILTRITE PUMP Filtrite pumps incorporate an LCD backlit screen with the following features: In built time clock: Programmable for up to four timer periods each day • Timer periods can be disused and 1, 2, 3, or 4 periods selected •...
  • Page 9 OPERATION OF CONTROL PANEL – PZ300 FILTRITE PUMP Using the pumps in built timer to operate pump with a Filtrite Chlorinator Factory Default Setting 1. The inbuilt timers are activated and will control the time the pump operates 2. Connectivity to Filtrite compliant Salt Chlorinators, is turned “off” 3.
  • Page 10 Using the in built pump timers with a non-compliant chlorinator or dosing unit. 1. We do not recommend the use of the pump timers when a non-compliant chlorinator or chemical doser is supplied water flow by the Filtrite pump. 2. In this case, the pump operating hours should be controlled by the chlorinator time clock and the pump plugged into the chlorinator.
  • Page 11 Data cable connector: If a compatible Filtrite Salt Chlorinator is connected with the communication cable, the speed of the pump and operating hours can be controlled by these devices. The Filtrite pump must have its inbuilt timer deactivated if the pump operating times and speeds are to be operated by the compatible Filtrite Salt Chlorinator.
  • Page 12 REMOTE CONTROL OF SPEEDS AND TIMER FUNCTIONS Filtrite   p ump   s tand   a lone • 4   b uilt   i n   t imer   p eriods   i n   p ump • 3   p rogrammable   s peed   s ettings •...
  • Page 13: Maintenance

    USE WITH SUCTION CLEANERS When connecting a suction cleaner to the Filtrite pump, it essential that full prime is achieved on the pump prior to connecting the cleaner hose. During operation at low speeds, the pump may only operate with partial prime in the hair and lint pot chamber.
  • Page 14 PZ300 FILTRITE PUMP CONTROL FLOW DIAGRAM Inst331 Filtrite PZ Pool & Spa Pump V06_14...
  • Page 15: Warranty

    WARRANTY AstralPool Australia Pty Ltd (ABN 97 007 284 504) ("AstralPool") provides the following warranty in relation to its Filtrite PZ300 Pool and Spa pumps ("Product"). Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage.
  • Page 16 Exclusions The warranty will not apply where: the customer is in breach of the Terms and Conditions of Sale; the Product was used for a purpose other than one it was intended for; the Product was repaired, modified or altered by any person other than AstralPool; the Product has not been installed, maintained and/or operated in complete compliance with the installation and operating instructions and any instructions by AstralPool;...
  • Page 17 Astral Pool reserves the right to repair or replace defective components or products at its sole discretion. Astral Pool shall have no liability for incidental or consequential damages or delays caused either directly or indirectly by any malfunction of or defect of or failure of the equipment. Where the equipment is installed in commercial situations including (but not limited to) hotels, motels, caravan parks, health clubs, public pools, body corporate installations, etc the warranty is limited to 12 months.
  • Page 18 Inst331 Filtrite PZ Pool & Spa Pump V06_14...
  • Page 19 Inst331 Filtrite PZ Pool & Spa Pump V06_14...
  • Page 20 INSTALLATION AND OPERATING INSTRUCTIONS INSTALLATION AND OPERATING INSTRUCTIONS Clark Rubber Franchising Pty Ltd. ACN. 065 708 723 www.clarkrubber.com.au email: Information and specifications subject to change without notice. Inst331 Filtrite PZ Pool & Spa Pump V06_14...
