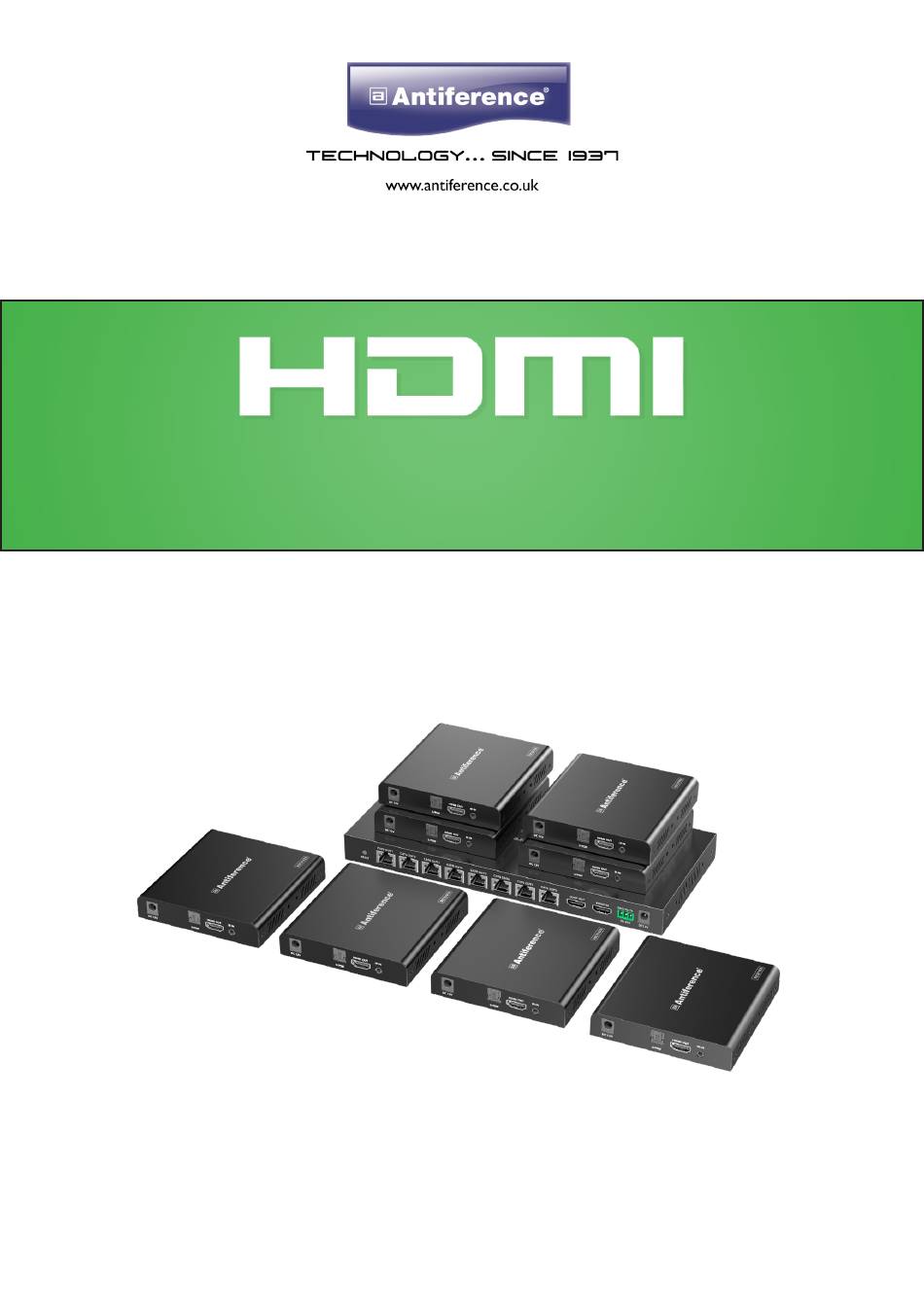

- Page 1 HDMI0108SCATV3 4K 18Gbps 1x8 HDMI splitter with auto-scaling and PoC User Guide...
-
Page 2: Table Of Contents
Important Safety Notice Thank you for purchasing this Antiference HDMI distribution product. Please read the following instructions carefully, retain for future reference and read the following safety considerations: Do not place any items on the device Ensure no liquids are on or near the device as splashes may damage the unit... -
Page 3: Introduction
1. Introduction This 18Gbps HDMI splitter/extender splits a single 4K/HD source to 8 remote displays and a local HDMI display. It sends up to 3840x2160p@60 (4:4:4) resolution signals up to 70m over a single CAT6 cable with HDCP 2.2 support. It also supports bi-directional IR control, advanced EDID management, audio output selector on receiver, RS232 signal pass-through &... -
Page 4: Installation Requirements
4. Operation Controls and Functions 4.1. Installation Requirements 1. HDMI source such as SKYQ/HD, Blu Ray or games console etc 2. HDMI external display device such as HDTV or monitor 3. UTP/STP CAT6/CAT6A/CAT7 following standard IEE-568B. High quality cables recommended only. 4.2. - Page 5 4.3. Receiver (RX) Panel Description...
-
Page 6: Installation Procedure
5. Installation Procedure 5.1. Network Cable • Configure the CAT6 cable RJ45 terminations to IEEE-568B 1 - Orange/white 2 - Orange 3 - Green/white 4 - Blue 5 - Blue/white 6 - Green 7 - Brown/white 8 - Brown 5.2. Connection Instructions 1. -
Page 7: Edid Settings
6. EDID Settings There are 16 built-in EIDID modes in the product which can be switched via the dip switches on the front panel. The switch in the upward position indicates ‘1’ and the pressed downward indicates ‘0’. The table below outlines the configuration of the switches for the various EDID modes:... - Page 8 7. RS232 Settings The product also supports command control via RS232. To configure this functionality, connect the RS232 port on the product to a PC with a 3 pin phoenix connection cable. Then, open a Serial Command tool/program on your PC to send commands to control the product.
-
Page 9: Auto-Scaling Function
8. Auto-scaling Function This Antiference HDMI splitter supports an auto-scaling function allowing a 1080p display to receive content from a 4K source. The system simply identifies the maximum resolution of the displays connected via the EDID of the display and automatically downscales to 1080p if required. -
Page 10: Technical Specifications
10. Technical Specifications... - Page 11 Declaration of Conformity We, ANTIFERENCE LIMITED herewith declare that the HDMI extender kit complies with all essential requirements and any other applicable conditions set forth on directive 2014/30/EU. According to the WEEE (Waste Electrical and Electronic Equipment) EU Directive, do not dispose of this product as household waste or commercial waste.
