YOUR ULTIMATE ALLY IN POWER

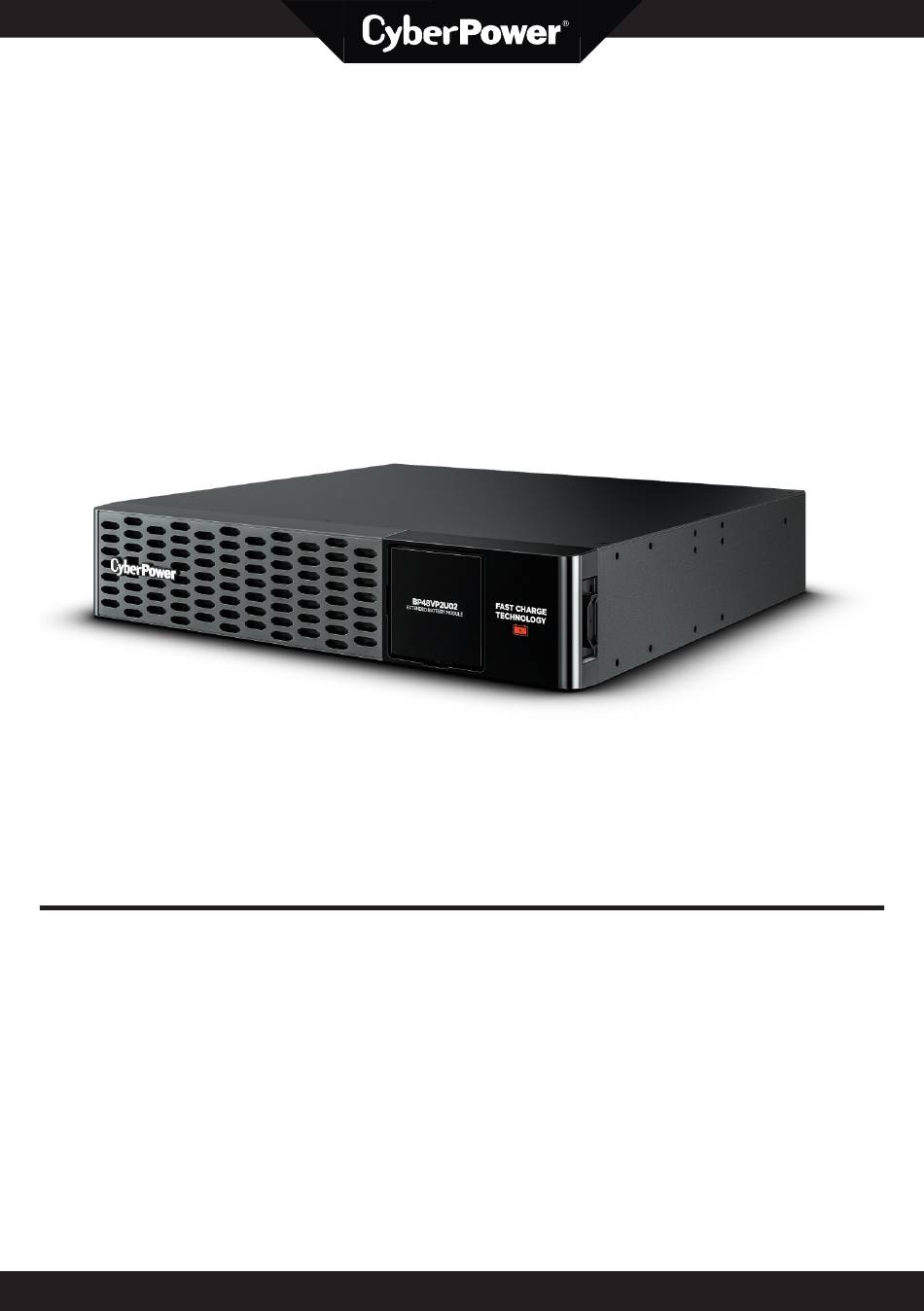

EXTENDED BATTERY MODULE
BP48VP2U01 / BP48VP2U02
USER MANUAL
Cyber Power Systems (USA), Inc.
8. aut vellupt asimper ibusae v
9. erest, quis quibus
10. sitatib usduatio expe non reritat ecu
11. sci conseque soles am qui
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for CyberPower BP48VP2U01
Summary of Contents for CyberPower BP48VP2U01
- Page 1 YOUR ULTIMATE ALLY IN POWER EXTENDED BATTERY MODULE BP48VP2U01 / BP48VP2U02 USER MANUAL FEATURES Erum idelloreni aut erersp 8. aut vellupt asimper ibusae v 2. e llatis cum quae. Bit exped 9. erest, quis quibus 3. quam derum hic teca 10.
-
Page 2: Important Safety Warnings
BP48VP2U02 for your Uninterruptible Power Supply! The Extended Battery Module is designed for various CyberPower UPS systems and can be used in either rack or tower installations. The heavy gauge power cord has a plug-n-play DC connector for easy installation. When combining with UPS, the Extended Battery Module provides extended runtime with a 48VDC external connection. - Page 3 UNPACKING When you receive the unit, the package should contain the following items: Extended Battery Module Power Cords Faceplate Mechanical Accessories Rail Kit CP2RAIL02 User’s Manual Management Cable (14) M5 Pan Head Screws (8) Plastic Washers Note: It is available for BP48VP2U02 (1) IEC C13-C14, 1 ft (auxiliary) (1) BM Cable (1) IEC C13-NEMA 5-15P, 10 ft...
- Page 4 PRODUCT OVERVIEW - BASIC CONFIGURATION Front Panel Battery Cover Front Panel Access Tabs Faceplate Rear Panel AC Inlet Input Circuit Breaker AC Outlet Extended Battery Module Connector Plug Extended Battery Module Connector Socket Fuse Cover BM Port BM Port Connection port for built-in battery management module on UPS and Extended Battery Module. Refer to Basic Operation section in Product Overview.
-
Page 5: Installation
The product is designed for tower installation and rack installation for 2-post rack and 4-post rack. Read and follow the procedures thoroughly before and during your installation of the product. The installation videos are available on our website, visit www.cyberpower.com or scan the QR code below for detailed information. -
Page 6: Basic Operation
INSTALLATION - CONTINUED Tower Installation Combine the extended baseplate to the tower baseplate that comes with the UPS accessories. 2. Screw in the baseplates and attach the brackets to the combined baseplate with the provided M4 flat head screws that come with both the UPS and Extended Battery Module. 3. - Page 7 BASIC OPERATION - CONTINUED Connecting Multiple Extended Battery Modules Additional Extended Battery Modules are connected in parallel, the voltage maintains the same, yet the battery amp-hour capacity depends on the numbers of Extended Battery Modules in the set-up. Follow the steps described below to add multiple Extended Battery Modules to your UPS.
-
Page 8: Cleaning And Maintenance
Battery Modules. PowerPanel® Business software or expected RMCARD interface (if installed). runtime. Contact CyberPower about replacement Batteries are degraded. batteries. Allow the Extended Battery Module to Batteries are not fully charged. charge for at least 12 hours. The Extended Contact CyberPower about replacement Batteries are degraded. -
Page 9: Battery Replacement
CyberPower official website www.cyberpower.com or contact your dealer for more information on replacement batteries. The battery replacement video is available on our website, visit www.cyberpower.com or scan the QR code below for detailed information. CAUTION! RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. When replacing batteries, replace with the same number of the following battery: CyberPower RB1270X4H for BP48VP2U01, CyberPower RB1290X4J for BP48VP2U02. -
Page 10: Technical Specifications
50.2 lbs / 22.8 kg 61.2 lbs / 27.8 kg Conformance UL1778 / CSA C22.2 No 107.3 / FCC Part 15 Class B Approvals VCCI Class B / CE / RCM Environmental RoHS Compliant Additional troubleshooting information can be found at www.cyberpower.com. -
Page 11: Regulatory Compliance
State of California to cause reproductive harm and cancer. For more information, go to www.P65Warnings.ca.gov. © 2022 CyberPower Systems (USA), Inc. PowerPanel® Personal is a trademark of Cyber Power Systems(USA) Inc. All rights reserved. All other trademarks are the property of their respective owners.
