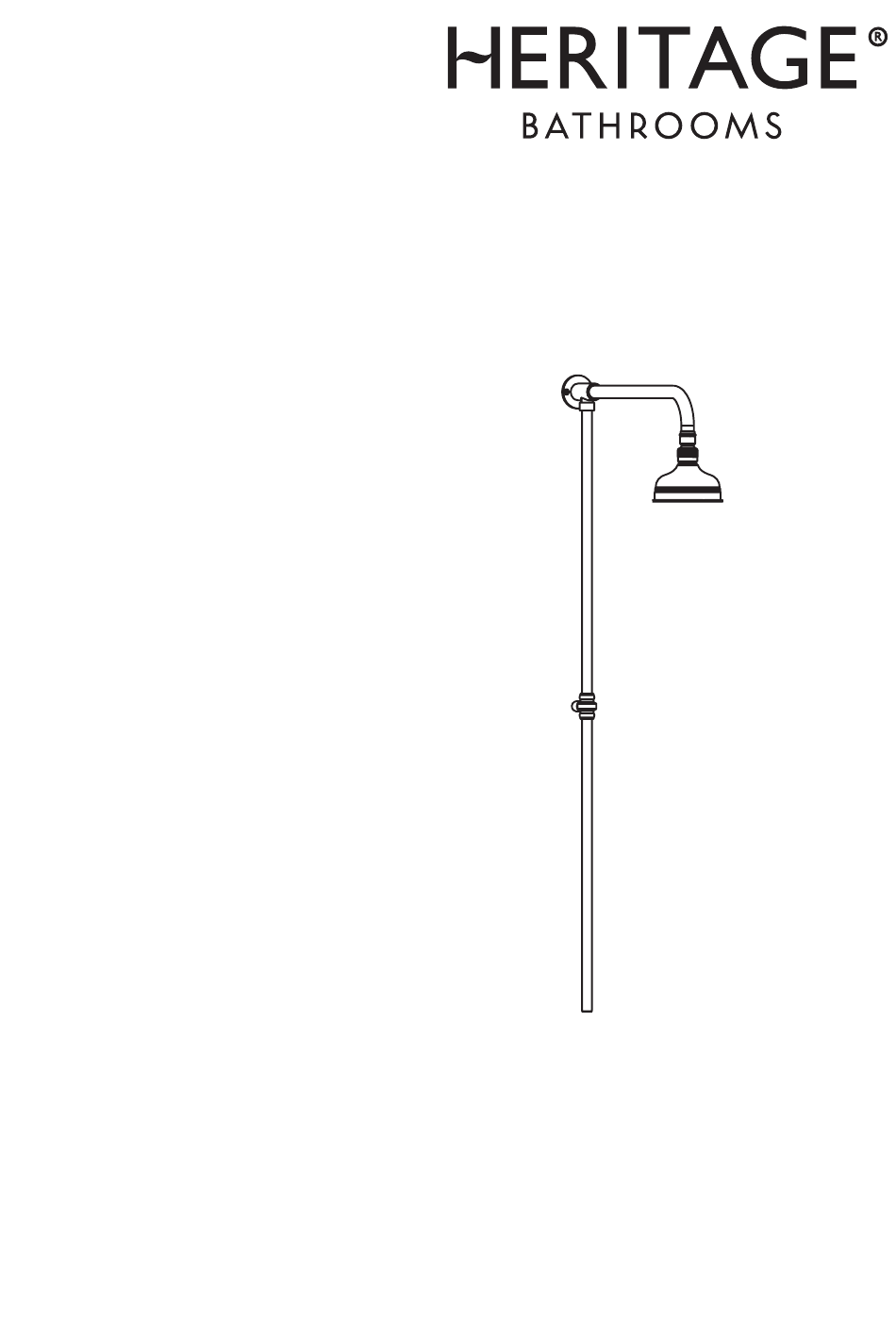

- Page 1 Installation Instructions and User Guide Traditional Rigid Riser Shower Kit Chrome Models covered: KIT JERA C/G Please keep this booklet for future reference. Installer, when you have read these instructions please ensure you leave them with the user.
- Page 2 Important Safety Information • Please read these instructions thoroughly and retain for future use. • All products manufactured and supplied by Bristan are safe provided they are installed, used correctly and receive regular maintenance in accordance with these instructions. • If you are in any doubt about your ability to install this product safely you must employ the services of an experienced qualified tradesman.
- Page 3 Dimensions...
- Page 4 Pack Contents Shower Arm Swivel Joint Shower Head Riser Connection Piece Wall Support Assembly Grub Screw Riser Rails Washer Wall Plugs Screws...
- Page 5 Installation 1. Mark the position - Fit the assembled rigid riser into the shower valve top outlet and position against the wall surface. With the rigid riser vertical, mark the position of the top and middle wall bracket fixings onto the wall surface. 2.
- Page 6 Notes...
- Page 7 Notes...
- Page 8 Part Number: JERA KIT C Issue: D1...
