Arca-Swiss monoball p1 Plus Quick Start Manual

We recommend
ARCA-SWISS QuickLink
Finally a professional solution that eliminates the tedious fixing of the tripod
head.

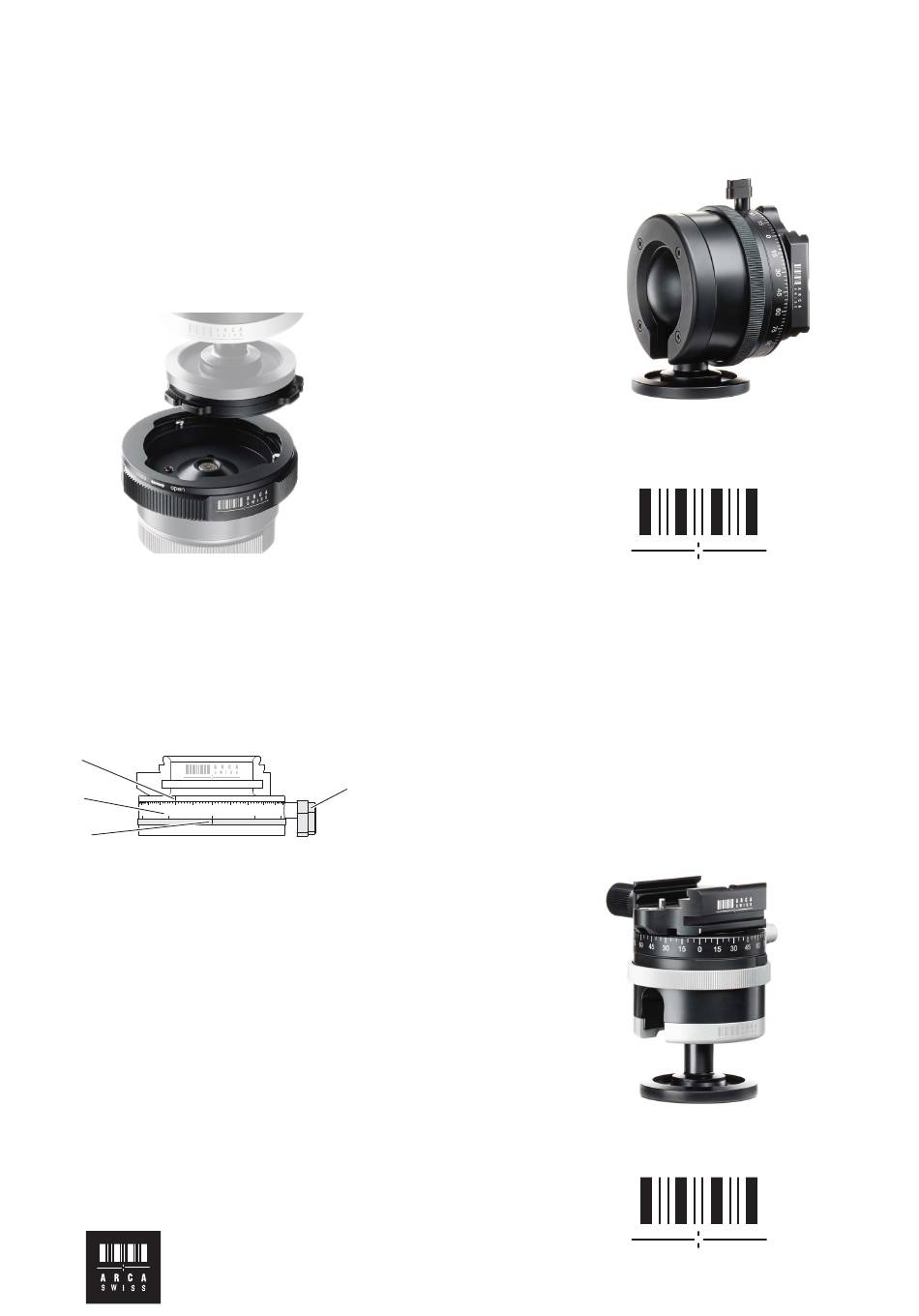

ARCA-SWISS presents the new tripod mounting QuickLink. The combination
of a mounting plate for the tripod and an insert plate which is attached to the
tripod head makes attaching and detaching the tripod head child's play. The
installed plates can thus be left permanently on the tripod or on the tripod
head.
By means of a solid bayonet, the tripod head with its insert plate is placed
into the mounting plate and securely fixed by a knurled rotating ring.
Option for the monoball®p1+
Incremental panning ClicPan® (cp)
Index scale
(2)
OFF position
30 15 0 15
(3)
40° OFF
Adjustment ring
(1)
(1) Select a panoramic overlap interval by rotating the white index mark on the
clicPan® (brass) adjustment ring. Rotate the ring until the index mark is
aligned with your preferred interval detent setting.
Ten positions are provided on the lower scale - 40° (9 stops), 30° (12 stops),
24° (15 stops), 20° (18 stops), 15° (24 stops), 12° (30 stops), 10° (36 stops),
7.5° (48 stops), 6° (60 stops) with an "OFF" position for 360° free panning
movement.
The clicPan® adjustment ring will turn in either direction. When rotated, the
adjustment ring will stop and "clic" into the next detent setting.
Once a setting has been chosen, the mounted camera will pan in equal
increments through a 360° radius, with an audible "clic" at each position.
(2) The degree of rotation can be visually checked using the upper index scale.
(3) Move the clicPan® ring to the "OFF" position when 360° free panning is
required.
(4) To stop all panning rotation, tighten the upper panning lock lever.
The upper pan must be unlocked when making incremental panoramic
captures using one of the detent settings.
ARCA-SWISS International S.A.R.L.
29, rue de Châtillon, École Valentin
FR-25048 Besançon, France
support@arca-swiss.com
STD: ++33 381 85 40 60
Panning
lock lever
30 45 60 75 90 75 60
(4)
6° 7.5° 10°
