- Page 1 ED20W LoRaWAN Smart Watch User Manual V1.0.0 Document Information Version Time Description Remark V1.0.0 2020-05-07 Preliminary version Mike...
-
Page 2: Table Of Contents
ED20W Smart Wristband_datasheet_V1.0.0 Table of contents 1. Description ....................................- 1 - 2. Features ......................................- 1 - 3. Interface ......................................- 2 - 4. Specification ....................................- 3 - 5. Operation guide ..................................- 5 - 5.1 Power on .................................... - 5 - 5.2 Join the Network ................................ -
Page 3: Description

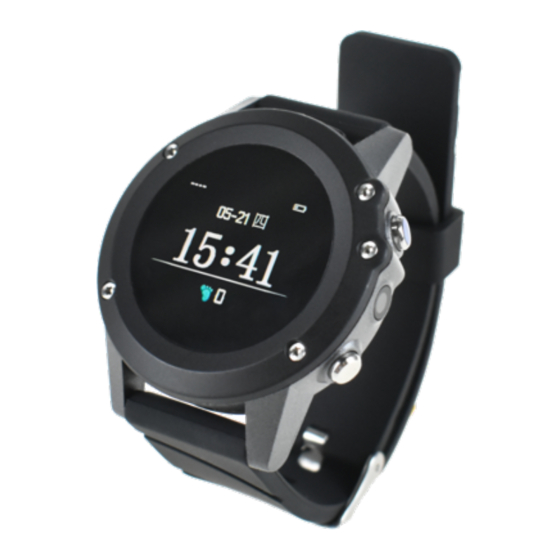

ED20W Smart Wristband_datasheet_V1.0.0 1. Description ED20W is a smart wristband based on LoRaWAN communication. Build in GNSS and Bluetooth module, can achieve indoor and outdoor real-time positioning combined with motion sensors. With wearing detection, it can realize real-time collection of health data such as heart rate, number of steps and sleep. The data will be transmitted to the platform through the LoRaWAN Network. -
Page 4: Interface
ED20W Smart Wristband_datasheet_V1.0.0 3. Interface Function Description Display Display detection parameters Power On Press and hold button A 3 seconds Power Off Press and hold button A 10 seconds Switch the screen When the screen is off or in host interface, Press button A to switch the screen... -
Page 5: Specification
ED20W Smart Wristband_datasheet_V1.0.0 4. Specification Parameters Specification Modem ISM Band LoRa® Frequency AS923MHz, US915Mhz, EU868MHz Tx Power Max +20dBm Communication range 500~1000M in dense urban,1.5KM los Build in GNSS, Bluetooth and accelerometer, Positioning accuracy:5~20 Positioning Meters（Indoor positioning accuracy varies depending on Beacon density）... - Page 6 ED20W Smart Wristband_datasheet_V1.0.0 Rubber strap 22mm standard size (Replaceable) Buttons Function button A and B Battery capacity Polymer battery，400mAh， 3.8V Charging Magnetic charging cable Operation time 7 days standby; Enclosure IP67(IP65 opt.) Electronic tags Support RFID& NFC (not equipped by default)
-
Page 7: Operation Guide
ED20W Smart Wristband_datasheet_V1.0.0 5. Operation guide 5.1 Power on In the shutdown state, the device automatically turns on when connected to the charging cable. Press and hold button A 3 seconds to power on the device. 5.2 Join the Network...
