Linksys WMP11 ver. 2.7 Quick Installation

This Quick Installation is meant to help you install the product quickly and easily. For detailed instructions
on installation and configuration and further setup options, please consult the User Guide.
Instant Wireless ® Series
W W i i r r e e l l e e s s s s P P C C I I C C a a r r d d
Installation of the WMP11 is differ-
ent for different versions of Windows.
• For Windows 98, Me, and 2000, go to
Step 1 and then Step 2.
• For Windows XP, go to Step 2 and
then Step 3.
WMP11 ver. 2.7
Package Contents

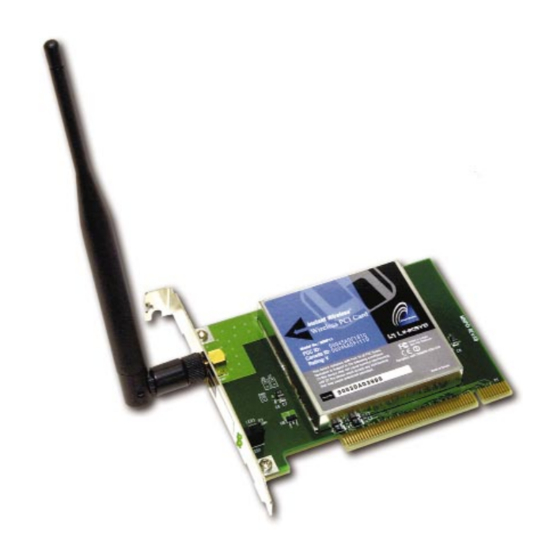

• One Wireless PCI Card (1)
• One Setup Wizard CD-ROM with User
Guide (2)
• One Quick Installation
• One Registration Card
2
Software Installation and Configuration
for Windows 98, Me, and 2000
Attention Windows XP users: Go directly to Step 2.
The Setup Wizard will install the WLAN Monitor and Device Driver, as well as con-
figure the Card.
A. Insert the Setup Wizard CD-
ROM into your CD-ROM
drive. The Setup Wizard
should run automatically, and
Figure A should appear. If it
does not, click the Start but-
ton and choose Run. In the
field that appears, enter
D:\setup.exe (where "D" is
the letter of your CD-ROM
drive).
A
• Install - Click the Install but-
ton to begin the software installation process.
• User Guide - Click the User Guide button to open the PDF file of this User
Guide.
• LINKSYS Web - Click the LINKSYS Web button to access the Linksys web-
site through an active Internet
connection.
• Exit - Click the Exit button to
exit the Setup Wizard.
1
B. To install the Card, click the
Install button on the Welcome
screen.
C. After reading the License
Agreement, click the Next
button if you agree, or click
C
the Cancel button to end the
D. The Setup Wizard will ask
you to choose a wireless
mode. Click the
Infrastructure Mode radio
button if you want your wire-
less computers to network
with computers on your wired
network using a wireless
access point. Click the Ad-
Hoc Mode radio button if you
want multiple wireless com-
D
puters to network directly
with each other.
In the SSID field, enter the SSID of your wireless network. The SSID must be
identical for all devices in the network. The default setting is linksys (all lower-
case). Click the Next button.
For added security, Linksys recommends that you change the default SSID to a
unique name.
E. If you chose Ad-Hoc Mode,
select the correct operating
channel for your network.
The channel you choose
should match the channel set
on the other devices in your
wireless network. Click the
Next button, and go to Step 5.
E
F. The Setup Wizard will ask
you to review your settings
before it starts to copy files.
Click the Next button to save
these settings, or click the
Back button to change any
settings.
F
G. After the files have been suc-
cessfully copied, click the
Finish button.
G
Proceed to Step 2: Hardware Installation.
Continued on back
