Linksys WMB54G Install Manual

®
A Division of Cisco Systems, Inc.
Package Contents
• Wireless-G Music Bridge
• Ethernet Network Cable
• Power Adapter
• Setup Wizard CD-ROM
• User Guide on CD-ROM
• Quick Installation

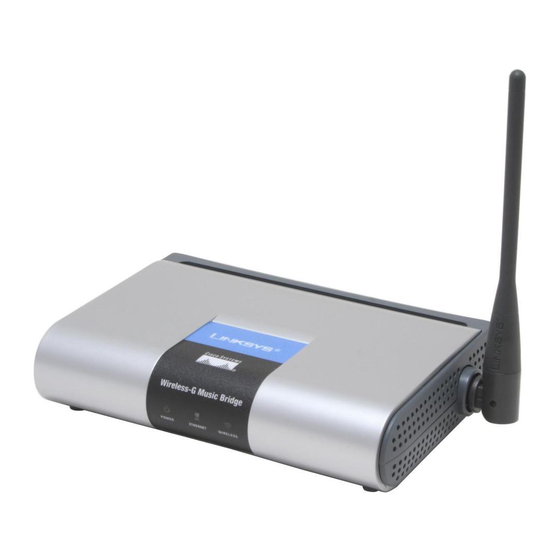

Wireless-G
Music Bridge
Wireless Quick Installation
Model No. WMB54G
Model No.
1
Installing the Music Bridge
To begin the setup process, insert
the Setup Wizard CD into your PC's
CD-ROM drive. Setup Wizard's Wel-
come screen should appear on
your monitor. If it does not, then
click the Start button and select
Run. In the field provided, enter
D:\setup.exe (if "D" is the letter of
your PC's CD-ROM drive).
A
To install the Adapter, click
the Click Here to Start but-
A
ton on the Welcome
screen.
B
The License Agreement
screen will appear. Click
Next to continue the Setup
Wizard.
B
C
The next screen displayed
shows how the Bridge
should be connected. Con-
nect one end of your sup-
plied Ethernet cable to your
PC's Ethernet Port. Click the
Next button to continue.
C
D
Connect the other end of
the Ethernet cable to the
Bridge's yellow Ethernet Port.
Click the Next button to
continue.
D
E
Connect the power
adapter into the Power Port
of the Bridge and into an
electrical outlet. Click the
Next button to continue.
E
F
The Power and Ethernet will
light up when the cables
are all correctly installed.
If the LEDs do not light up,
re-check the cable con-
nections to the Bridge, PC,
and Power.
Click the Next button to
F
continue.
G
If your Bridge is found on
your network, this screen will
appear. Select the Bridge
you want to configure and
click the Next button.
H
You will be asked to log on
to the Bridge you have
G
selected. Enter the default
password, admin, in the
field. Then, click Enter.
I
You may change the pass-
word and the Bridge's name
on this screen.
Device Name. You may
change the device name
by entering a new one of up
H
to 19 characters in the
Device Name field.
Password and Confirm.
Enter a new password in the
Password field, then enter it
again in the Confirm field.
The password must be
between 4 to12 characters.
Security Question and Your
Answer. Select a security
question and enter an
answer so you can retrieve
I
your password if you forget it.
Click the Next button to con-
tinue.
