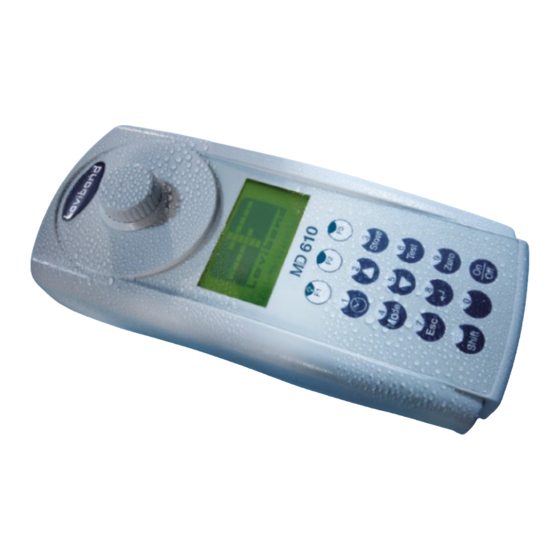

  • Page 1 ® Lovibond Water Testing ® Tintometer Group Photometer Instruction manual Distributed By: Camlab Limited Camlab House, Norman Way Industrial Estate, Over, Cambridge CB24 5WE, UK E: sales@camlab.co.uk T: +44 1954 233110 www.lovibond.com...
  • Page 2 Important steps before using the photometer Pleasecarry out the following steps as described in the Instruction manual. Becomefamiliar with your new pho- tometer before starting with the first tests: • Unpacking and inspection of delivery contents, see page 358. • Install the batteries, seepage 302 and following. Perform the following settings in the Mode-Menu;...
  • Page 3 Wichtige Information Um die Qualität unserer Umwelt zu erhalten, beschützen und zu verbessern Entsorgung von elektronischen Geräten in der EuropäischenUnion Aufgrund der EuropäischenVerordnung 2012/19/EU darf Ihr elektronisches Gerät nicht mit dem normalen Hausmüllentsorgt werden! Tintometer GmbH entsorgt ihr elektrischesGerät auf eine professionelle und für die Umwelt verantwortungsvolle Weise.
  • Page 4 Información Importante Para preservar, proteger y mejorar la calidad del medio ambiente Eliminación de equipos eléctricos en la Unión Europea Con motivo de la Directiva Europea2012/19/UE, ¡ningún instrumento eléctrico deberá eliminarse junto con los residuos domésticos diarios! Tintometer GmbH se encargará de dichos instrumentos eléctricos de una manera profesional y sin dañar el medio ambiente.
  • Page 5 Wichtiger Entsorgungshinweis zu Batterien und Akkus JederVerbraucher ist aufgrund der Batterieverordnung (Richtlinie 2006/66/ EG)gesetzlich zur Rückgabealler ge- und verbrauchten Batterien bzw. Akkus verpflichtet. Die Entsorgung über den Hausmüll ist verboten. Da auch bei Produkten aus unserem Sortiment Batterien und Akkus im Lieferumgang enthalten sind, weisen wir Sieauf folgendes hin: Verbrauchte Batterien und Akkus gehören nicht in den Hausmüll, sondern können unentgeltlich bei den öffentlichen SammelstellenIhrer Gemeinde und überall...
  • Page 6 Indicación importante acercade la eliminación de pilas y acumuladores Basadoen la norma relativa a pilas/ baterías (directiva 2006/66/CE), cada consumidor, está obligado por ley, a la devolución de todas las pilas/ baterías y acumuladores usados y consumidos. Estáprohibida la eliminación en la basura doméstica. Ya que en productos de nuestra gama, también se incluyen en el suministro pilas y acumuladores, le sugerimos lo siguiente: Laspilas y acumuladores usados no pertenecen a la basura doméstica, sino que pueden...
  • Page 7 Safety precautions CAUTION Reagentsare formulated exclusivelyfor chemical analysisand must not be used for any other purpose. Reagentsmust not get into the hands of children. Someof the reagents contain substanceswhich are not entirely harmless environmentally. Be aware of the ingredients and take proper carewhen disposing of the test solution. CAUTION Pleaseread this instruction manual before unpacking, setting up or using the photometer.

  • Page 8: Table Of Contents

    Table of contents Part 1 Methods ...................... 9 1.1 Table of Methods ..................... 10 Acid demand to pH 4.3 ..................... 16 Alkalinity-total (Alkalinity-m, m-Value)................18 Alkalinity-total HR(Alkalinity-m HR,m-Value HR) .............. 20 Alkalinity-p (p-Value)......................22 Aluminium with tablets ..................... 24 Aluminium (powder pack)....................26 Ammonia with tablet ......................
  • Page 9 total Chlorine ........................ 69 differentiated determination (free, combined, total) ............70 Chlorine dioxide with tablet....................72 in presenceof Chlorine ....................74 in absenceof Chlorine ....................77 Chlorine dioxide (powder pack)..................78 in absenceof Chlorine ....................78 in presenceof Chlorine ....................79 Chlorine HR(KI).........................
  • Page 10 Hydrogen peroxide seeH ..................144 Iodine ..........................144 Iron..........................146 Iron with tablet ......................148 Iron (powder pack) ...................... 150 Iron TPTZ(powderpack) ....................152 Iron (Fein Mo, powder pack) ..................154 Iron LRwith liquid reagent ..................156 Iron LR2 with liquid reagent ..................160 Iron HRwith liquid reagent ..................
  • Page 11 Phosphonates ......................... 238 pH valueLRwith tablet ....................242 pH valuewith tablet......................244 pH valuewith liquid reagent ................... 246 pH valueHRwith tablet ....................248 Polyacrylatewith liquid reagent ..................250 Potassium ........................254 Silica ..........................256 SilicaLRPP ........................258 SilicaHRPP ........................260 Silicawith liquid reagent and powder ................
  • Page 12 2.2.1 Overview ...................... 305 2.2.2 Displayingtime and date................306 2.2.3 Usercountdown ................... 306 Operation mode ..................307 2.3.1 Automatic switch off ................... 307 2.3.2 Selectinga method ..................307 2.3.2.1 Method Information (F1) ................307 2.3.2.2 ChemicalSpeciesInformation ................ 308 2.3.3 Differentiation ....................308 2.3.4 Performing Zero ....................
  • Page 13 2.6.8 Photometer-Information................. 355 Part 3 Enclosure ....................357 Unpacking....................358 Delivery contents ..................358 Technicaldata ..................... 359 Abbreviations..................... 360 Troubleshooting ..................361 3.5.1 Operating messagesin the display / error display..........361 3.5.2 General......................363 Declaration of CE-Conformity ..............364 Copyright and Trademark Notice ............. 365 MD 610_2d 11/2019...
  • Page 14 MD 610_2d 11/2019...

  • Page 15: Part 1 Methods

    Part 1 Methods MD 610_2d 11/2019...

  • Page 16: Table Of Methods

    1.1 Table of Methods No. Analysis Reagent Range Displayed Method OTZ Page [nm] 20 Acid demand to tablet 0.1-4 mmol/l Acid/Indicator 1,2,5 pH 4.3 T 1,2,5 30 Alkalinity, total T tablet 5-200 mg/l CaCO Acid/Indicator 1,2,5 31 Alkalinity HR, tablet 5-500 mg/l CaCO Acid/Indicator...
  • Page 17 No. Analysis Reagent Range Displayed Method OTZ Page [nm] 204 Colour direct 0-500 Pt-Co units Pt-Co-Scale – (APHA) reading 150 Copper T * tablet 0.05-5 mg/l Cu Biquinoline 151 Copper L* liquid + 0.05-4 mg/l Cu Bicinchoninate powder 153 Copper PP 0.05-5 mg/l Cu Bicinchoninate...
  • Page 18 No. Analysis Reagent Range Displayed Method OTZ Page [nm] 226 Iron LR2 L liquid 0.03-2 mg/l Fe Ferrozine / 146, Thioglycolate 227 Iron HR L liquid 0.1-10 mg/l Fe Thioglycolate 146, 240 Manganese T tablet 0.2-4 mg/l Mn Formaldoxime 242 Manganese LRPP PP+liquid 0.01-0.7 mg/l Mn –...
  • Page 19 No. Analysis Reagent Range Displayed Method OTZ Page [nm] 325 Phosphate, hydr. tube test 0.02-1.6 mg/l P Acid digestion, – 212, Ascorbic acid 326 Phosphate, total tube test 0.02-1.1 mg/l P Acid persulf digestion, – 212, Ascorbic acid 334 Phosphate LRL liquid 0.1-10 mg/l PO...
  • Page 20 No. Analysis Reagent Range Displayed Method OTZ Page [nm] 381 TOC HR TT tube test 50-800 mg/l TOC /Persulfate/ – Indicator 386 Turbidity direct 10-1000 Attenuated – reading Radiation Method 388 Tolyltriazole PP 1-16 mg/l Benzo Catalysed UV triazole photolysis 390 Urea T tablet + 0.1-2.5...
  • Page 21 1.1 Methods Theprecision of Lovibond ® ReagentSystems(tablets, powder packsand tube tests) isidentical to the precision specified in standards literature such as American Standards (AWWA), ISO etc. Most of the data referred to in thesestandard methodsrelatesto StandardSolutions. Therefore they arenot readily applicable to drinking-, boiler- or waste-water, sincevarious interferences can have a major influence on the accuracy of the method.

  • Page 22: Acid Demand To Ph 4.3

    Acid demand to pH 4.3 with Tablet 0.1 – 4 mmol/l 1. Fill a clean vial (24 mm Ø) with 10 ml of the water sample, closetightly with the cap. 2. Placethe vial in the sample chamber making sure that marks are aligned.
  • Page 23 Notes: 1. The terms total Alkalinity, Alkalinity-m, m-Value and Acid demand to pH 4.3 are identical. 2. For accurate results exactly 10 ml of water sample must be taken for the test. Reagent Form of reagent/Quantity Order-No. ALKA-M-PHOTOMETER Tablet / 100 513210BT MD 610_2d 11/2019...

  • Page 24: Alkalinity-Total (Alkalinity-M, M-Value)

    Alkalinity, total = Alkalinity-m = m-Value with Tablet 5 – 200 mg/l CaCO 1. Fillacleanvial(24mm Ø)with 10 ml of the water sample, closetightly with the cap. 2. Placethe vial in the sample chamber making sure that marks are aligned. prepare Zero 3.
  • Page 25 Notes: 1. The terms total Alkalinity, Alkalinity-m, m-Value and Alkalinity to pH 4.3 are identical. 2. For accurate results exactly 10 ml of water sample must be taken for the test. 3. Conversion table: Acid demand to pH 4.3 German English French DIN 38 409 (K...

  • Page 26: Alkalinity-Total Hr(Alkalinity-M Hr,M-Value Hr)

    Alkalinity HR, total = Alkalinity-m HR = m-Value HR with Tablet 5 – 500 mg/l CaCO 1. Fill a clean vial (24 mm Ø) with 10 ml of the water sample, closetightly with the cap. 2. Placethe vial in the sample chamber making sure that marks are aligned.
  • Page 27 Notes: 1. Forverification of the result look carefully at the bottom of the vial. If a thin yellow layer forms, then mix the vial again. This ensuresthat reaction is complete. Rereadthe result. 2. Conversion table: Acid demand to pH 4.3 German English French...

  • Page 28: Alkalinity-P (P-Value)

    Alkalinity-p = p-value with Tablet 5 – 300 mg/l CaCO 1. Fill a clean vial (24 mm Ø) with 10 ml of the water sample, closetightly with the cap. 2. Placethe vial in the sample chamber making sure that marks are aligned. prepare Zero 3.
  • Page 29 Notes 1. The terms Alkalinity-p, p-Value and Alkalinity to pH 8.2 are identical. 2. For accurate test results exactly 10 ml of water sample must be taken for the test. 3. Thismethod was developed from a volumetric procedure for the determination of Alkalinity-p.

  • Page 30: Aluminium With Tablets

    Aluminium with Tablet 0.01 – 0.3 mg/l Al 1. Fill a clean vial (24 mm Ø) with 10 ml of the water sample, closetightly with the cap. 2. Placethe vial in the sample chamber making sure that marks are aligned. prepare Zero 3.
  • Page 31 Notes: 1. Before use, clean the vials and the accessorieswith Hydrochloric acid (approx. 20%). Rinsethem thoroughly with deionised water. 2. To get accurate results the sample temperature must be between 20°C and 25°C. 3. A low test result may be given in the presence of Fluorides and Polyphosphates.The effect of this is generally insignificant unless the water has fluoride added artificially.

  • Page 32: Aluminium (Powder Pack)

    Aluminium with Vario Powder Pack 0.01 – 0.25 mg/l Al Use two clean vials (24 mm Ø) and mark one as blank for zeroing. 1. Fill 20 ml of the water sample in a 100 ml beaker. 2. Add the contents of one Vario Aluminum ECR F20 Powder Pack straight from the foil to the water sample.
  • Page 33 prepare Zero 13. PressZERO key. press ZERO 14. Removethe vial from the sample chamber. 15. Place the vial (the sample) in the sample chamber making sure that the marks are aligned. Zero accepted prepare Test 16. PressTEST key. press TEST The result is shown in the display in mg/l Aluminium.

  • Page 34: Ammonia With Tablet

    Ammonia with Tablet 0.02 – 1 mg/l N 1. Fill a clean vial (24 mm Ø) with 10 ml of the water sample, closetightly with the cap. 2. Placethe vial in the sample chamber making sure that marks are aligned. prepare Zero 3.
  • Page 35 Notes: 1. The tablets must be added in the correct sequence. 2. The AMMONIA No. 1 tablet will only dissolvecompletely after the AMMONIA No. 2 tablet has been added. 3. The temperature of the sample is important for full colour development. At a temperature below 20°C the reaction period is 15 minutes.

  • Page 36: Ammonia (Powder Pack)

    Ammonia with Vario Powder Pack 0.01 – 0.8 mg/l N Use two clean vials (24 mm Ø) and mark one as blank for zeroing. 1. Fill a clean vial (24 mm Ø) with 10 ml of deionised water (this is the blank). 2.
  • Page 37 Notes: 1. Extremelybasic or acidic water samplesshould be adjusted with 0.5 mol/l (1 N) Sulfuric acid solution or 1 mol/l (1 N) Sodium hydroxide solution to pH 7. 2. Interferences: Interfering substance Interference levels and treatments Calcium greater than 1000 mg/l CaCO Iron Interferes at all levels.

  • Page 38: Ammonia, Low Range (Lr)

    Ammonia LR with Vario Tube Test 0.02 – 2.5 mg/l N Insert the adapter for 16 mm Ø vials. 1. Open one white capped reaction vial and add 2 ml deionised water (this is the blank). Ø 16 mm 2. Open another white capped reaction vial and add 2 ml of the water sample (this is the sample).
  • Page 39 Notes: 1. Strong alkaline or acidic water samplesmust be adjusted to approx. pH 7 before analysis (use 1 mol/l Hydrochloric acid resp. 1 mol/l Sodium hydroxide). 2. Iron interferes with the test. The interferences will be eliminated as follows: Determine the amount of total iron present in the water sample. To produce the blank add an iron standard solution with the same iron concentration to the vial (point 1) instead of deionised water 3.

  • Page 40: Ammonia, High Range (Hr)

    Ammonia HR with Vario Tube Test 1 – 50 mg/l N Insert the adapter for 16 mm Ø vials. 1. Open one white capped reaction vial and add 0.1 ml deionised water (this is the blank). Ø 16 mm 2. Open another white capped reaction vial and add 0.1 ml of the water sample (this is the sample).
  • Page 41 Notes: 1. Strong alkaline or acidic water samplesmust be adjusted to approx. pH 7 before analysis (use 1 mol/l Hydrochloric acid resp. 1 mol/l Sodium hydroxide). 2. If chlorine is known to be present, add one drop of 0.1 mol/l Sodium thiosulfate for each 0.3 mg/l Cl in a one litre water sample.

  • Page 42: Boron

    Boron with Tablet 0.1 – 2 mg/l B 1. Fill a clean vial (24 mm Ø) with 10 ml of the water sample, closetightly with the cap. 2. Placethe vial in the sample chamber making sure that marks are aligned. prepare Zero 3.
  • Page 43 Notes: 1. The tablets must added in the correct sequence. 2. The sample solution should have a pH value between 6 and 7. 3. Interferences are prevented by the presenceof EDTAin the tablets. 4. The rate of colour development depends on the temperature. The temperature of the sample must be 20°C ±...

  • Page 44: Brominewith Tablet

    Bromine with Tablet 0.05 – 13 mg/l Br 1. Fill a clean vial (24 mm Ø) with 10 ml of the water sample, closetightly with the cap. 2. Placethe vial in the sample chamber making sure that marks are aligned. prepare Zero 3.
  • Page 45 Notes: 1. Vial cleaning: As many household cleaners (e.g. dishwasher detergent) contain reducing substances,the subsequent determination of Bromine may show lower results. To avoid any measurement errors, only use glassware free of Chlorine demand. Preparation: Put all applicable glasswareinto Sodium hypochlorite solution (0.1 g/l) forone hour, then rinse all glasswarethoroughly with deionised water.

  • Page 46: Bromine (Powder Pack)

    Bromine with Powder Pack 0.05 – 4,5 mg/l Br 1. Fill a clean vial (24 mm Ø) with 10 ml of the water sample, closetightly with the cap. 2. Placethe vial in the sample chamber making sure that marks are aligned. prepare Zero 3.
  • Page 47 Notes: 1. Vial cleaning: As many household cleaners (e.g. dishwasher detergent) contain reducing substances,the subsequent determination of Bromine may show lower results. To avoid any measurement errors, only use glassware free of Chlorine demand. Preparation: Put all applicable glasswareinto Sodium hypochlorite solution (0.1 g/l) forone hour, then rinse all glasswarethoroughly with deionised water.

  • Page 48: Chloride With Tablet

    Chloride with Tablet 0.5 – 25 mg/l Cl 1. Fill a clean vial (24 mm Ø) with 10 ml of the water sample, closetightly with the cap. 2. Placethe vial in the sample chamber making sure that marks are aligned. prepare Zero 3.
  • Page 49 Notes: 1. Ensurethat all particles of the tablet are dissolved– Chloride causesan extremely fine distributed turbidity with a milky appearance. Heavy shaking leads to bigger sized particles which can cause false readings. 2. High concentrations of electrolytes and organic compounds have different effects on the precipitation reaction.

  • Page 50: Chloride With Liquid Reagent

    Chloride with Liquid Reagent – 0.5 – 20 mg/l Cl 1. Fill a clean vial (24 mm Ø) with 10 ml of the water sample, closetightly with the cap. 2. Placethe vial in the sample chamber making sure that marks are aligned. prepare Zero 3.
  • Page 51 Notes: 1. Chloride causesan extremely fine distributed turbidity with a milky appearance. Heavy shaking leads to bigger sized particles which can causefalse readings. 2. Conversion: mg/l NaCl = mg/l Cl - x 1,65 Cl - NaCl Reagent Form of reagent/Quantity Order-No.

  • Page 52: Chlorine

    Chlorine with Tablet 0.01 – 6 mg/l Cl Chlorine HR with Tablet 0.1 – 10 mg/l Cl Chlorine with Liquid Reagent 0.02 - 4 mg/l Cl Chlorine with Powder Pack 0.02 - 2 mg/l Cl Chlorine MR with Vario Powder Pack 0.02 - 3.5 mg/l Cl Chlorine HR with Powder Pack 0.1 - 8 mg/l Cl...
  • Page 53 Notes: 1. Vial cleaning: As many household cleaners (e.g. dishwasher detergent) contain reducing substances, the subsequent determination of Chlorine may show lower results. To avoid any measurement errors, only useglassware free of Chlorine demand. Preparation: Put all applicable glasswareinto Sodium hypochlorite solution (0.1 g/l) for one hour, then rinse all glasswarethoroughly with deionised water.

  • Page 54: Chlorine With Tablet

    Chlorine, free with Tablet 0.01 – 6 mg/l Cl 1. Fill a clean vial (24 mm Ø) with 10 ml of the water sample, closetightly with the cap. 2. Placethe vial in the sample chamber making sure that marks are aligned. prepare Zero 3.

  • Page 55: Total Chlorine

    Chlorine, total with Tablet 0.01 – 6 mg/l Cl 1. Fill a clean vial (24 mm Ø) with 10 ml of the water sample, closetightly with the cap. 2. Placethe vial in the sample chamber making sure that marks are aligned. prepare Zero 3.

  • Page 56: Differentiated Determination (Free, Combined, Total)

    Chlorine, differentiated determination with Tablet 0.01 – 6 mg/l Cl 1. Fill a clean vial (24 mm Ø) with 10 ml of the water sample, closetightly with the cap. 2. Placethe vial in the sample chamber making sure that marks are aligned. prepare Zero 3.
  • Page 57 13. Placethe vial in the sample chamber making sure that marks are aligned. T1 accepted 14. PressTEST key. prepare T2 Wait for a reaction period of 2 minutes. press TEST Countdown 2:00 After the reaction period is finished the measurement starts automatically.

  • Page 58: Chlorine Hrwith Tablet

    Chlorine HR, free with Tablet 0.1 – 10 mg/l Cl 1. Fill a clean vial (24 mm Ø) with 10 ml of the water sample, closetightly with the cap. 2. Placethe vial in the sample chamber making sure that marks are aligned. prepare Zero 3.

  • Page 59: Total Chlorine

    Chlorine HR, total with Tablet 0.1 – 10 mg/l Cl 1. Fill a clean vial (24 mm Ø) with 10 ml of the water sample, closetightly with the cap. 2. Placethe vial in the sample chamber making sure that marks are aligned. prepare Zero 3.

  • Page 60: Differentiated Determination (Free, Combined, Total)

    Chlorine HR, differentiated determination with Tablet 0.1 – 10 mg/l Cl 1. Fill a clean vial (24 mm Ø) with 10 ml of the water sample, closetightly with the cap. 2. Placethe vial in the sample chamber making sure that marks are aligned.
  • Page 61 13. Placethe vial in the sample chamber making sure that marks are aligned. T1 accepted prepare T2 14. PressTEST key. press TEST Wait for a reaction period of 2 minutes. Countdown 2:00 After the reaction period is finished the measurement starts automatically.

  • Page 62: Chlorine With Liquid Reagent

    Chlorine, free with Liquid Reagent 0.02 – 4 mg/l Cl 1. Fill a clean vial (24 mm Ø) with 10 ml of the water sample, closetightly with the cap. 2. Placethe vial in the sample chamber making sure that marks are aligned. prepare Zero 3.

  • Page 63: Total Chlorine

    Chlorine, total with Liquid Reagent 0.02 – 4 mg/l Cl 1. Fill a clean vial (24 mm Ø) with 10 ml of the water sample, closetightly with the cap. 2. Placethe vial in the sample chamber making sure that marks are aligned. prepare Zero 3.

  • Page 64: Differentiated Determination (Free, Combined, Total)

    Chlorine, differentiated determination with Liquid Reagent 0.02 – 4 mg/l Cl 1. Fill a clean vial (24 mm Ø) with 10 ml of the water sample, closetightly with the cap. 2. Placethe vial in the sample chamber making sure that marks are aligned.
  • Page 65 13. Placethe vial in the sample chamber making sure that marks are aligned. T1 accepted 14. PressTEST key. prepare T2 Wait for a reaction period of 2 minutes. press TEST Countdown 2:00 After the reaction period is finished the measurement starts automatically.

  • Page 66: Chlorine (Powder Pack)

    Chlorine, free with Powder Pack 0.02 – 2 mg/l Cl 1. Fill a clean vial (24 mm Ø) with 10 ml of the water sample, closetightly with the cap. 2. Placethe vial in the sample chamber making sure that marks are aligned. prepare Zero 3.

  • Page 67: Total Chlorine

    Chlorine, total with Powder Pack 0.02 – 2 mg/l Cl 1. Fill a clean vial (24 mm Ø) with 10 ml of the water sample, closetightly with the cap. 2. Placethe vial in the sample chamber making sure that marks are aligned. prepare Zero 3.

  • Page 68: Differentiated Determination (Free, Combined, Total)

    Chlorine, differentiated determination with Powder Pack 0.02 – 2 mg/l Cl 1. Fill a clean vial (24 mm Ø) with 10 ml of the water sample, closetightly with the cap. 2. Placethe vial in the sample chamber making sure that marks are aligned.
  • Page 69 12. Placethe vial in the sample chamber making sure that marks are aligned. T1 accepted prepare T2 13. PressTEST key. press TEST Wait for a reaction period of 3 minutes. Countdown 3:00 After the reaction period is finished the measurement starts automatically.

  • Page 70: Chlorine Mr(Variopowder Pack)

    Chlorine, free with Vario Powder Pack 0.02 – 3.5 mg/l Cl 1. Fill a clean vial (24 mm Ø) with 10 ml of the water sample, closetightly with the cap. 2. Placethe vial in the sample chamber making sure that marks are aligned.

  • Page 71: Total Chlorine

    Chlorine, total with Vario Powder Pack 0.02 – 3.5 mg/l Cl 1. Fill a clean vial (24 mm Ø) with 10 ml of the water sample, closetightly with the cap. 2. Placethe vial in the sample chamber making sure that marks are aligned.

  • Page 72: Differentiated Determination (Free, Combined, Total)

    Chlorine, differentiated determination with Vario Powder Pack 0.02 – 3.5 mg/l Cl 1. Fill a clean vial (24 mm Ø) with 10 ml of the water sample, closetightly with the cap. 2. Placethe vial in the sample chamber making sure that marks are aligned.
  • Page 73 12. Placethe vial in the sample chamber making sure that marks are aligned. T1 accepted prepare T2 13. PressTEST key. press TEST Wait for a reaction period of 3 minutes. Countdown 3:00 After the reaction period is finished the measurement starts automatically.

  • Page 74: Chlorine Hr(Powder Pack)

    Chlorine HR, free with Powder Pack plastic vial (type 10 mm 0.1 – 8 mg/l Cl 1. Fill a clean vial (10 mm Ø) with 5 ml of the water 10 ml sample, closetightly with the cap. 5 ml 2. Placethe vial in the sample chamber making sure that marks are aligned.

  • Page 75: Total Chlorine

    Chlorine HR, total with Powder Pack plastic vial (type 10 mm 0.1 – 8 mg/l Cl 10 ml 1. Fill a clean vial (10 mm Ø) with 5 ml of the water sample, closetightly with the cap. 5 ml 2. Placethe vial in the sample chamber making sure that marks are aligned.

  • Page 76: Differentiated Determination (Free, Combined, Total)

    Chlorine HR, differentiated determination with Powder Pack plastic vial (type 10 mm 0.1 – 8 mg/l Cl 10 ml 1. Fill a clean vial (10 mm Ø) with 5 ml of the water 5 ml sample, closetightly with the cap. 2.
  • Page 77 12. Placethe vial in the sample chamber making sure that marks are aligned. T1 accepted prepare T2 13. PressTEST key. press TEST Wait for a reaction period of 3 minutes. Countdown 3:00 After the reaction period is finished the measurement starts automatically.

  • Page 78: Chlorine Dioxide With Tablet

    Chlorine dioxide with Tablet 0.02 – 11 mg/l ClO Chlorine dioxide >> with Cl The following selection is shown in the display: without Cl for the determination of Chlorine dioxide in the presence >> with Cl of Chlorine. for the determination of Chlorine dioxide in the absence >>...
  • Page 79 Notes: 1. Vial cleaning: As many household cleaners (e.g. dishwasher detergent) contain reducing substances, the subsequent determination of Chlorine dioxide may show lower results. To avoid any measurement errors, only use glassware free of Chlorine demand. Preparation: Put all applicable glasswareinto Sodium hypochlorite solution (0.1 g/l) for one hour, then rinse all glasswarethoroughly with deionised water.

  • Page 80: In Presenceof Chlorine

    Chlorine dioxide in the presence of Chlorine with Tablet 0.02 – 11 mg/l ClO 1. Fill a clean vial (24 mm Ø) with 10 ml of the water sample. 2. Add one GLYCINEtablet straight from the foil and crush the tablet using a clean stirring rod. 3.
  • Page 81 13. Removethe vial from the sample chamber, empty the vial, rinse vial and cap several times. Fill with a few drops of water sample. 14. Add one DPD No. 1 tablet straight from the foil and crush the tablet using a clean stirring rod. 15.
  • Page 82 Notes: (Chlorine dioxide in the presence of Chlorine) 1. The conversion factor to convert Chlorine dioxide (display)to Chlorine dioxide as Chlorine is 2.6315. mg/l ClO [Cl] = mg/l ClO · 2,6315 Chlorine dioxide displayed as Chlorine units ClO [Cl] has its origin in swimming poolwater treatment according to DIN 19643.

  • Page 83: In Absenceof Chlorine

    Chlorine dioxide in absence of Chlorine with Tablet 0.02 – 11 mg/l ClO 1. Fill a clean vial (24 mm Ø) with 10 ml of the water sample, closetightly with the cap. 2. Placethe vial in the sample chamber making sure that marks are aligned.

  • Page 84: Chlorine Dioxide (Powder Pack)

    Chlorine dioxide in absence of Chlorine with Powder Pack 0.04 – 3.8 mg/l ClO 1. Fill a clean vial (24 mm Ø) with 10 ml of the water sample, closetightly with the cap. 2. Placethe vial in the sample chamber making sure that marks are aligned.

  • Page 85: In Presenceof Chlorine

    Chlorine dioxide in the presence of Chlorine with Powder Pack 0.04 – 3.8 mg/l ClO 1. Fill a clean vial (24 mm Ø) with 10 ml of the water sample, closetightly with the cap. 2. Placethe vial in the sample chamber making sure that marks are aligned.
  • Page 86 Notes: 1. Vial cleaning: As many household cleaners (e.g. dishwasher detergent) contain reducing substances, the subsequent determination of Chlorine dioxide may show lower results. To avoid any measurement errors, only use glassware free of Chlorine demand. Preparation: Put all applicable glasswareinto Sodium hypochlorite solution (0.1 g/l) for one hour, then rinse all glasswarethoroughly with deionised water.
  • Page 87 MD 610_2d 11/2019...

  • Page 88: Chlorine Hr(Ki)

    Chlorine HR (Kl) with Tablet 5 – 200 mg/l Cl Insert the adapter for 16 mm Ø vials. 1. Fill a clean vial (16 mm Ø) with 8 ml of the water sample, closetightly with the cap. Ø 16 mm 2.
  • Page 89 Notes: 1. Oxidizing agents interfere as they react in the same way as Chlorine. Reagent Form of reagent/Quantity Order-No. Set ACIDIFYING GP/ Tablet / per 100 517721BT CHLORINE HR (KI) inclusive stirring rod CHLORINE HR (KI) Tablet / 100 513000BT ACIDIFYING GP Tablet / 100 515480BT...

  • Page 90: Chlorite In Presenceof Chlorine And Chlorine Dioxide

    Chlorite in presence of Chlorine and Chlorine dioxide 0,01 – 6 mg/l Cl Firstly, the glycine method is used to measure the concen- tration of Chlorine Dioxide. This is then followed by the determination of the free and total chlorine, from which the Combined Chlorine can be calculated.
  • Page 91 10. Closethe vial tightly with the cap and swirl severaltimes until the tablets are dissolved. 11. Placethe vial in the sample chamber making sure that marks are aligned. Zero accepted prepare Test 12. PressTEST key. press TEST Record the displayed test result (G). 13.
  • Page 92 23. Wait for a reaction period of 2 minutes. Zero accepted prepare Test 24. PressTEST key. press TEST Record the displayed test result (C). 25. Removethe vial from the sample chamber. 26. Add one DPDACIDIFYINGtablet straight from the foil to the same water sample and crush the tablet using a clean stirring rod.
  • Page 93 Tolerances: 1. By calculation of non direct analysable parameters it is necessaryto consider the error propagation besed on the possible tolerances of the single test tesults. 2. see Notes Chlorine, page 47. Reagent Form of reagent/Quantity Order-No. Tablet / per 100 517711BT DPDNo.

  • Page 94: Chromium With Powder Pack

    Chromium with Powder Pack 0.02 – 2 mg/l Cr Chrom >> diff The following selection is shown in the display: Cr (VI) Cr (III + VI) for the differentiated determination of Chromium (VI), >> diff Chromium (III) and total Chromium >>...
  • Page 95 MD 610_2d 11/2019...

  • Page 96: Differentiated Determination

    Chromium, differentiated determination with Powder Pack 0.02 – 2 mg/l Cr Digestion: 1. Fill a cleanvial (16 mm Ø) with 10 ml of water sample. 2. Add the contents of one PERSULF.RGTFORCRPow- der Packstraight from the foil into the vial. Ø...
  • Page 97 13. Fill a second clean vial (16 mm Ø) with 10 ml of the water sample. 14. Add the contents of one CHROMIUM HEXAVALENT Powder Pack straight from the foil to the water sample. Ø 16 mm 15. Closethe vial tightly with the cap and swirl severaltimes to mix the contents.

  • Page 98: Chromium (Vi)

    Chromium (Vl) with Powder Pack 0.02 – 2 mg/l Cr Insert the adapter for 16 mm Ø vials. 1. Fill a clean vial (16 mm Ø) with 10 ml of the water sample. Ø 16 mm 2. Placethe vial in the sample chamber making sure that the marks are aligned.

  • Page 99: Chromium, Total (Cr(Iii)+ Cr(Vi))

    Chromium, total (Cr(lll) + Cr(Vl)) with Powder Pack 0.2 – 2 mg/l Cr Digestion: 1. Fill a cleanvial (16 mm Ø) with 10 ml of water sample. 2. Add the contents of one PERSULF.RGTFORCRPow- der Packstraight from the foil into the vial. Ø...

  • Page 100: Cod, Low Range (Lr)

    COD LR with Vario Tube Test 3 – 150 mg/l O Insert the adapter for 16 mm Ø vials. 1. Open one white capped reaction vial and add 2 ml deionised water (this is the blank (Note 1)). Ø 16 mm 2.
  • Page 101 Notes: 1. Run samplesand blanks with the same batch of vials. Theblank is stable when stored in the dark and can be used for further measurementswith vials of the same batch. 2. Do not place the hot vials in the sample chamber. Cool the vials to room temperature for final measurements.

  • Page 102: Cod, Middle Range (Mr)

    COD MR with Vario Tube Test 20 – 1500 mg/l O Insert the adapter for 16 mm Ø vials. 1. Open one white capped reaction vial and add 2 ml deionised water (this is the blank (Note 1)). Ø 16 mm 2.
  • Page 103 Notes: 1. Run samplesand blanks with the same batch of vials. Theblank is stable when stored in the dark and can be used for further measurementswith vials of the same batch. 2. Do not place the hot vials in the sample chamber. Cool the vials to room temperature for final measurements.

  • Page 104: Cod, High Range (Hr)

    COD HR with Vario Tube Test 0.2 – 15 g/l O 200 – 15 000 mg/l O Insert the adapter for 16 mm Ø vials. 1. Open one white capped reaction vial and add 0.2 ml deionised water (this is the blank (Note 1)). Ø...
  • Page 105 Notes: 1. Run samplesand blanks with the same batch of vials. Theblank is stable when stored in the dark and can be used for further measurementswith vials of the same batch. 2. Do not place the hot vials in the sample chamber. Cool the vials to room temperature for final measurements.

  • Page 106: Colour, True And Apparent

    Colour, true and apparent (APHA Platinum-Cobalt Standard Method) 0 – 500 Pt-Co units Sample preparation (Note 4): Step A Filterapprox. 50 ml deionised water through a membrane filter with a pore width of 0.45 μm. Discardthe filtrate. Filter another 50 ml deionised water and keep it for zeroing.
  • Page 107 Notes: 1. This colour scale was originally developed by A. Hazen as a visual comparison scale. It is therefore necessaryto ascertain whether the extinction maximum of the water sample is in the range from 420 to 470 nm, as this method is only suitable for water sampleswith yellowish to yellowish-brown coloration.

  • Page 108: Copper With Tablet

    Copper with Tablet 0.05 – 5 mg/l Cu Copper The following selection is shown in the display: >> diff free total for the differentiated determination of free, combined and >> diff total Copper. for the determination of free Copper. >> free for the determination of total Copper.

  • Page 109: Differentiated Determination (Free, Combined, Total)

    Copper, differentiated determination with Tablet 0.05 – 5 mg/l Cu 1. Fill a clean vial (24 mm Ø) with 10 ml of the water sample, closetightly with the cap. 2. Placethe vial in the sample chamber making sure that marks are aligned. prepare Zero 3.

  • Page 110: Free Copper

    Copper, free with Tablet 0.05 – 5 mg/l Cu 1. Fill a clean vial (24 mm Ø) with 10 ml of the water sample, closetightly with the cap. 2. Placethe vial in the sample chamber making sure that marks are aligned. prepare Zero 3.

  • Page 111: Total Copper

    Copper, total with Tablet 0.05 – 5 mg/l Cu 1. Fill a clean vial (24 mm Ø) with 10 ml of the water sample, closetightly with the cap. 2. Placethe vial in the sample chamber making sure that marks are aligned. prepare Zero 3.

  • Page 112: Copper With Liquid Reagent And Powder

    Copper with Liquid reagent and powder 0.05 – 4 mg/l Cu Copper The following selection is shown in the display: >> diff free total for the differentiated determination of free, combined and >> diff total Copper. >> free for the determination of free Copper. for the determination of total Copper.

  • Page 113: Differentiated Determination (Free, Combined, Total)

    Copper, differentiated determination with Liquid reagent and powder 0.05 – 4 mg/l Cu 1. Fill a clean vial (24 mm Ø) with 10 ml of the water sample, closetightly with the cap. 2. Placethe vial in the sample chamber making sure that marks are aligned.
  • Page 114 14. Add one COPPERNo. 2 tablet straight from the foil to the same water sample and crush the tablet using a clean stirring rod. 15. Closethe vial tightly with the cap and swirl severaltimes until the tablet is dissolved. 16. Placethe vial in the sample chamber making sure that marks are aligned.

  • Page 115: Free Copper

    Copper, free with Liquid reagent and powder 0.05 – 4 mg/l Cu 1. Fill a clean vial (24 mm Ø) with 10 ml of the water sample, closetightly with the cap. 2. Placethe vial in the sample chamber making sure that marks are aligned.

  • Page 116: Total Copper

    Copper, total with Liquid reagent and powder 0.05 – 4 mg/l Cu 1. Fill a clean vial (24 mm Ø) with 10 ml of the water sample, closetightly with the cap. 2. Placethe vial in the sample chamber making sure that marks are aligned.
  • Page 117 12. Closethe vial tightly with the cap and swirl severaltimes until the tablet is dissolved. 13. Placethe vial in the sample chamber making sure that marks are aligned. Zero accepted prepare Test 14. PressTEST key. press TEST The result is shown in the display in mg/l total Copper. MD 610_2d 11/2019...

  • Page 118: Copper (Powder Pack)

    Copper, free (Note 1) with Vario Powder Pack 0.05 – 5 mg/l Cu 1. Fill a clean vial (24 mm Ø) with 10 ml of the water sample, closetightly with the cap. 2. Placethe vial in the sample chamber making sure that marks are aligned.
  • Page 119 Notes: 1. For determination of total Copper digestion is required. 2. Extremely acid water samples (pH 2 or less) must be adjusted between pH 4 and pH 6 before the reagent is added (with 8 mol/l Potassiumhydroxide solution KOH). Caution: pH valuesabove 6 can lead to Copper precipitation. 3.

  • Page 120: Cyanide

    Cyanide with Reagent Test 0.01 – 0.5 mg/l CN 1. Fill a clean vial (24 mm Ø) with 2 ml of the water sample and 8 ml of deionised water, close tightly with the cap. 2. Placethe vial in the sample chamber making sure that marks are aligned.
  • Page 121 Notes: 1. Only free Cyanide and Cyanides that can be destroyed by Chlorine are determined by this test. 2. In the presenceof Thiocyanate, heavy metal complexes, colorants or aromatic amines, the cyanide must be separated out by distillation before analysisis performed. 3.

  • Page 122: Cya-Test(Cyanuricacid)

    CyA-TEST(Cyanuric acid) with Tablet 0 – 160 mg/l CyA 1. Fill a cleanvial (24 mm Ø) with 5 ml of the water sample and 5 ml deionised water (Note 1), close tightly with the cap. 2. Placethe vial in the sample chamber making sure that marks are aligned.
  • Page 123 Notes: 1. Usedeionised water or tap water free of Cyanuric acid. 2. If Cyanuric acid is present a cloudy solution will occur. Small single particles are not necessarily caused by Cyanuric acid. 3. Dissolvethe tablet completely (therefore swirl the vial approx. 1 minute). Un-dissolved particles of the tablet can causeresults that are too high.

  • Page 124: Dehat

    DEHA (N,N-Diethylhydroxylamine) with Tablet and Liquid Reagent 20 – 500 μg/l DEHA/ 0.02 – 0.5 mg/l DEHA 1. Fill a clean vial (24 mm Ø) with 10 ml of the water sample, closetightly with the cap (Note 2). 2. Placethe vial in the sample chamber making sure that marks are aligned.
  • Page 125 Notes: 1. Application: Testing of residual corrosion inhibitors (Oxygen scavengers)in boiler feed water or condensate. 2. Before using clean the vials with Hydrochloric acid (approx. 20%). Rinsethoroughly with deionised water. 3. Keep the sample dark during colour development time. UV-light (sunlight) causeshigh measurement results.

  • Page 126: Dehapp

    DEHA (N,N-Diethylhydroxylamin) with Vario Powder Pack and Liquid Reagent 20 – 500 μg/l DEHA/ 0.02 – 0.5 mg/l DEHA Use two clean vials (24 mm Ø) and mark one as blank for zeroing (Note 2). 1. Filla clean vial with 10 ml deionised water (this is the blank).
  • Page 127 Notes: 1. Application: Testing of residual corrosion inhibitors (Oxygen scavengers)in boiler feed water or condensate. 2. Before using clean the vials with Hydrochloric acid (approx. 20%). Rinsethoroughly with deionised water. 3. Ideally temperature for full colour development is 25°C ± 3 °C. 4.

  • Page 128: Fluoride

    Fluoride with Liquid Reagent 0.05 – 2 mg/l F Caution: See notes! 1. Filla cleanvial (24 mm Ø)with exactly 10 ml of water sample (Note 4), closetightly with the cap. 2. Placethe vial in the sample chamber making sure that marks are aligned.
  • Page 129 Notes: 1. The same batch of SPADNSreagentsolution must be used for adjustment and test. The adjustment processneeds to be performed for each new batch of SPADNSreagent solution (seeStandard Methods 20th, 1998, APHA, AWWA, WEF4500 F D., S. 4-82). The procedure is describedin chapter 2.6.4 “Calibration – FluorideMethod 170“ on page 335.

  • Page 130: H O With Tablet Reagent

    (Hydrogen peroxide) with tablet reagent 0.03 – 3 mg/l H 1. Fill a clean vial (24 mm Ø) with 10 ml of the water sample, closetightly with the cap. 2. Placethe vial in the sample chamber making sure that marks are aligned. prepare Zero 3.
  • Page 131 Notes: 1. Vial cleaning: As many household cleaners (e.g. dishwasher detergent) contain reducing substances, the subsequent determination of Hydrogen peroxide may show lower results. To avoid any measurement errors, only use glassware free of Chlorine demand. Preparation: Put all applicable glasswareinto Sodium hypochlorite solution (0.1 g/l) for one hour, then rinse all glasswarethoroughly with deionised water.

  • Page 132: Lrwith Liquid Reagent

    (Hydrogen peroxide) LR with Liquid Reagent 1 – 50 mg/l H Insert the adapter for 16 mm Ø vials. 1. Fill a clean vial (16 mm Ø) with 10 ml of the water sample, closetightly with the cap. (Note 1, 2) Ø...
  • Page 133 Notes: 1. Thehydrogen peroxide is determined in the form of yellow/orange coloured peroxotitanic acids in strongly acidic media. In connection with neutral to weakly alkaline (~pH 10) samples, the acid in the reagent is sufficient in order to produce a medium suitable for measurement.

  • Page 134: Hrwith Liquid Reagent

    (Hydrogen peroxide) HR with Liquid Reagent 40 – 500 mg/l H Insert the adapter for 16 mm Ø vials. 1. Fill a clean vial (16 mm Ø) with 10 ml of the water sample, closetightly with the cap. (Note 1, 2) Ø...
  • Page 135 Notes: 1. Thehydrogen peroxide is determined in the form of yellow/orange coloured peroxotitanic acids in strongly acidic media. In connection with neutral to weakly alkaline (~pH 10) samples, the acid in the reagent is sufficient in order to produce a medium suitable for measurement.

  • Page 136: Hardness,Calciumwith Calchecktablet

    Hardness, Calcium with Tablet 50 – 900 mg/l CaCO 1. Filla cleanvial (24 mm Ø)with 10 ml deionised water. 2. Add one CALCHECKtablet straight from the foil to the deionised water and crush the tablet using a clean stirring rod. 3.
  • Page 137 Notes: 1. Strong alkaline or acidic water samplesmust be adjusted between pH 4 and pH 10 before the tablet is added (use 1 mol/l Hydrochloric acid resp. 1mol/l Sodium hydroxide). 2. The tolerance of the method is increasingwith higher concentrations. When diluting samples,this should be take into account, always measuring in the first third of the range.

  • Page 138: Hardness,Calciumwith Calcio Tablet

    Hardness, Calcium 2T with Tablet 0 – 500 mg/l CaCO 1. Filla cleanvial (24 mm Ø)with 10 ml of water sample, closetightly with the cap. 2. Placethe vial in the sample chamber making sure that marks are aligned. prepare Zero 3.
  • Page 139 Notes: 1. To optimise the readings an optional batch related calibration can be performed using Mode 40, see page 334. 2. Strong alkaline or acidic water samplesmust be adjusted to a pH-value between pH 4 and 10 before the tablets are added (use 1 mol/l Hydrochloride acid resp. 1 mol/l Sodium hydroxide).

  • Page 140: Hardness,Total

    Hardness, total with Tablet 2 – 50 mg/l CaCO 1. Fill a clean vial (24 mm Ø) with 10 ml of the water sample, closetightly with the cap. 2. Placethe vial in the sample chamber making sure that marks are aligned. prepare Zero 3.
  • Page 141 Notes: 1. Strong alkaline or acidic water samplesmust be adjusted between pH 4 and pH 10 before the tablet is added (use 1 mol/l Hydrochloric acid resp. 1mol/l Sodium hydroxide). 2. Conversion table: mg/l CaCO °dH °fH °eH 1 mg/l CaCO ---- 0.056 0.10...

  • Page 142: Hardness,Total Hr

    Hardness, total HR with Tablet 20 – 500 mg/l CaCO 1. Fill a clean vial (24 mm Ø) with 1 ml of the water sample and 9 ml of deionised water, close tightly with the cap. 2. Placethe vial in the sample chamber making sure that marks are aligned.
  • Page 143 Notes: 1. Strong alkaline or acidic water samplesmust be adjusted between pH 4 and pH 10 before the tablet is added (use 1 mol/l Hydrochloric acid resp. 1mol/l Sodium hydroxide). 2. Conversion table: mg/l CaCO °dH °fH °eH 1 mg/l CaCO ---- 0.056 0.10...

  • Page 144: Hydrazine

    Hydrazine with Powder Reagent 0.05 – 0.5 mg/l N / 50 – 500 μg/l N 1. Fill a clean vial (24 mm Ø) with 10 ml of the water sample (Note 1, 2), close tightly with the cap. 2. Placethe vial in the sample chamber making sure that marks are aligned.
  • Page 145 Notes: 1. If the water sample is cloudy, you must filter it before performing the zero calibration. 2. The temperature of the water sample should not exceed21°C. 3. Using the Hydrazine spoon: 1 g is equivalent to one level spoon. 4.

  • Page 146: Hydrazinewith Liquid Reagent

    Hydrazine with Vario Liquid Reagent 0.005 – 0.6 mg/l N / 5 – 600 μg/l N Use two clean vials (24 mm Ø) and mark one as blank for zeroing. 1. Filla clean vial with 10 ml deionised water (this is the blank).
  • Page 147 Notes: 1. Samplescannot be preserved and must be analysed immediately. 2. Sampletemperature should be 21°C ± 4°C. 3. The blank may develop a faint yellow colour due to the reagent. 4. Interferences: • Ammonia causesno interferences up to 10 mg/l. At a concentration of 20 mg/l it is possiblethat the test result increasesby 20%.

  • Page 148: Hydrazinewith Vacu-Vials

    Hydrazine ® with Vacu-vials K-5003 (seeNotes) 0.01 – 0.7 mg/l N / 10 – 700 μg/l N Insert the adapter for 13 mm Ø vials. 1. Placethe blank in the sample chamber. Theblank ispart of the test kit. prepare Zero 2.
  • Page 149 Notes: 1. This method is adapted from CHEMetrics. The measuring range and wavelength used for this photometer may differ from the data specified by CHEMetrics. 2. Readthe original test instruction and the MSDS(delivered with the test) before performing the test. MSDSalso available at www.chemetrics.com. 3.

  • Page 150: Iodine

    Iodine with Tablet 0.05 – 3.6 mg/l I 1. Fill a clean vial (24 mm Ø) with 10 ml of the water sample, closetightly with the cap. 2. Placethe vial in the sample chamber making sure that marks are aligned. prepare Zero 3.
  • Page 151 Notes: 1. Oxidizing reagents, such as Chlorine, Bromine, etc. interfere as they react in the same way as Iodine. Reagent Form of reagent/Quantity Order-No. DPD No. 1 Tablet / 100 511050BT MD 610_2d 11/2019...

  • Page 152: Iron

    Iron with Tablet 0.02 – 1 mg/l Fe Determination of total dissolved Iron Fe and Fe Iron with Vario Powder Pack 0.02 – 3 mg/l Fe Determination of all dissolved iron and most undissolved forms of iron. * Iron, total with Vario Powder Pack 0.02 –...
  • Page 153 Iron HR with Liquid reagent 0.1 – 10 mg/l Fe 2+/3+ Determination of total soluble Iron Fe in presence of complexing agent (e.g. Molybdate) * *This information refers to analysis of the water sample without digestion. Further information can be found in the method notes. Notes (Methods 220, 222, 223): Iron Determination dissolved and...

  • Page 154: Iron With Tablet

    Iron (Note 1) with Tablet 0.02 – 1 mg/l Fe 1. Fill a clean vial (24 mm Ø) with 10 ml of the water sample, closetightly with the cap. 2. Placethe vial in the sample chamber making sure that marks are aligned. prepare Zero 3.
  • Page 155 Notes: 1. This method determines the total dissolved Iron as Fe and Fe 2. The IRON(II) LRtablet is used for differentiation – as described above – instead of the IRONLRtablet. 2+/3+ = Fe – Fe 3. For the determination of total dissolvedand undissolved iron digestion is required. An example is described on page 147.

  • Page 156: Iron (Powder Pack)

    Iron (Note 1) with Vario Powder Pack 0.02 – 3 mg/l Fe 1. Fill a clean vial (24 mm Ø) with 10 ml of the water sample, closetightly with the cap. 2. Placethe vial in the sample chamber making sure that the marks are aligned.
  • Page 157 Notes: 1. The reagent reacts with all dissolvediron and most undissolved forms of iron in the water sample. 2. Iron oxide requires prior digestion: use mild, vigorous or Digesdahl digestion (e.g. for digestion with acid seepage 147). 3. Very strong alkaline or acidic water samplesmust be adjusted to a pH value between 3 and 5 before analysis.

  • Page 158: Iron Tptz(Powderpack)

    Iron, total (TPTZ,Note 1) with Vario Powder Pack 0.02 – 1.8 mg/l Fe Use two clean vials (24 mm Ø) and mark one as blank for zeroing. 1. Filla clean vial with 10 ml deionised water (this is the blank). 2.
  • Page 159 Notes: 1. For determination of total Iron digestion is required. TPTZreagent recoversmost insoluble iron oxides without digestion. 2. Rinseall glasswarewith 1:1 Hydrochloric acid solution first and then rinse with deionised water to remove iron deposits that can causeslightly high results. 3.

  • Page 160: Iron (Fein Mo, Powder Pack)

    Iron, total (Fe in Mo) in the presenceof Molybdate with Vario Powder Pack 0.01 – 1.80 mg/l Fe 1. Fill a clean Mixing Cylinder (50 ml) with 50 ml of the water sample. 2. Add the contentsof one Vario (Fe in Mo) Rgt 1 Pow- der Pack straight from the foil into the water sample (50 ml).
  • Page 161 14. Removethe vial from the sample chamber. 15. Placethe sample in the sample chamber making sure that the marks are aligned. Zero accepted prepare Test 15. PressTEST key. press TEST The result is shown in the display in mg/l Fe. Notes: 1.

  • Page 162: Iron Lrwith Liquid Reagent

    Iron LR with Liquid reagent 2+/3+ 0.03 – 2 mg/l Fe This test is suitable for determining total soluble iron. The sample should be pre-filtered using a 0.45 μm membrane if total dissolved iron is required. Particulate or suspended iron will otherwise add to the result. 1.
  • Page 163 Notes: 1. Complexed iron may be measuredby increasing the development period until no further colour development is seen. Very strongly complexed iron may not be included in the measured iron. In this casethe complexing agent must be destroyed by oxidation with acid/persulphatefollowed by neutralisation to pH 6–9.
  • Page 164 Iron, total LR with Liquid reagent 2+/3+ 0.03 – 2 mg/l Fe Digestion procedure for the determination of total iron. Total iron consists of soluble, complexed and suspended iron. Do not filter the sample but ensure the sample is homogeneous by vigorously shaking immediately prior to sampling.
  • Page 165 prepare Zero 10. PressZERO key. press ZERO 11. Removethe vial from the sample chamber and empty the vial. 12. Add 10 ml prepared water sample to the same vial. 13. Fill the vial with drops of the same size by holding the bottle vertically and squeezeslowly: 10 drops KS61 (Ferrozine/Thioglycolate) 14.

  • Page 166: Iron Lr2 With Liquid Reagent

    Iron LR2 with Liquid reagent 0.03 – 2 mg/l Fe and Fe This test is suitable for determining total soluble iron and differentiating between the ferrous and ferric state. The sample should be pre-filtered using a 0.45 μm membrane if total dissolved iron is required. Particulate or suspended iron will otherwise add to the result.
  • Page 167 12. PressTEST key. Zero accepted prepare Test Wait for a reaction period of 5 minutes (note 2). press TEST After the reaction period is finished the measurement starts automatically. Countdown 5:00 2+/3+ The result is shown in the display in mg/l Fe or, if step 7 is omitted, Fe 2+/3+...
  • Page 168 Iron, total LR2 with Liquid reagent 2+/3+ 0.03 – 2 mg/l Fe Digestion procedure for the determination of total iron. Total iron consists of soluble, complexed and suspended iron. Do not filter the sample but ensure the sample is homogeneous by vigorously shaking immediately prior to sampling.
  • Page 169 prepare Zero 10. PressZERO key. press ZERO 11. Removethe vial from the sample chamber and empty the vial. 12. Add 10 ml prepared water sample to the same vial. 13. Fill the vial with drops of the same size by holding the bottle vertically and squeezeslowly: 10 drops KS60 (Acetate Buffer) 14.

  • Page 170: Iron Hrwith Liquid Reagent

    Iron HR with Liquid reagent 2+/3+ 0.1 – 10 mg/l Fe This test is suitable for determining total soluble iron. The sample should be pre-filtered using a 0.45 μm membrane if total dissolved iron is required. Particulate or suspended iron will otherwise add to the result. 1.
  • Page 171 10. PressTEST key. Zero accepted prepare Test Wait for a reaction period of 15 minutes (note 1). press TEST After the reaction period is finished the measurement Countdown starts automatically. 15:00 The result is shown in the display in mg/l Iron. Notes: 1.
  • Page 172 Iron, total HR with Liquid reagent 2+/3+ 0.1 – 10 mg/l Fe Digestion procedure for the determination of total iron. Total iron consists of soluble, complexed and suspended iron. Do not filter the sample but ensure the sample is homogeneous by vigorously shaking immediately prior to sampling.
  • Page 173 10. Removethe vial from the sample chamber and empty the vial. 11. Add 10 ml prepared water sample to the same vial. 12. Fill the vial with drops of the same size by holding the bottle vertically and squeezeslowly: 10 drops KS63 (Thioglycolate) 13.

  • Page 174: Manganesewith Tablet

    Manganese with Tablet 0.2 – 4 mg/l Mn 1. Fill a clean vial (24 mm Ø) with 10 ml of the water sample, closetightly with the cap. 2. Placethe vial in the sample chamber making sure that marks are aligned. prepare Zero 3.
  • Page 175 Note: KMnO Reagent Form of reagent/Quantity Order-No. Tablet / per 100 517621BT MANGANESELRNo. 1 / No. 2 inclusive stirring rod MANGANESE LRNo. 1 Tablet / 100 516080BT MANGANESE LRNo. 2 Tablet / 100 516090BT MD 610_2d 11/2019...

  • Page 176: Manganeselr(Powder Pack)

    Manganese LR with Vario Powder Pack 0.01 – 0.7 mg/l Mn Use two clean vials (24 mm Ø) and mark one as blank for zeroing (Note 1). 1. Fill a clean vial with 10 ml of deionised water (this is the blank). 2.
  • Page 177 Notes: 1. Rinseall glasswarewith 1:1 Nitric acid solution first and then rinse with deionised water. 2. Water samplesthat contain more than 300 mg/l CaCO hardness:after adding the Vario Ascorbic Acid powder pack add additionally 10 drops of RochelleSalt Solution. 3. After addition of the reagent solution “Alkaline-Cyanide” a cloudy or turbid solution may form in some water samples.The turbidity should disappear after point 7.

  • Page 178: Manganesehr(Powder Pack)

    Manganese HR with Vario Powder Pack 0.1 – 18 mg/l Mn 1. Fill a clean vial (24 mm Ø) with 10 ml of the water sample, closetightly with the cap. 2. Placethe vial in the sample chamber making sure that marks are aligned.
  • Page 179 Notes: 1. This test is applicable for the determination of soluble Manganesein water and wastewater. 2. Highly buffered water samplesor extreme pH valuesmay exceedthe buffering capacity of the reagents and requires sample pre-treatment. If sampleswere acidified for storing, adjust the pH between 4 and 5 with 5 mol/l (5 N) Sodium hydroxide before test.

  • Page 180: Manganesewith Liquid Reagent

    Manganese with Liquid reagent 0.05 – 5 mg/l Mn 1. Fill a clean vial (24 mm Ø) with 10 ml of the water sample, closetightly with the cap. 2. Placethe vial in the sample chamber making sure that marks are aligned. prepare Zero 3.
  • Page 181 Zero accepted prepare Test 12. PressTEST key. press TEST Wait for a reaction period of 3 minutes. Countdown 3:00 After the reaction period is finished the measurement starts automatically. The result is shown in the display in mg/l Manganese. Notes: 1.

  • Page 182: Molybdate With Tablet

    Molybdate with Tablet 1 – 50 mg/l MoO / 0.6 – 30 mg/l Mo 1. Fill a clean vial (24 mm Ø) with 10 ml of the water sample, closetightly with the cap. 2. Placethe vial in the sample chamber making sure that marks are aligned.
  • Page 183 Notes: 1. The tablets must be added in the correct sequence. 2. Under test conditions (pH 3.8 – 3.9) iron does not interfere nor do other metals at levels likely to be found in industrial water systems. 3. Conversions: mg/l Mo = mg/l MoO x 0.6 mg/l Na = mg/l MoO...

  • Page 184: Molybdate Lr(Powder Pack)

    Molybdate / Molybdenum LR mit Vario Powder Pack 0.05 – 5.0 mg/l MoO / 0.03 – 3 mg/l Mo 1. Fill a clean Mixing Cylinder (25 ml) with 20 ml of the water sample. 2. Add the contents of one Vario Molybdenum 1 LR F20 Powder Packstraight from the foil into the water sample (20 ml).
  • Page 185 13. Removethe vial from the sample chamber. 14. Placethe sample in the sample chamber making sure that the marks are aligned. Zero accepted prepare Test 15. PressTEST key. press TEST The result is shown in the display in mg/l Molybdate / Molybdenum.

  • Page 186: Molybdate Hr(Powder Pack)

    Molybdate / Molybdenum HR with Vario Powder Pack 0.5 – 66 mg/l MoO / 0.3 – 40 mg/l Mo 1. Fill a clean vial (24 mm Ø) with 10 ml of the water sample, closetightly with the cap. 2. Placethe vial in the sample chamber making sure that marks are aligned.
  • Page 187 12. PressTEST key. Zero accepted prepare Test Wait for a reaction period of 5 minutes. press TEST Countdown After the reaction period is finished the measurement 5:00 starts automatically. The result is shown in the display in mg/l Molybdate / Molybdenum.

  • Page 188: Molybdate Hrwith Liquid Reagent

    Molybdate / Molybdenum HR with Liquid reagent 1 – 100 mg/l MoO / 0.6 – 60 mg/l Mo 1. Fill a clean vial (24 mm Ø) with 10 ml of the water sample, closetightly with the cap. 2. Placethe vial in the sample chamber making sure that marks are aligned.
  • Page 189 Notes: 1. Perform tests on sample water taken directly from the system. Molybdate will be absorbed onto the walls of sample containers and give low results. Reagent Form of reagent/Quantity Order-No. KS63 – Thoiglycolate Reagent Liquid reagent / 65 ml 56L006365 MD 610_2d 11/2019...

  • Page 190: Nickel With Tablet

    Nickel with Tablet 0.1 – 10 mg/l Ni 1. Fill a clean vial (24 mm Ø) with 10 ml of the water sample, closetightly with the cap. 2. Placethe vial in the sample chamber making sure that the marks are aligned. prepare Zero 3.
  • Page 191 Notes: 1. If Iron is present in the sample, add one level spoonful of Nickel PTpowder to the sample (after adding Nickel No. 1) and mix. 2. The presenceof cobalt at 0.5 mg/l gives a positive responsein the test. 3. The presence of higher levels of EDTA(at least 25 mg/l) complexes nickel and reduces responsein the test.

  • Page 192: Nitrate With Tablet And Powder

    Nitrate with Tablet and Powder 0.08 – 1 mg/l N 1. Fill a clean vial (24 mm Ø) with 10 ml of the water sample, closetightly with the cap. 2. Placethe vial in the sample chamber making sure that the marks are aligned.
  • Page 193 13. Closethe vial tightly with the cap and swirl severaltimes until the tablet is dissolved. 14. Placethe vial in the sample chamber making sure that marks are aligned. Zero accepted prepare Test 15. PressTEST key. press TEST Wait for a reaction period of 10 minutes. Countdown 10:00 After the reaction period is finished the measurement...

  • Page 194: Nitrate (Tube Test)

    Nitrate with Tube Test 1 – 30 mg/l N Insert the adapter for 16 mm Ø vials. 1. Open one white capped reaction vial and add 1 ml deionised water (this is the blank). Ø 16 mm 2. Open another white capped reaction vial and add 1 ml of the water sample (this is the sample).
  • Page 195 Notes: 1. Some solids may not dissolve. 2. To optimise the readings an optional batch related calibration can be performed. Follow the procedure using 1 ml deionised water in place of the sample and subtract the reagent blank value from the final result. 3.

  • Page 196: Nitrite With Tablet

    Nitrite with Tablet 0.01 – 0.5 mg/l N 1. Fill a clean vial (24 mm Ø) with 10 ml of the water sample, closetightly with the cap. 2. Placethe vial in the sample chamber making sure that the marks are aligned. prepare Zero 3.
  • Page 197 Notes: 1. The following ions can produce interferences since under the reaction conditions they causeprecipitation: Antimony (III), Iron (III), Lead, Mercury (I), Silver,Chloroplatinate, Metavanadate and Bismuth. Copper (II)-ions may causelower test results as they accelerate the decomposition of the Diazonium salt. It is unlikely in practice that these interfering ions will occur in such high concentrations that they causesignificant reading errors.

  • Page 198: Nitrite Lr(Powder Pack)

    Nitrite LR with Vario Powder Pack 0.01 – 0.3 mg/l N 1. Fill a clean vial (24 mm Ø) with 10 ml of the water sample, closetightly with the cap. 2. Placethe vial in the sample chamber making sure that marks are aligned.
  • Page 199 Notes: 1. Interferences: • Strong oxidizing and reducing substancesinterfere. • Cupric and ferrous ions causelow results. • Antimonous, Auric, Bismuth, Chloroplatinate, Ferric,Lead, Mercurous, Metavanadate, Silverions interfere by causing precipitation. • In sampleswith very high concentrations of Nitrate (> 100 mg/L N) a small amount of Nitrite will be found.

  • Page 200: Nitrogen, Total Lr

    Nitrogen, total LR with Vario Tube Test 0.5 – 25 mg/l N Insert the adapter for 16 mm Ø vials. 1. Open two TN Hydroxide LRdigestion vials and add the contentsof one Vario TN Persulfate Rgt. Powder Ø 16 mm Pack (Note 2, 3).
  • Page 201 Countdown 12. Press[ ] key. 2:00 start: Wait for a reaction period of 2 minutes. After the reaction period is finished proceed as follows: 13. Open two TN Acid LR/HR (Reagent C) vials and add 2 ml of the digested, treated blank to one vial (this is the blank).

  • Page 202: Nitrogen, Total Hr

    Nitrogen, total HR with Vario Tube Test 5 – 150 mg/l N Insert the adapter for 16 mm Ø vials. 1. Open two TN Hydroxide HRdigestion vialsand add the contentsof one Vario TN Persulfate Rgt. Powder Pack (Note 2, 3). Ø...
  • Page 203 11. Close the vials with the caps and shake to mix the contents (at least 15 seconds, Note 8). Countdown 12. Press[ ] key. 2:00 Wait for a reaction period of 2 minutes. start: After the reaction period is finished proceed as follows: 13.
  • Page 204 Notes: 1. Appropriate safety precautions and a good lab technique should be used during the whole procedure. 2. Usea funnel to add the reagent. 3. Wipe off any Persulfatereagent that may get on the lid or the tube threads. 4. Nitrogen, total LR: Volumes for samplesand blank should always be metered by using 2 ml volumetric pipettes (classA).
  • Page 205 Nitrogen, total LRwith Vario Tube Test Reagent Form of reagent/Quantity Order-No. Tube test contains: 535550 VARIO TN HYDROX LR Tube Digestion tube / 50 VARIO PERSULFATEReagent Powder Pack / 50 VARIO TN Reagent A Powder Pack / 50 VARIO TN Reagent B Powder Pack / 50 VARIO TN ACID LR/HR Tube Reaction tube / 50...

  • Page 206: Oxygen,Active

    Oxygen, active* with Tablet 0.1 – 10 mg/l O 1. Fill a clean vial (24 mm Ø) with 10 ml of the water sample, closetightly with the cap. 2. Placethe vial in the sample chamber making sure that marks are aligned. prepare Zero 3.
  • Page 207 Notes: * Active Oxygen is a synonym for a common disinfectant (based on “Oxygen“) in Swimming Pool Treatment. 1. When preparing the sample, the lost of Oxygen, e.g. by pipetting or shaking, must be avoided. 2. The analysismust take place immediately after taking the sample. Reagent Form of reagent/Quantity Order-No.

  • Page 208: Oxygen,Dissolved

    Oxygen, dissolved ® with Vacu-vials K-7553 (see Notes) 10 – 800 μg/l O Insert the adapter for 13 mm Ø round vials. 1. Placethe blank in the sample chamber. Theblank ispart of the test kit. prepare Zero 2. PressZERO key. press ZERO 3.
  • Page 209 Notes: 1. This method is adapted from CHEMetrics. The measuring range and wavelength used for this photometer may differ from the data specified by CHEMetrics. 2. Readthe original test instruction and the MSDS(delivered with the test) before performing the test. MSDSalso available at www.chemetrics.com. ®...

  • Page 210: Ozone

    Ozone with Tablet 0.02 – 2 mg/l O Ozon The following selection is shown in the display: >> with Cl without Cl for the determination of Ozone in the presenceof Chlorine. >> with Cl for the determination of Ozone in the absenceof Chlorine. >>...
  • Page 211 Notes: 1. Vial cleaning: As many household cleaners (e.g. dishwasher detergent) contain reducing substances, the subsequent determination of Ozone may show lower results. To avoid any measurement errors, only useglassware free of Chlorine demand. Preparation: Put all applicable glasswareinto Sodium hypochlorite solution (0.1 g/l) for one hour, then rinse all glasswarethoroughly with deionised water.

  • Page 212: In Presenceof Chlorine

    Ozone, in the presenceof Chlorine with Tablet 0.02 – 2 mg/l O 1. Fill a clean vial (24 mm Ø) with 10 ml of the water sample, closetightly with the cap. 2. Placethe vial in the sample chamber making sure that marks are aligned.
  • Page 213 13. Close the vial tightly with the cap and swirl several times until the tablet is dissolved. 14. Add one DPDNo. 1 tablet and one DPDNo. 3 tablet straight from the foil into the first cleanedvial and crush the tablets using a clean stirring rod. 15.

  • Page 214: In Absenceof Chlorine

    Ozone, in absence of Chlorine with Tablet 0.02 – 2 mg/l O 1. Fill a clean vial (24 mm Ø) with 10 ml of the water sample, closetightly with the cap. 2. Placethe vial in the sample chamber making sure that marks are aligned.
  • Page 215 Notes: Seepage 205 Reagent Form of reagent/Quantity Order-No. Tablet / per 100 517711BT DPDNo. 1 / No. 3 inclusive stirring rod DPD No. 1 Tablet / 100 511050BT DPD No. 3 Tablet / 100 511080BT MD 610_2d 11/2019...

  • Page 216: Phmb(Biguanide)

    PHMB (Biguanide) with Tablet 2 – 60 mg/l PHMB 1. Fill a clean vial (24 mm Ø) with 10 ml of the water sample, closetightly with the cap. 2. Placethe vial in the sample chamber making sure that marks are aligned. prepare Zero 3.
  • Page 217 Notes: 1. Clean vials with the brush immediately after analysis. 2. Vials and stirring rods may turn blue after prolonged use. In this caseclean vialsand stirring rods with a laboratory detergent (seechapter 1.2.2 Cleaning of vials and accessoriesfor analysis).Rinsevials and caps thoroughly with tap water and then with deionised water.

  • Page 218: Phosphate

    Phosphate, ortho LR with Tablet 0.05 – 4 mg/l PO Determination of ortho-Phosphate ions Phosphate, ortho HR with Tablet 1 – 80 mg/l PO Determination of ortho-Phosphate ions Phosphate, ortho with Vario Powder Pack 0.06 – 2.5 mg/l PO Determination of ortho-Phosphate ions Phosphate, ortho with Vario Tube Test 0.06 –...
  • Page 219 Phosphate, HR with Liquid reagent 5 – 80 mg/l PO Determination of ortho-Phosphate-Ions + condensed,inor- ganic Phosphate + organic combined Phosphates Additional information can be found in the notes for each method. General: Ortho-Phosphate ions react with the reagent to form an intense blue colour (methods 320, 323, 324, 325 and 326).

  • Page 220: Phosphate,Ortho Lrwith Tablet

    Phosphate, ortho LR with Tablet 0.05 – 4 mg/l PO 1. Fill a clean vial (24 mm Ø) with 10 ml of the water sample, close the cap tightly. 2. Placethe vial in the sample chamber making sure that the marks are aligned.
  • Page 221 Notes: 1. Only ortho-Phosphate ions react. 2. The tablets must be added in the correct sequence. 3. The test sample should have a pH-Value between 6 and 7. 4. Interferences: Higher concentrations of Cu, Ni, Cr (III),V (V) and W (VI) interfere due to their colour. Silicatesdo not interfere (masked by Citric acid in the tablets).

  • Page 222: Phosphate,Ortho Hrwith Tablet

    Phosphate HR, ortho with Tablet 1 – 80 mg/l PO 1. Fill a clean vial (24 mm Ø) with 10 ml of the water sample, closetightly with the cap. 2. Placethe vial in the sample chamber making sure that marks are aligned. prepare Zero 3.
  • Page 223 Notes: 1. For samplesunder 5 mg/l PO it is reccommended to analysethe water sample with method 320 ”Posphate LR,ortho with Tablet“. 2. Only ortho-Phosphate ions react. 3. see also page 213 4. Conversions: mg/l P = mg/l PO x 0.33 mg/l P = mg/l PO x 0.75...

  • Page 224: Phosphate,Ortho (Powder Pack)

    Phosphate, ortho with Vario Powder Pack 0.06 – 2.5 mg/l PO 1. Fill a clean vial (24 mm Ø) with 10 ml of the water sample, closetightly with the cap. 2. Placethe vial in the sample chamber making sure that marks are aligned.
  • Page 225 Notes: 1. The reagent does not dissolve completely. 2. see also page 213 3. Conversions: mg/l P = mg/l PO x 0.33 mg/l P = mg/l PO x 0.75 Reagent Form of reagent/Quantity Order-No. Powder Pack / 531550 VARIO PHOS3 F10 2 x 50 VARIO PHOSPHATERGT.

  • Page 226: Phosphate,Ortho (Tube Test)

    Phosphate, ortho with Vario Tube Test 0.06 – 5 mg/l PO Insert the adapter for 16 mm Ø vials. 1. Open the white cap of one tube PO -P Dilution and add 5 ml of the water sample. Ø 16 mm 2.
  • Page 227 Notes: 1. Usea funnel to add the reagent. 2. The reagent does not dissolve completely. 3. see also page 213 4. Conversions: mg/l P = mg/l PO x 0.33 mg/l P = mg/l PO x 0.75 Reagent Form of reagent/Quantity Order-No.

  • Page 228: Phosphate1, Ortho C

    Phosphate 1, ortho ® with Vacu-vials K-8503 (seeNotes) 5 – 40 mg/l PO Insert the adapter for 13 mm Ø vials. 1. Placethe blank in the sample chamber. Theblank ispart of the test kit. prepare Zero 2. PressZERO key. press ZERO 3.
  • Page 229 Notes: 1. This method is adapted from CHEMetrics. The measuring range and wavelength used for this photometer may differ from the data specified by CHEMetrics. 2. Readthe original test instruction and the MSDS(delivered with the test) before performing the test. MSDSalso available at www.chemetrics.com. ®...

  • Page 230: Phosphate2, Ortho C

    Phosphate 2, ortho ® with Vacu-vials K-8513 (seeNotes) 0.05 – 5 mg/l PO Insert the adapter for 13 mm Ø vials. 1. Placethe blank in the sample chamber. Theblank ispart of the test kit. prepare Zero 2. PressZERO key. press ZERO 3.
  • Page 231 Notes: 1. This method is adapted from CHEMetrics. The measuring range and wavelength used for this photometer may differ from the data specified by CHEMetrics. 2. Readthe original test instruction and the MSDS(delivered with the test) before performing the test. MSDSalso available at www.chemetrics.com. 3.

  • Page 232: Phosphate,Hydrolyzable(Tube Test)

    Phosphate, acid hydrolyzable with Vario Tube Test 0.02 – 1.6 mg/l P (=^0.06 – 5 mg/l PO Insert the adapter for 16 mm Ø vials. 1. Open the white cap of one digestion tube PO4-PAcid reagent and add 5 ml of the water sample. 2.
  • Page 233 Notes: 1. Appropriate safety precautions and a good lab technique should be used during the whole procedure. 2. Usea funnel to add the reagent. 3. The reagent does not dissolve completely. 4. see also page 213 5. Conversions: mg/l PO = mg/l P x 3.07 mg/l P = mg/l P x 2.29...

  • Page 234: Phosphate,Total (Tube Test)

    Phosphate, total with Vario Tube Test 0.02 – 1.1 mg/l P (=^0.06 – 3.5 mg/l PO Insert the adapter for 16 mm Ø vials. 1. Open the white cap of one digestion tube PO4-PAcid reagent and add 5 ml of the water sample. 2.
  • Page 235 Notes: 1. Appropriate safety precautions and a good lab technique should be used during the whole procedure. 2. Usea funnel to add the reagent. 3. The reagent does not dissolve completely. 4. see also page 213 5. Conversions: mg/l PO = mg/l P x 3.07 mg/l P = mg/l P x 2.29...

  • Page 236: Phosphatelrwith Liquid Reagent

    Phosphate LR with Liquid reagent 0.1 – 10 mg/l PO This test is suitable for determining ortho-Phosphate in boiler watersand potable water supplies.Samplesshould be filtered prior to analysisto remove any suspendedinsoluble phosphate. A GF/Cfilter is suitable. Unscrew the two halvesof the filter holder and place one GF/C filter circle onto the base section.
  • Page 237 10. Close the vial tightly with the cap and swirl several times to dissolvethe powder. 11. Placethe vial in the sample chamber making sure that marks are aligned. Zero accepted 12. PressTEST key. prepare Test Wait for a reaction period of 10 minutes. press TEST Countdown 10:00...
  • Page 238 Polyphosphate LR with Liquid reagent 0.1 – 10 mg/l PO Thistest will give total inorganic phosphate. Polyphosphatebeing determined by the difference of total inorganic phosphate and ortho-Phosphate. 1. Fill a clean100-ml-Erlenmeyer flask with 50 ml homo- genized sample. 2. Add 15 drops of KS278 (50% SulphuricAcid) to the same water sample.
  • Page 239 Total Phosphate LR with Liquid reagent 0.1 – 10 mg/l PO This test will measure all phosphorous containing com- pounds present in the sample, including ortho-Phosphate, Polyphosphate and organic phosphorous compounds. 1. Fill a clean100-ml-Erlenmeyer flask with 50 ml homo- genized sample.

  • Page 240: Phosphatehrwith Liquid Reagent

    Phosphate HR with Liquid reagent 5 – 80 mg/l PO This test is suitable for determining ortho-Phosphate in boiler watersand potable water supplies.Samplesshould be filtered prior to analysisto remove any suspendedinsoluble phosphate. A GF/Cfilter is suitable. Unscrew the two halvesof the filter holder and place one GF/C filter circle onto the base section.
  • Page 241 10. Close the vial tightly with the cap and invert several times to mix the contents. 11. Placethe vial in the sample chamber making sure that marks are aligned. Zero accepted prepare Test 12. PressTEST key. press TEST Wait for a reaction period of 10 minutes. Countdown 10:00 After the reaction period is finished the measurement...
  • Page 242 Polyphosphate HR with Liquid reagent 5 – 80 mg/l PO Thistest will give total inorganic phosphate. Polyphosphatebeing determined by the difference of total inorganic phosphate and ortho-Phosphate. 1. Fill a clean100-ml-Erlenmeyer flask with 50 ml homo- genized sample. 2. Add 15 drops of KS278 (50% SulphuricAcid) to the same water sample.
  • Page 243 Total Phosphate HR with Liquid reagent 5 – 80 mg/l PO This test will measure all phosphorous containing com- pounds present in the sample, including ortho-Phosphate, Polyphosphate and organic phosphorous compounds. 1. Fill a clean100-ml-Erlenmeyer flask with 50 ml homo- genized sample.

  • Page 244: Phosphonates

    Phosphonates Persulfate UV oxidation method with Vario Powder Pack 0 – 125 mg/l (seeTable 1) 1. Choose the appropriate sample volume from table 1 (seefollowing pages). 2. Pipette the chosen sample volume into a clean 50 ml graduated cylinder. If necessaryfill up with deionised water to the 50 ml mark and mix well.
  • Page 245 13. Placethe vial (the blank) in the samplechamber making sure that the marks are aligned. prepare Zero 14. PressZERO key. press ZERO Wait for a reaction period of 2 minutes (Note 7). Countdown After the reaction period is finished the measurement 2:00 starts automatically.
  • Page 246 Table 1: Expected range Sample volume Factor (mg/L Phosphonate) in ml 0 – 2.5 0 – 5.0 0 – 12.5 0 – 25 0 – 125 Table 2: Phosphonate type Conversion factor for active phosphonate PBTC 2.840 1.050 HEDPA 1.085 EDTMPA 1.148 HMDTMPA...
  • Page 247 Interference levels decreasewith increasing sample volume. Example: Iron interferes above 200 mg/L if a sample volume of 5 ml is used. At a sample volume of 10 ml the interference level decreasesto 100 mg/L. Table 3: Interfering substances Interference level using 5 ml of sample Aluminium 100 mg/l Arsenate...

  • Page 248: Ph Valuelrwith Tablet

    pH value LR5.2 – 6.8 with Tablet 1. Fill a clean vial (24 mm Ø) with 10 ml of the water sample, closetightly with the cap. 2. Placethe vial in the sample chamber making sure that marks are aligned. prepare Zero 3.
  • Page 249 Notes: 1. For photometric determination of pH values only use BROMOCRESOLPURPLEtabletsin black printed foil pack and marked with PHOTOMETER. 2. pH values below 5.2 and above 6.8 can produce results inside the measuring range. A plausibility test (pH-meter) is recommended. 3.

  • Page 250: Ph Valuewith Tablet

    pH value 6.5 – 8.4 with Tablet 1. Fill a clean vial (24 mm Ø) with 10 ml of the water sample, closetightly with the cap. 2. Placethe vial in the sample chamber making sure that marks are aligned. prepare Zero 3.
  • Page 251 Notes: 1. For photometric determination of pH-values only use PHENOLREDtablets in black printed foil pack and marked with PHOTOMETER. 2. Water sampleswith low valuesof Alkalinity-m (below 35 mg/l CaCO ) may give wrong pH readings. 3. pH-values below 6.5 and above 8.4 can produce results inside the measuring range. A plausibility test (pH-meter) is recommended.

  • Page 252: Ph Valuewith Liquid Reagent

    pH value 6.5 – 8.4 with Liquid Reagent 1. Fill a clean vial (24 mm Ø) with 10 ml of the water sample, closetightly with the cap. 2. Placethe vial in the sample chamber making sure that marks are aligned. prepare Zero 3.
  • Page 253 Notes: 1. When testing chlorinated water the residual chlorine contents can influence the colour reaction of the liquid reagent. Thiscan be avoided (without interfering with the pH measurement) by adding a small crystal of Sodiumthiosulfate (Na · 5 H O) to the sample before adding the PHENOLREDsolution.

  • Page 254: Ph Valuehrwith Tablet

    pH value HR 8.0 – 9.6 with Tablet 1. Fill a clean vial (24 mm Ø) with 10 ml of the water sample, closetightly with the cap. 2. Placethe vial in the sample chamber making sure that marks are aligned. prepare Zero 3.
  • Page 255 Notes: 1. For photometric determination of pH values only use THYMOLBLUEtabletsin black printed foil pack and marked with PHOTOMETER. 2. pH values below 8.0 and above 9.6 can produce results inside the measuring range. A plausibility test (pH-meter) is recommended. 3.

  • Page 256: Polyacrylatewith Liquid Reagent

    Polyacrylate with Liquid reagent 1 – 30 mg/l 1. Fill a clean vial (24 mm Ø) with 10 ml of the water sample, closetightly with the cap. 2. Placethe vial in the sample chamber making sure that marks are aligned. prepare Zero 3.
  • Page 257 Notes: 1. Fill the vial with drops of the same size by holding the bottle vertically and squeeze slowly. 2. If little or no turbidity is present at correct dose concentrations, the sample will need a pre-concentration step in order to detect this level of polyacrylate/polymer. Carry out this procedure as directed then test the pre-concentrated sample as above (seenext page).
  • Page 258 Pre-Concentration Pre-concentration usesexactly the same procedure as interference removal, except a greater volume of sample is used in step 1, instead of deionised/tap water. For calculation of the original sample concentration a concentration factor should be considered: If a 50 ml sample is used the concentration factor is 20/50 = 0.4 If a 100 ml sample is used the concentration factor is 20/100 = 0.2 This can be extended asrequired in order to concentrate the polyacrylate/polymer sufficiently for analysis.
  • Page 259 Interference removal 1. Transferexactly 20 ml of sample water to a 100 ml sample bottle and dilute to approximately 50-60 ml with deionised water or tap water. 2. Add drops of KS173 (2,4 Dinitrophenol) until a pale yellow colour is observed in the sample.

  • Page 260: Potassium

    Potassium with Tablet 0.7 – 16 mg/l K 1. Fill a clean vial (24 mm Ø) with 10 ml of the water sample, closetightly with the cap. 2. Placethe vial in the sample chamber making sure that marks are aligned. prepare Zero 3.
  • Page 261 Notes: 1. If Potassium is present a cloudy solution will appear. Single particles are not necessarily caused by Potassium. Reagent Form of reagent/Quantity Order-No. Potassium T Tablet / 100 515670 MD 610_2d 11/2019...

  • Page 262: Silica

    Silica/Silicon dioxide with Tablet 0.05 – 4 mg/l SiO 1. Fill a clean vial (24 mm Ø) with 10 ml of the water sample, closetightly with the cap. 2. Placethe vial in the sample chamber making sure that marks are aligned. prepare Zero 3.
  • Page 263 Zero accepted prepare Test 12. PressTEST key. press TEST Wait for a reaction period of 2 minutes. Countdown 2:00 After the reaction period is finished the measurement starts automatically. The result is shown in the display in mg/l Silica. Notes: 1.

  • Page 264: Silicalrpp

    Silica LR/ Silicon dioxide LR with Vario Powder Pack and Liquid Reagent 0.1 – 1.6 mg/l SiO Use two clean vials (24 mm Ø) and mark one as blank for zeroing. 1. Fill each vial with 10 ml of the water sample. 2.
  • Page 265 After the reaction period is finished the zero-reading starts automatically. 12. Removethe vial from the sample chamber. 13. Placethe vial (the sample) in the samplechamber mak- ing sure that the marks are aligned. Zero accepted 14. PressTEST key. prepare Test press TEST The result is shown in the display in mg/l Silica.

  • Page 266: Silicahrpp

    Silica HR / Silicon dioxide HR with Vario Powder Pack 1 – 90 mg/l SiO 1. Fill a clean vial (24 mm Ø) with 10 ml of the water sample (Note 1), closetightly with the cap. 2. Placethe vial in the sample chamber making sure that marks are aligned.
  • Page 267 Notes: 1. Temperature of the sample should be 15°C – 25°C. 2. If Silica or Phosphate is present a yellow colour is developed 3. In this step any yellow colour due to Phosphate is removed. 4. Interferences: Substance Interference Iron large amounts interfere Phosphate does not interfere at concentrations lessthan 50 mg/l PO...

  • Page 268: Silicawith Liquid Reagent And Powder

    Silica / Silicon dioxide with Liquid reagent and powder 0.1 – 8 mg/l SiO 1. Fill a clean vial (24 mm Ø) with 10 ml of the water sample, closetightly with the cap. 2. Placethe vial in the sample chamber making sure that marks are aligned.
  • Page 269 12. Placethe vial in the sample chamber making sure that marks are aligned. Zero accepted 13. PressTEST key. press ZERO press TEST Wait for a reaction period of 10 minutes. Countdown 10:00 After the reaction period is finished the measurement starts automatically.

  • Page 270: Sodium Hypochlorite

    Sodium hypochlorite (Soda bleaching lye) with Tablet 0.2 – 16 % w/w NaOCl Preparation: 1. Filla 5 ml plasticsyringewith the test solution, ensuring that all air bubbles are expelled. Transferthe 5 ml test solution slowly into a 100 ml beaker and dilute to the 100 ml mark with chlorine-free water.
  • Page 271 8. Placethe vial in the sample chamber making sure that marks are aligned. Zero accepted prepare Test 9. PressTEST key. press TEST The result is shown in the display in % w/w as avail- able chlorine present in the original sample of Sodium hypochlorite.

  • Page 272: Sulfate With Tablet

    Sulfate with Tablet 5 – 100 mg/l SO 1. Fill a clean vial (24 mm Ø) with 10 ml of the water sample, closetightly with the cap. 2. Placethe vial in the sample chamber making sure that marks are aligned. prepare Zero 3.
  • Page 273 Notes: 1. If Sulfate is present a cloudy solution will appear. Reagent Form of reagent/Quantity Order-No. SULFATE T Tablet / 100 515450BT MD 610_2d 11/2019...

  • Page 274: Sulfate (Powder Pack)

    Sulfate with Vario Powder Pack 5 – 100 mg/l SO 1. Fill a clean vial (24 mm Ø) with 10 ml of the water sample, closetightly with the cap. 2. Placethe vial in the sample chamber making sure that marks are aligned. prepare Zero 3.
  • Page 275 Note: 1. If Sulfate ions are present a cloudy solution will appear. Reagent Form of reagent/Quantity Order-No. VARIO Sulpha 4 / F10 Powder Pack / 100 532160 MD 610_2d 11/2019...

  • Page 276: Sulfide

    Sulfide with Tablet 0.04 – 0.5 mg/l S 1. Fill a clean vial (24 mm Ø) with 10 ml of the water sample, closetightly with the cap. 2. Placethe vial in the sample chamber making sure that marks are aligned. prepare Zero 3.
  • Page 277 Notes: 1. The tablets must be added in the correct sequence. 2. Chlorine and other oxidizing agents which react with DPDdo not interfere with the test. 3. To avoid lossof Sulfide collect the sample carefully with a minimum of aeration. It is essentialto test the sample immediately after collection.

  • Page 278: Sulfite

    Sulfite with Tablet 0.1 – 5 mg/l SO 1. Fill a clean vial (24 mm Ø) with 10 ml of the water sample, closetightly with the cap. 2. Placethe vial in the sample chamber making sure that marks are aligned. prepare Zero 3.
  • Page 279 Notes: Reagent Form of reagent/Quantity Order-No. SULFITE LR Tablet / 100 518020BT MD 610_2d 11/2019...

  • Page 280: Surfactants,Anionic

    Surfactants, anionic ® with MERCKSpectroquant Cell Test, No. 1.02552.0001 0.05 – 2 mg/l SDSA 0.06 – 2.56 mg/l SDBS 0.05 – 2.12 mg/l SDS 0.08 – 3.26 mg/l SDOSSA Use two clean Reagent tubes and mark one as blank for zeroing.
  • Page 281 9. Swirl the vial (the sample) and than place the vial (the sample) in the sample chamber making surethat the marks are aligned. (note 7) Zero accepted 10. PressTEST key. prepare Test press TEST The result is shown in the display in mg/l SDSA. Notes: 1.

  • Page 282: Surfactants,Nonionic

    Surfactants, nonionic ® with MERCKSpectroquant Cell Test, No. 1.01787.0001 0.1 – 7.5 mg/l Triton ® X-100 0.11 – 8.25 mg/l NP 10 Use two clean Reagent tubes and mark one as blank for zeroing. 1. Add 4 ml deionised water in the vialmarked asblank (this is the blank, note 6).
  • Page 283 Notes: 1. This method is adapted from MERCK. 2. Before performing the test read the original test instructions (delivered with the test) and the MSDS(available at www.merckmillipore.com). ® 3. Spectroquant is a registered trade mark of the company MERCKKGaA. 4. Appropriate safety precautions and good lab technique should be used during the whole procedure.

  • Page 284: Surfactants,Cationic

    Surfactants, cationic ® with MERCKSpectroquant Cell Test, No. 1.01764.0001 0.05 – 1.5 mg/l CTAB Use two clean Reagent tubes and mark one as blank for zeroing. 1. Add 5 ml deionised water in the vial marked asblank (this is the blank, note 6). Do not mix contents! 2.
  • Page 285 Notes: 1. This method is adapted from MERCK. 2. Before performing the test read the original test instructions (delivered with the test) and the MSDS(available at www.merckmillipore.com). ® 3. Spectroquant is a registered trade mark of the company MERCKKGaA. 4. Appropriate safety precautions and good lab technique should be used during the whole procedure.

  • Page 286: Suspendedsolids

    Suspended Solids 0 – 750 mg/l TSS Sample preparation: Blend approx. 500 ml of the water sample in a blender at high speed for 2 minutes. 1. Fill a clean vial (24 mm Ø) with 10 ml of deionised water, closetightly with the cap. 2.
  • Page 287 Note: 1. The photometric determination of SuspendedSolidsis based on a gravimetric method. In a lab this is usually done by evaporation of the filter residue of a filtrated water sample in an oven at 103°C – 105°C and weighing of the dried residue. 2.

  • Page 288: Toclr

    TOC LR ® with MERCKSpectroquant Cell Test, No. 1.14878.0001 5.0 – 80.0 mg/l TOC Use two clean suitable glass containers and mark one as blank for zeroing. 1. Fill a clean glass container with 25 ml of deionised water (this is the blank). 2.

  • Page 289: Prepare Zero Press Zero

    10. Heat vials,standing on its head, at 120°C in the pre- heated reactor for 120 minutes. 11. Wait for 1 hour before proceeding. Do not cool down with water! After cooling, turn the cellupright and measurein the photometer within 10 min. Performing test procedure: Insert the adapter for 16 mm Ø...

  • Page 290: Tochr

    TOC HR ® with MERCKSpectroquant Cell Test, No. 1.14879.0001 50 – 800 mg/l TOC Use two clean suitable glass containers and mark one as blank for zeroing. 1. Fill a clean glass container with 10 ml of deionised water (this is the blank). 2.
  • Page 291 10. Heat vials,standing on its head, at 120°C in the pre- heated reactor for 120 minutes. 11. Wait for 1 hour before proceeding. Do not cool down with water! After cooling, turn the cellupright and measurein the photometer within 10 min. Performing test procedure: Insert the adapter for 16 mm Ø...

  • Page 292: Turbidity

    Turbidity 10 – 1000 FAU 1. Fill a clean vial (24 mm Ø) with 10 ml of deionised water, closetightly with the cap. 2. Placethe vial in the sample chamber making sure that marks are aligned. prepare Zero 3. PressZERO key. press ZERO 4.
  • Page 293 Note: 1. This test usesan attenuated radiation method for the reading of FAU(Formazin Attenuation Units). The results can not be used for USEPAreporting purposes, but may be used for routine measurements.The attenuated radiation method is different from the Nephelometric method. 2.

  • Page 294: Triazole/ Benzotriazole(Powder Pack)

    Triazole Benzotriazole / Tolyltriazole with Powder Pack 1 – 16 mg/l / 1.1 – 17.8 Transfer25 ml of the water sample into the digestion vial. 2. Add the contents of one Triazole Reagent Powder Pack straight from the foil into the water sample (note Close the digestion vial tightly with the cap and swirl until the reagent is dissolved completely.
  • Page 295 12. Removethe vial from the sample chamber and empty vial. 13. Add the digested water sample to the 10 ml mark. Placethe vial in the sample chamber making sure that marks are aligned. Zero accepted 15. PressTEST key. prepare Test press TEST The result isshown in the display in mg/L Benzotriazole...

  • Page 296: Urea

    Urea with Tablet and Liquid Reagent 0.1 – 2.5 mg/l (NH CO/ mg/l Urea 1. Fill a clean vial (24 mm Ø) with 10 ml of the water sample, closetightly with the cap. 2. Placethe vial in the sample chamber making sure that marks are aligned.
  • Page 297 13. Add one AMMONIA No. 2 tablet straight from the foil to the same water sample and mix to dissolvewith a clean stirring rod. 14. Closethe vial tightly with the cap and swirl severaltimes until the tablets are dissolved. 15. Placethe vial in the sample chamber making sure that marks are aligned.

  • Page 298: Zinc With Tablet

    Zinc with Tablet 0.02 – 0.9 mg/l Zn 1. Fill a clean vial (24 mm Ø) with 10 ml of the water sample. 2. Add one COPPER/ ZINC LRtablet straight from the foil to the water sample, crush the tablet using a clean stirring rod.
  • Page 299 Notes: 1. The tablets must be added in the correct sequence. 2. In the caseof high levelsof residual chlorine, perform the analysiswith a dechlorinated water sample. To dechlorinate add one DECHLORtablet to the water sample (point 1). Crush and mix to dissolve the tablet. Then add the COPPER/ZINCLRtablet (point 2) and continue with the test procedure asdescribed above.

  • Page 300: Zinc With Liquid Reagent And Powder

    Zinc with Liquid reagent and powder 0.1 – 2.5 mg/l Zn 1. Fill a clean vial (24 mm Ø) with 10 ml of the water sample, closetightly with the cap. 2. Placethe vial in the sample chamber making sure that marks are aligned.
  • Page 301 Notes: 1. For correct dosage the spoon supplied with the reagents must be used. 2. This test is suitable for determining free soluble Zinc. Zinc bound with strong complexing agents will not be measured. 3. Cationics such as quaternary ammonium compounds will causethe colour to change from rose red to purple, depending upon the level of copper present.

  • Page 302: Important Notes

    Important notes 1.2.1 Correct use of reagents The reagents must be added in the correct sequence. Tablet reagents: The tablet reagents should be added to the water sample straight from the foil without touching them with the fingers. Liquid reagents: Add drops of the same sizeto the water sample by holding the bottle vertically and squeezing slowly.

  • Page 303: Cleaning Of Vials And Accessoriesfor Analysis

    1.2.2 Cleaning of vials and accessoriesfor analysis Vials, caps and stirring rods should be cleaned thoroughly after each analysis to prevent interferences. Procedure: Clean vials and accessoriesafter each analysis as soon as possible. a. Clean vials and accessorieswith laboratory detergent (e.g.
  • Page 304 5. Always perform zeroing and test with closed vial cap. Only use cap with sealing ring. 6. Bubbles on the inside wall of the vial lead to incorrect measurements. To prevent this, remove the bubbles by swirling the vial before performing the test. 7.

  • Page 305: Sampledilution Techniques

    1.2.4 Sample dilution techniques Proceedas follows for accurate dilutions: Pipette the water sample(seetable) into a 100 ml volumetric flask and fill up to 100 ml mark with deionised water. Swirl to mix the contents. Water sample Multiplication [ml] factor Pipette the required volume of the diluted sample into the vial and proceed asdescribed in the test methods.
  • Page 306 MD 610_2d 11/2019...

  • Page 307: Part 2 Instrument Manual

    Part 2 Instrument Manual MD 610_2d 11/2019...

  • Page 308: Operation

    Operation 2.1.1 Set up Beforeworking with the photometer insert the batteries(delivery contents). Seechapter 2.1.2 Savingdata – Important Notes, 2.1.3 Replacement of batteries. Before using the photometer perform the following settings in the Mode-Menu: • MODE 10: select language • MODE12: set date and time •...

  • Page 309: Instrument (Explosiondrawing)

    2.1.4 Instrument (explosion drawing): (A) screws (B)battery compartment cover (C) notch (D) batteries: 4 batteries (AA/LR6) (E) seal ring (F)instrument back (B) battery compartment cover (E) seal ring (F)instrument back (A) screws (C) notch (D) batteries CAUTION: To ensure that the instrument is water proof: •...
  • Page 310 MD 610_2d 11/2019...

  • Page 311: Overview Of Function Keys

    Overview of function keys 2.2.1 Overview Switching the photometer on or off Pressshift key to achieve figures key 0-9. Keep the shift key depressed and press desired figures key. Shift e.g.: [Shift] + [1][1] Returning to selection of methods or previous menu Function key: description in the text if key available Function key: description in the text if key available Function key: description in the text if key available...

  • Page 312: Displayingtime And Date

    2.2.2 Displaying time and date: Press[“clock”] key. The display shows: 19:30:22 2012-06-15 After 15 secondsthe photometer reverts to the previous display automatically or press [ ] key or [ESC]. 2.2.3 User countdown With this function the operator is able to define his own countdown. Press[“clock”] key.

  • Page 313: Operation Mode

    Operation mode Switch the photometer on by pressing the [ON/OFF]key. selftest ... The photometer performs an electronic self-test. ® Bluetooth ® The display shows the status of the Bluetooth connec- tion. switched on 2.3.1 Automatic switch off Theinstrument switchesoff automatically after 20 minutes. Thisisindicated 30 secondsbefore by a beeper.

  • Page 314: Chemicalspeciesinformation

    2.3.2.2 Chemical SpeciesInformation Pressingthe [F2] key the display showsa list with available chemical speciesand corresponding ranges. Changing chemical speciessee chapter 2.3.7 page 310. 320 Phosphate LRT Line 1: Method number, Method name 0.05-4 mg/l PO Line 2: Range with chemical species 1 0.02-1.3 mg/l P Line 3: Range with chemical species 2 0.04-3 mg/l P...

  • Page 315: Performing Tests

    2.3.5 Performing Tests When zero calibration is complete, remove the vial from the sample chamber and perform the tests as describedunder “Method“. When the results have been displayed: • with some methods you can change between different chemical species • you can store and/or print out the results •...

  • Page 316: Changing Chemicalspecies

    2.3.7 Changing chemical species For some methods there is a possibility to change the chemical speciesof the test result. If the test result is displayed pressarrow key [ ] or [ Example: 320 Phosphate LRT -----[ ]----> 320 Phosphate LRT <---- [ ] ----- 320 Phosphate LRT 0.05-4 mg/l PO 0.02-1.3 mg/l P...

  • Page 317: Perform Additional Measurements

    Note: The display shows the number of free data sets. Storage: 900 free recordsleft If there are lessthan 30 data sets free the display shows: Storage: only 29 free recordsleft Clear the memory as soon aspossible (see“Deleting stored results”). If memory capacity is used up it is impossible to saveadditional test results.

  • Page 318: Measureabsorbance

    2.3.11 Measure absorbance Range: –2600 mAbs to +2600 mAbs Method-No. Title mAbs 430 nm mAbs 530 nm mAbs 560 nm mAbs 580 nm mAbs 610 nm mAbs 660 nm Selectthe desiredwavelength from the method list or by entering the corresponding method number directly.

  • Page 319: Bluetooth

    ® Bluetooth ® The MD 610 has a Bluetooth 4.0 interface which enables the wireless transmission of data. Now it is possible to transmit current readings automatically and manually. Storedresults can ® ® ® also be sharedmanually. Bluetooth 4.0 is also known as Bluetooth Smart or Bluetooth (Low Energy).Dataistransmitted from the photometer asa .csvfile.

  • Page 320: Internet Updates

    Internet Updates To connect the instrument to the serial interface of a computer the optional connection cable with integrated electronic systemis required. It is possibleto update new software applications and additional languages via the internet. Pleasefind detailed information at our homepage in the download-area (as soon as available).

  • Page 321: Mode Functions

    Mode Functions Schema MODE-Function No. Description Page Autotransfer Automatic data transfer after measurement ® ® Bluetooth Switching the Bluetooth Modul on/off Calibration Specialmethod calibration Clear calibration Deleting user calibration Clock Setting date and time Countdown Switching the countdown on/off to ensurereaction times Delete data Deleting all stored results...

  • Page 322: Instrument Basicsettings

    MODE-Function No. Description Page Systeminfo Information about the instrument e.g. current software version Temperature Selection of °C or °F for Langelier Mode 70 User calibration Storage of user calibration User concentration Entering the data necessaryto run a user concentration method User polynoms Entering the data necessaryto run a user polynomial User methods clear...
  • Page 323 Key beep Press[MODE], [Shift] + [1][1] keys. Mode Confirm with [ ] key. <Key-Beep> The display shows: Shift + 1 OFF: Shift +0 • Press[Shift] + [0] keys to switch the key beep off. Shift • Press[Shift] + [1] keys to switch the key beep on. Shift Confirm with [ ] key.
  • Page 324 Countdown (Ensuring reaction periods) Some methods require a reaction period. This reaction period is incorporated in the method as standard with the countdown function. It is possibleto switch the countdown off for all methods: Press[MODE], [Shift] + [1][3] keys. Mode Confirm with [ ] key.
  • Page 325 Signal beep Performing a zero or a measurement takes 8 seconds. The photometer indicates the end of zeroing or measuring by a short beep. Press[MODE], [Shift] + [1][4] keys. Mode Confirm with [ ] key. <Signal-Beep> The display shows: Shift + 1 OFF: Shift +0 •...
  • Page 326 Adjusting display contrast Press[MODE], [Shift] + [8][0] keys. Mode Confirm with [ ] key. <LCD contrast> The display shows: • Pressarrow key [ ] to increase contrast of the LCD display about one unit. • Pressarrow key [ ] to decrease contrast of the LCD display about one unit.
  • Page 327 Adjusting display brightness Press[MODE] [8] [1] keys. Mode Confirm with [ ] key. <LCD brightness> The display shows: Press[ ] key to increase brightness of the display about one unit. Press[ ] key to decrease brightness of the display about one unit.
  • Page 328 ® Bluetooth Press[MODE], [Shift] + [1][8] keys. Mode Confirm with [ ] key. ® <Bluetooth > The display shows: switched on Shift + 1 OFF: Shift + 0 connected Thecurrent statusof the Bluetooth ® connection (connected/ disconnected) is displayed. • Press[Shift] + [0] keys to switch the Bluetooth ®...
  • Page 329 Autotransfer The auto transfer enables the user to transfer measured results automatically to the App or PCwithout storing. A connection to the receiving program is necessary.If this is not given a messagewill be displayed on the instruments screen. Press[MODE], [Shift] + [1][9] keys. Mode Confirm with [ ] key.

  • Page 330: Data Transfer Of Stored Results

    2.6.2 Data transfer of stored results Data transfer of all results Press[MODE], [Shift] + [2][0] keys. Mode Confirm with [ ] key. <Data Transfer> The display shows: all Data Start: cancel: Press[ ] key to transfer all stored test results. The display shows e.g.: Data Transfer Test No.:...
  • Page 331 Data transfer of results of a selected time period Press[MODE], [Shift] + [2][1] keys. Mode Confirm with [ ] key. The display shows: <Data Transfer> sorted: date from yy-mm-dd Enter year, month and day for the first day of the required __-__-__ period, e.g.: 14 May 2009 = [Shift] + [0][9][0][5][1][4] Confirm with [ ] key.
  • Page 332 Data transfer of results of a selected Code No. range Press[MODE], [Shift] + [2][2] keys. Mode Confirm with [ ] key. <Data Transfer> The display shows: sorted: Code-No. Enter numeric code number (up to 6 places) for the first from _ _ _ _ _ _ required Code No., e.g.: [Shift] + [1].
  • Page 333 Data transfer of results of one selected method Press[MODE], [Shift] + [2][3] keys. Mode Confirm with [ ] key. The display shows: <Data Transfer> >>20 Acid demand T 35 Alkalinity-p T Selectthe required method from the displayed list or enter 30 Alkalinity-tot T the method-number directly.

  • Page 334: Recall/ Delete Stored Results

    2.6.3 Recall / delete stored results Recall all stored results Press[MODE], [Shift] + [3][0] keys. Mode Confirm with [ ] key. The display shows: <Storage> display all data The stored data sets are displayed in chronological order, Start: cancel: ESC starting with the latest stored test result.
  • Page 335 Recall results of a selected time period Press[MODE], [Shift] + [3][1] keys. Mode Confirm with [ ] key. The display shows: <Storage> sorted: date from yy-mm-dd Enter year, month and day for the first day of the required __-__-__ period, e.g.: 14 May 2015 = [Shift] + [1][5][0][5][1][4] Confirm with [ ] key.
  • Page 336 Recall results of a selected Code No. range Press[MODE], [Shift] + [3][2] keys. Mode Confirm with [ ] key. <Storage> The display shows: sorted: Code-No. from _ _ _ _ _ _ Enter numeric code number (up to 6 places) for the first required Code No., e.g.: [Shift] + [1].
  • Page 337 Recall results of one selected method Press[MODE], [Shift] + [3][3] keys. Mode Confirm with [ ] key. <Storage> The display shows: >>20 Acid demand T Selectthe required method from the displayed list or enter 30 Alkalinity-tot T the method number directly. 40 Aluminium T Confirm with [ ] key.
  • Page 338 Delete stored results Press[MODE], [Shift] + [3][4] keys. Mode Confirm with [ ] key. <Delete data> The display shows: Delete all data? YES : Shift + 1 NO : Shift + 0 • Press[Shift] + [0] keys to retain the data sets in Shift memory.

  • Page 339: Calibration

    2.6.4 Calibration Calcium Hardness Method 191 – Calibration of a method blank Press[MODE], [Shift] + [4] [0] keys. Mode Confirm with [ ] key. <Calibration> The display shows: 1: M 191 Ca-hardness 2 2: M 191 reset 0 cali. 3: M 170 Fluoride L Press[Shift] + [1] keys.
  • Page 340 After the reaction period is finished proceed as follows: 9. Rinsethe vial (24 mm Ø) with the coloured samplefrom the beaker and fill with 10 ml of the sample. prepare Test 10. PressTEST key. press TEST The batch related method blank is saved. stored Press[ ] key, to go back to mode menu.

  • Page 341: Fluoridemethod 170

    Press[Shift] + [0] keys to keep the method blank. Shift Press[Shift] + [1] keys to erase the method blank and set Shift the value back to factory calibration. The instrument goes back to mode menu automatically. Fluoride Method 170 Press[MODE], [Shift] + [4] [0] keys. Mode Confirm with [ ] key.
  • Page 342 7. Placethe vial in the sample chamber making sure that marks are aligned. Zero accepted 8. PressTEST key. T1: 0 mg/l F press TEST 9. Removethe vial from the samplechamber, empty the vial, rinse vial and cap severaltimes and then fill the vial with exactly10 ml Fluoride standard (Concentration 1 mg/l F).

  • Page 343: Usercalibration

    User Calibration If a test method is user calibrated the method name is displayed inverse. Procedure: • Preparea standard of known concentration and use this standard instead of the sample according to the test procedure. • It is recommend to use well known standards which are formulated according to DIN EN, ASTM or other international norms or to use certified standards which are commercially available.
  • Page 344 Method Recommended range for user calibration COD LR 100 mg/l O COD MR 500 mg/l O COD HR 5 g/l O = 5000 mg/lO Colour operating range Copper T 0.5–1.5 mg/l Cu Copper L 2–3 mg/l Cu Copper PP 0.5–1.5 mg/l Cu Cyanide 0.1–0.3 mg/l CN CyA-TEST...

  • Page 345: Store User Calibration

    Method Recommended range for user calibration pH-Value T 7.6–8.0 pH-Value L 7.6–8.0 pH-Value HR 8.6–9.0 PHMB 15–30 mg/l Phosphate LRT 1–3 mg/l PO Phosphate HRT 30–50 mg/l PO Phosphate, ortho PP 0.1–2 mg/l PO Phosphate, ortho TT 3 mg/l PO Phosphate1, ortho C 20–30 mg/l PO Phosphate2, ortho C...

  • Page 346: Delete User Calibration

    The display shows: <user calibration> 100 Chlorine T 0.02-6 mg/l Cl2 Pressing the arrow key [ ] once increases the displayed 0.90 mg/l free Cl2 result. up: , down: save: Pressing the arrow key [ ] once decreases the displayed result.

  • Page 347: Lab Function

    2.6.5 Lab function Reducedoperator guidance => “Profi-Mode“ This function may be used for routine analyseswith many samplesof one method. The following information is always stored in the methods: a) Method b) Range c) Date and time d) Differentiation of results e) Detailed operator instruction Compliance with reaction periods If the Profi-Mode isactive, the photometer providesonly a minimum of operator instructions.

  • Page 348: Onetimezero

    One Time Zero (OTZ) OneTimeZero is available for all methods where Zero is performed in a 24 mm Ø round vial with sample water (seechapter 1.1 Table of Methods). OneTimeZerocan be used for different tests providing the tests are performed with the same sample water and under the same test conditions.

  • Page 349: Useroperations

    2.6.6 User operations User method list After switching on the instrument a scroll list of all availablemethods is automatically shown in the display. To shorten this list according to the requirements of the user it is possible to create a user defined scroll list. The program structure requires that this list must have at least one active (switched on) method.
  • Page 350 User method list, switch all methods on Thismode function activates all methods. After switching on the instrument a scroll list of all available methods is automatically shown in the display. Press[MODE], [Shift] + [6][1] keys. Mode Confirm with [ ] key. <Mlist all on>...

  • Page 351: Userconcentration Methods

    User Concentration Methods It is possibleto enter and store up to 10 User Concentration Methods. Therefor you need 2 to 14 standardsof known concentration and one blank (deionisedwater or reagent blank value). The Standards should be measured with increasing concentrations and from the brightest to the darkest colouration.
  • Page 352 Pressthe appropriate numerical key to select the required choose resolution resolution, e.g.: [Shift] + [3] for 0.01. 1: 1 2: 0.1 Note: 3: 0.01 Pleaseenterthe required resolution according to the instru- 4: 0.001 ment pre-sets: range max. resolutions 0.000 ...9.999 0.001 10.00 ...99.99 0.01...

  • Page 353: Userpolynomials

    Prepare the second standard and press [Test] key. S2: 0.10 mg/l prepare Thedisplay showsthe input value and the measuredabsorp- press TEST tion value. Confirm with [ ] key. S2: 0.10 mg/l Note: mAbs: 150 • Perform as described above to measure further stan- dards.
  • Page 354 Confirm with [ ] key. Note: Overwrite polynom? if the entered number has already been used to save a YES: 1, NO: 0 polynomial the display shows the query: • Press[Shift] + [0] or [ESC]keysto go back to method no. query.
  • Page 355 Press[ ] or [ ] keys to select the required unit. choose unit: >> mg/l mmol/l mAbs µg/l Confirm with [ ] key. Pressthe appropriate numerical key to select the required choose resolution 1: 1 resolution, e.g.: [Shift] + [3] for 0.01. 2: 0.1 3: 0.01 Note:...

  • Page 356: Delete Usermethods

    Delete User Methods (Polynomial or Concentration) In principle a valid user method can be overwritten. An existing user method (Polynomial or Concentration) can be totally deleted as well and is removed out of the method selection list: Press[MODE], [Shift] + [6][6] keys. Mode Confirm with [ ] key.

  • Page 357: Print Data Of Usermethods

    Print Data of User Methods (Polynomials & Concentration) With this Mode function all data (e.g. wavelength, unit ...) of stored user polynomials and concentration methods can be transferred to a PC.To receive the data, it is recommended that the computer software provided by Lovibond should be used. The software can be downloaded from www.lovibond.com/support.

  • Page 358: Initialise Usermethod System

    Initialise User Method System (Polynomials & Concentration) Power loss will causeincoherent data. The user method system must be initialised with this mode function to set it to a predefined state. ATTENTION: All stored user methods (polynomial & concentration) are deleted with initialisation. Press[MODE], [Shift] + [6][9] keys.

  • Page 359: Langeliersaturation Index

    2.6.7 Langelier Saturation Index (Water Balance) For calculation the following tests are required: • pH-value • Temperature • Calcium hardness • Total Alkalinity • TDS(Total Dissolved Solids) Run each test separately and note the results. Calculate the Langelier Saturation Index as described: Calculation of Langelier Saturation Index With Mode 71 (see below) it is possible to select between degree Celsius or degree Fahrenheit.

  • Page 360: Selectionof Temperature Unit

    pH value The display shows: 0<=pH<=12 +_ _ _ _ Enter the pH-value in the range between 0 and 12 and confirm with [ ] key. <Langelier> Langelier The display shows the Langelier Saturation Index. saturation index 0.00 Press[ ] key to start new calculation. Return to mode menu by pressing [ESC]key.

  • Page 361: Photometer-Information

    2.6.8 Photometer-Information Press[MODE], [Shift] + [9][1] keys. Mode Confirm with [ ] key. <System-Info> Thismethod informsyou about the current software version, Software: serial number, about the number of performed tests and V201.001.1.001.002 free memory capacity. Serial number: 151234 more: , cancel: Esc Pressarrow key [ ] to display the number of performed tests and free memory capacity.
  • Page 362 MD 610_2d 11/2019...

  • Page 363: Part 3 Enclosure

    Part 3 Enclosure MD 610_2d 11/2019...

  • Page 364: Unpacking

    3.1 Unpacking Carefully inspect all items to ensure that every part of the list below is present and no visible damage hasoccurred during shipment. If there isany damage or something ismissing, please contact your local distributor immediately. 3.2 Delivery contents Standard contents for MD 610: 1 Photometer in plastic case 4 batteries (TypeAA/LR 6)

  • Page 365: Technicaldata

    3.3 Technical data Display Graphic Displaywith backlight Serial Interface Bluetooth ® 4.0 for data transfer RJ45connector for internet updates (seechapter 2.5) Light source light-emitting diode – photosensor – pair arrangement in a transparent measurement chamber Wavelength ranges: 1 = 530 nm IF = 5 nm 2 = 560 nm IF = 5 nm...

  • Page 366: Abbreviations

    3.4 Abbreviations Abbreviation Definition °C degree Celsius (Centigrade) °F degree Fahrenheit °F = (°C x 1.8) + 32 °dH degree German Hardness °fH degree French hardness °eH degree English Hardness °aH degree American Hardness Absorption unit ( = Extinction E) 1000 mAbs = 1 Abs = 1A = μg/l...

  • Page 367: Troubleshooting

    3.5 Troubleshooting 3.5.1 Operating messagesin the display / error display Display Possible Causes Elimination Overrange reading is exceeding the range if possible dilute sample or use other measuring range water sample is too cloudy filtrate water sample too much light on the photo cell seal on the cap? Repeat measurement with seal on the cap of the vial.
  • Page 368 Display Possible Causes Elimination The calculation of a value Test procedure correct? (e.g. combined Chlorine) is If not – repeat test not possible Example 1: Example 1 The readings for free and total 0,60 mg/l free Cl Chlorine are different, but comb Cl considering the tolerances of 0,59 mg/l total Cl...

  • Page 369: General

    3.5.2 General Finding Possible Causes Elimination Test result deviates from Chemical species not as Pressarrow keys to select the the expected. required. required chemical species. No differentiation: Profi-Mode is switched on. Switch Profi-Mode off with e.g. for the Chlorine test Mode 50.

  • Page 370: Declaration Of Ce-Conformity

    Declaration of CE-Conformity Konformitätserklärung mit gefordertem Inhalt gemäß EN ISO/IEC 17050-1 Supplier's declara�on of conformity in accordance with EN ISO/IEC 17050-1 EU-Konformitätserklärung/ EU-Declarationof Conformity Dokument-Nr. / Monat.Jahr: 9.2015 Document No. / Month.Year: Für das nachfolgend bezeichnete Erzeugnis / For the following men�oned product Bezeichnung / Name, MD 610 PM 630 AL410 , 214025, 214070, 4214025 Modellnummer / Model No.

  • Page 371: Copyright And Trademark Notice

    3.7 Copyright and Trademark Notice ® The Bluetooth word mark is a registered trademark owned by Bluetooth SIG,Inc. and any ® use by The Tintometer Group is under license. ® is a registered trademark of Cisco, Inc. and licensed to Apple, Inc. ®...

Table of Contents
