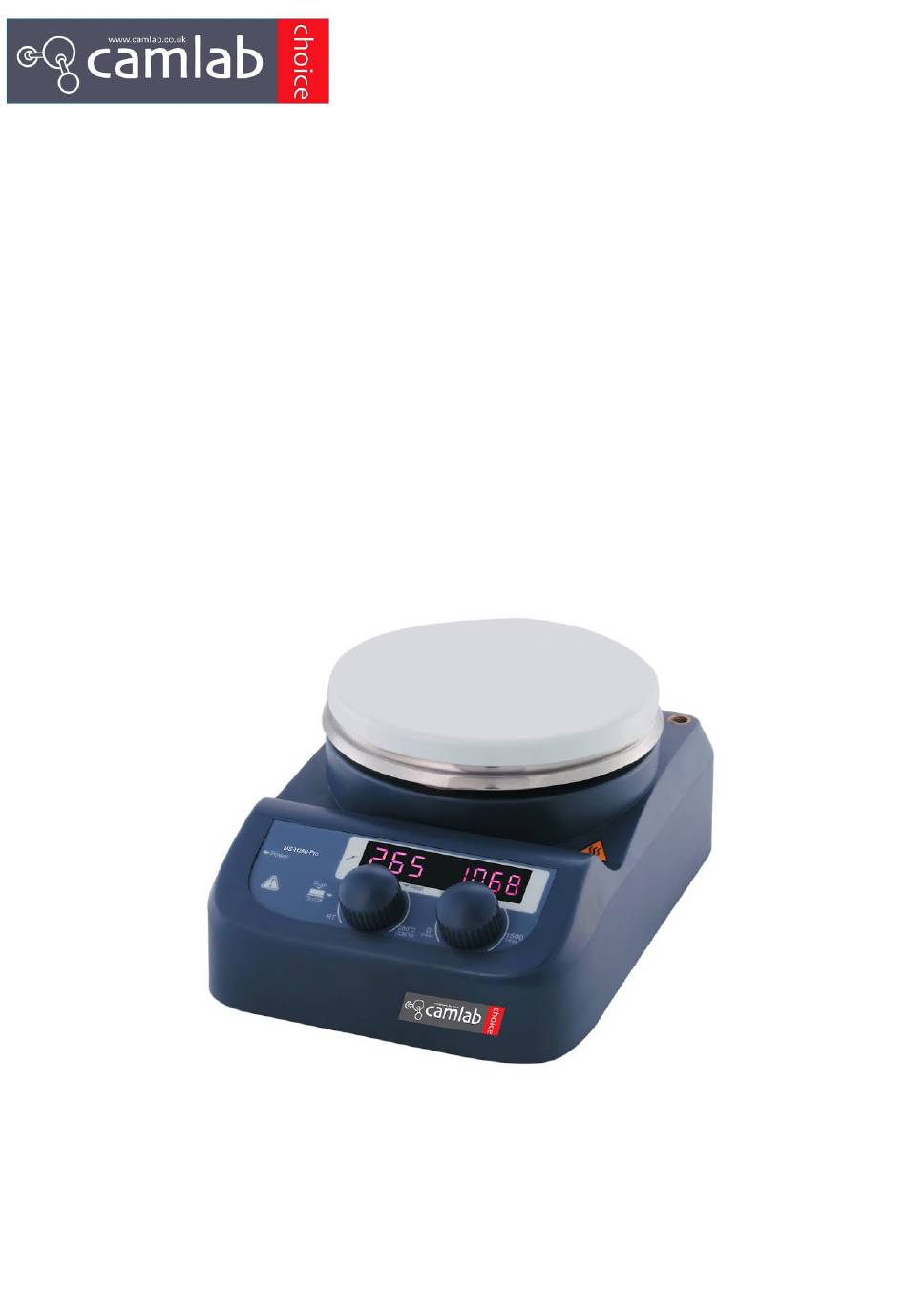

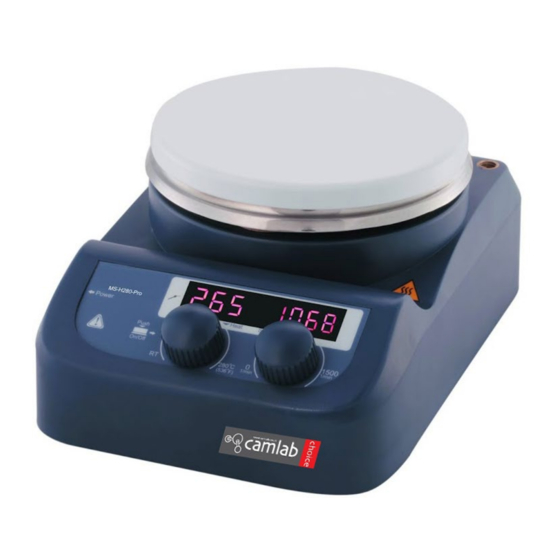

- Page 1 MS-H280-Pro Round Ceramic Coated Steel Hotplate/Stirrer with LED display USER MANUAL 1200464...
-
Page 2: Table Of Contents
Contents Preface ........................3 Important safety notices ..................... 4 Unboxing and Set Up ....................6 What’s in the box? ....................6 Permitted conditions of operation ................6 Setting up ....................... 7 Operation ........................8 Controls ........................8 Display ........................9 Instructions for use .................... -
Page 3: Preface
Preface Thank you for purchasing this Camlab Choice product. For your safety and to get the best product performance, please read these instructions carefully prior to use. Camlab Choice products are carefully selected from leading worldwide manufacturers to offer outstanding performance and value. All of our Camlab Choice range products are put through their paces by our product team and fully inspected by our engineers. -
Page 4: Important Safety Notices
Important safety notices Users of the MS-H280-pro should read this manual carefully prior to use, following the instructions and notices with caution. Do not operate the hotplate stirrer in a manner not described in this user manual. Whilst these safety instructions are here to help prevent all incidents it is important you are alert for any unexpected occurrences. - Page 5 you notice any damage. • Safe operation is only guaranteed with the described accessories. Accessories must be securely attached to device ensuring they remain connected during operation. Always disconnect from the mains before fitting accessories to the instrument. • When an external temperature sensor is used, the tip of the measuring sensor must be at least 5-10mm from vessel bottom and wall.
-
Page 6: Unboxing And Set Up
Unpack the equipment carefully and check the contents of the box along with an inspection for any damage which may have arisen during transport. If you note any damage on receipt, do not use the equipment and contact sales@camlab.co.uk report the damage. Included in the box is the following:... -
Page 7: Setting Up
Setting up You must observe a minimum distance of 10cm between the unit and any other object, including the wall. 10cm Figure 1... -
Page 8: Operation
Operation The MS-H280-pro magnetic stirrer hotplate has independent controls for temperature and speed. Both of these functions can be used together and separately if required. For the stirring function, an appropriate magnetic stirring bar is required. Diagram & Controls Figure 2a-... -
Page 9: Controls
Control Description Temperature control dial. Rotate clockwise to increase temperature and counter-clockwise to decrease. Push (1) Temperature button in to turn function on and off. Values range from room temperature (RT) up to 280°C (2) Power Switch On/Off Switch. Located on the left hand side of the unit (3) Probe Holder Port for external temperature probe holder Port... -
Page 10: Instructions For Use
Characters Description Residual heat warning, displays HOT when temperature is above 50°C Probe icon to left of the LED display area is lit when a PT1000 is plugged into the instrument. Warning: Residual heat warning does not function when unit is turned off using the switch. -
Page 11: Maintenance And Cleaning
socket at the rear of the unit and secure probe into the holder. Turn the instrument on. 3. The temperature display will show the actual temperature of the sample as measured by the P1000 probe. Maintenance and Cleaning • Proper maintenance and cleaning can keep instruments working properly and will lengthen its lifetime. -
Page 12: Standards And Guidelines
Try using the switch on the side of the unit and unplugging from the mains to fully power off. If these faults cannot be resolved, please contact Camlab Technical Support on 01954 233120 or at support@camlab.co.uk. -
Page 13: Accessories
If you need to order any of the below, we invite you to visit our website: www.camlab.co.uk Cat No. Descriptions 1189944 PT1000A Temperature 230mm Probe for all Camlab Choice digital hotplates 1200336 Support clamp of PT1000 for MS-H280-Pro 1189932... -
Page 14: Support
Support If help is required, please contact the Camlab Technical Support on 01954 233120 or support@camlab.co.uk. Please provide the support team with the following information: • Serial number (on rear panel) • Description of problem • Contact details For serving enquiries please contact the Camlab Service department on 01954 233130 or service@camlab.co.uk.
