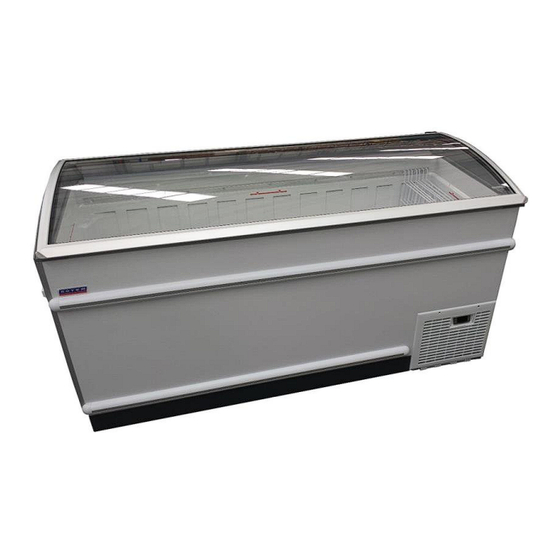

- Page 1 Frost Free Technical Manual Models: 410L | 401L | 610L | 601L ________________________________________________________________________ P a g e Novum Overseas. The Novum Building. Clonshaugh Ind Est. Dublin 17. Ireland | info@novum.ie | +353 1 803 6400...
- Page 2 Frost Free Technical Manual Specifications______________________________________________________________________ P a g e Novum Overseas. The Novum Building. Clonshaugh Ind Est. Dublin 17. Ireland | info@novum.ie | +353 1 803 6400...
- Page 3 Frost Free Technical Manual Dimensions______________________________________________________________________________ P a g e Novum Overseas. The Novum Building. Clonshaugh Ind Est. Dublin 17. Ireland | info@novum.ie | +353 1 803 6400...
- Page 4 003.6FF.401 Filter Dryer 003.6FA.020 Solenoid Coil 003.6FA.019 Compressor Embraco EMC3134U 003.601.007 Dixell XR06CX Controller 018.6FF.106 Controller Probe 018.8AD.002 P a g e Novum Overseas. The Novum Building. Clonshaugh Ind Est. Dublin 17. Ireland | info@novum.ie | +353 1 803 6400...
- Page 5 LED Driver 018.601.042 Riser 006.6FF.105 Chest Frame 009.601.840A 009.401.840A LED Light 018.601.041 018.306.703 006.6FA.031 006.4FA.031 Separator Profile 006.610.259 P a g e Novum Overseas. The Novum Building. Clonshaugh Ind Est. Dublin 17. Ireland | info@novum.ie | +353 1 803 6400...
- Page 6 LED Driver 018.601.042 Short Divider 015.6FA.005 006.6FA.031 006.4FA.031 Chest Frame 006.6FA.210 006.4FA.210 009.610.245 009.410.245 LED Light 018.601.041 018.401.041 P a g e Novum Overseas. The Novum Building. Clonshaugh Ind Est. Dublin 17. Ireland | info@novum.ie | +353 1 803 6400...
- Page 7 The spacer bar must never be removed from the cabinet as this ensures air flow to the vent grill. P a g e Novum Overseas. The Novum Building. Clonshaugh Ind Est. Dublin 17. Ireland | info@novum.ie | +353 1 803 6400...
- Page 8 Frost Free Technical Manual Refrigeration Cassette Wiring______________________________________________________________ LED Wiring______________________________________________________________ P a g e Novum Overseas. The Novum Building. Clonshaugh Ind Est. Dublin 17. Ireland | info@novum.ie | +353 1 803 6400...
-
Page 9: Product Loading
DO NOT LEAVE LID OPEN for extended periods during merchandising. • Exercise due care when loading heavy product, do not damage internal liner. P a g e Novum Overseas. The Novum Building. Clonshaugh Ind Est. Dublin 17. Ireland | info@novum.ie | +353 1 803 6400... - Page 10 3. Check frozen product has not been placed on Excess Humidity Glass Critical glass. 4. Check lid is closed correctly 5. Call service Agent. 10 | P a g e Novum Overseas. The Novum Building. Clonshaugh Ind Est. Dublin 17. Ireland | info@novum.ie | +353 1 803 6400...
- Page 11 Frost Free Technical Manual Refrigeration Cassette_____________________________________________________________________ Periodically inspect the refrigeration cassette unit as follows: 11 | P a g e Novum Overseas. The Novum Building. Clonshaugh Ind Est. Dublin 17. Ireland | info@novum.ie | +353 1 803 6400...
- Page 12 Differential for temperature alarm recovery °C Alarm Temperature alarm delay Alarm Delay of temperature alarm at start up 02:0 02:0 12 | P a g e Novum Overseas. The Novum Building. Clonshaugh Ind Est. Dublin 17. Ireland | info@novum.ie | +353 1 803 6400...
- Page 13 WARNING: Do not damage the refrigerant circuit. WARNING: Before obtaining access to terminals, all supply circuits must be disconnected 13 | P a g e Novum Overseas. The Novum Building. Clonshaugh Ind Est. Dublin 17. Ireland | info@novum.ie | +353 1 803 6400...
- Page 14 Frost Free Technical Manual 14 | P a g e Novum Overseas. The Novum Building. Clonshaugh Ind Est. Dublin 17. Ireland | info@novum.ie | +353 1 803 6400...
- Page 15 Frost Free Technical Manual 15 | P a g e Novum Overseas. The Novum Building. Clonshaugh Ind Est. Dublin 17. Ireland | info@novum.ie | +353 1 803 6400...
- Page 16 Frost Free Technical Manual 16 | P a g e Novum Overseas. The Novum Building. Clonshaugh Ind Est. Dublin 17. Ireland | info@novum.ie | +353 1 803 6400...
- Page 17 Skin contact may cause frostbite at skin and eyes. 17 | P a g e Novum Overseas. The Novum Building. Clonshaugh Ind Est. Dublin 17. Ireland | info@novum.ie | +353 1 803 6400...
-
Page 18: Personal Protective Equipment
Inform the doctor that the injured person was exposed to the refrigerant R290 (propane). Preferably, the injured person should be given an appropriate label. 18 | P a g e Novum Overseas. The Novum Building. Clonshaugh Ind Est. Dublin 17. Ireland | info@novum.ie | +353 1 803 6400... - Page 19 Give the injured person, as long as he or she is conscious, as much water or other warm drink as possible. Warning! Further information see EN 378-1 and EN 378-3. 19 | P a g e Novum Overseas. The Novum Building. Clonshaugh Ind Est. Dublin 17. Ireland | info@novum.ie | +353 1 803 6400...
