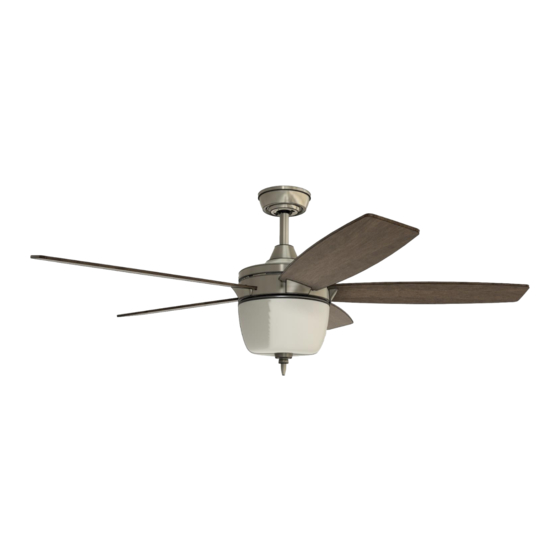

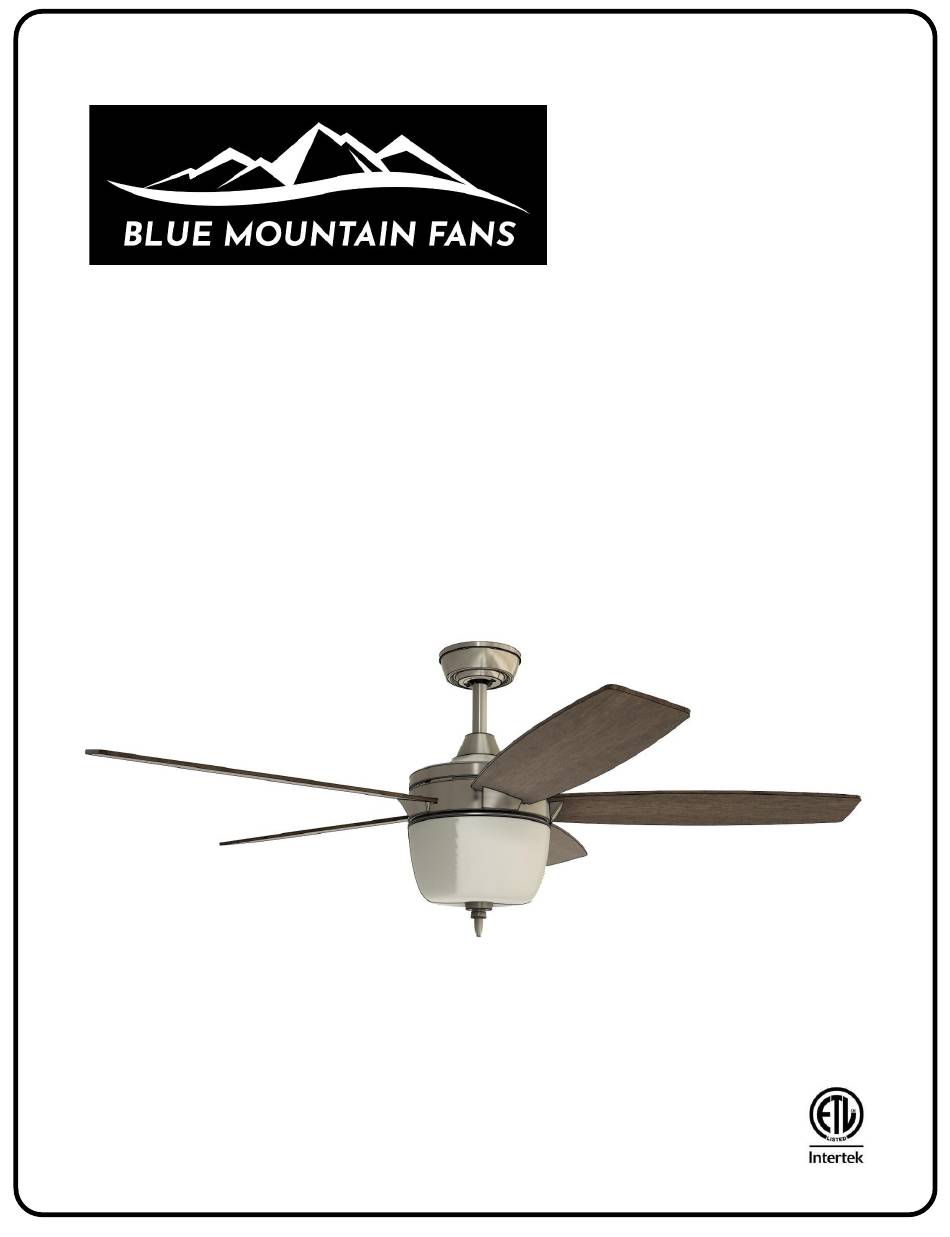

- Page 1 52” Tulip Ceiling Fan Owner’s Manual Model #22500/22502...
-
Page 2: Safety Instructions
SAFETY INSTRUCTIONS WARNING: • To avoid risk of electrical shock, be sure to shut off power at the main fuse or circuit breaker panel box before installing or servicing this fixture. Turning off the electrical power by using the light switch only is not sufficient to prevent electrical shock hazard. •... -
Page 3: Package Contents
PACKAGE CONTENTS HARDWARE KIT OWNER’S MANUAL PART DESCRIPTION QUANTITY PART DESCRIPTION QUANTITY Mounting Bracket Blade Medallion Screws and 10 each Washers Downrod and Downrod Ball Light Kit Plate and Stem (stem pre-assembled to plate) Canopy Light Bulbs Canopy Screws (pre-installed Light Kit Glass in mounting bracket) Yoke Cup... - Page 4 HARDWARD KIT CONTENTS PART DESCRIPTION QUANTITY Wire Connector (*packed with remote control) Blade Screw Blade Medallion Screw Fiber Blade Washer Balance Kit Machine Screw Wood Screw NOTE: For your convenience some extra hardware may be included. The quantity listed above is the number required for installation. TOOLS REQUIRED (not included) Tools required for assembly: Step Ladder, Phillips Screwdriver, Wire Strippers, Safety Glasses, Pliers, and Electrical Tape.
- Page 5 DIMENSION REFERENCE A: 20.1 in. B: 11.8 in. C: 9.9 in. D: 5.8 in. Choose one of the following mounting options: Downrod Mount is best suited for ceilings 8 ft. or higher. For taller ceilings you may want to use a longer downrod (sold separately). Angled Ceiling Mount is best suited for angled or vaulted ceilings.
- Page 6 ASSEMBLY INSTRUCTIONS 1. Turn OFF the electrical power at the main fuse or circuit breakers. NOTE: Before continuing installation, confirm that the power is still turned off at the main circuit breaker or by removing the correct fuse. Turning the power off using a wall switch is not sufficient to prevent electrical shock.
- Page 7 ASSEMBLY INSTRUCTIONS 4. Loosen but do not remove the two set screws in the yoke. Set screws need to be loosened enough to fully insert the downrod. 5. Feed all the wires coming from the fan through the downrod and the downrod ball.
- Page 8 ASSEMBLY INSTRUCTIONS 6. Lift the downrod into the mounting bracket. Rotate the downrod until the tab in the mounting bracket is seated in the slot in the downrod ball. WARNING: The fan and/or downrod Slot should not rotate in the mounting bracket if installed correctly.
- Page 9 ASSEMBLY INSTRUCTIONS Use the supplied wire connectors to connect the fan wires to the remote receiver and then the receiver to the power supply wires according to the wiring diagram and following instructions: Connecting the fan to the remote receiver: •...
- Page 10 ASSEMBLY INSTRUCTIONS 9. Locate the (2) screws on underside of hanging bracket and loosen screws. Place rounded part of slotted hole in canopy over the loosened screws in hanging bracket and push up. Make sure all wires are tucked into the canopy and will not be pinched, including the black antenna wire.
- Page 11 ASSEMBLY INSTRUCTIONS 12. CONNECTING THE LIGHT KIT -- Position the light kit plate and stem under the fan. Connect the light kit wiring harness by inserting the white wire from the fan to the white wire from the light kit and the black wire from the fan to the black wire from the light kit.
- Page 12 ASSEMBLY INSTRUCTIONS 15. Restore the power to the main fuse or circuit breaker.
-
Page 13: Using The Remote Control
OPERATING INSTRUCTIONS USING THE REMOTE CONTROL • To turn the fan ON, press any of the three fan speed buttons (LOW, MED, HI). • Press the OFF button to turn the fan off. • To turn on the light, quickly press and release the light bulb button. -
Page 14: Reverse Switch
OPERATING INSTRUCTIONS REVERSE SWITCH Reverse Switch Use the fan reverse switch, located on the switch housing to optimize your fan for seasonal performance. Using a ceiling fan will allow you to raise your thermostat setting in summer and lower your thermostat setting in winter without feeling a difference in your comfort. -
Page 15: Troubleshooting
TROUBLESHOOTING FAN DOES NOT START: • Check the circuit breaker and confirm the power is ON. • Make sure wall switch is ON. • Confirm the battery is installed correctly in the handheld remote; install a fresh battery. • Make sure you are in the normal range for the remote control of 10’ – 20’ (3m – 6m). •... -
Page 16: Limited Lifetime Warranty
To obtain service please contact Blue Mountain Fans Customer Service online or by phone as noted below. Do not attempt to ship your fan or any parts to Blue Mountain Fans without prior written approval as otherwise your delivery will be refused. Blue Mountain Fans shall not be liable for any incidental, consequential or special damages arising at or in connection with product use or performance except as may otherwise be accorded by law.
