Syble XB-M40 User Manual

NO:S1CD70BV2
1D Bluetooth Portable
Barcode Scanner
User Guide
Factory Default

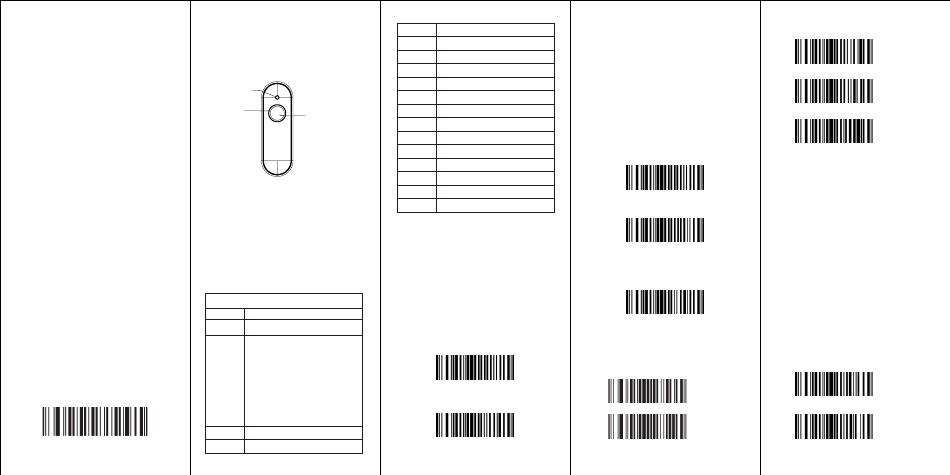

Structure Chart：
LED1: Bluetooth light
LED2: Power light
KEY: Trigger buttons
(Long press 8s to enter pairing mode)
LED1
LED2
KEY
Product Features:
1) Powerful decoding chip to read most standard 1D
barcodes;
2) Memory chip can store max 35000 barcodes(EAN13);
3) Long wireless range up to 100m in open yard;
4) Compatible with Android and IOS devices;
5) Can use as wired barcode scanner through charging
cable.
Technical Parameter：
Barcode Scanner
Date Item Parameter
Light
617 nm LED red
Sources
CUP-A, UPC-E, EAN-13, EAN-8,
Codabar, Code 39, Code 39 Full
ASCII, China Post, Plessey, MSI,
Code 93, Code 128, Industrial 2 of
5, Interleave 2 of 5, Code 11,
Decoding
ISBN, ISSN, Code 32(Italian
capability
pharm code),
Code 39 extended, GS1-128 and
ITF-14, SISAS,
GS10mnidirectional, GS1 Limited,
Aviation 25, RSS 14.
Minimum Element
≥4mil，3mil is ok
Resolution
Scanning
2500 point pixel ccd image sensors
Principle
Scanning
≥270 times/sec
Speed
Scanning
Manual/Continuous/Auto-flashing/Auto-scanning
Mode
Resolution
2500point
Ratio
Scanning
20-330mm(0.33mm, PCS90%)
Depth
Interface HID
Error Rate 1/500 thousand
Cable Length 0. 8m
Material ABS+PC
Working
working current 170mA
Current
Working
DC5V±5%
Voltage
Shock
withstand multiple times 3 meters drops to concrete
Resistance
Working
-20℃-50℃
Temperature
Storage
-40℃-70℃
Temperature
Relative
5% - 95% RH ( Non-condensing)
Humidity
Bluetooth Pairing instruction
Pair instruction
A:Barcode Scanner pair with USB dongle
Step 1, Scan Below Pairing barcode I, barcode II in
sequence/Long press 8s to enter pairing mode, and the
scanner LED1 indicator become blue and flashing;
Step 2,Connect the USB dongle to host device and
wait a second ,the LED1 indicator both become blue on
barcode scanner and USB dongle after succeed pair.
I
II
B:Barcode scanner pair with bluetooth device
Step 1, Scan Below Pairing barcode I, barcode II in
sequence/Long press 8s to enter pairing mode, and the
scanner LED1 indicator become blue and flashing;
Step 2,Open bluetooth in the bluetooth
device and
search for the barcode scanner which
named "R&B40
and click connect ,wait a second ,the
barcode scanner
LED1 indicator becomes blue after succeed
pair.
I
II
Keyboard ON or OFF in IOS device
Note : Scan above Barcode to enable or disable
Keyboard in the IOS device
Auto-sense Mode
Enable
Disable
3 Optional Wireless Mode
Normal
Inventory
Automatic
storage
(default)
Note：
1) Normal Mode:the data will be uploaded to host
device immediately after scan ,out of range it will
not save the data ,and there will be 2 alarm beeps
out of range;
2) Inventory Mode:the data will be saved in the
memory chip ,and upload data to host device as
instructed;
Eg: scan the "upload all data and clear", the
scanner will upload all data saved in the memory
chip and cleared the original data.
3) Automatic storage Mode:the data will be
uploaded to host device immediately after scan if
the scanner in range , the data will saved in the
memory chip if the scanner out of range which will
heard 2 alarm beeps, press the scanner trigger to
upload the saved data after back to range,and the
original data in the memory chip will be cleared.
Data upload instruction in Inventory Mode
Upload all data
Upload new data
