Universal Devices Z-Matter Assembly Instructions

Hide thumbs
1
2
3

Advertisement

Table of Contents

Assembly Instructions for Z-Matter
Installing
ZMatter
into your Polisy is pretty straight forward.

Preparations:

1. If your Polisy has been collecting dust for more than a year, the first thing you
need to do is to freshen it up. Here's
your Polisy just like you did your ISY994. Here's
2. If you have not already migrated your ISY994 to Polisy, that's the first thing you
need to do. Migration is easy and you can even use your existing PLM for
INSTEON/X10 communications. Here are
3. You will be sent further instructions for the required IoX version and how-tos for
untapping our additional features and enhancements by 12/01/2022.

Installation Instructions:

1. Unplug Polisy from power
2. Take off the top panel by unscrewing the 4 screws on the sides (2 on each side)

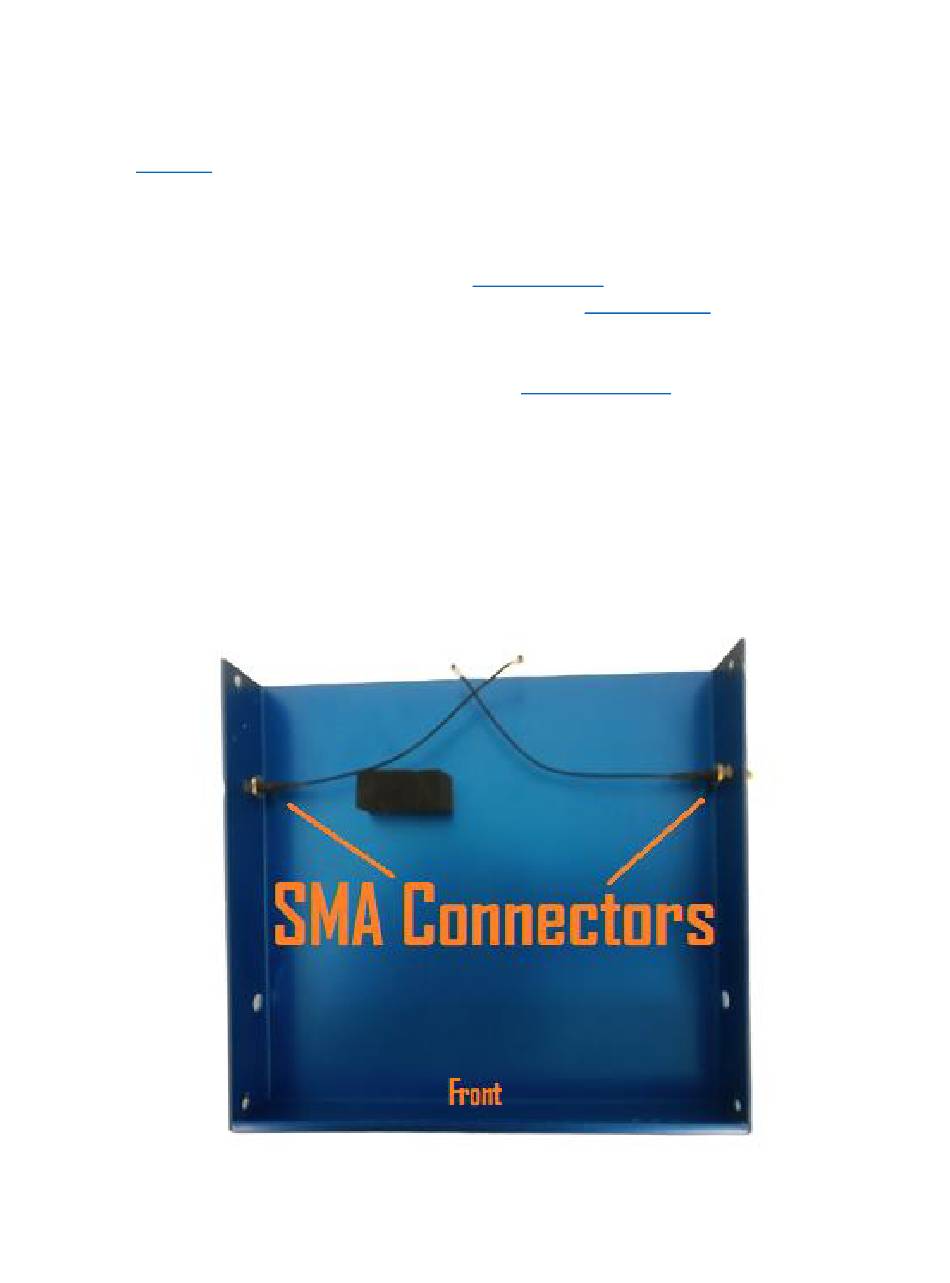

3. Connect the SMA side of the antenna wires into the two holes on each side of the
top panel
how you do
it. Once done, you can access
how to do
the
instructions.
so.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Z-Matter and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Universal Devices Z-Matter

  • Page 1 Assembly Instructions for Z-Matter Installing ZMatter into your Polisy is pretty straight forward. Preparations: 1. If your Polisy has been collecting dust for more than a year, the first thing you need to do is to freshen it up. Here’s how you do it.
  • Page 2 4. Plugin the ZMatter board into the first mPCIe slot from the left. Ensure that it latches in just like the SSD. Please note, you may not have a WiFI card. 5. Align the top panel on top of Polisy and move it backward so that you can see the u.FL connectors on the board.
  • Page 3 Enjoy the beauty!
