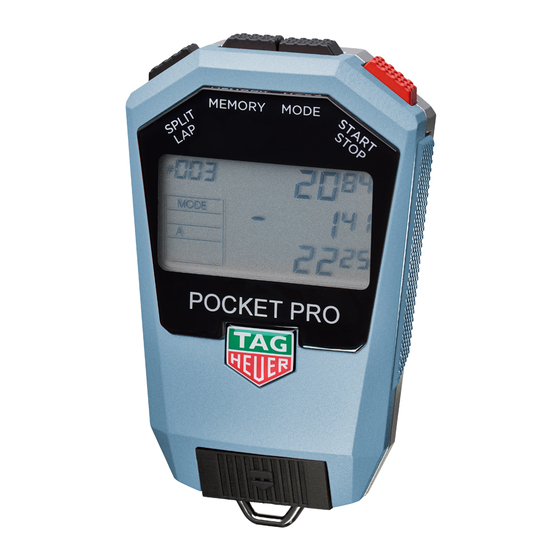

POCKET PRO
HL400-W
WINTER
User Manual
Version 09/2014
TAGHeuer Timing
Page 1 / 20

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the POCKET PRO HL400-W and is the answer not in the manual?

Questions and answers

Summary of Contents for TAG Heuer POCKET PRO HL400-W

  • Page 1 POCKET PRO HL400-W WINTER User Manual Version 09/2014 TAGHeuer Timing Page 1 / 20...
  • Page 2: Table Of Contents

    Contents Table Concept Standard Timing Mode 2.1. LCD description 2.2. General 2.2.1. How to navigate the different modes 2.2.2. Power 2.2.3. Time Memory 2.2.4. Delete Memory 2.3. Date Mode 2.4. STOPWATCH mode 2.5. Count Down mode (CD) 2.5.1. Count Down timing . 2.6.
  • Page 3: Concept

    Concept The Pocket Pro Winter App, Pocket Pro HL400-W, gives users access to timekeeping functions dedicated to the timing of winter sports. The innovative and bespoke application makes it possible to time training sessions for winter events with individual starts and finishes, mass start and individual finishes (cross country ski) and also allows users to time several competitors racing at the same time.
  • Page 4: Standard Timing Mode

    Standard Timing Mode Several timing modes are available : Date / Time / Count Down / Stopwatch. Three specific timing modes are also available on the Pocket Pro: A, B, and C. Mode A: Training Start / Finish Net Time + Gap with the best time (time to beat) Mode B: Multi-Start: Several individual Starts/Finishes Gap with the best time...
  • Page 5: General

    2.2. General 2.2.1. How to navigate the different modes To navigate into a different mode : The Pocket Pro has to be stopped (STOP) Reset memory (START/STOP + MEMORY) Pressing the MODE button now allows you to change the Timing Mode Sequence : DATE STOPWATCH...
  • Page 6: Delete Memory

    2.2.4. Delete Memory To delete the memory, press simultaneously START/STOP MEMORY buttons. Warning You will not receive a request for you to “confirm Delete Memory”. Once this step is made, all times are irretrievably deleted. 2.3. Date Mode This mode allows you to update the date of the Pocket Pro. To set the date: Press the MEMORY...
  • Page 7: Stopwatch Mode

    2.4. STOPWATCH mode This timing mode allows the timekeeper to make a Start/Finish, with intermediate time (SPLIT) and lap time (LAP) with a 1/100th of a second precision Number of split / Memory status Running status Split time Lap Time Running time The time displayed is up to 59’59.99’’...
  • Page 8: Count Down Mode (Cd)

    2.5. Count Down mode (CD) This mode allows you to make a unit count down or loop count-down Number of split / Memory status Running status Counter Count Down (max 59:59.9) Set Count Down 2.5.1 To change the Count-Down value, the memory has to be deleted. To set the Count-Down value: Press the MEMORY...
  • Page 9 TAGHeuer Timing Page 9 / 20...
  • Page 10: Time Mode

    2.6. TIME Mode This timing mode allows you to memorize the time of day at each split. This mode is very useful as a back-up system during a timing session and functions similarly to other timing systems working at “time-of-day” such as Chrono Printer, Mini Timer or Start Clock.
  • Page 11: Time Of Day Synchronisation

    2.6.2. Time of day synchronisation Press SPLIT/LAP START/STOP buttons simultaneously. The time of day of the Pocket Pro will be displayed on the top of the LCD with 1 minute in advance. The synchro will be automatic at the end of the full minute 2.6.3.
  • Page 12: Specific Timing Modes

    Specific Timing Modes In the Pocket Pro Winter, 3 specifics modes are available: A: Training Start / Finish Net Time + Gap with the best time (time to beat) B: Multi-Start: Several individual Starts/Finishes Gap with the best time C: Mass Start Mass start / Individual finish Net time up to 36 hours 3.1.
  • Page 13: Multi-Start (Mode B)

    After each finish, it is necessary to validate the time and record it by pressing the button Split/Lap : the running time will be reset for the next competitor. This also automatically recalculates the new time to beat. Pressing the Split/Lap button during the running time will also pause the time.
  • Page 14: Mass Start (Mode C)

    3.3. Mass Start (mode C) This mode allows you to start a group of competitors (start at Zero) At each arrival, the net time is displayed. Maximum Time allowed: 36 hours Number of competitor / Memory status Battery / Mode Setting / Running status Timing Mode Net Time of arrived competitor (hours) Net Time of arrived competitor (mm.ss.dc)
  • Page 15: Recommendations

    A slightly damp cloth is recommended for cleaning the Pocket Pro Download a new version of Firmware Program downloads and new releases of the TAG Heuer firmware “up loader” are available free of charge on our website www.tagheuer-timing.com. For this operation, you need to have: •...
  • Page 16: Technical Specification

    LCD 3 lines of 6 characters Battery level / Timing Mode Size of characters 7mm height Accuracy 1/100 second Memory 800 stored times Temperature range –20°C to +60°C 6.2. USB Connector Description TAG Heuer Photocell TAGHeuer Timing Page 16 / 20...
  • Page 17: Quick Guide

    Quick Guide Reset memory Buttons: Start/Stop + Memory Change mode: Clear Memory (Start/Stop + Memory) Button: Mode Power off Buttons: Memory + Mode (hold down together for 5 seconds) Recall recorded times Button: Memory Setting (Date / Time / CD) Button: Memory to select the digit Button: Split/Lap to change value Button: Mode to validate the selection...
  • Page 18 Mode A Button: Start/Stop: Start / Finish / Restart after pause Button: Split/Lap (during run): Intermediate Button: Split/Lap (after stop): Next competitor Button: Split/Lap (5 sec): Disqualify Button: Memory: recall / view memorized time Mode B Button: Start/Stop: Start, Button: Split/Lap : Finish Button: Split/Lap (5 sec): Disqualify Button: Memory: recall / view memorized time Mode C...
  • Page 19: Notes

    Notes TAGHeuer Timing Page 19 / 20...
  • Page 20 TAG Heuer PROFESSIONAL TIMING 6A Louis-Joseph Chevrolet 2300 la Chaux-de-Fonds Switzerland Tel : 032 919 8000 Fax : 032 919 9026 E-mail: info@tagheuer-timing.com http: //www.tagheuer-timing.com TAGHeuer Timing Page 20 / 20...
