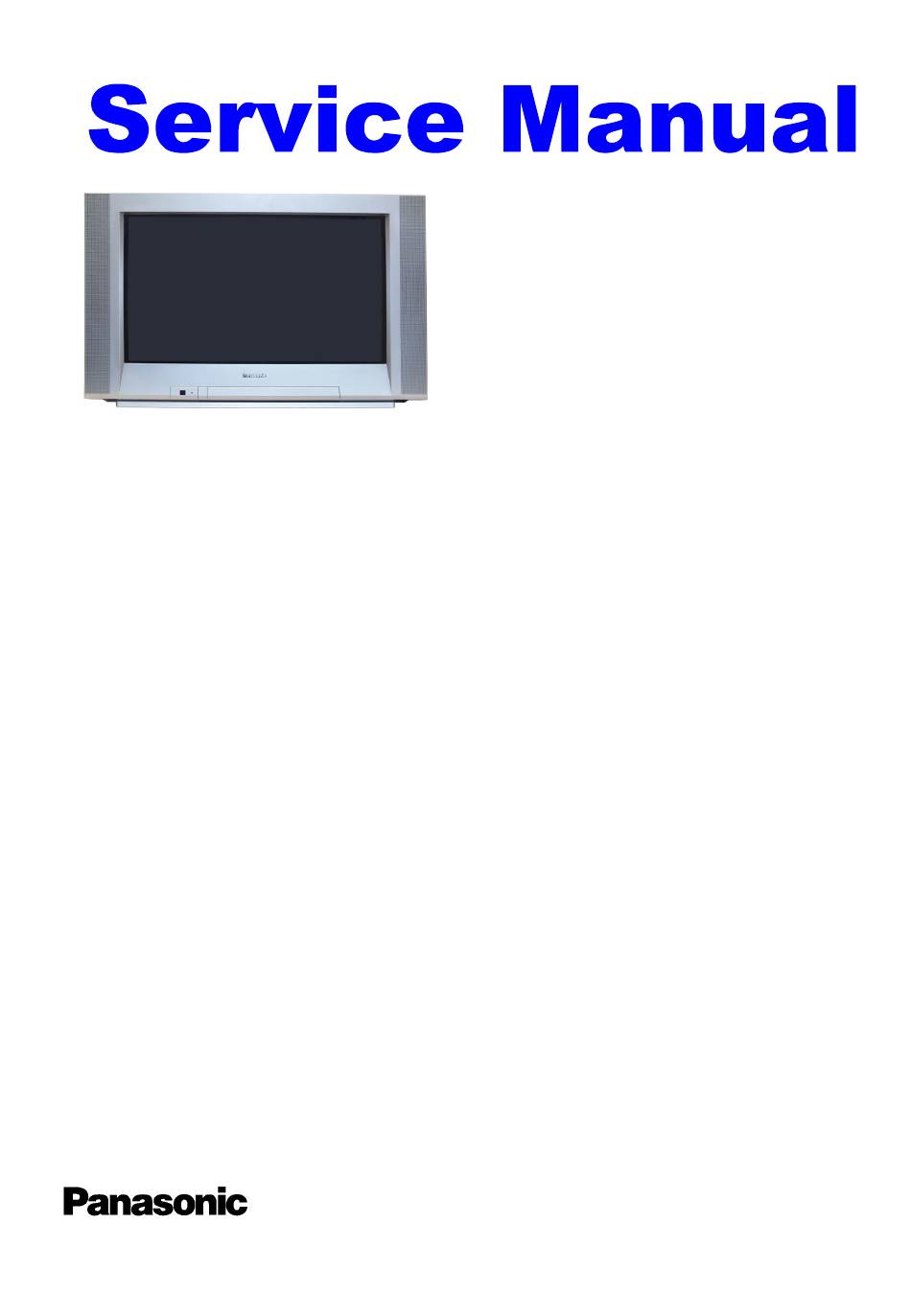

Panasonic TX-32DK1L Service Manual

SPECIFICATIONS
Power Source: 220-240V a.c., 50Hz
Power Consumption: 95W
Stand-by Power
Consumption: 1.4W
Aerial Impedance: 75Ω unbalanced, Coaxial Type
Receiving System: PAL I, PAL-525/60
M.NTSC
NTSC (AV only)
Receiving Channels: UHF E21-E69
VHF A1-S20
Intermediate Frequency:
Video/Audio
Video 39.5MHz
Audio 33.5MHz
32.95MHz (NICAM)
Colour 35.07MHz
Terminals:
AUDIO MONITOR OUT Audio (RCAX2)
AV1 IN Video (21 pin)
Audio (21 pin)
RGB (21 pin)
AV1 OUT Video (21 pin)
Audio (21 pin)
AV2 IN Video (21 pin)
Audio (21 pin)
S-Video IN
(21-pin)
All manuals and user guides at all-guides.com
500mV 1kΩ
1V p-p 75Ω
500mV rms 10kΩ
1V p-p 75Ω
500mV rms 1kΩ
1V p-p 75Ω
500mV rms 10kΩ
Y: 1V p-p 75Ω
C: 0.3V p-p 75Ω

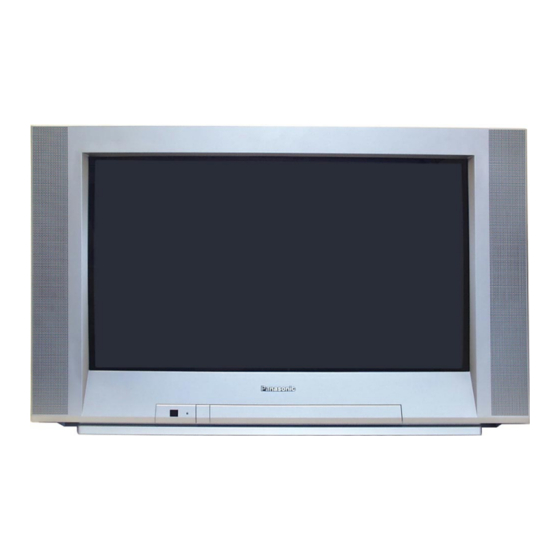

Colour Television
TX-32DK1L
EURO-4 Chassis
AV2 OUT Video (21 pin)
Audio (21 pin)
Selectable output (21 pin)
AV3 IN S-Video IN
(4-pin)
Audio (RCAx2)
Video (RCAx1)
30.5kV ± 1kV
High Voltage:
Picture Tube: W76ESF031X13 76cm
Audio Output: Front Left/Right
(Music Power)
Headphones: 8Ω Impedance
3.5mm
Accessories
supplied: Remote Control
2 x R6 (UM3) Batteries
VS-DK1/2 Video Cabinet
Dimensions:
Height: 561mm
Width: 896mm
Depth: 558.5mm
Net weight: 46.5kg
Specifications are subject to change without notice.
Weights and dimensions shown are approximate.
NOTE: This Service Manual should be used in conjunction with
the EURO-4 Technical guide.
ORDER No. SM-99095
1V p-p 75Ω
500mV rms 1kΩ
Y: 1V p-p 75Ω
C: 0.3V p-p 75Ω
500mV rms 10kΩ
1V p-p 75Ω
2 x 15W
