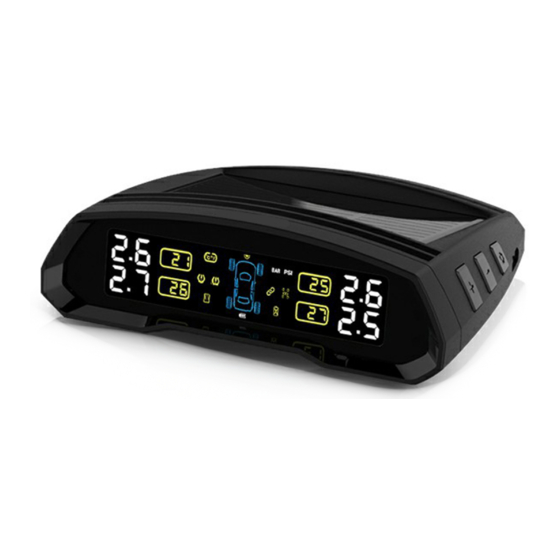

- Page 1 Model T802C Instruction manual Wireless tyre pressure and temperature monitoring system Visit www.tyrecare.co.za to watch a video on the products...
-
Page 2: Table Of Contents
Contents 1. Cautions............................. 1 2. Components........................2 2.1 Components......................2 2.2 Monitor and icons ....................2 3. Functions and features....................3 4 . Monitor........................4 5. Parameter settings.......................6 6. Alarm status.......................11 7. Troubleshooting guide....................13... -
Page 3: Cautions
1. Cautions 1.1 Safety cautions Before installing this product, please read the cautions below. The monitor should be installed inside the vehicle where it does not affect normal driving. The monitor should be fixed in such a way that it does not fall off while you are driving. -
Page 5: Functions And Features
3. Functions and features 3.1 Main function This product is mainly used to monitor the pressure and temperature of tyres automatically while driving, and to alert the driver to danger, such as rapid air leakage, low/high pressure, and high temperature. The wireless tyre pressure monitoring system is the only effective way to monitor the tyre pressure at all times. -
Page 6: Monitor
4. Monitor 4.1 Monitor features • The alarm range can be set. • Easy to operate tyre exchange function. • Several ways the monitor can be placed and installed. • The data for all the tyres are shown on the same screen. •... - Page 7 Monitor Monitor specifications Input voltage DC 5V Storage temperature - 30 °C to + 85 °C Working temperature - 20 °C to + 80 °C Frequency 433.92 MHz Size 88*68*25 (l*w*h) Mass 57 g 4.3 Automatic power on/manual power on When the car stops for more than 5 minutes and the monitor is not being charged, the monitor will automatically enter into sleep mode.
-
Page 8: Parameter Settings
5.Parameter settings 5.1 Factory default settings Pressure unit High pressure 3.0 BAR (44 PSI) Low pressure 2.0 BAR (29 PSI) Temperature unit °C High temperature 65°C Relationship between pressure units PSI, kg/cm2, kPa and BAR 1 BAR = 14 .503 PSI 1 BAR = 10 197 kg/cm2 1 BAR = 100 kPa 5.2 System parameter settings... - Page 9 Parameter settings 2. High pressure setting Enter into parameter setting mode, press + or - to select high pressure setting (Figure 5-1-2), then press the selection button to change the high pressure setting. Press + or - to adjust the high pressure setting, then press the selection button to confirm and save the change.
- Page 10 Parameter settings 4. High temperature setting Enter into parameter setting mode, press + or - to select high temperature setting (Figure 5-1-4), then press the selection button to change the high temperature setting. Press + or - to adjust the setting, then press the selection button to confirm and save the change.
- Page 11 Parameter settings Fig 5-2-2 5. The monitor displays ON, showing that the tyre was matched successfully 6. Press and hold to save and exit 6. Tyre interchange setting (use when wheel positions are changed) Enter into parameter setting mode, press + or - to select tyre exchange setting (Figure 5- 3- 1), then press the selection button to change the tyre (Figure 5-3-2).
- Page 12 Parameter settings Fig 5-3-3 3.Press + or - to change the tyre position. Fig 5-3-4 4. After exchanging the tyres, hold the selection button to save and exit.
-
Page 13: Alarm Status
6. Alert status When tyre pressure and temperature are below or exceeding the pre-defined values, the relative icon will display on the monitor and the value will flash, with an audible alarm. Press any button to turn off the alarm. The flashing icon will continue until the problem has been fixed. - Page 14 Alert status 3. High temperature alert Example: when the temperature of left front tyre is 66 °C (higher than the set high temperature value), the high temperature icon and value will flash, with an audible alarm (Figure 6-1-3 ). Temperature value and icon flashes Fig.
-
Page 15: Troubleshooting Guide
7. Troubleshooting guide 1. Monitor does not display properly • Make sure the monitor is turned on. • Check whether the battery still has sufficient power. If the sensor has been working for a long time, the battery may have run down. Also check whether the monitor is connected with the power line. - Page 16 5. Monitor screen update slows down Check whether the temperature in the vehicle is not too low (lower than -20 °C). When the temperature returns to a normal level, the display will also return to normal. 6. The monitor does not display tyre data after rebooting When the sensor detects tyre pressure, the sensor will transmit the data to the monitor.
