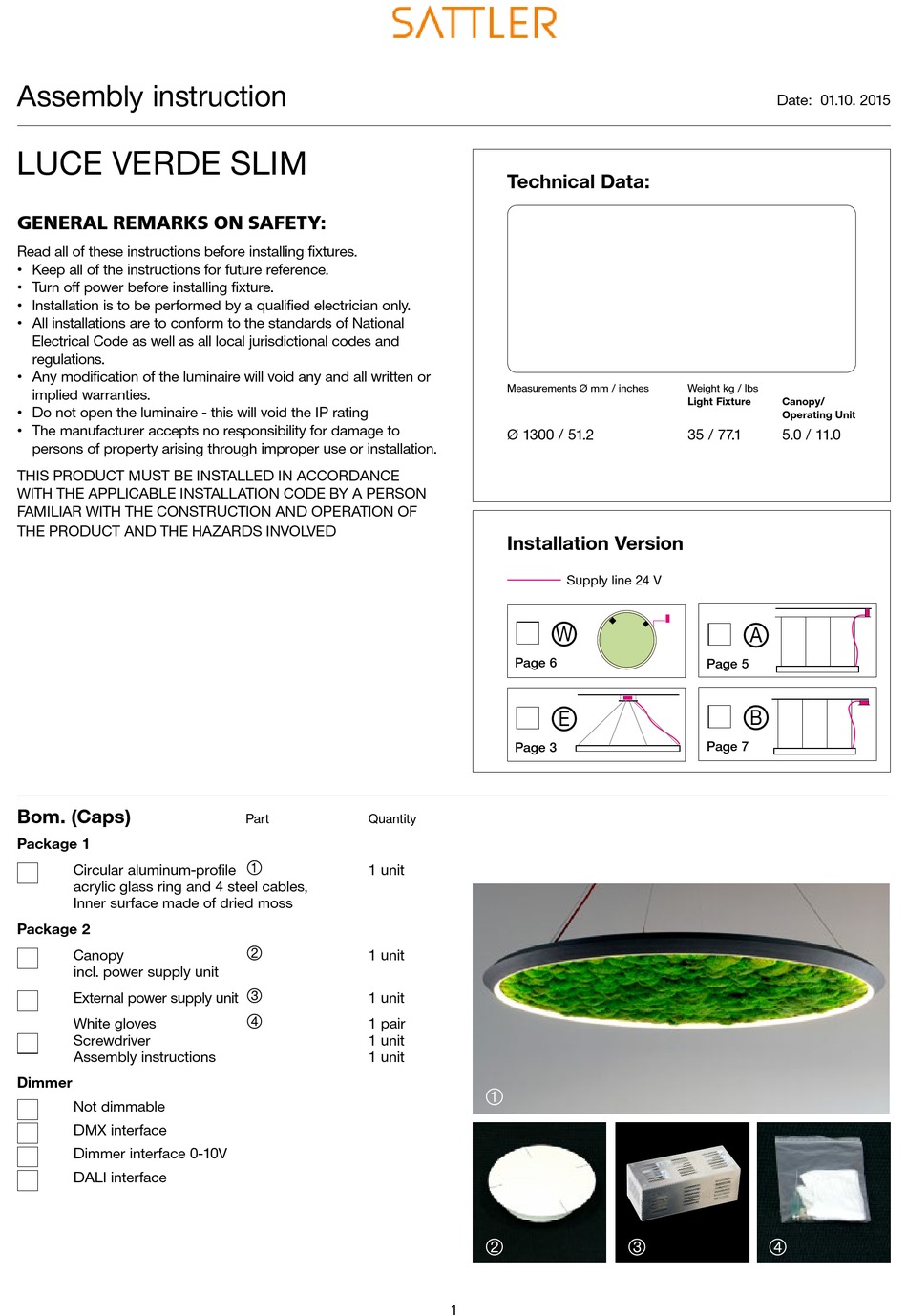

SATTLER LUCE VERDE SLIM Assembly Instruction Manual

Assembly instruction
LUCE VERDE SLIM
GENERAL REMARKS ON SAFETY:
Read all of these instructions before installing fixtures.
• Keep all of the instructions for future reference.
• Turn off power before installing fixture.
• Installation is to be performed by a qualified electrician only.
• All installations are to conform to the standards of National
Electrical Code as well as all local jurisdictional codes and
regulations.
• Any modification of the luminaire will void any and all written or
implied warranties.
• Do not open the luminaire - this will void the IP rating
• The manufacturer accepts no responsibility for damage to
persons of property arising through improper use or installation.
THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE
WITH THE APPLICABLE INSTALLATION CODE BY A PERSON
FAMILIAR WITH THE CONSTRUCTION AND OPERATION OF
THE PRODUCT AND THE HAZARDS INVOLVED
Bom. (Caps)
Package 1
Circular aluminum-profile
acrylic glass ring and 4 steel cables,
Inner surface made of dried moss
Package 2
Canopy
incl. power supply unit
External power supply unit
White gloves
Screwdriver
Assembly instructions
Dimmer
Not dimmable
DMX interface
Dimmer interface 0-10V
DALI interface
Part Quantity
1
1 unit
2
1 unit
3
1 unit
4
1 pair
1 unit
1 unit
Technical Data:
Measurements Ø mm / inches
Ø 1300 / 51.2
Installation Version
Supply line 24 V
W
Page 6
E
Page 3
1
2
1
Date: 01.10. 2015
Weight kg / lbs
Light Fixture Canopy/
Operating Unit
35 / 77.1 5.0 / 11.0
A
Page 5
B
Page 7
3 4
