- Page 1 User Manual 67123 SH3G Slag Removal Tool for use on laser cutting machines with minimum 1.75” between slats Slatpro LLC 4757 Mustang Circle Mounds View, MN USA Phone: +1 763-452-4550 Fax: +1 763-452-4560 sales@slatpro.com www.slatpro.com...
-
Page 2: Supporting Information
1. Safety 1.1 General Safety Instructions ΔWARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. 1.2 Slaghog Specific Safety Warnings and Instructions A. -
Page 3: Technical Information
If the supply cord is damaged it must only be replaced by qualified personnel. Only use SlatPro replacement parts when performing repairs or maintenance. 2.4 Technical Information Technical Data SlagHog Slag Removal Tool Production code 67123‐120V 67123‐230V Voltage 120V a.c. 230V a.c. Current ... -
Page 4: Initial Assembly

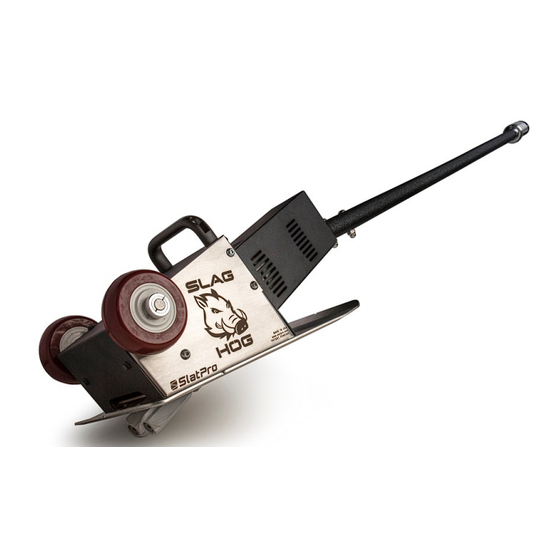

2.5 Symbols Caution! Warning! Danger! Always disconnect the plug from the socket before carrying out any instructions Please read the instructions carefully before starting the machine. Tool uses protective earth and must be plugged into grounded outlet 3. Description The tool is moved along the slats on the bed of a laser machine to remove slag that accumulates while cutting. - Page 5 The tool has two on/off switches Figure 2 Figure 1 Rocker switch on handle end, in off position, Rocker Switch on motor enclosure in off acts as circuit breaker reset in case of over- position. current Both switches must be in ON or “l” position to run. Turning either switch OFF (“0” position) stops motor operation.
-
Page 6: Maintenance
Figure 4 Cutters shown centered on slat To see the unit in operation, go to Youtube and search for Slaghog. The best video is: https://www.youtube.com/watch?v=PDvEFRREdgg The cutter geometry is ideal for most slat/pallet bed configurations. If the fit of the cutters on the slats does not seem correct contact the factory to find out options that are available. - Page 7 Figure 5 Place adjustable wrench on flats of right shaft and remove left cutter with counterclockwise rotation. Figure 6 Slide the new right hand and the left-hand cutters so that the flats between the shaft are facing the base plate as shown. The cutters rotate so that the slag chips are pulled up toward the base plate. The cutters must be installed as shown.
- Page 8 If the measured gap is less than the slat thickness, the Cutter Support Plates may have worn from hammering action after repeated use. This condition will overwork the motor and cause short brush life and may damage the motor. Call SlatPro for further advice on this problem.
-
Page 9: Motor Brushes
6.2 Motor Brushes If the tool has less torque while in use, it is likely that the brushes need replacement. Parts Required: Qty 1 of 67179SET Brush Kit for SH3 There are access holes to brushes in top and bottom of Motor Enclosure Unthread and remove Brush Caps from motor Remove old brushes and install new and thread caps back in place 6.3 Other maintenance... - Page 10 Slaghog Troubleshooting Guide Problem Probable Cause Solution The machine is Cutter gap is too large or too If measured gap is smaller than slat thickness, send unit in for a not cleaning small. See Figure 8 and Max rebuild/repair. This could mean that cutter support plates are well. gap table. worn or there has been a bearing failure. If the gap is too big, replace the cutters. Cutters are installed Check to see if the cutters may have been installed backwards. incorectly. See figure 7 Install the cutters correctly. The machine is The switch in the handle end Replace the switch. See parts list for propper part number. not starting. box has failed. The switch in the motor If you replace the switch in the handle end box and the unit is still enclosure has failed. not starting, replace the switch on top of motor enclosure. Issue with wiring. Refer to repair manual, verify all wires are properly connected. Motor has malfunctioned Check to see if brushes have worn. If worn, replace brushes. If brushes are not worn, replace the motor. Sparks are Motor has malfunctioned or Check to see if brushes have worn. If worn, replace brushes. coming from brushes are worn. inside motor If brushes are not worn, replace the motor. Burning smell Motor has malfunctioned. ...
- Page 11 EXCLUSIVE REMEDY. In the event that Slatpro determines that a Product contains a defect in materials or workmanship, then Slatpro, in its sole discretion, will (a) repair the Product, (b) replace the Product with new or rebuilt (c) refund the purchase price of the Product. THIS LIMITED WARRANTY IS EXCLUSIVE...
- Page 13 Slag Hog Assembly P/N: 67123-120VG or -230VG Model SH3G Item Part No. Description sheet 1 of 2 The following items are for the drive portion of the assembly Input Shaft 67121 66034 Cutter Shaft 66135 Idler Shaft 67077 Driven Idler Shaft 66083 Thrust Spacer 66041...
- Page 14 Slag Hog Assembly P/N: 67123-120VG or -230VG Model SH3G Item Part No. Description sheet 2 of 2 The following items are for the housing portion of the assembly 67114 Side Plate Set 67164 Base Plate 67118 Motor -120VG or -230VG Carbon Brush Set for Motor (Not Shown) 67179 67184 Grease Seal Adapter...
