Summary of Contents for Sheffield PL618

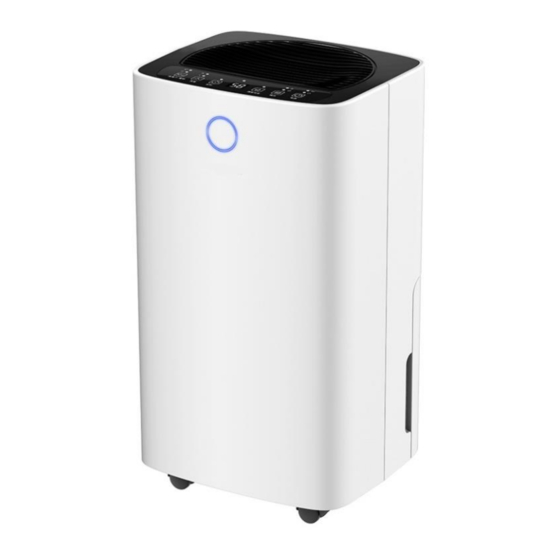

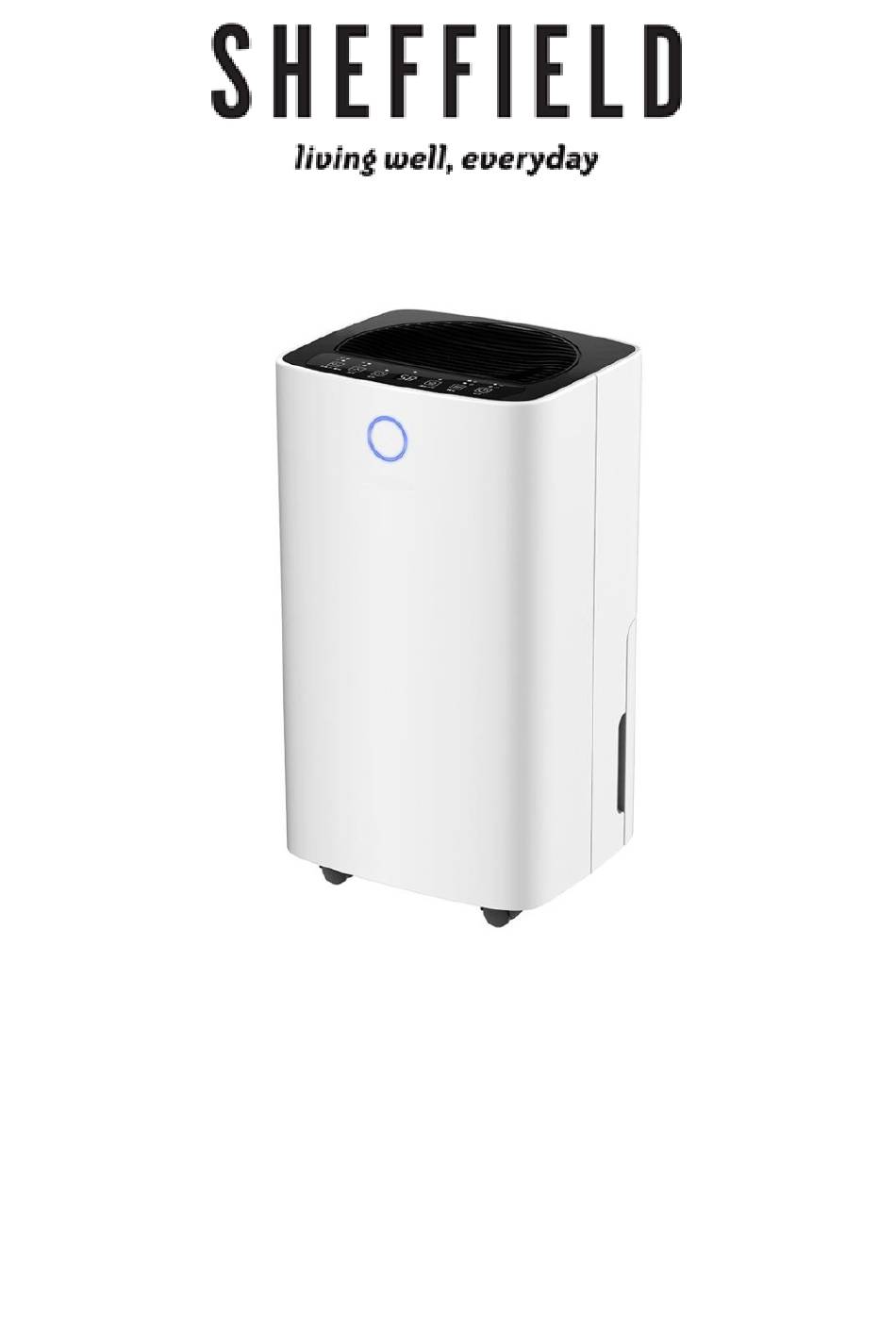

- Page 1 ELECTRONIC DEHUMIDIFIER...
-
Page 2: Table Of Contents
CONTENTS 02 Welcome 03 Package Contents 03 Technical Specifications 04 Important Safety instructions 09 Assembly and parts 11 Instructions 14 Cleaning and Maintenance 16 Troubleshooting AFTER SALES SUPPORT Email: service@prolinkasia.com Phone: 0508 776 546 - Mon-Fri 8:30am – 4.30pm Page 1... -
Page 3: Welcome
WELCOME Congratulations on choosing to buy a Sheffield product. All products brought to you by Sheffield are manufactured to the highest standards of performance and safety, and, as part of our philosophy of customer service and satisfaction, are backed by our comprehensive 24 Month warranty. -
Page 4: Package Contents
1 x Warranty Card Confirm all parts before disposing of the carton. Safely dispose of all plastic bags and other packaging components. They may be potentially dangerous to children. TECHNICAL SPECIFICATION Model: PL618 Rated voltage: 220-240V~50Hz Rated Power max.: 185W Protection class:... -
Page 5: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS READ CAREFULLY AND KEEP FOR FUTURE REFERENCE Carefully read this manual before using this appliance. Ensure that you know how the appliance functions and how to operate it. Maintain the appliance in accordance with the instructions to ensure that it functions properly. - Page 6 Intended Use Indoor domestic use only: this appliance is intended for indoor domestic use only. Do not use it outdoors. Do not use it in moving vehicles or boats. Do not use it for commercial or industrial use. ...
- Page 7 Supply Cord and Plug Always unplug from mains supply when not in use. Do not abuse or damage the power cord. If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.
- Page 8 Supervision This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
- Page 9 THE FOLLOWING SHOULD ALWAYS BE OBSERVED FOR SAFETY The environmentally friendly R290 is used as the refrigerant. R290 has no damaging influence on the ozone layer (ODP), a negligible greenhouse effect (GWP) and is available worldwide. Because of its efficient energy properties, R290 is highly suitable as a coolant for this application.
-
Page 10: Assembly And Parts
ASSEMBLY AND PARTS AFTER SALES SUPPORT Email: service@prolinkasia.com Phone: 0508 776 546 - Mon-Fri 8:30am – 4.30pm Page 9... - Page 11 Before First Use Remove all packaging materials. Remove any stickers or labels from the appliance. (Except the rating label!). Wipe the outside of the appliance with a moist cloth and dry with a towel. Clearance Maintain the minimum clearance around the dehumidifier when the unit is operating as shown below.
-
Page 12: Instructions
Make sure the Water tank is correctly fitted otherwise the unit will not operate. The dehumidifier will start in the mode selected when the unit was last used. The dehumidifier starts dehumidifying if the room humidity is 3% higher than the selected humidity. - Page 13 TIMER Use the timer to turn on and off the appliance automatically. When the Dehumidifier is turned on, press the timer button to program the time you wish the unit to turn off. Each press of the button will change the timer by 1 hour.
- Page 14 EMPTYING THE WATER TANK The built-in water tank will fill up and shut the unit down once it is full. It will run again once you empty the water tank and is installed correctly. When the tank is full, The unit will make a buzzing sound, and the “Water Full” light will turn on.
-
Page 15: Cleaning And Maintenance
Securely connect the drain hose and make sure it is not kinked and free of obstruction. Place the outlet of the hose over a drain or bucket and ensure that water could freely flow out of the unit. ... - Page 16 Remove the filter frame and take off the filter. Use a vacuum cleaner to gently vacuum the dust on the surface. If the filter is very dirty, wash it with water and a soft detergent and dry it thoroughly afterwards. Replace the filter by reversing the above instructions.
-
Page 17: Troubleshooting
TROUBLESHOOTING If a condition listed below occurs, please check the following items before calling customer service. Problem Possible Cause Solution Connect to a functioning outlet No power supply and switch on Drain water tank and reset it, or Water-Full Indication Flashes re-position the water tank to the Not working right place... - Page 18 SAFETY PRECAUTIONS ON SERVICING Please follow these warnings when to undertake the following when servicing an appliance with R290. Checks to the area Before beginning work on systems containing flammable refrigerants, safety checks are necessary to ensure that the risk of ignition is minimized. For repair to the refrigerating system, the following precautions shall be complied with before conducting work on the system.
- Page 19 Ventilated area Ensure that the area is in the open or that it is adequately ventilated before breaking into the system or conducting any hot work. A degree of ventilation shall continue during the period that the work is carried out. The ventilation should safely disperse any released refrigerant and preferably expel it externally into the atmosphere.
- Page 20 Cleaning up refrigerant General Measures: Gas/vapour is heavier than air and may accumulate in confined spaces, particularly at or below ground level. Eliminate every possible source of ignition. Use appropriate personal protection equipment (PPE). Evacuate unnecessary personnel, isolate, and ventilate the area. Do not get in eyes, on the skin, or on clothing.
