WARNING LIGHTING │ DIRECTIONAL LIGHTING │ LIGHTBARS │ WHITE LIGHTING │ REVERSING SAFETY
CAMERA SYSTEMS

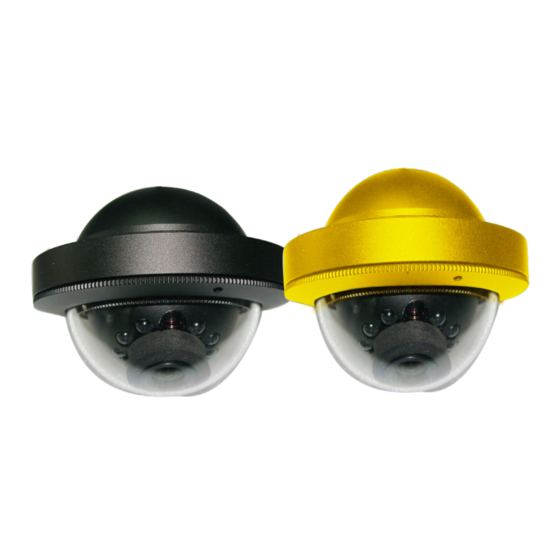

CAMA06-000/01
This is a high quality AHD (Analog High Definition ) Color camera, using the latest CMOS technology, the camera
can produce high definition image with little distortion. Analog High Definition is a high video definition standard,
through the coaxial cable, using the analog modulation technology to transfer progressive-scan HD Video signal.
AHD system is same as traditional analog system, using common 75-3 coaxial cable to carry out as far as 500 meters
HD video without any video signal loss.
Cautions:
• In order to protect the camera, please avoid
placing or using the camera under direct
sunlight.
• Please ensure that the input voltage range is
within the specifications.
• Please do not place the camera in a location
with a temperature exceeding 50ºC.
• Do not attempt to service the camera by
yourself. Please refer all services to qualified
dealers.
PART NUMBER
CAMA06-000
CAMA06-001
COLOUR
Black
Yellow
+44 (0)113 237 5340 │ sales@eccogroup.com
CODE3ESG.CO.UK
An ECCO SAFETY GROUP™ Company
Dimensions:
1---DC12V(+)
1
4
2---GND (-)
3
2
3---N/A
4---Video
MIRROR Loop
View
57mm
38mm
