Code 3 CAMA05-000 Quick Start Manual

WARNING LIGHTING │ DIRECTIONAL LIGHTING │ LIGHTBARS │ WHITE LIGHTING │ REVERSING SAFETY
CAMERA SYSTEMS
CAMA05-000
This is a high quality AHD (Analog High Definition ) Color camera, using the latest CMOS technology, the camera
can produce high definition image with little distortion. Analogue High Definition is a high video definition standard,
through the coaxial cable, using the analog modulation technology to transfer progressive-scan HD Video signal.
AHD system is same as traditional analog system , using common 75-3 coaxial cable to carry out as far as 500 meters
HD video without any video signal loss.

Cautions:

• Please ensure that the input voltage range is
within the specifications.
• Please do not place the camera in a location with a
temperature exceeding 50ºC.
• Do not attempt to service the camera by yourself.
Please refer all services to qualified Dealers.

Operation procedures:

1. Find the installation position on the car, and drill a
D8mm hole in the surrounding of the installation
position.
2. Place the mini camera on the installation position
you wish. Screw on the bracket and fix the camera
well after camera cable goes through the hole.
3. Plug a transfer cable attached to camera cable, and
then the
4. Other end of 4 aviation din pin connector can be
connected on TFT OR MDVR.

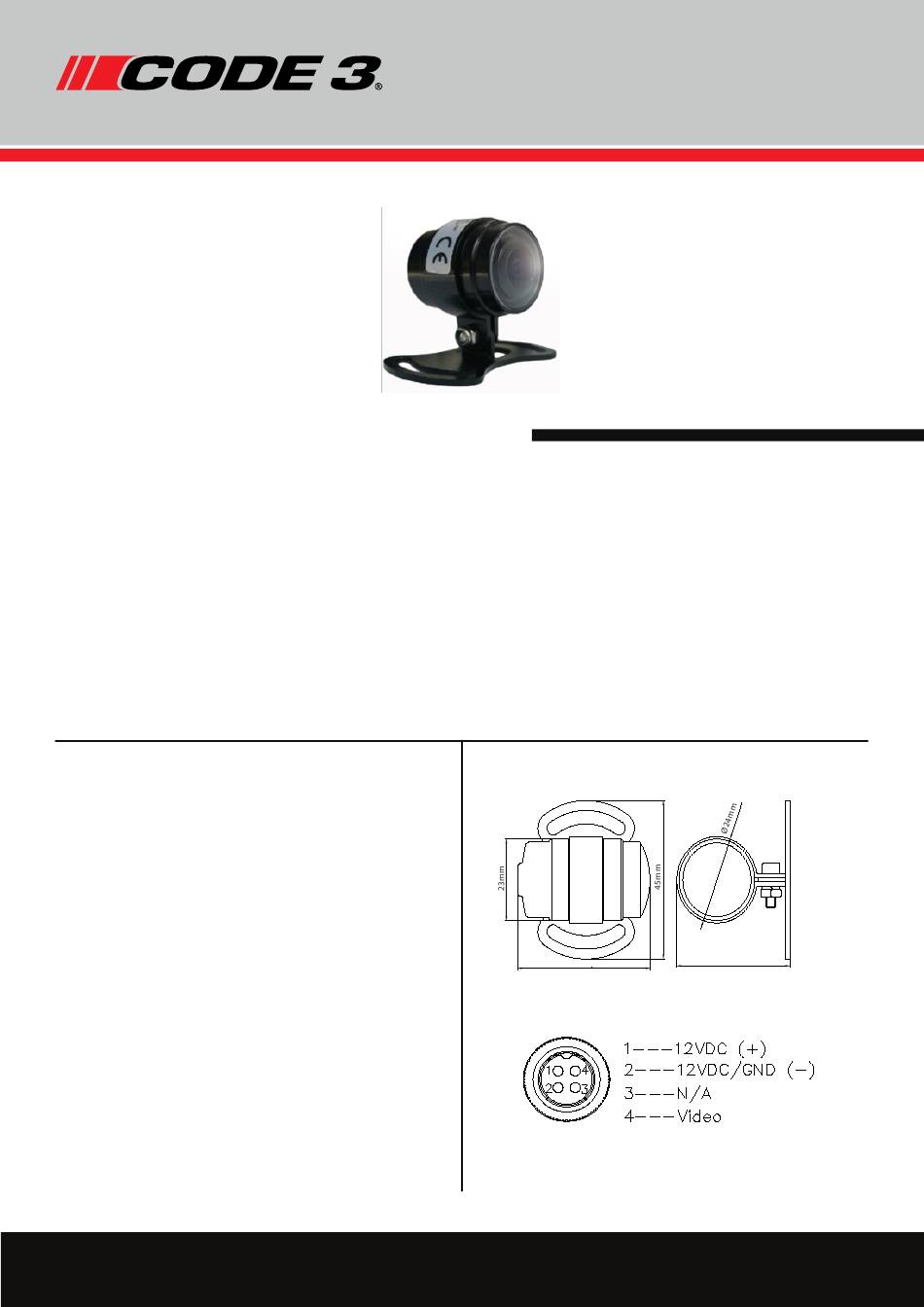

Dimensions:
+44 (0)113 237 5340 │ sales@eccogroup.com
CODE3ESG.CO.UK
An ECCO SAFETY GROUP™ Company
34mm
36mm
