Wireless-G Broadband Router with 2 Phone Ports
Now that the hardware installation is complete, proceed to "Chapter 5: Configuring the Wireless-G
Broadband Router with 2 Phone Ports," for directions on how to configure the Router.

Hardware Installation for Connection to An Existing Router

Your existing Router may have the same default IP address (192.168.0.1) as your new T-Mobile router. If this is
the case, the T-Mobile router's IP address will change to 192.168.24.1.
1. Power down your network devices. Now you will begin the hardware installation of router.
2. Locate an optimum location for the Router. The best place for the router is usually at the center of your
wireless network, with line of sight to all of your mobile stations.
3. Fix the direction of the antennas. Try to place the Router in a position that will best cover your wireless
network. Normally, the higher you place the antenna, the better the performance will be.
4. Connect a standard Ethernet network cable to the T-Mobile router's Internet port. Then, connect the other end
of the Ethernet cable to one of the numbered Ethernet ports on your existing router.

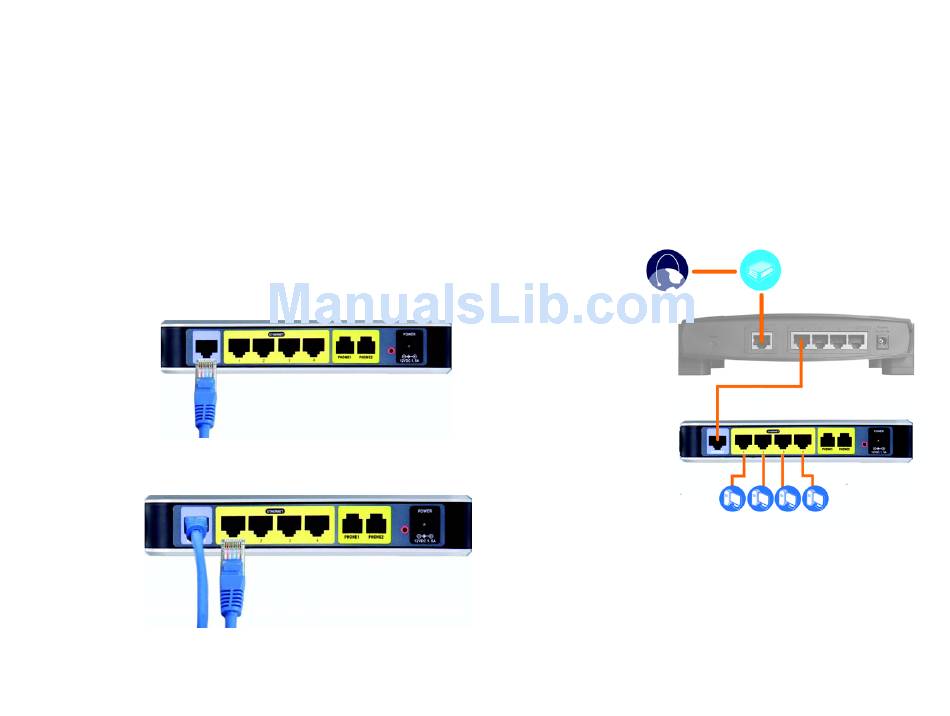

Figure 4-6: Connecting to Another Router

5. Decide which network computers or Ethernet devices you want to connect to the Router.

Figure 4-7: Connecting Your Network Devices

Chapter 4: Connecting the Wireless-G Broadband Router with 2 Phone Ports
Hardware Installation for Connection to An Existing Router
Broadband
Internet
Modem
Router
Wireless-G
Broadband
Router
with 2 Phone
Ports
Multiple PCs

Figure 4-5: Diagram for Connection to Another Router

10
