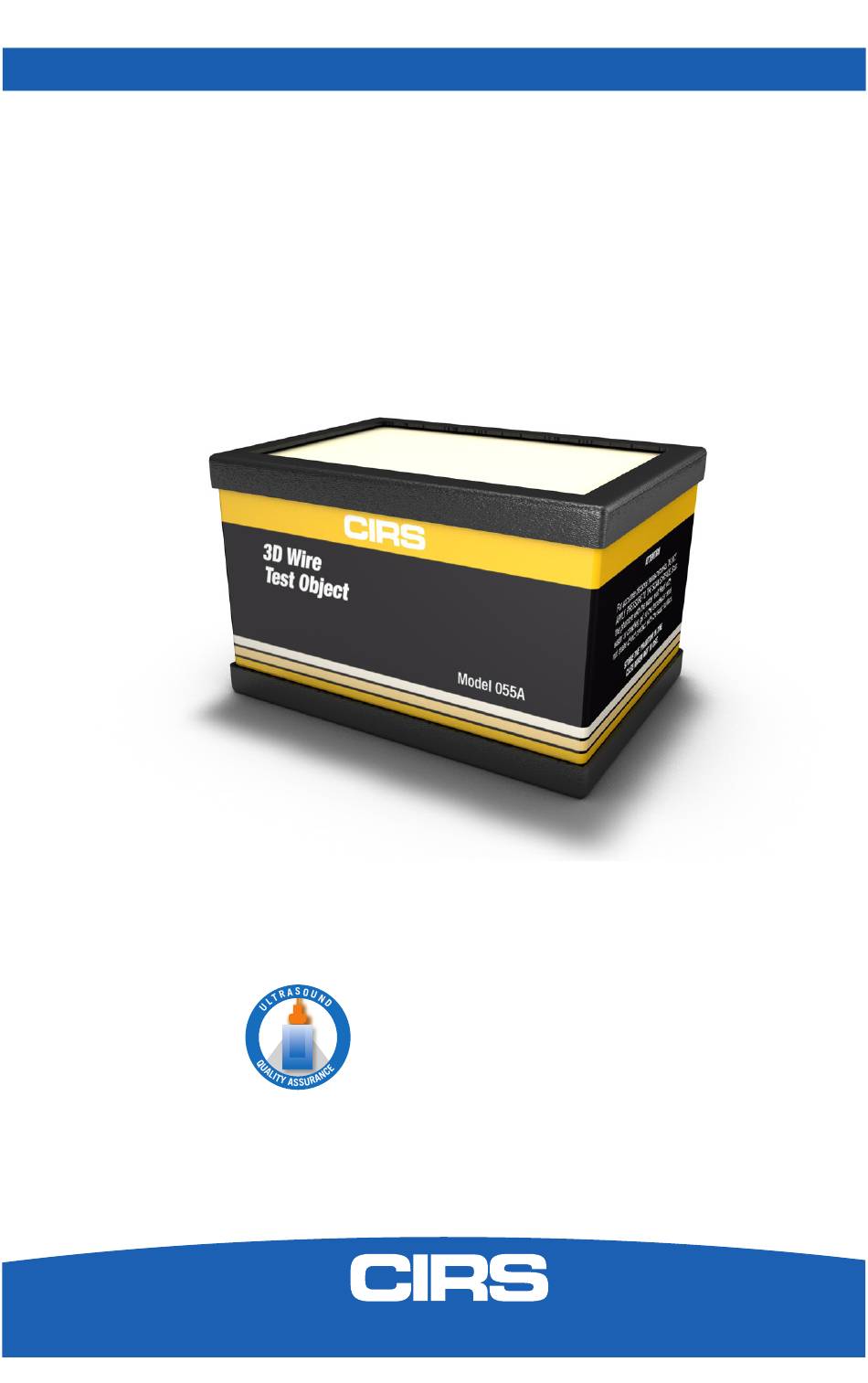

Cirs ZERDINE Inside 055A User Manual

Three-dimensional wire test object

Advertisement

Quick Links

Three-Dimensional
Wire Test Object
Model 055A
ZERDINE
Inside
®
A registered trademark of CIRS
USER GUIDE
900 Asbury Ave • Norfolk, Virginia 23513 • USA • Tel: 757-855-2765 • WWW.CIRSINC.COM

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ZERDINE Inside 055A and is the answer not in the manual?

Questions and answers

Summary of Contents for Cirs ZERDINE Inside 055A

  • Page 1 Three-Dimensional Wire Test Object Model 055A ZERDINE Inside ® A registered trademark of CIRS USER GUIDE 900 Asbury Ave • Norfolk, Virginia 23513 • USA • Tel: 757-855-2765 • WWW.CIRSINC.COM...
  • Page 3: Table Of Contents

    TABLE OF CONTENTS 1 OVERVIEW 2 INSTRUCTIONS FOR USE HANDLING AND CARE � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 2 USE OF REMOVABLE WATER WELL AND COVERS �...
  • Page 4 Saran-based laminate membrane CIRS is certified to ISO 13485:2016 standards. We have an in-house test facility to measure acoustic properties of speed, attenuation and relative contrast. In addition, two ultrasound systems are used to visually inspect each phantom. As a result, every ultrasound phantom is subjected to rigorous testing both during manufacture and upon completion.
  • Page 5: Instructions For Use

    If the scanning surface becomes damaged, seal the phantom in an airtight container and IMMEDIATELY contact CIRS for return authorization. Call 800-617-1177, email at rma@cirsinc.com or fax RMA Request form to 757-857-0523.
  • Page 6: Use Of Removable Water Well And Covers

    For curved arrays, the water well may be attached and filled with water to provide better coupling. Side Fire transducers can be particularly chal- lenging to scan with a standard phantom. CIRS has designed a removable endo- cavity cover for these transducers. When this accessory is attached, the phantom should be placed on its back and the cover should be filled with water.
  • Page 7: General Guidelines For Performing Measurements

    If not, then the conclusions drawn may not be valid. CIRS recommends that you use the most commonly set- tings for the type of probe tested- i.e. the liver preset values for an abdominal...
  • Page 8: Testing Procedures

    4. Frequency of system assessment: How often each system is evaluated is also up to each facility to deter mine. CIRS recommends at least annually. Reference the accreditation programs established by the ACR and AIUM at www.acr.org or www.aium.org for further guidance on establishing a QA program.
  • Page 9: Perimeter, Area And Volume Measurements

    DISTANCE (CONT) Align the probe so that all the vertical targets are displayed at their maximum intensity level. Freeze the image and obtain a hard copy. Using electronic calipers, measure the distances between two wires at various depths or align the echoes to the display markers for comparison. Record these measurements.
  • Page 10: Uniformity Testing

    To calculate a surface area or volume, an image is taken at a particular scan plane. Using the calipers, the dimensions of the 2D shape are taken and the area is deter- mined using the system’s algorithms. Next, perform a 3D scan of the line targets with the scan planes parallel to each other and the scan direction perpendicular to the axes of the line targets.
  • Page 11: Depth Of Penetration

    DEPTH OF PENETRATION TESTING Depth of penetration, also called maximum depth of visualization or sensitivity, is the greatest distance in a phantom for which echo signals caused by scattering in the background material can be detected on the display. The depth of penetration is determined by the frequency of the transducer, the attenuation of the medium being imaged and the system settings.
  • Page 12: Specifications

    SPECIFICATIONS – MODEL 055A TARGET LAYOUT GROUP 4 GROUP 1 GROUP 2 GROUP 3 GROUP 6 GROUP 7 GROUP 5 GROUP STARTING POSITION (X, Y) SUBSEQUENT WIRE MOVES (0 cm, 0 cm) ∆x= 1 cm, ∆y= 0 cm (0 cm, 3 cm) ∆x= 0.5 cm, ∆y= 0 cm (0 cm, 6 cm) ∆x= 1 cm, ∆y= 0 cm...
  • Page 13 ZERDINE ® The Model 055A is constructed from a patented, solid elastic material developed at CIRS called Zerdine . Zerdine, unlike other phantom materials on the market, is ® not affected by changes in temperature. It can be subjected to boiling or freezing conditions without sustaining significant damage.
  • Page 14 CIRS not to comply with documented order specifications. You must return the product to CIRS within 30 calendar days of the issuance of the RMA. All returns should be packed in the original cases and or packaging and must include any accessories, manuals and documentation that shipped with the product.
  • Page 16 COMPUTERIZED IMAGING REFERENCE SYSTEMS, INC. 900 Asbury Ave Norfolk, Virginia 23513 • USA TOLL FREE 800.617.1177 TEL: 757.855.2765 FAX: 757.857.0523 EMAIL: admin@cirsinc.com www.cirsinc.com Technical Assistance 1.800.617.1177 © 2013 Computerized Imaging Reference Systems Inc. All rights reserved. Computerized Imaging Reference Systems, Inc. has been Specifications subject to change without notice.
