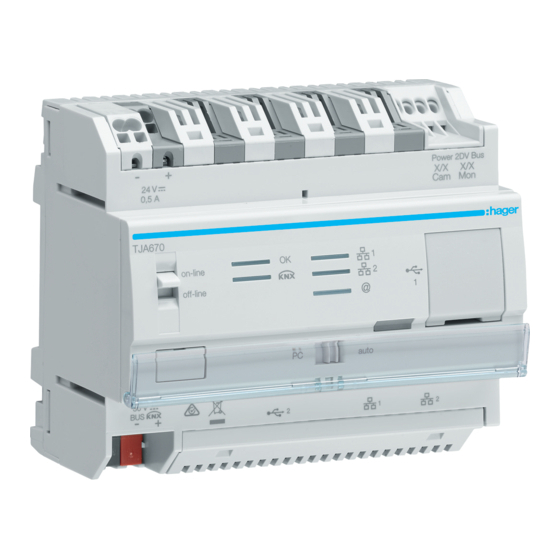

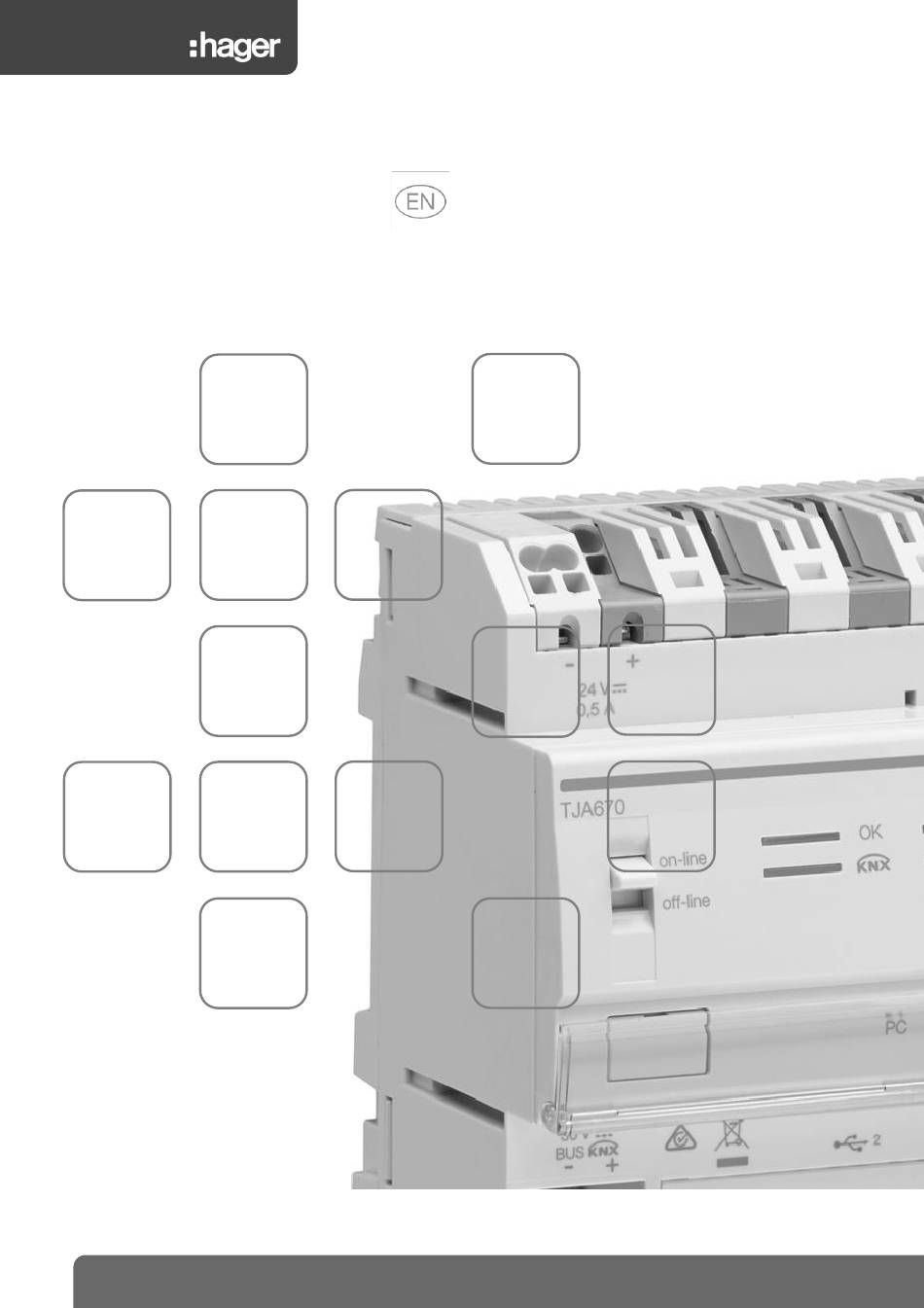

- Page 1 TJA670 domovea Basic TJA470 domovea Expert 6LE007140D...
-
Page 2: Table Of Contents
2.5.1 Installing the Hager Pilot application ............................10 2.5.2 Launching the Hager Pilot application ............................10 2.5.3 Accessing the configurator without using hager Pilot ......................... 10 2.5.4 Logging onto the server ................................10 Using the system ............................11 2.6.1 Installing the domovea Client application ........................... 11 2.6.2... - Page 3 5.2.3 Data management ..................................22 5.2.3.1 Data management ................................22 5.2.3.2 Resources management ..............................23 5.2.4 About ......................................23 6 MY DOMOVEA INSTALLATION ..................24 Dashboard ..............................24 Installation ..............................25 6.2.1 Devices...................................... 25 6.2.2 Groups ...................................... 25 Automations ..............................26 6.3.1 Sequences ....................................
-
Page 4: Introduction
TJA670 domovea Basic TJA470 domovea Expert 1 INTRODUCTION 1.1 Purpose of the document The purpose of this document is to familiarise the domovea server installer with the configuration interface. This document sets out the steps for the installer to perform this configuration. To do this, the following conditions are... -
Page 5: General Description
The Configurator: This software is used to configure and program the client interface. It enables access to the server from a PC, smartphone or tablet via the hager Pilot application or a web browser. The following diagram describes the physical architecture of a domovea installation:... -
Page 6: The Domovea Solution
The server is a piece of equipment that creates a link between an IP environment and the KNX bus systems. It involves the use of two applications, the first being the Hager configuration application, Pilot, and the second being the domovea application for the end user. -
Page 7: Software Version Update For The Domovea Server
(see Chapter 5.2.1.1 Update) Manually: The update file is available on the Hager site. To update the domovea server software version: - Take a blank USB key. - Copy the update file to the USB key, - Insert the USB key into the USB ports of the configuration server. -
Page 8: Auto/Router Functionality
TJA670 domovea Basic TJA470 domovea Expert 2.4.3 Auto/Router functionality The 2 Ethernet ports can be used interchangeably to connect the server to the local network. These 2 ports are 2 switched ports connected to the same logical interface on the TJA670-TJA470 (switch). -
Page 9: Technical Specifications
TJA670 domovea Basic TJA470 domovea Expert 2.4.4 Technical specifications KNX power supply KNX bus TBTS 30 V Consumption on the bus line 10 mA max - 30 V 24 V to 30 V via Hager SELV power External power supply... -
Page 10: Software Installation
You are connected to the server. For more information, please see tutorial 1 - Start and set up a domovea installation with Hager TJA670-TJA470 at www.hager.com/domovea. 2.5.3 Accessing the configurator without using hager Pilot In some cases, the configurator must be accessed directly without using the hager Pilot application. -
Page 11: Using The System
At this stage of installation, you can only log on with the administrator profile as only this account is active. The administrator access information is as follows: • User name: admin • Password: 1234 • Click Login For more information, please visit www.hager.com/domovea. - Discover the domovea application... -
Page 12: Connexion Knx Ip Secure
TJA670 domovea Basic TJA470 domovea Expert 2.7 Connexion KNX IP secure KNX Secure devices are able to encrypt and decrypt telegrams, thus adding an extra level of security to a KNX installation. This level of security can be used both during the commissioning of KNX installations as for KNX installations at runtime. - Page 13 TJA670 domovea Basic TJA470 domovea Expert Check that the slow bus communication option in the project details is unchecked so that the download is done correctly. Your KNX project is now password protected. This commissioning password can be found in the device properties under the IP tab.
-
Page 14: Connection Using The Knx / Ip Bridge
TJA670 domovea Basic TJA470 domovea Expert 2.8 Connection using the KNX / IP bridge The domovea server is used to connect via IP to the KNX bus for product configuration by ETS. It uses the KNXnet / IP standard and establishes communication between KNX lines and data networks using the Internet Protocol (IP). -
Page 15: Connection With A Remote Network
Enable Secure Tunnelling in the device properties in the Settings tab Go to the Apps tab and select the domovea secured proxy app Enter the email address and password for your My Hager account Select from the list the domovea server set up in your project and click Start. - Page 16 TJA670 domovea Basic TJA470 domovea Expert The remote connection is now established. To complete the connection, make sure that the connection to the remote interface is valid. On the Interface tab, you can reset the settings for the KNX connection by clicking on Reset KNX/IP interface .
-
Page 17: First Use
• select the backup file. For more information, please see tutorial 4 - Import a .hbox project in domovea with Hager Pilot at www.hager.com/domovea. 3.3 Using relearning This enables the creation of a new installation when there is no installation backup. This is possible by performing relearning on the installation. -
Page 18: My Project
TJA670 domovea Basic TJA470 domovea Expert 4 MY PROJECT Project domovea basic TJA670 Project domovea expert TJA470 This enables the project to be configured: • Using the Easytool configuration tool: click on the Easytool symbol A KNX product configuration window appears, enabling the installation to be configured. -
Page 19: Related Functions In The Menus
TJA670 domovea Basic TJA470 domovea Expert 5 RELATED FUNCTIONS IN THE MENUS 5.1 Account configuration This enables the connected user account to be configured. When you are connected, the general settings are accessible from the drop-down menu on the top right. -
Page 20: Interface
• click on Save to confirm your choices. You can connect remotely using: • hager Pilot or domovea client. select server TJA670-XXXXX or TJA470-XXXXX. If the server does not appear on the list, click Add a server, add the server by entering either: ▪... -
Page 21: Time Management
TJA670 domovea Basic TJA470 domovea Expert 5.2.1.4 Time management Click on Time management to view: • the time zone that can be selected from the drop-down list, for displaying the date and time at the client level. • the Latitude and Longitude of the time zone, to set the time of sunrise and sunset •... -
Page 22: The Creation And Management Of Additional Accounts
(*.zip). It will contain all energy consumption and sensor measurements in CSV format, as well as screenshots and recorded videos. • click on Export to carry out a backup, For more information, please see tutorial 7 – Export personal data from Hager Pilot at www.hager.com/domovea. -
Page 23: Resources Management
TJA670 domovea Basic TJA470 domovea Expert 5.2.3.2 Resources management The domovea server has an allocated and restricted space to store resources by categories (measurements, photos, videos, ...). A memory size, allocated to each category, is indicated as described below : ◼... -
Page 24: My Domovea Installation
TJA670 domovea Basic TJA470 domovea Expert 6 MY DOMOVEA INSTALLATION 6.1 Dashboard The Dashboard page can be used when an installation is selected: • go to Architecture to display an overview of the installation elements The number of groups The number of devices The number of valid or invalid automations The number of active or inactive measures. -
Page 25: Installation
Change the Group at the top of the device list, • select the group to which you wish to assign the selected device(s). For more information, please see tutorial 10 - Create groups in domovea using Hager Pilot at www.hager.com/domovea. -
Page 26: Automations
TJA670 domovea Basic TJA470 domovea Expert 6.3 Automations (Only with TJA470 Domovea Expert) Automations are not available in the configurator with the domovea Basic version (TJA670). They are available in the client application (domogram). For more information, please see tutorial 11 - Configure domograms in domovea at www.hager.com/domovea. -
Page 27: Home Status
TJA670 domovea Basic TJA470 domovea Expert 6.3.2 Home status Home Status is a general state of the house. It is possible to activate or deactivate sequences according to this status. Four home status are set by default and can be changed at will (Home - Absence - Night - Holiday). It is also possible to add up to four additional home statuses. -
Page 28: Measures
To create a device, please refer to chapter 6.2.1 Devices Depending on the type of device, it is possible to assign a subscription. For more information, please see tutorial 15 - Configure a Hager Energy Meter with easytool and domovea at www.hager.com/domovea. 6.4.2 Subscriptions A subscription defines the cost of power consumptions for a given installation. -
Page 29: Managing User Rights
TJA670 domovea Basic TJA470 domovea Expert 6.5 Managing user rights This enables you to define the access rights to the installation for different users. This can vary depending on the case, as shown in the examples below. Example 1: In a family residence, the young son must have access to his bedroom but not the other rooms. -
Page 30: List And Details Of Devices
TJA670 domovea Basic TJA470 domovea Expert 7 LIST AND DETAILS OF DEVICES This section lists all of the peripherals made available to the installation program to create a project. 7.1 KNX devices 7.1.1 Comfort Devices Actions Display Switch on Switch off... -
Page 31: Access Security
TJA670 domovea Basic TJA470 domovea Expert Devices Actions Display Overall control of heating Switch on Status of the area x Switch off HVAC mode area x Current temperature of area x Load-shedding Hot water Variance activated Variance Forcing activated Forcing... -
Page 32: Sensors
TJA670 domovea Basic TJA470 domovea Expert Devices Actions Display Door striker Open door Door open 7.1.3 Sensors Devices Actions Display Temperature Temperature at x°C Wind Wind at x km/h CO2 at x ppm Humidity Humidity at x% Brightness Brightness at x lux... -
Page 33: Generic
Generic for all other types, • change the name of the device if necessary, • enter the configuration parameters for the connection. For more information, please see tutorial 18 - Add cameras in domovea with Hager Pilot at www.hager.com/domovea. -
Page 34: Iot Devices
• complete the KNX group addresses if necessary. For more information, please see tutorial 21 - Add a Netatmo weather station in domovea with Hager Pilot at www.hager.com/domovea. 7.3.4 Tado This enables you to add a Tado° connected thermostat to the domovea installation. -
Page 35: Additional Connectivity Control Point
Connect to the Amazon Alexa website or to the Alexa application: • select Skills in the menu, • install the Hager domovea skills, • enter the user name and password for your Alexa account, • enter the user name and password of your myHager account, •... - Page 36 Hager Controls S.A.S., 33 rue Saint-Nicolas, B.P. 10140, 67703 SAVERNE CEDEX, France - www.hager.com 6LE007140D...
