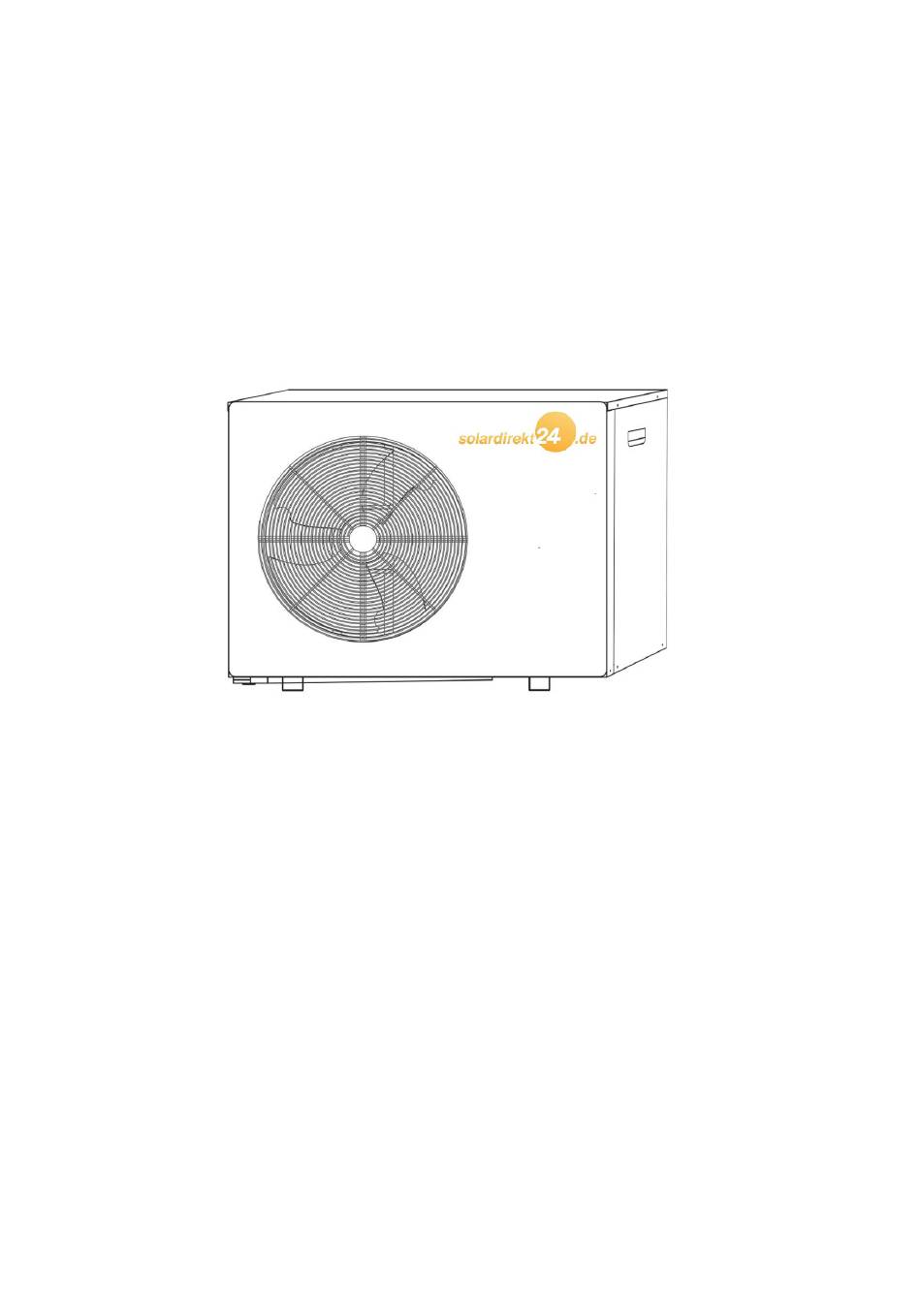

ECO R32
FULL DC INVERTER A+++
MUL Tl FUNCTIONAL AIR SOURCE HEAT PUMP
This manual is applicant for the modes of:
EUROTHERM HP008-M2, EUROTHERM HP012-M2,
EUROTHERM HP016-M2 (220~240V/50HZ/single phase)
EUROTHERM HP016-M3 (380~415V/50HZ/three phases)
Thanks very much for purchasing our heat pump, please keep and read the
manual carefully before you install heat pump.
USER'S MANUAL
BY SOLARDIREKT24 GMBH
Tel: 06732 / 608 99 99
Fax: 06732 / 608 99 98
E-Mail: info@solardirekt24.de
Advertisement
Table of Contents
Related Manuals for solardirekt24 EUROTHERM HP008-M2
Summary of Contents for solardirekt24 EUROTHERM HP008-M2
- Page 1 FULL DC INVERTER A+++ MUL Tl FUNCTIONAL AIR SOURCE HEAT PUMP This manual is applicant for the modes of: EUROTHERM HP008-M2, EUROTHERM HP012-M2, EUROTHERM HP016-M2 (220~240V/50HZ/single phase) EUROTHERM HP016-M3 (380~415V/50HZ/three phases) Thanks very much for purchasing our heat pump, please keep and read the...
-
Page 2: Table Of Contents
Note 1. Please read the instruction manual carefully before installation or operation. 2. The heat pump must be installed by a professional installer. 3. Please follow the instruction manual strictly when installing the heat pump 4. If any update on the product, this instruction manual is subject to change without notice 5. -
Page 3: User Instruction
User Instructions 2. Make sure that the leakage protection switch Please use an electrical leakage switch, is securely connected. If the wiring is not secure, otherwise, there may be electric shock, fire, etc. it may cause electric shock, heat, or fire. Test Button 3. - Page 4 Please read the labels on the machine carefully. If abnormal conditions such as abnormal noise, odor, smoke, temperature rise, electric leakage, fire, etc. are found during use, please cut off the power immediately and contact our local customer service center or dealer in time to repair it. Contact the local fire and emergency department immediately if necessary.
- Page 5 for a long time, it is recommended that the user drain the water out of the water system and disconnect the power supply. 8) Please perform regular maintenance on the machine as required by the instructions to ensure the device is in good operating condition. 2.
- Page 6 ensure the technician is aware of potentially flammable atmospheres. Ensure that the leak detection equipment being used is suitable for use with flammable refrigerants, i.e. non- sparking, adequately sealed or intrinsically safe. v. Presence of fire extinguisher If any hot work is to be conducted on the refrigeration equipment or any associated parts, appropriate fire extinguishing equipment shall be available to hand.
- Page 7 7) Repairs sealed components: a) During repairs to sealed components, all electrical supplies shall be disconnected from the equipment being worked upon prior to any removal of sealed covers, etc. If it is absolutely necessary to have an electrical supply to equipment during servicing, then a permanently operating form of leak detection shall be located at the most critical point to warn of a potentially hazardous situation.
- Page 8 The refrigerant charge shall be recovered into the correct recovery cylinders. The system shall be “flushed” with OFN to render the unit safe. This process may need to be repeated several times. Compressed air or oxygen shall not be used for this task. Flushing shall be achieved by breaking the vacuum in the system with OFN and continuing to fill until the working pressure is achieved, then venting to the atmosphere, and finally pulling down to a vacuum.
- Page 9 The label shall be dated and signed. Ensure that there are labels on the equipment stating the equipment contains flammable refrigerant. 16) Recovery When removing refrigerants from a system, either for servicing or decommissioning, it is recommended good practice that all refrigerants are removed safely. When transferring refrigerant into cylinders, ensure that only appropriate refrigerant recovery cylinders are employed.
-
Page 10: Operation Instructions
Operation Instruction 1. Control Panel 2. Operation Instruction... - Page 13 3. Temperature and Climate Curve Setting When the climate temperature curve function is enabled, the user can select one of the eight curves in the main interface; curve 4 is the default curve, and curve 6 is the ECO energy-saving curve.
- Page 14 4. Wi-Fi Setting 4.1 Software Download and Account Registration 4.1.1 Search Smart Life in the app store on the mobile phone, and download and install it. 4.1.2 Users who do not have an account can apply by clicking the "Create New User" function on the login page.
- Page 15 4.3 Connection (AP Mode) Step 1 and Step 2: Be consistent with the Intelligent Mode Step 3 Select innovative heat pump (Wi-Fi) after entering into the Wi-Fi connection interface, enter the phone has been connected to the (Wi-Fi) password (must be consistent with the Wi-Fi connected to the phone), click next, confirm that the line controller has selected AP distribution mode, an icon in the slow flashing state”...
- Page 16 Operation Parameter Query Query Code Description Range Compressor Running Frequency 0 ~ 99 Hz Fan Motor Running Frequency 0 ~ 99 Hz Main EEV Opening 0 ~ 480 P EVI EEV Opening 0 ~ 480 P AC Input Voltage 0 ~ 500 V AC Input Current 0 ~ 50 A Compressor Phase Current...
-
Page 17: Dimension
Dimension 1. Dimension... - Page 18 2. Explosive Diagram Front panel Sensor fixing clip Plate heat exchanger Left side panel Water proof connector Mounting panel Evaporator Connecting panel 2 Base Reactor Connecting panel 3 DC compressor Electrical cabinet Right panel Mounting board Connecting panel 1 Pipeline group Middle septum Top panel Gas-liquid separator...
-
Page 19: Installation
Installation 1. Installation Preparation 1.1 Install The Required Tools (Self-Provided) Number Tool Number Tool Level Electric Hammer Flat Blade Screwdriver Adjustable Wrench Cross Screwdriver Needle-nose Plier Copper Tube Knife Impulse Drill PP-R Tube Knife Ruler PP-R Tube Heat Melting Device Torque Wrench Compound Gauge Hexagonal Wrench... - Page 20 Heat Pump Installation Space Diagram Note Installation In The Following Locations May Cause The Machine To Malfunction: 1. A place with more oil; 2. Wet place 3. Seaside saline-alkali area; 4. Special environmental conditions; 5. High-frequency facilities such as wireless equipment, welding machines, and medical equipment. 3.
- Page 21 Installation Precautions 1. The unit should be installed so that the inclination of any vertical surface does not exceed 5 degrees; 2. Do not install the outdoor unit directly on the ground; 3. The strength of the ordinary air-conditioning bracket may not apply to the unit. Please design or select the frame according to the weight of the team;...
- Page 22 Piping Instruction...
- Page 23 Remarks: 1. The same piping design is allowed to distribute the water evenly. 2. The system must be equipped with an automatic water supply valve, and the highest point of the water system must be equipped with an automatic pressure relief valve; 3.
- Page 24 5. Selection and Installation of Water System Accessories Selection Of Circulating Pump 5.1.1 The machine must be installed with a circulating pump to be used. The heat pump provides the power port of the circulating pump (single-phase power supply). Please refer to the circuit diagram for wiring.
- Page 25 Power Cable And Signal Wire Connection Instruction 1. Remove the machine’s front cover and connect the wire to the corresponding terminal block according to the electrical wiring diagram to confirm that the connection is secure. 2. Secure the cable with the wire clamp and install the service plate. 3.
- Page 26 Seq. Port Description Seq. Port Description Hot Water Electric Heating Low-Pressure Sensors Four-Way Valve Outer Coil Temperature Liquid Injection Valve Return Air Temperature Reservation Exhaust Temperature Reservation Cooling Coil Temperature Return Water Valve Economizer Inlet Temperature Crankshaft Heating Economizer Outlet Temperature Chassis Heating Outdoor Ambient Temperature...
- Page 27 Expansion Board Output Definition Port Description Port Description OUT1 Circulating Water Pump Forced Hot-Water Switch OUT2 Hot Water Electric Heating OUT3 Air-Conditioning Valve Off Linkage Switch OUT4 Air-Conditioning Valve On OUT5 Hot Water Valve On Water Flow Switch OUT6 Hot Water Valve Off OUT7 Reservation Water Inlet Temperature...
- Page 28 Wire Diagram...
-
Page 29: Commissioning
Commissioning 1. Precautions Before Commissioning Is the machine adequately installed? Is the wiring and pipe correct? Whether the water pipelines are empty or not? Whether the heat insulation has been perfected? Is the ground wire connected reliably? Whether the power supply voltage matches the rated voltage of the machine? Is there any obstacle in the air inlet and outlet of the machine? Is the safety valve installed correctly? Whether the leakage protector can operate effectively? -
Page 30: Maintenance
Power Outage If there is a power outage during operation, the machine will stop running. Before the power outage, the controller automatically memories the ON/OFF status of the device. After re- powering, the controller will send an ON/OFF signal to the device according to the state of memory before the power outage to ensure that the device recovers from the previous status from abnormal power failure. -
Page 31: Trouble Analysis
Trouble Analysis Error code Fault Description Failure Causes Wrong-Phase Protection Power supply phase sequence error Power Supply Lack Of Phase The power supply is out of phase 1. Circulating pump failed, or water system blocked 2. Water flow switch failed, or opposite installed direction Outside Water Flow Switch Fault 3. - Page 32 Cooling Subcooling Protection Normal anti-freeze protection Board Change Out Temperature Fault Damaged motherboard or sensor Damage to the mainboard or water Water Level Switch Malfunction level sensor Anti-Freeze Sensor Malfunction Damaged motherboard or sensor Water Outlet Sensor Failure Damaged motherboard or sensor Reservation Reservation Damage to the mainboard or water...
- Page 33 board damaged Damaged DC pump or poor signal Water Pump Feedback Failure line contact Abnormal Communication between Compressor One Driver and Main Poor or broken signal cable contact Control Board Abnormal Communication between Compressor Two Driver and Main Poor or broken signal cable contact Control Board Abnormal Communication between Fan Motor One Driver and Main Control...
-
Page 34: Specification
Specification... -
Page 35: After-Sale Service
After-sale Service Relevant state regulations carry out the after-sales service of our products. Within the scope of the warranty period, If the machine is not working correctly under reasonable use, please contact the seller. The user must designate a person to manage and use the unit reasonably and correctly by our company’s “Instructions for Use.”...
