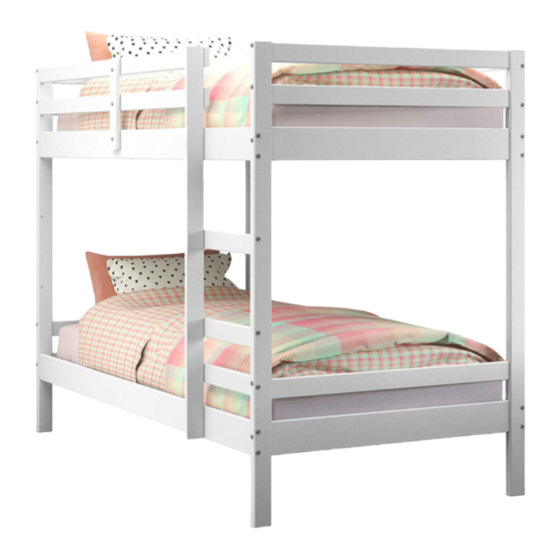

Donco kids BELLAIRE 1573 Assembly Instructions Manual

Donco kids BELLAIRE 1573 Assembly Instructions Manual

Bunk bed kd
Hide thumbs Also See for BELLAIRE 1573:

Advertisement

Quick Links

ASSEMBLY INSTRUCTIONS
1573 BELLAIRE BUNK BED KD
Thank you for purchasing this quality product.
Be sure to check all packing materials carefully
for small parts which may have come loose
inside the carton during shipment. Separate,
identify and count all parts and hardware.
Compare with the parts list to be sure all parts
are present.
´´DO NOT TIGHTEN SCREWS
UNTIL COMPLETELY ASSEMBLED´´
SIZE OF MATTRESS AND FOUNDATION (SUPPORT)
This bed is designed to use a twin mattress ( 37 ½"- 38 ½"x 74 - 75") and bunkie board (37 ½"x 74"). The
total thickness must not exceed
foundation.
Note:There must be at least 5" inches from top surface of mattress to top edge or guardrails.
REPLACEMENT PARTS.
Replacement parts, including additional guardrails, may be obtained from place of purchase or original
distributor.
TO OBTAIN PARTS, PLEASE CONTACT:
1- Follow the information on the warning label appearing on the upper bunk end structure and on the carton.
Do not remove warning label from bed.
2- Always use the recommended size mattress or mattress support, or both, to help prevent the likelihood
of entrapment or falls.
3- Surface of mattress must be at least 5 inchess below the upper edge of guardrails.
4- Do not allow children under 6 years of age to use the upper bunk.
5- Prohibit more than one person on upper bunk.
6- Periodically check and ensure that the guardrail, ladder and other components are in their proper position,
free from damage, and that all connectors are tight.
7- Do not allow horseplay on or under the bed and prohibit jumping on the bed.
8- Always use the ladder for entering and leaving the upper bunk.
9- Do not use substitute parts. Contact distributor or dealer for replacement parts.
10- Use of a night light may provide added safety precaution for a child using the upper bunk.
11- If the bunk bed will be placed next to a wall, the guardrail that runs the full length of the bed should
be placed against the wall to prevent entrapment between the bed and the wall.
12- Always use guardrails on both long sides of the upper bunk.
13- The use of water or sleep flotation mattresses is prohibited.
14- Keep these instructions for future reference.
15- Strangulation Hazard - Never attach or hang items to any part of the bunk bed that are not designed for
use with the bed: for example, but not limited to, hooks, belts, and jump ropes, etc.
IMPORTANT: PLEASE READ INSTRUCTIONS BEFORE STARTING THE ASSEMBLY
All manuals and user guides at all-guides.com
inches. Do not use mattress without the proper bunkie board or safe
7 "
DONCO TRADING COMPANY- FORT WORTH, TEXAS
SAFETY WARNINGS!

Advertisement

loading
Need help?

Need help?

Do you have a question about the BELLAIRE 1573 and is the answer not in the manual?

Questions and answers

Summary of Contents for Donco kids BELLAIRE 1573

  • Page 1 All manuals and user guides at all-guides.com ASSEMBLY INSTRUCTIONS 1573 BELLAIRE BUNK BED KD Thank you for purchasing this quality product. Be sure to check all packing materials carefully for small parts which may have come loose inside the carton during shipment. Separate, identify and count all parts and hardware.
  • Page 2 All manuals and user guides at all-guides.com 1573 BELLAIRE BUNK BED KD WARNING LABELS POST NUMBER HERE HARDWARE 4,0 x 30 Screw 17mm 1/4 x 70mm 1/4" Half Moon 17mm 7 x 60mm 17mm 7 x 100mm 10 x 40mm 17mm 1/4 x 110mm page 2 of 8...
  • Page 3 All manuals and user guides at all-guides.com WARNING LABELS 10 x 40 FOOTBOARD INSIDE POST NUMBER HERE HOLE ON EDGE UP 1/4" Half Moon (-) Space 17mm 7 x 100mm PLEASE TIGHTEN COMPLETELY ALL SCREWS / BOLTS NOW 17mm 1/4 x 110mm page 3 of 8...
  • Page 4 All manuals and user guides at all-guides.com PLEASE TIGHTEN COMPLETELY HEADBOARD ALL SCREWS / BOLTS NOW INSIDE WARNING LABELS HOLE ON EDGE UP 1/4" (-) Space Half Moon 17mm 7 x 100mm POST NUMBER HERE 17mm 1/4 x 110mm PLEASE TIGHTEN COMPLETELY PLEASE TIGHTEN COMPLETELY ALL SCREWS / BOLTS NOW ALL SCREWS / BOLTS NOW...
  • Page 5 All manuals and user guides at all-guides.com ATTENTION 17mm 1/4 X 70 1/4" Half Moon PLEASE TIGHTEN COMPLETELY ALL SCREWS / BOLTS NOW 17mm 1/4 X 70 1/4" Half Moon DO NOT TIGHTEN TOTALLY THE SCREWS/BOLTS UNTIL TO ASSEMBLE THE PARTS # 8 page 5 of 8...
  • Page 6 All manuals and user guides at all-guides.com ATTENTION 17mm 1/4 X 70 1/4" Half Moon DO NOT TIGHTEN TOTALLY THE SCREWS/BOLTS UNTIL TO ASSEMBLE THE PARTS # 8 17mm 7 X 60 page 6 of 8...
  • Page 7 All manuals and user guides at all-guides.com 17mm 7 X 60 PLEASE TIGHTEN COMPLETELY ALL SCREWS / BOLTS NOW PLEASE TIGHTEN COMPLETELY ALL SCREWS / BOLTS NOW 17mm 7 X 60 page 7 of 8...
  • Page 8 All manuals and user guides at all-guides.com 17mm 7 X 60 PLEASE TIGHTEN COMPLETELY ALL SCREWS / BOLTS NOW PLEASE TIGHTEN COMPLETELY ALL SCREWS / BOLTS NOW 4,0 x 30 Screw page 8 of 8...
  • Page 9 All manuals and user guides at all-guides.com OPTIONAL SLATS Not included in the bed box...
