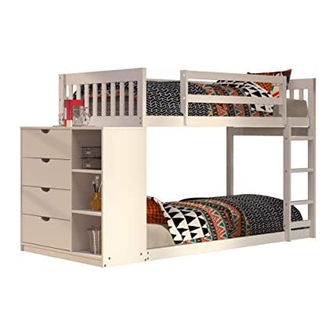

- Page 1 TT 1600 MISSION CHEST BUNK BED...
- Page 2 TT 1600 MISSION CHEST BUNK BED OPTION OPTION LEFT SIDE RIGTH SIDE...
-

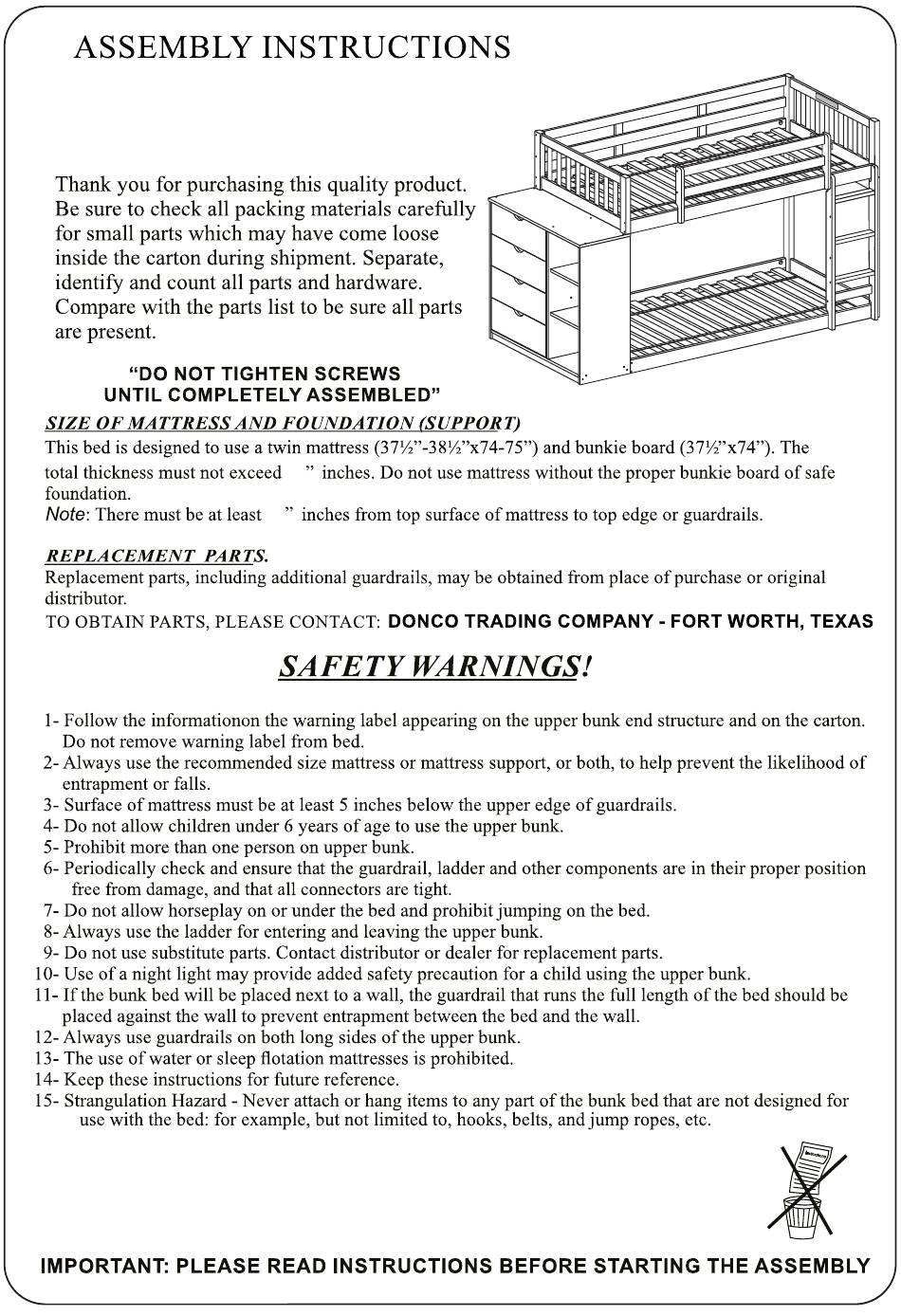

Page 3: Warning Label
TT 1600 - CHEST 4 DRAWERS WARNING LABEL! ´´OUTSIDE´´ (x4) 7,0 x 50 Screw 4,0 x 30 Screw 4,5 x 60 Screw 3,5 x 16 Screw Hex Screwdriver 08 x 30 Wood Dowel Plastic Support 6,0x10 Screw Drawer Runner 300mm... - Page 4 BOTTOM RIGHT SIDE LEFT SIDE DIVISION RIGHT SIDE (x4) (x4) 08 x 30 Wood Dowel Plastic Support -The glides are used on chest panel side and has a left and right pieces. -The glides are used on drawers side, also has a left and right pieces. (x4) (x4) (x4)
- Page 5 The wheel to the front! Space (-) Bottom BACK PRE-DRILLED BACK HOLES Space (+) Space (-) Bottom The wheel to the front! 6,0x10 Screw Drawer Runner 300mm...
- Page 6 BACK FRONT BOTTOM BACK BACK 7,0 x 50 Screw Hex Screwdriver BACK BOTTOM BACK 7,0 x 50 Screw Hex Screwdriver...
- Page 7 HOLES OPEN A LITTLE STEP 3 STEP 2 STEP 1 OPEN A LITTLE BOTTOM HOLES BOTTOM BACK 4,5 x 60 Screw...
- Page 8 BOTTOM 7,0 x 50 Screw Hex Screwdriver HOLES Please push up the panel to screw. BACK 3,5 x 16 Screw...
- Page 9 FRONT DRAWERS (x4) 4,0 x 30 Screw...
- Page 10 (x4) B A C THE WELLS TO THE BACK PRE-DRILLED HOLES 6,0x10 Screw 6,0x10 Screw Drawer Runner 300mm Drawer Runner 300mm SAFETY NOTICE TO AVOID ACCIDENTS, IT IS PROHIBITED TO USE CHEST IF IT IS NOT ATTACHED TO THE BUNK BED...
- Page 11 TT 1600 MISSION - BUNK BED 7,0 x 50 Screw 4,0 x 30 Screw 3,5 x 16 Screw Hex Screwdriver 15 x 100 Metal Lock...
- Page 12 The larg holes up side ! Hex Screwdriver...
- Page 13 Bottom Hex Screwdriver The larg holes up side ! Hex Screwdriver...
- Page 14 Hex Screwdriver ATTENTION Option chest left side or rigth side. 15 x 100...
- Page 15 FRONT GUARD RAIL 7,0 x 50 Screw Hex Screwdriver PRE-HOLES PRE-HOLES Hex Screwdriver Metal Lock 7,0 x 50 Screw 4,0 x 30 Screw...
- Page 16 LADDER PRE-HOLES BOTTOM 7,0 x 50 Screw 3,5 x 16 Screw Hex Screwdriver BOTTOM 3,5 x 16 Screw...
- Page 17 SLATS ``INSTALL SLAT KIT WITH SPACER TAPE ON TOP (FACING UP)`` SIDE-RAIL The rst slats must be xed at fi fi 3” from each headboard end. 4,0 x 30 Screw...
