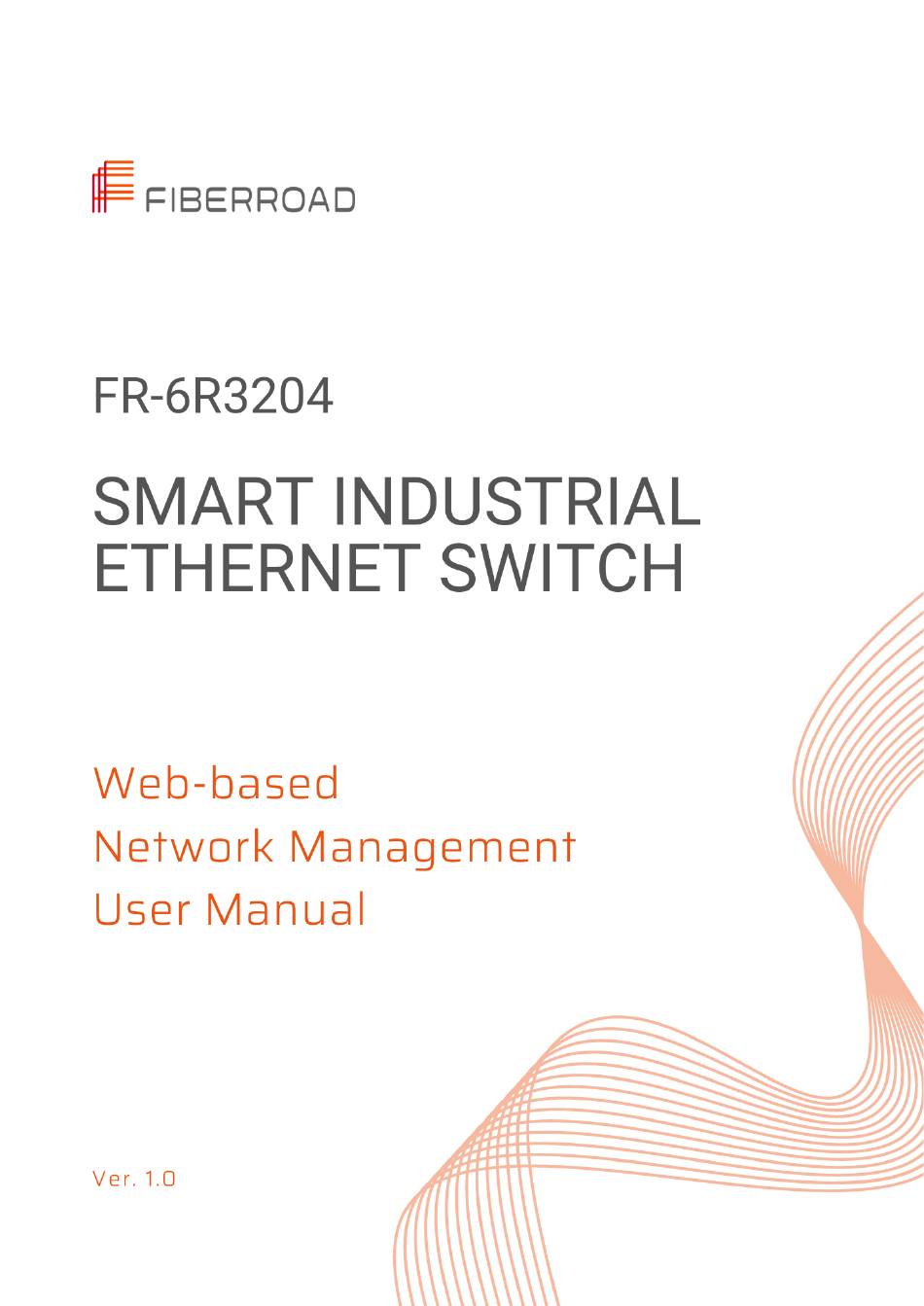

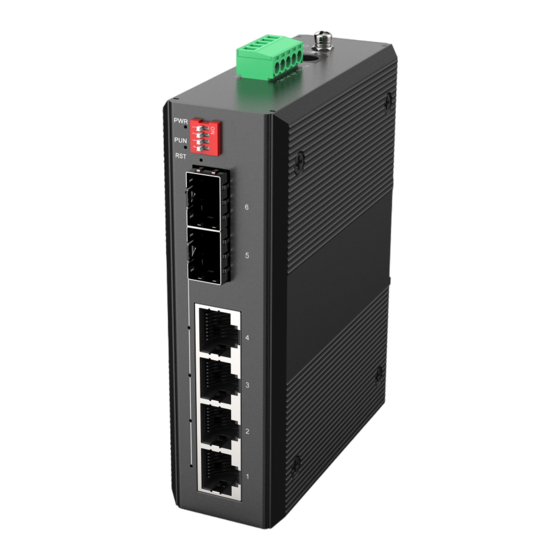

- Page 2 WebGUI User Manual About This Manual Introduction This document chapter includes an introduction to the Fiberroad Industrial Ethernet products family, Conventions This document contains notices, figures, screen captures, and certain text conventions. Figures and Screen Captures This document provides figures and screen captures as example. These examples contain sample data.
- Page 3 Information provided by Fiberroad is believed to be accurate and reliable. However, no responsibility is assumed by Fiberroad for its use nor for any infringements of patents or other rights of third parties that may result from its use. No license is granted by implication or otherwise under any patent rights of Fiberroad.
-
Page 4: Table Of Contents
2.4.3 STP-Detail Information ................16 2.4.4 STP-Port Brief ..................... 16 2.4.5 STP-Port Information ................17 2.5 Trunk Group Setting ..................17 2.6 Loop Prevention ....................18 2.7 Port Mirroring ....................18 2.8 Port Isolation ..................... 19 2.9 Bandwidth ......................19 www.fiberroad.com... - Page 5 2.15 Monitoring ....................... 25 2.15.1 Monitoring-Port Statistics ................ 25 2.15.2 Monitoring-Cable Diagnostic ..............25 2.16 Tools ........................ 26 2.16.1 Tools-Firmware Upgrage ................. 26 2.16.2 Tools-Configuraion Backup ..............26 2.16.3 Tools-Reset ....................27 2.16.4 Tools-Save ....................27 2.16.5 Tools-Reboot .................... 28 www.fiberroad.com...
-
Page 6: Revision History
WebGUI User Manual Revision History Section(s) Version Date Author Reasons of Change Affected 2022/1/16 Initial Release www.fiberroad.com... -
Page 7: Chapter 1 System Configurations
PCs on the network can connect with the industrial switch through the web browser. The industrial switch default value of IP, subnet mask, username and password are listed as below: IP Address: 192.168.1.6 ❖ HTTP service: Enable ❖ User Name: admin ❖ Password: admin ❖ www.fiberroad.com... -
Page 8: System
User Manual 1.2 System 1.2.1 System Information Overview the device information and port status. 1.2.2 System-IP Setting The IP address setting surface is used to configure IP. www.fiberroad.com... -
Page 9: System - User Account
1.2.3 System – User Account The user account setting page is used to configure user accounts. Item Description Notes New user name Add a new user name New Password Add a new user name Retype Password Confirm the password of the new user www.fiberroad.com... -
Page 10: System-Port Setting
The port setting page is used to configure ports and display port status. Item Description Notes Port 1-4 Lan (RJ45) Port Port 5-6 Optical Fiber Port State Port state in enable/disable Port Speed or Mode Speed/Duplex Flow Control On/Off www.fiberroad.com... -
Page 11: Chapter 2 Network Configurations
❖ ❖ ❖ Security ❖ 2. Configuration 2.1 Configuration-VLAN 2.1.1 Configuyration-VLAN-Static VLAN The static VLAN table setting page is used to add or delete VLANs in the form of tag or untag, and display the port information of VLANs. www.fiberroad.com... -
Page 12: Configuration-Vlan-Vlan Setting
2.2 Configuration-QoS 2.2.1 Configutation-QoS-Priority Selection The priority selection setting page is used to configure the priority source weight. When the received packet is paired with multiple sources, the source with the highest weight will be selected to assign priority. www.fiberroad.com... -
Page 13: Configutation-Qos-Dscp Remapping
2.2.2 Configutation-QoS-DSCP Remapping The DSCP remapping settings page is used to configure the internal priority mapping based on DSCP priority. 2.2.3 Configuration-QoS-Priority To Queue The priority queue ID setting page is used to configure the internal priority to queue mapping. www.fiberroad.com... -
Page 14: Configuration-Qos-Queue Weight
IGMP page, used to configure IGMP enabled or disabled and display IGMP list items After checking enable, the group broadcast text learned through IGMP protocol is allowed to pass. The display information includes the IP address, port and VLAN ID learned through IGMP. www.fiberroad.com... -
Page 15: Stp
Global parameters, STP for global settings. Item Description Notes STP Mode RSTP Only System Priority 0-61140, The Step must be 4096 Default:32768 Forward Delay 4-30 Default:15 second Hello Time 1-2 Default:2second Max Age 6-40 Default: 20 second Tx Hold Count 1-10 Default: 6 second www.fiberroad.com... -
Page 16: Stp-Port Setting
2.4.2 STP-Port Setting STP port summary page is used to display port STP summary information, including port, STP enable, role and status. Item Description Notes Port Port 1-6 STP Enable Enable/Disable Priority 0-240 Path Cost Mode Auto/Admin Path Cost 0-200000000 www.fiberroad.com... -
Page 17: Stp-Detail Information
User Manual 2.4.3 STP-Detail Information STP port information page is used to display the detailed information of STP port. 2.4.4 STP-Port Brief www.fiberroad.com... -
Page 18: Stp-Port Information
STP details page, used to display STP details STP Port Information | Port Priority Vector | Port Times | Port Message Priority Vector 2.5 Trunk Group Setting Trunk group settings page, which is used to configure and show port aggregation. www.fiberroad.com... -
Page 19: Loop Prevention
Loop protection page, for loop protection function Item Description Notes Loop Function Off/Loop Prevention/Loop Detection Time Interval 1-32767 Sec Recover Time 0 or 4~1000000 Sec 2.7 Port Mirroring The port mirroring settings page is used to configure and show port based mirroring. www.fiberroad.com... -
Page 20: Port Isolation
The port isolation setting page is used to configure and show port isolation. 2.9 Bandwidth The bandwidth control setting page is used to configure the message bandwidth in and out of the port, also show the configuration information. Item Description Notes www.fiberroad.com... -
Page 21: Jumbo Frame
State Enable/Disable Default:Disable Rate Configuration when state in Multiple of 8 enable 0-100000Kbit/sec 2.10 Jumbo Frame Giant frame setting page, which is used to configure the maximum frame length allowed, in bytes. Item Description Notes Jumbo Frame (Bytes) 1522/1536/1552/16383 Unit:Bytes www.fiberroad.com... -
Page 22: Mac Constraint
MAC address learned by the port. Mac Constraint Action Setting Item Description Notes Learn Over Action Drop / Flooding Mac Constraint Setting Item Description Notes Port Port 1 - 6 State Enable/Disable Entry Limits 0-2112 Default:Unlimited www.fiberroad.com... -
Page 23: Greent Ethernet Setting
If the connection is disconnected, the port will enter the power saving mode within 0 seconds. 2.13 Security 2.13.1 Security MAC Address – Mac Search The MAC address search page is used to query the MAC address and display the VLAN ID. www.fiberroad.com... -
Page 24: Security Mac Address - Static Mac
VLAN ID The VLAN to which the added static MAC belongs Port The port to which the added static MAC belongs Source Mac Blocking If this option is checked, the message carrying this MAC is not allowed to pass www.fiberroad.com... -
Page 25: Storm Control
2.14 Storm Control The storm suppression page is used to suppress the flood message. Item Description Notes Storm Type Broadcast, Multicast, Unknown Unicast and Unknown multicast Port Configure the port where storm suppression takes effect. State Off/On Rate 8-1000000 kbps www.fiberroad.com... -
Page 26: Monitoring
The display letter includes the status of the port, the connection status, the correct data packet sent, the wrong data packet sent, the correct data packet received and the wrong data packet received. 2.15.2 Monitoring-Cable Diagnostic The cable diagnosis page is used to diagnose whether the network line is normal. www.fiberroad.com... -
Page 27: Tools
The configuration backup page is used for configuration import and export. Click the Backup button to export the configuration to PC backup. Click the select File button to restore the configuration, select the configuration of PC backup, and then click the restore button to import the backup configuration into the device. www.fiberroad.com... -
Page 28: Tools-Reset
2.16.4 Tools-Save The save page is used to save the configuration. After clicking the save page, the system configuration will be saved immediately, and the configuration saving page will show that the configuration has been saved successfully. www.fiberroad.com... -
Page 29: Tools-Reboot
2.16.5 Tools-Reboot Reboot paged used to reboot the device. www.fiberroad.com... - Page 30 The information in this document is subject to change without notice. Fiberroad has made all effects to ensure the accuracy of the information, but all information in this document does not constitute any kind of warranty. If you have any questions please feel free to contact to us.
