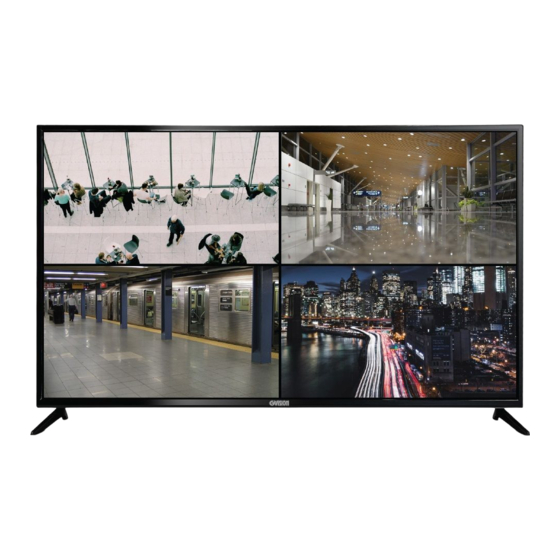

- Page 1 WWW.GVISION-USA.COM C55BI-AC-4000 4K UHD USER’S MANUAL SECURITY CCTV MONITOR GVISION USA, INC 30398 Esperanza, Rancho Santa Margarita CA 92688 / 949.586.3338 / info@gvision-usa.com...
- Page 2 CAUTION: Please use the power cord provided with this display in accordance with the table below. If a power cord is not supplied with this equipment, please contact GVISION. For all other cases, please use the power cord with the plug style that matches the power socket where the monitor is located.
- Page 3 Do not overload wall outlets. Overloaded wall outlets, loose or damaged wall outlets, extension cords, frayed power 30398 Esperanza, Rancho Santa Margarita CA 92688 / Tel. 949-586-3338 / Fax. 949-272-4594 / Email. info@gvision-usa.com...
-
Page 4: Table Of Contents
2.2 Brightness / Contrast…………………………………………………………………………………………… 8 2.3 Color Settings……………………………………………………………………………………………………..9 2.4 Picture Quality Settings…………………………………………………………………………………………10 2.5 Display……………………………………………………………………………………………………………..11 2.6 Audio……………………………………………………………………………………………………………….12 2.7 Multi Window……………………………………………………………………………………………………...13 2.8 OSD………………………………………………………………………………………………………………..14 2.9 Other………………………………………………………………………………………………………………..15 Specifications…………………………………………………………………………………..…………...…....16 Dimensions…………………………………………………………………………………..…………...…....17 30398 Esperanza, Rancho Santa Margarita CA 92688 / Tel. 949-586-3338 / Fax. 949-272-4594 / Email. info@gvision-usa.com... -
Page 5: Controllers & Settings
1.2 Monitor Controller Button INPUT External signal input selection. MENU Display main menu and confirm menu item selection. Adjusting Volume. Selecting Channel STANDBY Turn ON/OFF Powe 30398 Esperanza, Rancho Santa Margarita CA 92688 / Tel. 949-586-3338 / Fax. 949-272-4594 / Email. info@gvision-usa.com... -
Page 6: Monitor Controller Button
3. To change between inputs, press the “Source” button to enter the source menu. Use the “◄”and“►” buttons to choose the input source between Auto Select, Type-C, DP, HDMI1 and HDMI2. 30398 Esperanza, Rancho Santa Margarita CA 92688 / Tel. 949-586-3338 / Fax. 949-272-4594 / Email. info@gvision-usa.com... -
Page 7: Osd Menu Control
WWW.GVISION-USA.COM OSD Menu Control 2.1 Input Source Switch the signal input to DP, HDMI1, HDMI2, HDMI2or have the Select the source 30398 Esperanza, Rancho Santa Margarita CA 92688 / Tel. 949-586-3338 / Fax. 949-272-4594 / Email. info@gvision-usa.com... -
Page 8: Brightness / Contrast
Change the display brightness value from 0 to 100. Contrast Adjust the display contrast value from 0 to 100. Turn the Dynamic Contrast Ratio features On or Off. 30398 Esperanza, Rancho Santa Margarita CA 92688 / Tel. 949-586-3338 / Fax. 949-272-4594 / Email. info@gvision-usa.com... -
Page 9: Color Settings
Change the display Hue value from 0 to 100. Saturation Change the display Saturation value from 0 to 100. Low Blue Light Change the display blue light from 0 to 100. 30398 Esperanza, Rancho Santa Margarita CA 92688 / Tel. 949-586-3338 / Fax. 949-272-4594 / Email. info@gvision-usa.com... -
Page 10: Picture Quality Settings
Select the Super Resolution Value from Low, Middle, High or turn it Super Resolution Off. Dynamic Turn the Dynamic Luminance Control feature On or Off. Luminance Control 30398 Esperanza, Rancho Santa Margarita CA 92688 / Tel. 949-586-3338 / Fax. 949-272-4594 / Email. info@gvision-usa.com... -
Page 11: Display
WWW.GVISION-USA.COM 2.5 Display Aspect Ratio Change the image aspect ratio to Full Screen, Auto, 4:3, 5:4 or 1:1. 30398 Esperanza, Rancho Santa Margarita CA 92688 / Tel. 949-586-3338 / Fax. 949-272-4594 / Email. info@gvision-usa.com 2.6 Audio... -
Page 12: Audio
Change the audio source volume from 0 to 100. Select the audio source to DisplayPort, HDMI1, HDMI2, HDMI3. or Audi Source Auto to have the monitor choose. 30398 Esperanza, Rancho Santa Margarita CA 92688 / Tel. 949-586-3338 / Fax. 949-272-4594 / Email. info@gvision-usa.com... -
Page 13: Multi Window
Change the PIP size to Small, Medium, Large. PIP Position Change the PIP position to Top Right, Top Left, Bottom Right. Swap Exchange function. 30398 Esperanza, Rancho Santa Margarita CA 92688 / Tel. 949-586-3338 / Fax. 949-272-4594 / Email. info@gvision-usa.com... -
Page 14: Osd
Change the transparency value of the OSD Menu from 0 to 100. OSD Timer Out Change how long the OSD Menu is on before it automatically exits. Menu Rotation Rotate the OSD Menu. 30398 Esperanza, Rancho Santa Margarita CA 92688 / Tel. 949-586-3338 / Fax. 949-272-4594 / Email. info@gvision-usa.com... -
Page 15: Other
FreeSync Mode Turn FreeSync On or Off. Turn HDR On or Off. Flicker Free Turn Flicker Free On or Off. Reset Restore factory default setting. 30398 Esperanza, Rancho Santa Margarita CA 92688 / Tel. 949-586-3338 / Fax. 949-272-4594 / Email. info@gvision-usa.com... -
Page 16: Specifications
Consumption Typical 155W Electrical Rating AC 100~240V 50/60Hz TEMPERATURE Operating -20~50°C Storage -30~70°C VESA™ Mount Size 200x400mm Specifications subject to change without any notice 30398 Esperanza, Rancho Santa Margarita CA 92688 / Tel. 949-586-3338 / Fax. 949-272-4594 / Email. info@gvision-usa.com... -
Page 17: Dimensions
WWW.GVISION-USA.COM Dimensions C55BI-AC-4000 30398 Esperanza, Rancho Santa Margarita CA 92688 / Tel. 949-586-3338 / Fax. 949-272-4594 / Email. info@gvision-usa.com...
