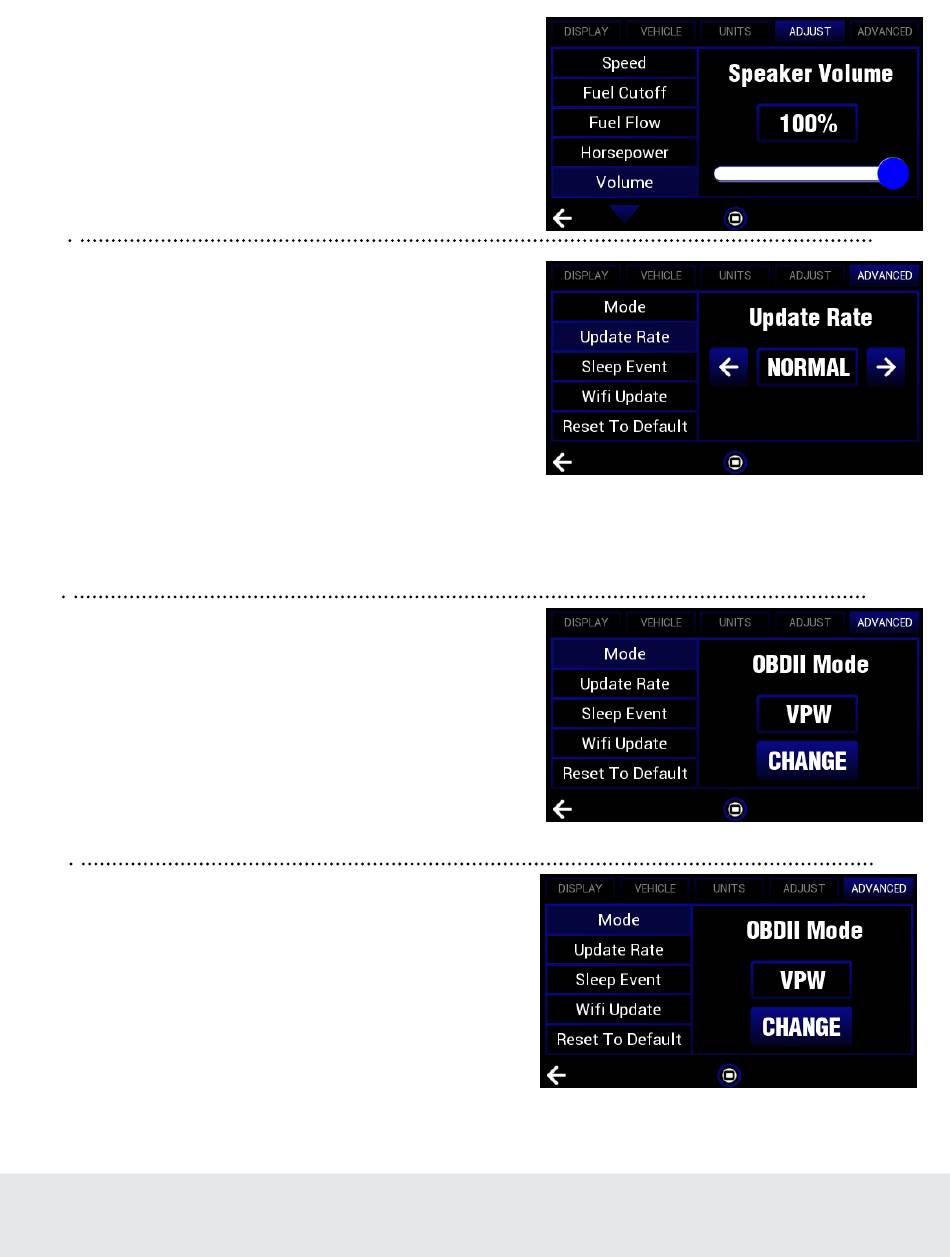

Set the Speaker Volume
The speaker volume for monitors and alarms can be
adjusted here using the slider.
Update Rate
You can adjust the rate in which ScanGauge reports data.
The effect of this setting is most visible in the Gauge
Screen.
The update rate defaults to NORMAL. In some cases,
a faster update rate can be used. If this causes some
updates to be skipped or irregularly operate, FAST
should not be used. In some cases, even NORMAL can
be too fast and lead to poor operation.
In these cases, SLOW should be used. PWM and all the CANxx modes can usually use FAST rate.
VPW, ISO and KWPx modes may have a problem with a rate higher than NORMAL.
Set Mode
The ScanGauge will automatically detect the mode that
the vehicle uses, in some rare instances you may need to
force the mode to connect.
This menu will also show you which mode the vehicle
is currently connected to once it is connected. To force
a connection to another protocol press CHANGE then
using the arrows select the mode you wish to connect to
and press FORCE.
Set the Sleep Event
By default, the ScanGauge will shut down when it sees 0
RPM. This may not be the desired setting if your vehicle
is a Hybrid or has an auto stop/start feature, which will
report 0 RPM when the vehicle is stopped. When you
select HYBRID in the fuel type (TYPE) parameter in
the Basic Setup procedure (see page 12) When using
ScanGauge with the Sleep Event parameter set to
COM, there is a small risk that the vehicle's ECU and
ScanGauge will stay on and drain the battery. You must be sure the ScanGauge goes to sleep properly
when the engine is turned off. This can take about 15 seconds
