User Manuel & Troubleshooting Guide
Acknowledgement...................................................P.2
Safety Warnings.........................................................P.2
Accessories / Associated references.................P.2
Equipment description..........................................P.2
Technical characteristics........................................P.3
Electrical characteristics.........................................P.3
Description of the markings used.....................P.3
Installation instructions..........................................P.5
Connection..................................................................P.5
Wiring............................................................................P.6
Terms and conditions.............................................P.7
Warranty terms.........................................................P.7
SCHEIBER
2 Bellevue, 85120 Saint-Pierre du Chemin
Phone : +33 (0)2 51 51 73 21
L'innovation française depuis 1965

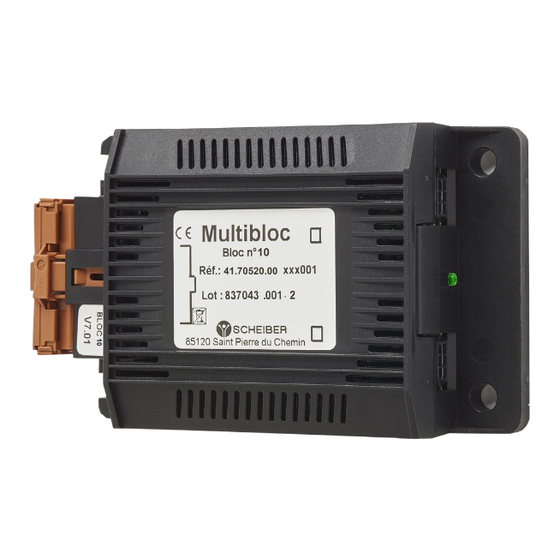

BLOC 10
Ref : 41.70520.00 XXX XXX
•
France
•
clients@scheiber.fr
•
sav@scheiber.fr
•
www.scheiber.fr
Advertisement
Table of Contents
Related Manuals for Scheiber BLOC 10
Summary of Contents for Scheiber BLOC 10
-
Page 1: Table Of Contents
L’innovation française depuis 1965 BLOC 10 Ref : 41.70520.00 XXX XXX User Manuel & Troubleshooting Guide Acknowledgement...........P.2 Safety Warnings............P.2 Accessories / Associated references....P.2 Equipment description..........P.2 Technical characteristics........P.3 Electrical characteristics.........P.3 Description of the markings used.....P.3 Installation instructions..........P.5 Connection..............P.5 Wiring................P.6 Terms and conditions..........P.7 Warranty terms............P.7... -
Page 2: Acknowledgement
Bloc 10 allows 6 momentary switches to be interfaced with a status indicator and a backlight indicator per function. It interfaces with a Scheiber Multibloc network, in order to retrieve the state of the control switch and to deport the control to a power block (Bloc 9 for example). -
Page 3: Technical Characteristics
L’innovation française depuis 1965 Technical characteristics BLOC 10 REFERENCE 41.70520.00 XXX XXX POWER SUPPLY 8-32 V DC DETAILS AND FEATURES OF THE INPUTS 6 minus digital inputs (for momentary switches) 6 outputs MOS 0,7A 0-32VDC for switch status indicators DETAILS AND FEATURES OF THE OUTPUTS... - Page 4 L’innovation française depuis 1965 Seen from above CAN BUS TYCO 21-pin Connector CAN BUS Left side view CAN BUS CAN BUS STATUS LED Right side view TYCO 21-pin Connector L’innovation française depuis 1965...
-
Page 5: Installation Instructions
119,50 77,51 Mounting distance : 100 x 59 mm Connection MCP2,8 - 21Pts (BROWN) housing connectors Ref. Scheiber 0E.CON1430 Ref. Tyco 8-968975-1 MCP2,8GEH21P INPUT / OUTPUT / POWER SUPPLY MCP2,8 Receptacle 0,5-1,0mm2 tinned Type of connection Ref. Scheiber 0E.CLP360 Cross section Ref. -
Page 6: Wiring
L’innovation française depuis 1965 Wiring Connect to each connector: - either a CAN connection cable (to another Multibloc compatible device) - or a 120Ω impedance matching plug. 120Ω Termination cable cable cable Connect the equipment to the pins according to the numbering available in the table below, then plug the MPC connector into the TYCO receptacle. -
Page 7: Terms And Conditions
RESPONSIBILITY LIMITS: In any case, the company SCHEIBER will not be held responsible for direct damages or damages not due to the normal use of the equipment. In case of a dispute arising between the parties, the case shall be submitted to the French Right to the court specified by the company SCHEIBER. - Page 8 L’innovation française depuis 1965 Question ? contact@scheiber.fr Problem ? sav@scheiber.fr 2 Bellevue, Phone : +33 (0)2 51 51 73 21 sav@scheiber.fr 85120 • Saint-Pierre du Chemin www.scheiber.fr France...
