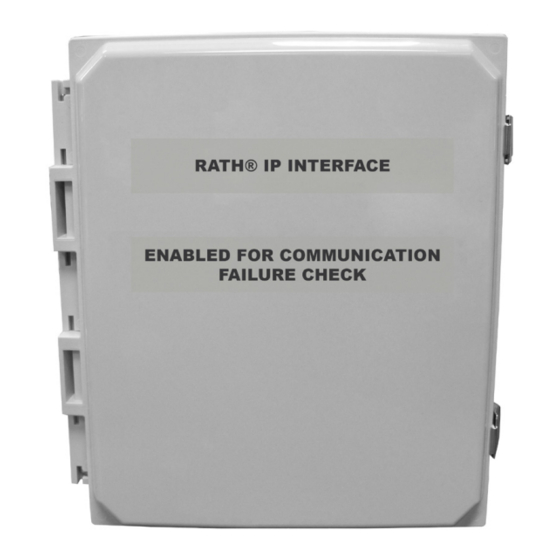

- Page 1 Installation & Operations Manual 2100-VOIPLC VOIP Interface RP8500GATALV N56W24720 N. Corporate Circle Sussex, WI 53089 Ver. 5 06/19 800-451-1460 www.rathcommunications.com 2 Year Warranty...
- Page 2 Thank you for purchasing RATH’s 2100-VOIPLC. We are the largest Emergency Communication Manufacturer in North America and have been in business for over 35 years. We take great pride in our products, service, and support. Our Emergency Products are of the highest quality.
- Page 3 3. Make a slit in the provided grommet and insert into the 7/8” hole 4. Connect telephone line cord from FXS port on RATH® 2100-VOIP to 2100 series elevator phone 5. Connect data cable from network connection to available port on provided switch in 2100-VOIPLC 6.
- Page 4 Connecting Interface to Network 1. Change the IP address of the PC NIC Card to an IP address in the same scheme as the 2100-VOIP and network 2. Open Command Prompt 3. Ping IP address of the VoIP Interface 4. If ping is successful, VoIP Interface setup is complete Network Monitor Settings 1.
- Page 5 Wiring Diagram Page 5...
