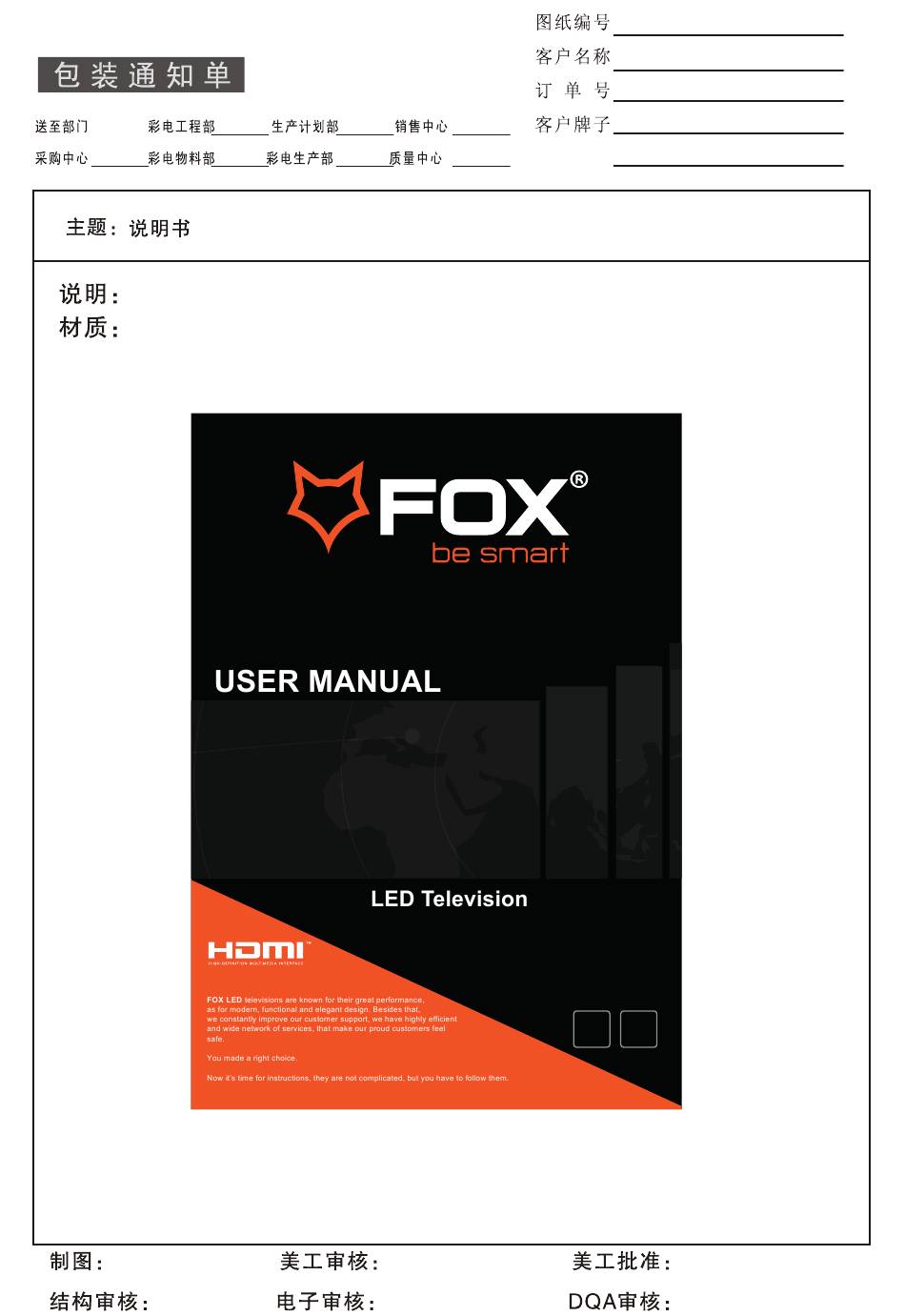

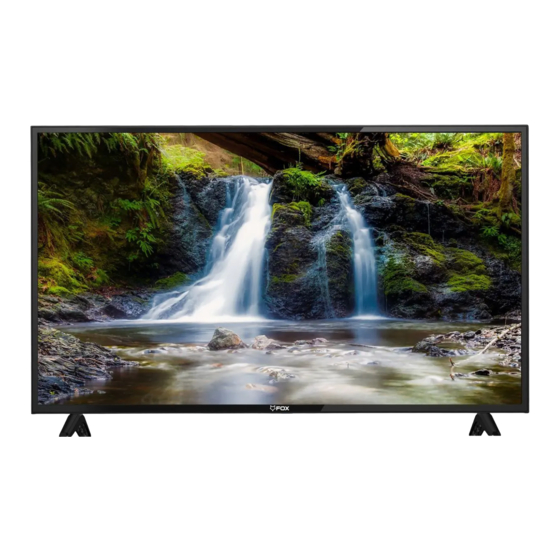

  • Page 1 65-EUC090-H576 福布斯 2207-0013 512-C09(EU) Ａ５规格，英俄合订本。 封面封底１０５ｇ铜版纸彩色印刷，内页７０ｇ双胶纸单色印刷． Model: 42DTV230E Thank you for purchasing this device.
  • Page 2 Model: 42DTV230E Thank you for purchasing this device.
  • Page 3 Znak uzvika unutar jednakostraničnog skidati poklopac (ili zadnju trougla u ovom uputstvu stranu). Unutra nema delova koje upozorava korisnika na korisnik može sam da zameni. prisustvo važnih Za obavljanje servisa zatražite instrukcija za rad i pomoć kvalifikovanog osoblja. održavanje (servisiranje) uređaja. Nemojte postavljati TV na visok nameštaj (na primer, ormare ili police) bez prethodnog pričvršćivanja kako nameštaja tako i uređaja na odgovarajuću površinu.
  • Page 5 Visok napon se koristi u napajanju ovog uređaja. Ne uklanjajte zadnji poklopac. Obratite se kvalifikovanoj osobi za obavljanje servisa. Nemojte ispuštati i gurati predmete u kućište TV-a ili u otvore. Nikada nemojte prosipati tečnost na TV prijemnik. Ako televizor treba da se ugradi u zatvoreni odeljak ili na sličan način, morate se pridržavati dela uputstva o minimalnim udaljenostima.
  • Page 7 FOX LED TV 6$'5ä$- 3ULNOMXþLYDQMH L SULSUHPD 79D   'RGDWQD RSUHPD   ,QVWDODFLMD SRVWROMD   7DVWHUL L LQWHUIHMVL  'DOMLQVNR XSUDYOMDQMH  ,QVWDODFLMD EDWHULMD   2VQRYQD RSHUDFLMD   8NOMXþLYDQMHLVNOMXþLYDQMH RSFLRQR  3RGHãDYDQMH UHåLPD SULSUDYQRVWL  ]ERU UHåLPD XQRVD  ...
  • Page 8 FOX LED TV  3ULNOMXþLYDQMH L SULSUHPD 79D  'RGDWQD RSUHPD — 8SXWVWYR ]D NRULãüHQMH — 'DOMLQVNR XSUDYOMDQMH — %DWHULMD 8053$$$ — .RPSOHW ]D PRQWLUDQMH QD ]LG XQDSUHG PRQWLUDQ RSFLRQR  ,QVWDODFLMD SRVWROMD 0ROLPR SRJOHGDMWH VWYDUQL REMHNDW ]D GHWDOMH R IL]LþNRM VWUXNWXUL 3RVWDYLWH 79 QD PHNDQX WNDQLQX LOL PHNH MDVWXNH QD VWR WDNR GD SUHGQMD SORþD EXGH RNUHQXWD...
  • Page 9 FOX LED TV  7DVWHUL L LQWHUIHMVL 6WYDUQH VWDYNH VH NRULVWH NDR VWDQGDUG X GL]DMQX L VSHFLILNDFLML (7keys) (1key) (5keys)  352=25 '$/-,16.2* 6(1=25$  ,1',.$725 61$*(  *29251,.  0(18 '8*0(  352*5$0³¶¶ '8*0(  352*5$0 ³¶¶'8*0(  92/80( ³¶¶ '8*0(  92/80( ³´...
  • Page 10 FOX LED TV  'DOMLQVNL XSUDYOMDþ 2YGH MH VDPR VNLFD PROLP YDV OMXED]QR SUHYODGDMWH  67$1'%<  8NOMXþLYDQMH L LVNOMXþLYDQMH VWDQMD SULSUDYQRVWL  6285&( ,]DEHULWH L]YRU VLJQDOD SOURCE SOURCE  *5((1 3ULVWXSLWH ]HOHQRM VWDYFL LOL VWUDQLFL   <(//2: 3ULVWXSLWH åXWRM VWDYFL LOL VWUDQLFL...
  • Page 11 FOX LED TV  ,QVWDODFLMD EDWHULMD 0ROLP YDV GD SUHYODGDWH RYR MH VDPR VNLFD  =DGQML SRNORSDF GDOMLQVNRJ XSUDYOMDþD WUHED GD EXGH RWYRUHQ  6WDYLWH GYH  $$$ 9 EDWHULMH X VLVWHP 8YHULWH VH GD VX EDWHULMH SUDYLOQR SRODUL]RYDQH  3RNULMWH ]DGQML SRNORSDF ,]YDGLWH EDWHULMH L] GDOMLQVNRJ XSUDYOMDþD DNR JD QHNR YUHPH QLMH...
  • Page 12 FOX LED TV  ,]ERU UHåLPD XQRVD 2YDM VHW VDGUåL YLãH PRGRYD L]YRUD VLJQDOD SULWLVNDMWH GXJPH 6285&( YLãH SXWD GD ELVWH L]DEUDOL L]YRU VLJQDOD  0HQL )XQNFLMH )XQNFLMD VOLNH X JODYQRP PHQLMX ELüH RSLVDQD X RYRP SRJODYOMX 0HQL 6/,.$ 5HåLP VOLNH 3ULWLVQLWH GXJPH GD ELVWH L]DEUDOL 5HåLP VOLNH ]DWLP SULWLVQLWH GXJPH (17(5 GD ELVWH XãOL L...
  • Page 13 FOX LED TV 0HQL =YXND 5HåLP ]YXND 3ULWLVQLWH GXJPH GD ELVWH L]DEUDOL 5HåLP ]YXND ]DWLP SULWLVQLWH GXJPH (17(5 GD ELVWH XãOL , RQGD SULWLVQLWH GXJPH GD L]DEHUHWH 3ULWLVQLWH GXJPH GD ELVWH L]DEUDOL %DV ]DWLP SULWLVQLWH GXJPH (17(5 LOL GD ELVWH XãOL L SULWLVQLWH GXJPH ]D SRGHãDYDQMH 3RGHãDYD VH VDPR X NRULVQLþNRP UHåLPX =DWLP SULWLVQLWH GXJPH 0(18...
  • Page 14 FOX LED TV 0HQL NDQDOD 8SUDYOMDQMH NDQDOLPD 3ULWLVQLWH GXJPH GD ELVWH L]DEUDOL 8SUDYOMDQMH NDQDOLPD ]DWLP SULWLVQLWH GXJPH (17(5 GD ELVWH SUHLPHQRYDOL NDQDO NRML VWH L]DEUDOL 2PLOMHQR XSUDYOMDQMH 3ULWLVQLWH GXJPH GD ELVWH L]DEUDOL 2PLOMHQR XSUDYOMDQMH ]DWLP SULWLVQLWH GXJPH (17(5 GR PHQLMD...
  • Page 15 FOX LED TV 0HQL RGOLND =DNOMXþDWL 'D ELVWH RWYRULOL SRGPHQL VD OR]LQNRP   SULWLVQLWH GXJPH GD ELVWH L]DEUDOL /RFN L ]DWLP SULWLVQLWH GXJPH (17(5 -H]LN 3ULWLVQLWH GXJPH GD ELVWH L]DEUDOL -H]LN ]DWLP SULWLVQLWH GXJPH (17(5 LOL GD ELVWH XãOL X...
  • Page 16 FOX LED TV 0HQL ]D SRGHãDYDQMH 26' 7DMPHU 3ULWLVQLWH GXJPH GD ELVWH L]DEUDOL 26' 7DMPHU ]DWLP SULWLVQLWH GXJPH (17(5 LOL GD L]DEHUHWH 3ODYL HNUDQ 3ULWLVQLWH GXJPH GD ELVWH L]DEUDOL 3ODYL HNUDQ ]DWLP SULWLVQLWH GXJPH (17(5 LOL GD L]DEHUHWH XNOMXþHQR LOL LVNOMXþHQR .XüQL 5HåLP...
  • Page 17 FOX LED TV  0XOWLPHGLMD  )RWR  8YRG X IXQNFLMX 3ULWLVQLWH GXJPH '(612  /(92 GD ELVWH L]DEUDOL VWDYNX )272 X JODYQRP PHQLMX PXOWLPHGLMH L ]DWLP SULWLVQLWH (17(5  2SHUDFLMD VD NOMXþHP 5(' ,]EULãLWH IRNXVLUDQX IDVFLNOXGDWRWHNX *5((1 'RGDML]EULãL GDWRWHNH IRWRJUDILMDPD QD OLVWX ]D UHSURGXNFLMX (17(5 'RGDML]EULãL LVWDNQXWH GDWRWHNH QD...
  • Page 18 FOX LED TV  0X]LND  8YRG X IXQNFLMX 3ULWLVQLWH GXJPH '(612  /(92 GD ELVWH L]DEUDOL VWDYNX 08=,.$ X JODYQRP PHQLMX PXOWLPHGLMH L ]DWLP SULWLVQLWH GXJPH (17(5 GD ELVWH SULVWXSLOL PX]LþNRM VWUDQLFL NDR ãWR MH SULND]DQR 2SHUDFLMD VD NOMXþHP 5(' ,]EULãLWH IRNXVLUDQX IDVFLNOXGDWRWHNX...
  • Page 19 FOX LED TV  )LOP 3ULWLVQLWH GXJPH '(612  /(92 GD ELVWH L]DEUDOL VWDYNX ),/0 X JODYQRP PHQLMX PXOWLPHGLMH L ]DWLP SULWLVQLWH GXJPH (17(5 GD ELVWH SULVWXSLOL ILOP VWUDQLFL NDR ãWR MH SULND]DQR 2SHUDFLMD VD NOMXþHP 5(' ,]EULãLWH IRNXVLUDQX IDVFLNOXGDWRWHNX *5((1 'RGDML]EULãL VYH GDWRWHNH VD ILOP QD OLVWX...
  • Page 20 FOX LED TV  H.QMLJD  3RGUåDQL IRUPDW 3RGUåDQD MH VDPR HNQMLJD X IRUPDWX W[W  8YRG X IXQNFLMX 3ULWLVQLWH GXJPH '(612  /(92 GD ELVWH L]DEUDOL VWDYNX H.QMLJD X JODYQRP PHQLMX PXOWLPHGLMH L ]DWLP SULWLVQLWH GXJPH (17(5 GD ELVWH SULVWXSLOL HNQMLJD VWUDQLFL NDR ãWR MH SULND]DQR 2SHUDFLMD VD NOMXþHP...
  • Page 21 FOX LED TV  7HKQLþND VSHFLILNDFLMD 0RGHO SURL]YRGD 42DTV230E ´ GLMDJRQDOD 9HOLþLQD HNUDQD  3URSRUFLMD ãLULQH L YLVLQH $& 9a+] 1DSDMDQMH 3RWURãQMD VWUXMH 3$/ %* '. ,6(&$0 %* '. '9%77&66 RSFLMD VV 79 VLVWHP '9%& VLJQDO MH RGVXWDQ X QHNLP ]HPOMDPD LOL UHJLRQLPD ...
  • Page 22 FOX LED TV  3RGUåDQL UHåLPL VLJQDOD $ 3E3U 5HåLP 5H]ROXFLMD +RUL]RQWDOQD IUHNYHQFLMD .K] 9HUWLNDOQD IUHNYHQFLMD +] L     S [   L S [     S [     L   ...
  • Page 23 FOX LED TV  -HGQRVWDYQR RWNODQMDQMH SRWHãNRüD $NR HNUDQ SRNYDUL LOL VH QMHJRYH SHUIRUPDQVH GUDVWLþQR SURPHQH SURYHULWH HNUDQ X VNODGX VD VPHUQLFDPD X QDVWDYNX 1H ]DERUDYLWH GD SUHJOHGDWH SHULIHUQH XUHÿDMH NDNR ELVWH LGHQWLILNRYDOL NRUHQ SUREOHPD 6LPSWRP 5HãHQMH 1DSDMDQMH VH QH PRåH DNWLYLUDWL...
  • Page 24 UPUTSTVO ZA UPOTREBU Model: 42DTV230E Hvala Vam što ste kupili ovaj uređaj. FOX LED televizori prepoznaju se po odličnim tehničkim karakteristikama, kao i modernom, funkcionalnom i elegantnom dizajnu. Osim toga konstantna unapređenja u vidu postprodajne ponosni vlasnici FOX televizora mogu osećati sigurno.
  • Page 28 Place the TV on a firm and flat surface,leaving a space of at lease 10cm around the set and 30cm from the top of the set to the wall or cabinet.Ensure the TV is positioned close to the wall to avoid it falling when pushed. 10cm 30cm 10cm...

  • Page 29: Table Of Contents

    CONTENTS 1. Connection and Preparation of TV..........2 1.1 Accessories ................1.2 Installation of Stand............... 1.3 Keys and Interfaces ............... 1.4 Remote Control..............1.5 Installation of Batteries............2. Basic Operation................2.1 Power ON/OFF(Optional) ............2.2 Setting of Standby Mode............Mode............6 2.3 Selection of Input 2.4 Menu Functions..............

  • Page 30: Connection And Preparation Of Tv

    1.1 Accessories User Manual Remote Control Battery(UM-4/R03P/AAA) Wall Mount Kit (Pre-assembled)(Optional) 1.2 Installation of Stand (For the physical structure, please refer to the real object) 1 Place the TV with the front panel facing downwards on the soft cloth or soft pads on a desk.

  • Page 31: Keys And Interfaces

    1.3 Keys and Interfaces The design and specification takes actual products as the standard (7keys) (1key) (5keys) 1. REMOTE SENSOR WINDOW 2. POWER INDICATOR 3. SPEAKER 4. MENU KEY 5. PROGRAM + KEY 6. PROGRAM - KEY 7. VOLUME + KEY 8.

  • Page 32: Remote Control

    1.4 Remote Control (Here is only the sketch, please in kind prevail) 1. STANDBY( ) : Standby turn on and off. 2. SOURCE: Select the signal source. SOURCE SOURCE 3. GREEN: Access the green item or page. 4. YELLOW:Access the yellow item or page. 5.

  • Page 33: Installation Of Batteries

    1.5 Installation of Batteries 1. Open the back lid of the remote control. 2. Install two 7#(AAA)1.5V batteries. Ensure the correct polarity of the batteries. 3. Cover the back lid. Please take out of the batteries from the remote control for long time of no use. If the remote control doesn't work properly, please carry out the following checks.

  • Page 34: Selection Of Input Mode

    2.3 Selection of Input Mode This set has different signal source modes, you may continue to press the SOURCE button to select a signal source. 2.4 Menu Functions This chapter will describe the f unction of Picture in main menu. PICTURE Menu Picture Mode Press ▲/▼...
  • Page 35 Sound Menu ound mode Press ▲/▼ button to select Sound mode, and then press ENTER button to enter. And then press ◄/► button to select. Bass Press ▲/▼ button to select Bass, then press ENTER or ► button to enter and press ◄/► button to adjust.
  • Page 36 Channel Menu Channel Management Press ▲/▼ button to select Channel Management, and then press ENTER button to rename the channel selected. Favorite Management Press ▲/▼ button to select Favorite Management, and then press ENTER button to the Favorite Management menu. TV Connection Press ▲/▼...
  • Page 37 Feature Menu Lock Press ▲/▼ button to select Lock, then press ENTER button to enter the sub menu with the password “0000”: Language Press ▲/▼ button to select Language, then press ENTER or ► button to enter the sub menu, then press ▲/▼ button to select, then press ENTER or ► button to confirm. Sleep Timer Press ▲/▼...
  • Page 38 Setup Menu Software Upgrade Version OSD Timer Press ▲/▼ button to select OSD Timer, and then Press ENTER or ►button to select. Blue Screen Press ▲/▼ button to select Blue Screen, and then Press ENTER or ►button to select on or off.

  • Page 39: Multimedia

    2.5 Multimedia 1. Photo 1.1 Function Introduction Highlight the “PHOTO” item in multimedia mainmenu by press “RIGHT” / “LEFT” key, then press “ENTER” key enter photo page, as follow: Key Operation 1) RED: Delete the focused folder/file. GREEN: Add/Del all photo files to play list. 3) ENTER: Add/Del highlight files to play list.
  • Page 40 2. Music 2.1 Function Introduction Highlight the “MUSIC” item in multimedia mainmenu by press “RIGHT” / “LEFT” key, then press “ENTER” key enter music page, as follow: Key Operation 1) RED: Delete the focused folder/file. GREEN: Add/Del all music files to play list. 3) ENTER: Add/Del highlight files to play list.
  • Page 41 3.Movie Highlight the “MOVIE” item in multimedia main menu by press “RIGHT” / “LEFT” key, then press “ENTER” key enter movie page, as follow: Key Operation 1) RED: Delete the focused folder/file. GREEN: Add/Del all movie files to play list. 3) ENTER: Add/Del highlight files to play list.
  • Page 42 4. eBook 4.1 Format Supported Only txt format eBook is supported. 4.2 Function Introduction Highlight the “eBook” item in multimedia main menu by press “RIGHT” / “LEFT” key, then press “ENTER” key enter eBook page, as follow: Key Operation 1) RED: Delete the focused folder/file.

  • Page 43: Technical Speciication

    42DTV230E Product Model 42 diagonal Screen Size 16:9 Aspect Ratio AC 100-240V~,50/60Hz Power Supply Power Consumption TV System PAL B/G D/K I,SECAM B/G D/K DVB-T/T2/C/S/S2(s/s option) (There is no DVB-C signal in some Countries or Areas.) Audio Output Power 8Wx2...

  • Page 44: Supported Signal Modes

    4. Supported Signal Modes A.YPbPr Mode Resolution Horizontal Frequency (Khz) Vertical Frequency (Hz) 480i 15.734 59.94 480p(720x480) 31.468 59.94 576i 15.625 50.00 576p(720x576) 31.25 50.00 720p(1280x720) 37.50 50.00 45.00 60.00 1080i 28.13 50.00 33.75 60.00 1080P(1920x1080) 67.50 60.00 56.25 50.00 B.HDMI Mode Resolution Horizontal Frequency (Khz)

  • Page 45: Simple Troubleshooting

    5. Simple Troubleshooting If the display fails or the performance changes dramatically, check the Display in accordance with the following instructions. Remember to check the peripherals to pinpoint the source of the failure. Symptom Solution Power cannot be turned -Check that both ends of the power cable are on.(Power indicator plugged into the socket appropriately and the wall does not light.)
  • Page 46 Nadamo se da ste pažljivo pročitali uputstva i da ćete ih se pridržavati. Za više informacija o FOX uređajima posetite našu internet stranicu:...
