hengel RS10 Instructions Note

Updated Date
1 16/12/08
2 22/04/10
3 13/04/11
4 11/03/2014
Attached document
Electric diagrams+ technician parameters
Note to be preserved by the user

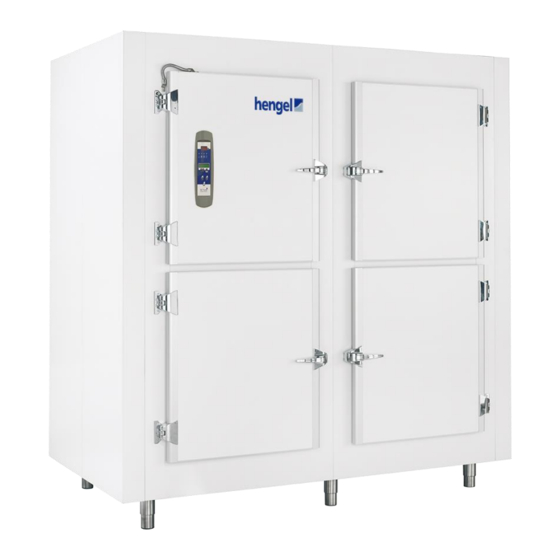

Deep - Freezer and Storage Range
Reference SC-NI-EN-2008-4
MAJOR DUO 2 and MAJOR QUATTRO 2
DUO 2 and QUATTRO 2
Basic and aditional module RCM20 to RCM3-20
Basic and aditional module RCN20 to RCN80
Basic and aditional module CCN20 to CCN80
Basic and aditional module RCP20 to RCP80
Basic and aditional module CCP20 to CCP80
To preserve by the user
Hengel, Performance at any degrees
ZA Les Berges du Rhins - 42120 PARIGNY - France
Tel: +33 4 77 23 40 00 - Fax: +33 4 77 23 40 09
INSTRUCTIONS NOTE
Nature of the evolution
Details on the assembly of shutter
Place of thermosensor probe
Adding of COMBITEMP and MULTITEMP
New keyboard with digital display Bi Tronic 2
RS10 to RS110
CS10 to CS110
X
e-mail :infos@hengel.com
website :www.hengel.com
page 1 out of 37
To preserve by the fitter
