Insignia V30 Series Quick Setup Manual

QUICK SETUP GUIDE

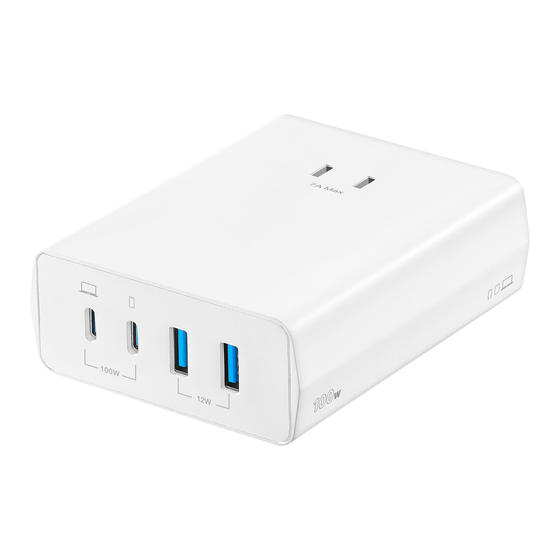

Wall Charger
100W
• NS-PW31XAC2W22B
• NS-PW31XAC2W22B-C
Before using your new product, please read these instructions to prevent any damage.
USING YOUR CHARGER
You can use your charger in four different ways. USB-C ports are suitable for laptops and tablets. USB ports are suitable for smartphones, smartwatches, and earbuds.
One port
Each USB-C port provides up to 100W of power when
used alone.
100W
POWERING YOUR CHARGER
You can power your charger in three different ways.
Using the folding blades
Flip out the folding blades, then plug the charger
into a standard wall outlet.
Folding blades
Two ports
Two USB-C ports provide 65W+20W of power when used
together.
65W
20W
Using the power cord
Slide the flat end of the power cord over the folded
blades on your charger. Plug the other end into a
standard wall outlet.
Three ports
Two USB-C ports provide 65W+20W of power when
used together. Each USB port provides up 12W of
power when used alone.
65W 20W
12W
Stacking with other chargers
To connect your chargers together for more power output and USB/USB-C ports,
extend your charger's foldable blades, then plug it into another charger. You can
stack up to four chargers.
Caution: Do not stack more than four chargers.
# of Chargers Total Power Output # of Ports
1 charger 100W 4
2 chargers 200W 8
3 chargers 300W 12
4 chargers 400W 16
Four ports
Two USB-C ports provide 65W+20W of power when
used together. Two USB ports share 15W when used
together.
15W
Shared
65W
20W
