MU-MON-DUAL

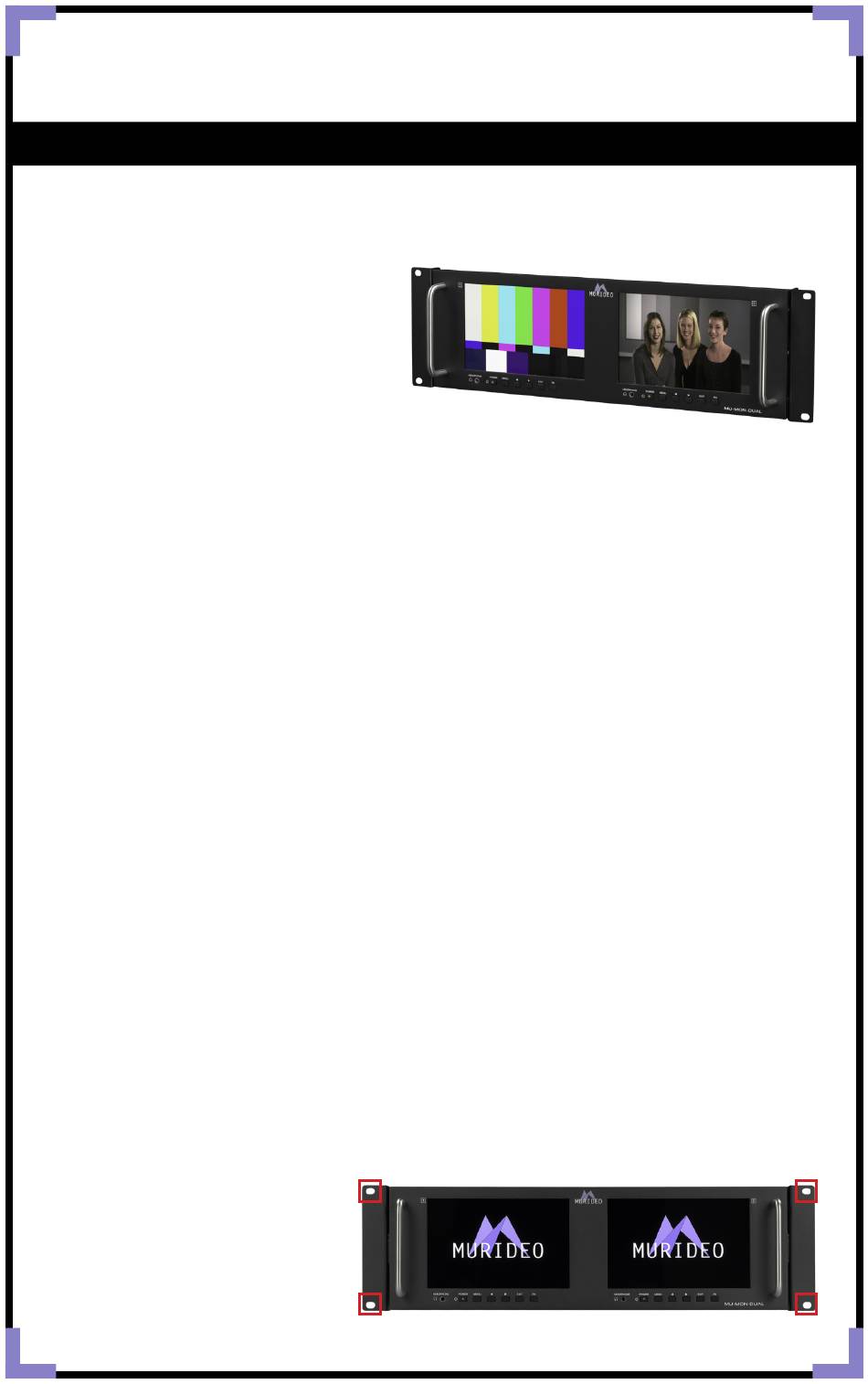

MURIDEO 4K HDMI RACK MOUNTED DUAL SCREEN TEST MONITOR
QUICK START GUIDE
Murideo's MU-MON-DUAL
is a 3 RU dual seven-inch
confidence monitor capable
of analyzing signals up to
18Gbps including 4K HDR
and HDCP 2.3. Featuring robust EDID Management, additional
HDMI Loop out ports, volume controlled stereo output, toggleable
Audio Level meter for stereo PCM Analysis, and adjustable
aspect ratio PER Monitor. The dual rack mounted analysis
monitors come with pre-attached rack ears and front handles
and is powered with only a single power supply. Allowing easy
integration in any rack environment for analysis of every signal.
•
Rack Mounted
•
18Gbps Signal Analysis
•
Audio Level Meter
•
HDMI Loop Out
•
EDID Management
INSTALLATION
1.
Mount in Rack
2. Connect Power to unit
3. Connect HDMI Source to HDMI Input (Per Monitor)
4. Connect HDMI Out to any HDMI Sink Device to send
untouched video downstream
POWER
Power Supply: 12V 2A (included)
MOUNTING
Comes with pre-
attached rack ears
ready for installation out
of box.
