Summary of Contents for Murideo Fox & Hound

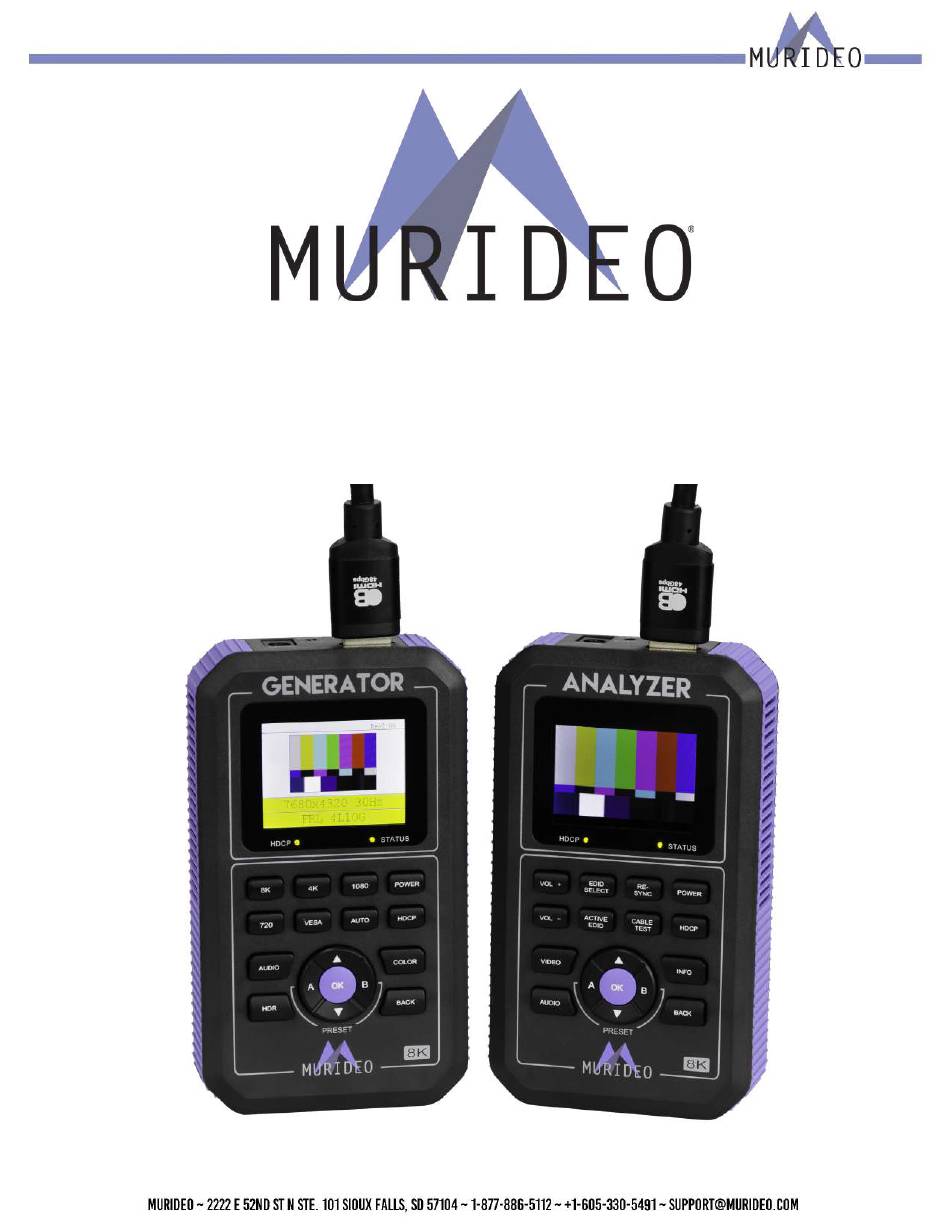

- Page 1 Fox & Hound 8K Test Kit MU-FXHD-GEN-8K HDMI 2.1 40Gbps FRL Audio/Video Generator & Analyzer...
-
Page 2: Table Of Contents
I N T R O D U C T I O N � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 3 F O X / G E N E R AT O R F E AT U R E S �... -
Page 3: Introduction
- 8K30 at 40Gbps FRL. It’s also affordable enough for every integrator to have on any install/service call! Questions regarding terminology in this manual please refer to the Murideo Support Community for more information. -
Page 4: Whats In The Box
Whats in the Box · Fox - Generator · Two 12V 2A Power Supplies · Hound - Analyzer · Two Micro USB Cables · Hard Case · Two Bullet Train HDMI Cables... -
Page 5: Audio/Video Distribution Systems - Overview
Audio/Video Distribution Systems - Overview All AV Systems are made of basically 3 main components: · Sources – This is any device that outputs HDMI – Set top boxes, game consoles, computers and more. This is a HDMI Transmitter device. Substitute the generator during system testing – use the analyzer to test the output of any source for the desired timing characteristic. -
Page 6: Front Panel Overview: Fox /Generator
FRONT PANEL OVERVIEW: Fox /Generator From Top to Bottom (Left to Right) 4. HDCP Indicator LED – Indicates the presence of HDCP ON - HDCP is enabled (1.4 or 2.2) OFF - No HDCP detected 5. Status Indicator - Indicates that a Hot Plug event has occurred and there is a successful connec- tion between the source, sink, and repeaters in the system. - Page 7 HDCP Button – Choose from a list of HDCP versions including HDCP Off, HDCP 2.2 and HDCP NOTE: You will not be able to select HDCP 1.4 if using an FRL signal (any format over 18Gbps) as per HDMI 2.1 specifications. Audio Button - Choose from 3 available options including Mute, 2Ch L-PCM, and 8Ch L-PCM.
- Page 8 Charge Status – Red LED that will illuminate when the device is charging. NOTE: If the Red LED is blinking while connected to the PSU, please contact Murideo support. DC/12V – 12V DC power port – connect the included power supply to this port to charge the unit’s internal Li-ion Battery.
-
Page 9: Front Panel Overview: Hound/Analyzer
FRONT PANEL OVERVIEW: Hound/Analyzer From Top to Bottom (Left to Right) 1. VOL + Button – Use this Button to increase the volume of the internal speaker. NOTE: This speaker will only output L-PCM audio. Any other type of audio signal will sound distorted. 2. EDID Select Button – This Button allows you to select between 5 canned (built-in) or 2 User EDIDs. - Page 10 version 2.X. · NO HDCP - If chosen, the analyzer will only accept a signal that has no HDCP (unencrypted). 9. Video Button – Press to see active video material (this will bring you to the home/preview screen). Info Button – When pressed the analyzer will display the signal & timing information of the device under test (source/repeater).
- Page 11 USB ISP – Micro USB port used for installing firmware updates if required. Charge Status – Red LED that will illuminate when the device is charging. NOTE: If the Red LED is blinking while connected to the PSU, please contact Murideo Support. Link to page that has our tech support number/email address�...
- Page 12 Video Generator: Timing & Resolution Available 8K resolutions 1 - 7680x4320 60Hz 2 - 7680x4320 50Hz 3 - 7680x4320 30Hz 4 - 7680x4320 25Hz 5 - 7680x4320 24Hz Available 4K resolutions 1 - 3840x2160 60Hz 2 - 3840x2160 30Hz 3 - 3840x2160 24Hz 4 - 4096x2160 60Hz 5 - 4096x2160 30Hz 6 - 4096x2160 24Hz Available 1080 resolutions...
- Page 13 Available 720 resolutions 1 - 720p 60Hz 2 - 720p 50Hz Available VESA resolutions 1 - 640x480 60Hz 2 - 800x600 60Hz 3 - 1024x768 60Hz 4 - 1280x1024 60Hz 5 - 1366x768 60Hz 6 - 1400x1050 60Hz 7 - 1440x900 60Hz 8 - 1600x900 60Hz 9 - 1600x1200 60Hz 10 - 1680x1050 60Hz...
- Page 14 Video Generator: AUTO Button The AUTO Button will read the EDID from the device that it is connected to. It will then output an audio video signal based on the preferred timing in that EDID. Note: Depending on the EDID information listed, you may need to press the Down Button to view the rest of the EDID.
- Page 15 Video Generator: HDCP Button The HDCP Button will bring up the available HDCP options. There are three options to choose from. · HDCP Off - · HDCP 2.2 - · HDCP 1.4 - NOTE: You will not be able to select HDCP 1.4 if using an FRL signal (any format over 18Gbps) as per HDMI 2.1 specifications no FRL Signal can be encrypted using HDCP 1.4.
- Page 16 Video Generator: AUDIO Button The AUDIO Button will bring up the AUDIO CHANNELS menu. There are three options to choose from for audio output · Mute - This will turn off the Audio output of the generator. · 2CH - This will output a 2CH L-PCM (FL/FR) audio signal. ·...
- Page 17 Video Generator: HDR Button The HDR Button will bring up the HDR menu. There are three options to choose from for audio output · HDR Off - The generator will output an SDR (Standard Dynamic Range) Signal. · HDR -10 - The generator will output a HDR-10 ·...
-
Page 18: B A S I C T R O U B L E S H O O T I N G - H D M I C A B L E T E S
Basic Troubleshooting - HDMI Cable Test Not all cables are created equal. Older cables may not meet the bandwidth requirements to pass an 8K HDMI 2.1 signal at 40Gbps. You can use the CABLE TEST function to quickly see what that cables maximum bandwidth/capabilities are. 1. - Page 19 Examples of bad cables. Examples of bad cables. Example of an FRL Signal Example of an TMDS Signal FRL Signal Cable Test 5V: Checks for the presence of 5 Volts on pin 18 of the HDMI cable. There are two possible re- sults.
-
Page 20: T R O U B L E S H O O T I N G D I S T R I B U T E D S Y S T E M - H D C P I S S U
Troubleshooting Distributed System - HDCP Issue When it comes to diagnosing an Audio Video distribution system, keep in mind that there are mul- tiple ways to use the Fox & Hound to track down a problem. Refer to the image below for steps 1 through 13 where we will cover one of the processes you can use to troubleshoot a simple distrib- uted system with an HDCP compatibility issue. - Page 21 5. If you see the image (no snow), press the HDCP button on the generator and select HDCP2.2. · If you see the image (no snow), you now know that the repeater and sink (AVR and TV/Pro- jector) are HDCP2.2 compliant. ·...
-
Page 22: B A S I C T R O U B L E S H O O T I N G A D I S T R I B U T I O N S Y S T E
Basic Troubleshooting a Distribution System When it comes to diagnosing an Audio Video distribution system, keep in mind that there are multiple ways to use the Fox & Hound to track down a problem. Refer to the image below for steps 1 through 10 where we will cover one of the processes you can use to troubleshoot a distributed system. - Page 23 7. Is the CAT cable the correct length? Are you using CAT6 or better (HDBaseT and Murideo recom- mends solid core CAT6a at the minimum)? Is the cable damaged or twisted? Did you terminate...
-
Page 24: T R O U B L E S H O O T I N G D I S T R I B U T E D S Y S T E M - E D I D I S S U
Troubleshooting Distributed System - EDID Issue When it comes to diagnosing an Audio Video distribution system, keep in mind that there are mul- tiple ways to use the Fox & Hound to track down a problem. Refer to the image below for steps 1 through XX where we will cover the steps to diagnose the symptom of no Dolby Vision at the dis- play (even though all devices in the system are capable). - Page 25 7. Investigate why the sink's (TV/Projector) EDID states that it is not Dolby Vision capable even though the manufacturer advertises that it is capable. · Verify with the manufacturer that it is Dolby Vision capable. · CHECK FIRMWARE!!!! Although advertised, some of the display's features may not be avail- able "out of the box".
-
Page 26: R E A S O N S T O C O P Y A N E D I D T O T H E A N A Ly Z E
Reasons to copy an EDID to the analyzer The analyzer has the ability to copy and save an EDID from any repeater or sink (you can copy and save up to two at a time). This is helpful when troubleshooting a system in many situations that are common but not limited to the following examples: ·... - Page 27 Common Issues Fixed Easily with the Fox and Hound Troubleshooting Kit Sparkles - Sparkles are a telltale sign of insufficient cables (for example cables that cannot pass the required bandwidth). Using both the generator and analyzer test EVERY HDMI cable in the system for functionality and capability. Verify that EVERY cable can pass the required band- width for the system to function properly.
-
Page 28: T R O U B L E S H O O T I N G T I P
Discolored video - Discolored video is generally associated with a color space mis- match. Using the analyzer in place of the display press the INFO button to view the signal info and verify whether the colorspace is RGB or YCbCr (YCbCR, YUV, YCC, and YC are all interchangeable). If there is a mismatch in color space between the source and the sink you may see the image but the image is discolored (typically green or purple). -
Page 29: Wa R R A N T Y A N D G E T T I N G H E L
MURIDEO will, at its discretion, repair or replace any defective products or parts thereof covered by this International Limited warranty with refurbished parts of the product that are equivalent to new or like new products in both functionality and performance. -
Page 30: O B Ta I N I N G T H E Wa R R A N T Y S E R V I C
If MURIDEO determines that any returned Product is not defective, or if MURIDEO determines that the defect is not covered by the warranty, MURIDEO will return the Product to the Owner at Owner’s expense, freight collect, and Owner agrees to pay MURIDEO’s reasonable cost of handling and testing;... -
Page 31: D I S C L A I M E R O F Wa R R A N T
CONSTITUTES THE BUYER’S SOLE AND EXCLUSIVE REMEDY FOR THE FURNISHING OF DEFECTIVE OR NON- CONFORMING PRODUCTS AND MURIDEO WILL NOT IN ANY EVENT BE LIABLE FOR COST OF SUBSTITUTE OR REPLACEMENT, COST OF FACILITIES OR SERVICE, DOWNTIME COSTS, LOSS OF PROFITS, REVENUES OR GOOD-... -
Page 32: G E T T I N G H E L
+1-605-330-8491 for worldwide technical support Legal Notices MURIDEO® Logos are trademarks or registered trademarks of AVPro Global Holdings, Inc. in the United States or other countries. ISF® and the ISF logo are trademarks or registered trademarks of, and are used under license from, Imaging Science Foundation, LLC.
