- Page 1 Portable Single Gas Monitor Product Manual The Essential Guide for Safety Teams and Instrument Operators Edition: 2.3 Sep 27, 2022 Part Number: 17160575-1...
-
Page 2: Table Of Contents
Content 1. Certifications ......................... 2 2. Warnings and cautionary statements ................ 3 3. Product Overview ......................3 3.1 Product Specifications ..................4 3.2 Hardware Overview ..................... 5 4. Operation and Instructions ..................6 4.1 Display Overview ....................6 4.2 Start-up, Shutdown and Always on ..............8 4.3 Configuration mode ..................... -
Page 3: Certifications
1. Certifications Directive Area Classifications Approved Standards or CB Temperature Range IECEx Ex ia IIC T4 Ga -40 ° C to +50 ° C IEC 60079-0:2017 Ed.7.0 Ex ia I Ma -40 ° F to +122 ° F IEC 60079-11:2011 Ed.6.0 ATEX Ex ia IIC T4 Ga -40 °... -
Page 4: Warnings And Cautionary Statements
3. Product Overview T40 II single gas monitor is compact, easy to carry and use. It is specially designed to detect the concentration toxic gases, and mainly used in Petrochemical industry and coal mine. The monitor can continuously monitor the concentration of harmful gas in the surrounding environment, once the gas... -
Page 5: Product Specifications
3.1 Product Specifications Item Description Display Segment LCD Keypad buttons Two buttons Technology Electrochemical Battery Pack Replaceable RAMWAY ER14335 3.6 V Primary Lithium-thionyl chloride (Li-SOCl2) battery cell, 1.65AH, 2/3AA. Two-years run time Case materials polycarbonate with a protective rubber over-mold Alarms Visual alarm (two red LEDs). -
Page 6: Hardware Overview

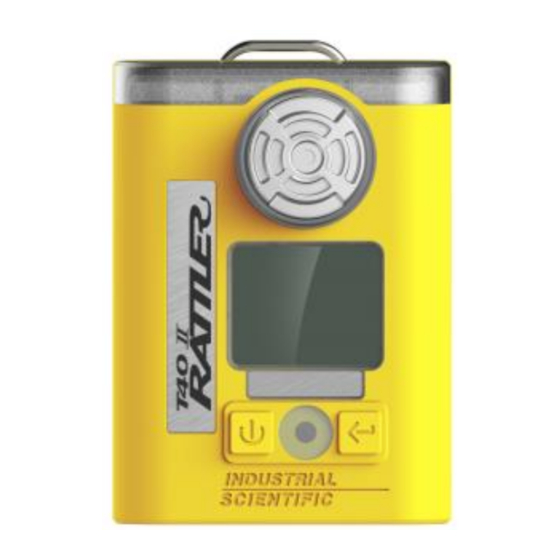

3.2 Hardware Overview T40 II Visual alarm indicator Visual alarm indicator Sensor port LCD Screen Buzzer Gas label On-off/mode button Enter/Edit button Front Clip Serial number and certificate label Screw Back Hardware overview... -
Page 7: Operation And Instructions
4. Operation and Instructions The table below list that Industrial Scientific's minimum frequency recommendations for each program. These recommendations are based on site data, safe work procedures, industry best practices and regulatory standards to help ensure worker safety. Users can reduce the frequency of the following procedures as appropriate according to the safety policy of local government or company, Industrial Scientific is not responsible for developing security practices and policies. - Page 8 STEL alarm. TWA alarm Positive over-range gas alarm. Negative over-range gas alarm. Low-battery alarm. Process and time-based indicators The zero icon is used in combination with other indicators to communicate sensor zero information. The bump test icon is used in combination with other indicators to communicate bump test information.
-
Page 9: Start-Up, Shutdown And Always On
4.2 Start-up, Shutdown and Always on Start-up Press and hold the for 3 seconds, the instrument starts to power on. After power on, the instrument automatically enters the visual test, firmware version, 20-second countdown and the second visual test screen, and is accompanied by warning sound and light test. After a short warm-up, it will automatically enter the real-time gas monitoring screen. - Page 10 • When editing a value, once the last value in the range is reached, the display starts again with the first value. • When buttons ( ) is pressed and held more than 1 seconds, the unit leaves configuration mode; it enters operation mode and the home screen is activated. •...
- Page 11 TWA alarm setpoint This screen features the status, alarm, sensor-type, configuration, and TWA icons, with the alarm's current setpoint and unit of measure. The alarm setpoint can be edited. Value increment = within the sensor measurement resolution STEL alarm setpoint This screen features the status, alarm, sensor type, configuration, and STEL icons, with the current setpoint.
- Page 12 Operation-mode bump test This screen features the status, lock, configuration, and bump test icons, with the selected setting value displayed in the main area. The technician can enable or disable this operation mode feature. When enabled, the instrument operator can bump test the unit from operation mode.
- Page 13 Vibration alarm This screen features the status, alarm, “VIb”, and configuration icons, with the selected setting value displayed in the main area. When enabled, the vibrating alarm will be activated when the unit is in alarm. Values: 0 = disabled ,1 = enabled Operation-mode zero This screen features the status, lock, zero, and configuration icons.
-
Page 14: Operation Mode
4.4 Operation mode In the operation mode, the worker can scroll through the operating mode loop by continuously pressing the on/off button ( ). The zeroing, calibration, and alarm function test procedures can only be completed if these task settings are enabled for operating mode access。 TWA, STEL (if operating mode access is enabled) and peak readings can also be viewed and cleared. - Page 15 STEL reading This screen displays when the STEL reading is enabled in operation-mode. The screen features the check mark, sensor-type, and STEL icons, and the current STEL reading. Press clear the reading then the value reset to 0 . Initiate bump test This screen displays when operation-mode bump testing is enabled.
-
Page 16: Bump Test (Or "Functional Test")
4.5 Bump test (or "functional test") Bump testing is a functional test in which an instrument's installed sensors are to be briefly exposed to (or “bumped” by) calibration gases in concentrations that are greater than the sensors’ low- alarm setpoints. This will cause the instrument to go into low alarm and will indicate which sensors pass or fail this basic test for response to gas. -
Page 17: Zeroing
4.6 Zeroing Zeroing adjusts the sensors’ “baseline” readings, which become the points of comparison for subsequent gas readings. It is a prerequisite for calibration. During zeroing, the installed sensors are to be exposed to an air sample from a zero-grade-air cylinder or ambient air that is known to be clean air. -
Page 18: Calibration
4.7 Calibration Regular calibrations promote the accurate measurement of gas concentration values. During calibration, an instrument’s installed sensors are to be exposed to their set concentrations of calibration gases. Based on the sensors’ responses, the instrument will self- adjust to compensate for declining sensor sensitivity, which naturally occurs as the installed sensors are used or “consumed”. -
Page 19: Alarms And Notifications
Take seriously all alarms, warnings, and indicators, and respond to each according to company policy. Alarms T40 II gas monitors have alarms of two different intensities, high and low. Alarms are persistent: they turn off when the alarm-causing event is no longer detected, however, if the instrument’s alarm latch is enabled, an alarm will remain on until the user presses to turn it off. -
Page 20: Replace The Battery
Low-battery warning 6. Replace the battery When the battery has 12 to 72 hours left, T40 II display Low-battery warning notification and emit 1 beep, visual and vibration alarm every 1minute. The users need contact Industrial Scientific or qualified person to replace the battery. -
Page 21: Warranty Policy
If products do not meet the warranty above, the user's sole remedy and Industrial Scientific's sole obligation (Industrial Scientific's sole and only action) is to replace or repair such products that do not meet the warranty, or as purchased the original price of the product. - Page 22 网址： www.indsci.com 服务热线：+86 400 820 2515 To locate a nearby distributor of our products or an Industrial Scientific service center or business office, visit us at www.indsci.com. Rendez-vous sur notre site Web www.indsci.com, si vous voulez trouver un distributeur de nos produits prè...
