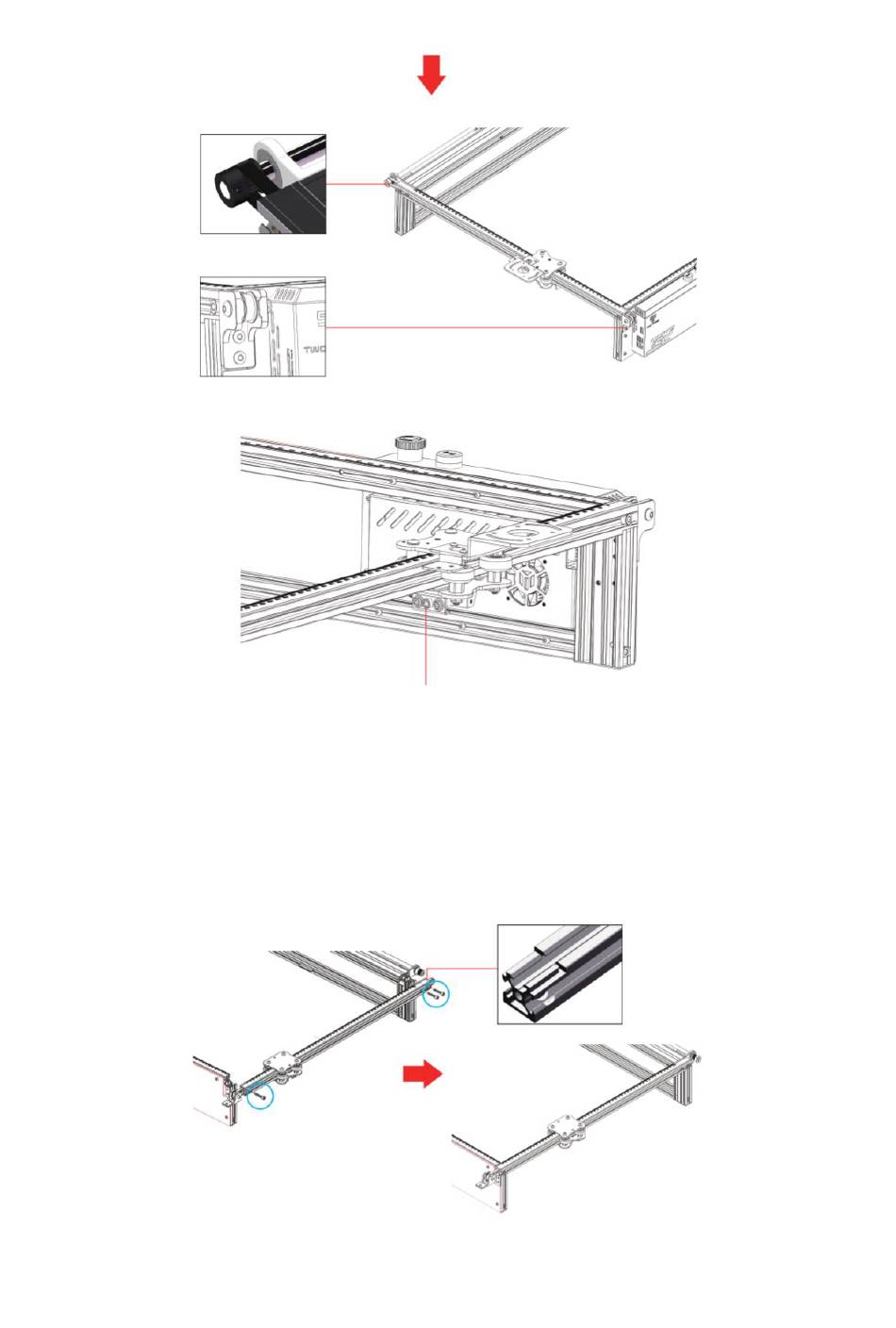

1.3 Y-axis Left Tensioner adjustment
Please tighten tensioner screw in clockwise direction with hex key or loosen the belt in
counterclockwise direction.
NOTE: If tensioner too tight, Pulley would stuck. And if too loose, it would also affect
engraving result.
1.4 Installation of Y-axis Right Frame
Y-axis Right Frame Parts x 1
Screw Bolt M5*25 x 3
