Summary of Contents for FerrulesDirect FD64K

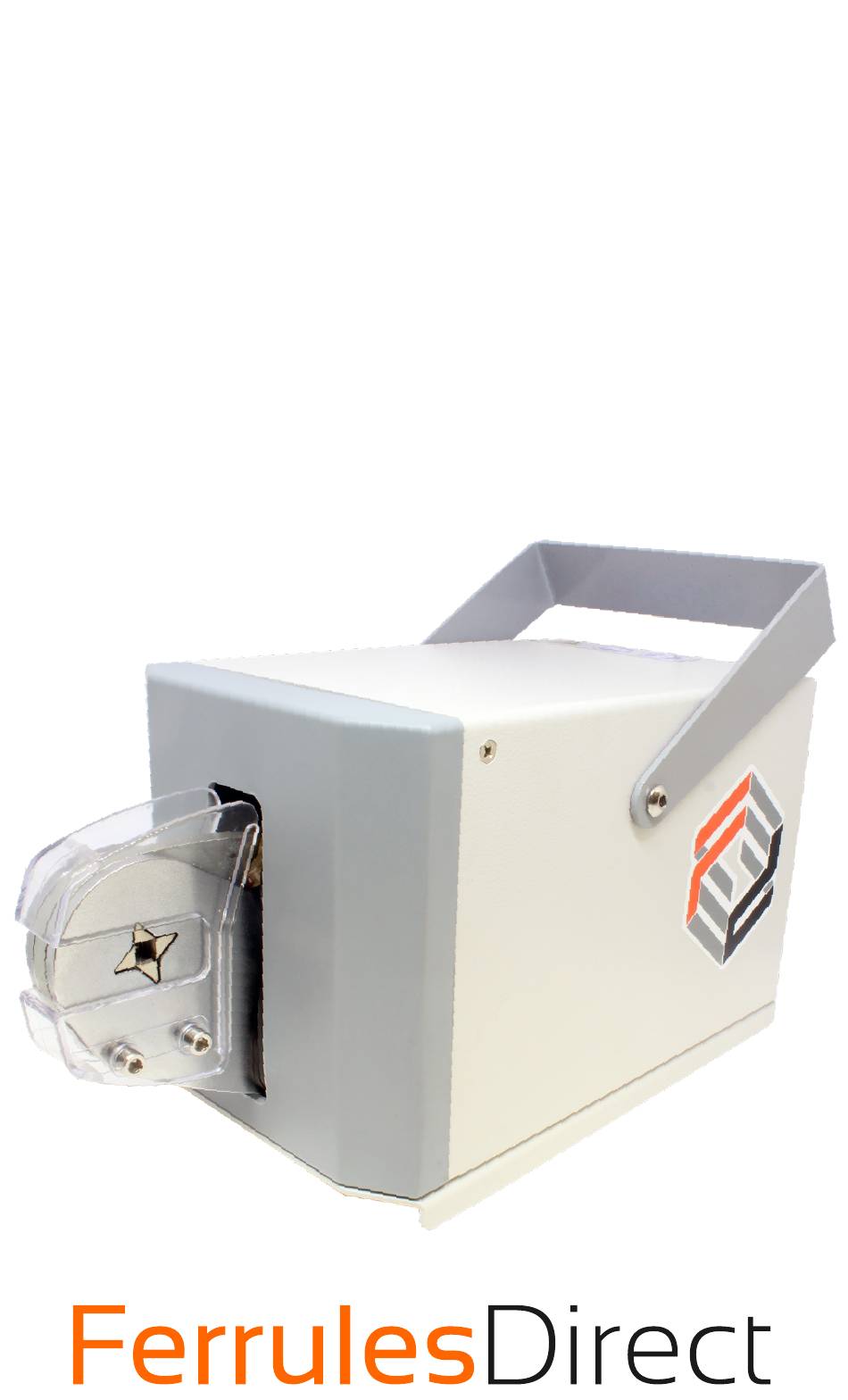

- Page 1 FD64K Pneumatic Crimping Press Operating Instructions...
- Page 2 • Heavy Duty: A Veritable work horse, the FD64K press is ideal for crimping large quantities of terminals • Light Weight: Weighing only 12.2 lbs. (6kg). The FD64K crimping...
- Page 3 FD64K Operating Instructions Installation and Operation 1. Place the FD64K on a flat surface, it can be operated without being secured. 2. Connect the FD64K and foot pedal at port A/B using the included air tubing. 3. Connect the air compressor and foot pedal at port P.
- Page 4 Ports connecting the FD64K to the air pump and foot pedal Foot Pedal Pedal controling the crimp cycle Port A/B Ports connecting the foot pedal to the air pump and FD64K Port P Port connecting the foot pedal to the air pump...
- Page 5 FD64K Operating Instructions...
- Page 6 FD64K Operating Instructions Operating Information • Use the FD64K for recommended uses only, any deviation may cause personal injury or property damage. • Wear ANSI-approved safety goggles and heavy-duty work gloves during use. • Maintain a clean and well-lit work space.
- Page 7 When not in use unplug the air tubing, block all open ports with dust caps, and turn off the air compressor. • Store the FD64K in a cool and dry place with suitable covering to prevent any buildup of rust or debris.
- Page 8 Find us on social media! Facebook.com/FerrulesDirect Twitter.com/FerrulesDirect Instagram.com/FerrulesDirect Youtube.com/FerrulesDirect Have any questions? Sales@FerrulesDirect.com (703) 421-2805...
