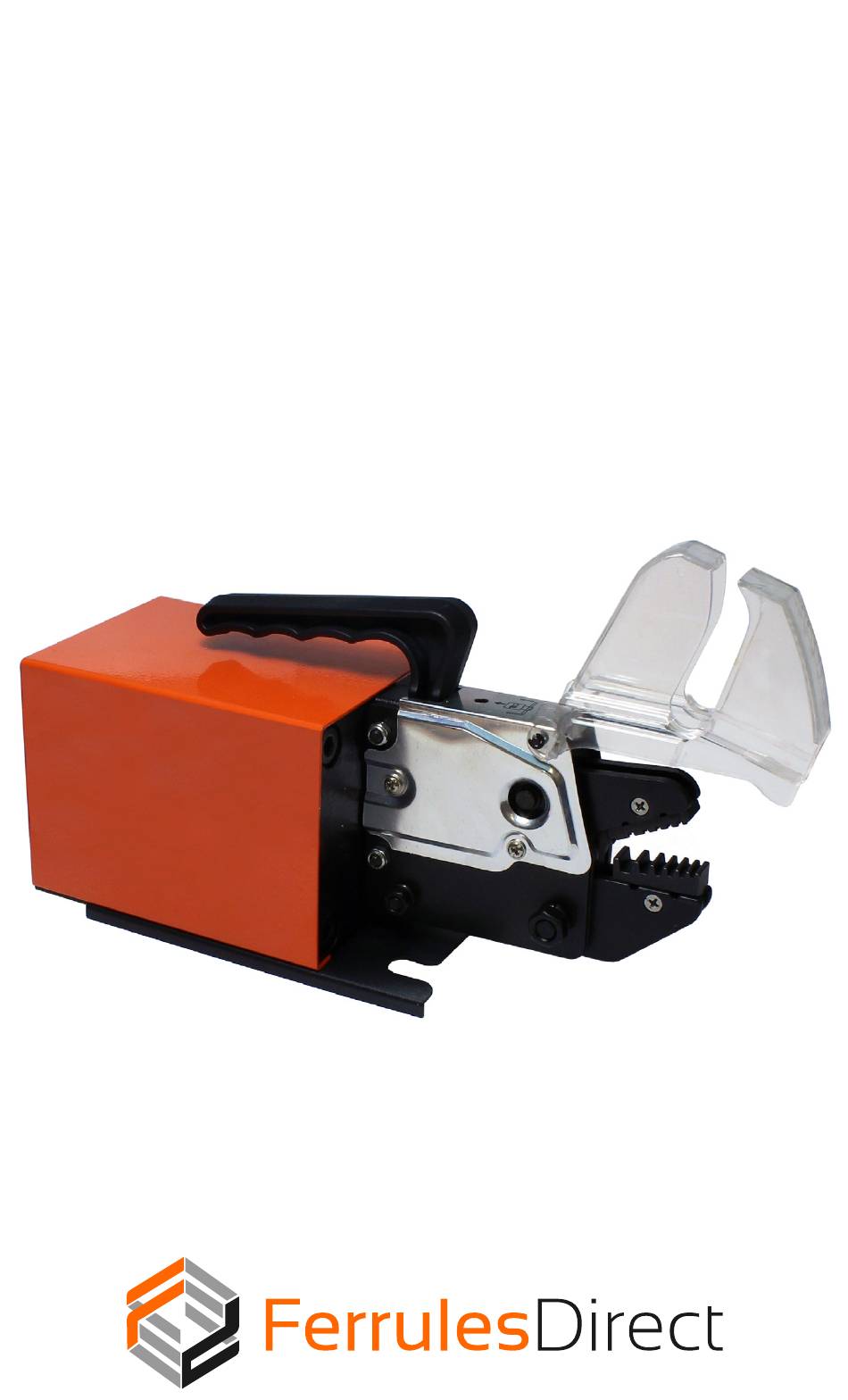

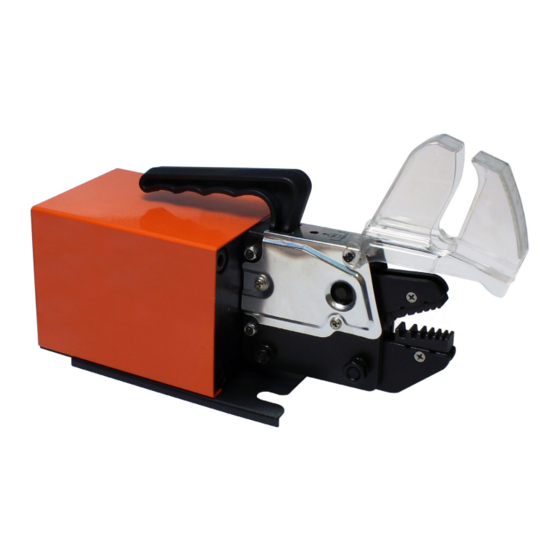

- Page 1 FD100K Terminal Crimping Machine Operating Instructions...
- Page 2 • Heavy Duty: A Veritable work horse, the FD100K press is ideal for crimping large quantities of terminals • Light Weight: Weighing only 12.20 lbs (6.0kg), the FD100K crimping press can easily be trans ported from one location to another.
- Page 3 4. Connect the air tubing to the ports located on the side of the FD100K and the foot pedal 5. The FD100K is now ready to use, while crimping keep your hands clear of the crimping head to prevent personal injury Maintenance and Storage •...
- Page 4 Operating Instructions FD100K Maintenance and Storage Name ........Pneumatic Type Crimping Machine Model # ..................FD100K Output Force ................1.35T Recommended Air pressure ..... Between 80 and 100 psi Crimping Range ............WF : 24-06 AWG T&C : 24-06 AWG Dimensions ...... 10.20 x 4.70 x 5.50” (260 x 120 x 140 mm) Weight ..............
- Page 5 FD100K Operating Instructions Compatible Die Sets 22-18 AWG 10-04 AWG 10-04 AWG 26-08 AWG 22mm Wide- 22mm Wide WDC1004D WDC2807 WDC1004-22D WDC2208D 08-04 AWG 04-01 AWG 02-01 AWG 26-10 AWG FD1025RVD WDC0401D RD3550RVD FDT10010D 22-10 AWG 22-10 AWG 08-06 AWG...
- Page 6 Operating Instructions FD100K Compatible Die Sets 14-10 AWG 22-10 AWG 22-14 AWG 20-18 AWG FDT10051D FDT10052D FDT10053D FDT10054D 18-14 AWG 12-10 AWG 22-10 AWG Coaxial Cable FDT10055D FDT10058D FDT10060D FDT1008111D Coaxial Cable Coxial Cable Coxial Cable Coxial Cable FDT1008121D FDT1008131D...
- Page 7 FD110K Operating Instructions Imporant Safety Information • Use this product only according to these instructions. Improper use can create hazards • Wear ANSI-approved safety goggles and heavy duty work gloves during use. • Keep hands and fingers away from the crimping dies when using this product.
- Page 8 Visit us at www.FerrulesDirect.com We offer an extensive selection of terminals and ferrules to complement the FD100K Pneumatic Crimping Press. Please visit out website to see our variety of products at incredibly low prices! Find us on social media! Facebook.com/FerrulesDirect Twitter.com/FerrulesDirect...
